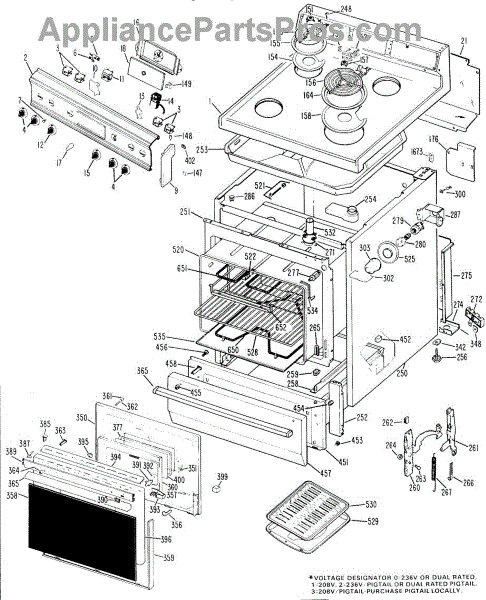

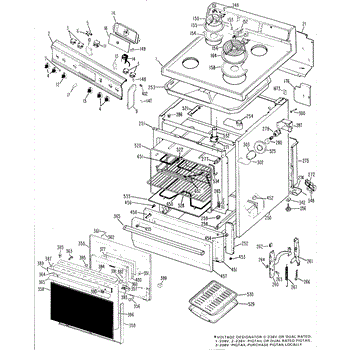

Parts for Ge JBC16GXF2: 01 - Range Parts

Burner stuck on high or won't heat? This infinite heat switch kit controls surface element temperature. Most DIYers complete in under 30 minutes.

Replace your worn, cracked, or missing range control knob. This round knob with splined shaft fits onto the control shaft to restore temperature adjustment.

Decorative lens cover for range control panel indicator lights. Replace when cracked, faded, or missing to restore appearance. Verify fit by model.

Left side endcap for electric cooktop and range models. Replaces cracked, broken, or missing endcaps to restore the finished appearance of your cooktop.

Replacement thermostat control knob for electric ranges. Installs on the control panel to adjust oven temperature. Order when original is cracked or broken.

Fix a buzzing timer or non-functioning clock with this range clock timer control. Moderate DIY installation, wiring instructions included. Fits electric ranges.

Replace cracked, broken, or missing clock and timer control knobs on your range. This kit includes three small black knobs for the timer control panel.

Fix a burner that won't heat with this 6-inch surface element. Plugs directly into your range's burner receptacle. DIY-friendly, 15-minute install.

Range won't power on or heats intermittently? A faulty terminal block disrupts electrical connections. This double terminal block restores power flow.

This 6-inch drip pan installs under your electric range coil burner to catch spills and boil-overs. Replace when cracked, warped, or excessively worn.

This 6-inch trim ring installs around your range burner for a finished look. Replace if yours is chipped, discolored, warped, or missing to restore appearance.

Range burner not heating? This 8 inch surface element restores full heating power. DIY-friendly installation takes 10-15 minutes with basic tools.

Molded trim bezel for range control panel. Covers exposed edges and restores a finished look. Replace if cracked, broken, or missing for protection.

Replace cracked, rusted, or stained 8-inch drip pans under coil burners on electric ranges and cooktops. Catches spills and protects cooktop surface.

This 8-inch trim ring installs around the burner element on your range or cooktop. Replace if cracked, discolored, rusty, or misaligned for a clean look.

Right hand side

Left hand side

Clip for door hinge.

Range won't heat or power cord overheated? A faulty terminal block disrupts power to elements. Common DIY fix with basic tools in under an hour.

Replaces dim, flickering, or burnt-out bulbs in refrigerators, ovens, and microwaves. Restores interior lighting for visibility. Verify fit with model.

Clear glass lens that protects your oven light bulb. Replace if cracked, broken, or cloudy to safely view cooking progress. Confirm fit with model number.

Hardware washer kit for various appliances. Includes 12 washers for securing components during installation or repair. Replace worn or missing washers.

Replacement door spacer bushing for electric and gas ranges, ovens, and microwaves. Installs between door and frame to maintain proper alignment.

Replace your cracked, broken, or missing range door handle. This part installs on the oven door to restore secure grip and safe door operation.

Rubber bumper for cooktop installation. Prevents vibration and provides cushioning between cooktop and cabinet. Replace if worn, cracked, or missing for stability.

Replacement mounting screw for appliances. Secures components and reduces vibration. Needed when original screws are missing, stripped, or damaged.

This is a oven rack, and it is made for ranges and ovens. This is a genuine replacement part made by General Electric. There are usually two oven racks in typical ranges or ovens. The oven rack is where dishes or sheet pans are placed so that the food is able to be cooked or baked completely. The oven racks provide a level and sturdy place for dishes.A new oven rack might be needed if the current ones are bend, dented, or broken in any way. Oven racks might become uneven or unlevel overtime and it is common that they might need replacing due to normal wear and tear. Be sure the oven is powered off and cooled down before replacing the oven rack.This is an OEM part sourced directly from the manufacturer. It is sold individually and is compatible with ranges or ovens made by General Electric.

Broiler pan for ranges and ovens. Installs in main oven cavity to hold food under broiler element. Replace if cracked, warped, or heavily stained.

Broiler pan for ranges and ovens. Installs in main oven cavity to hold food under broiler element. Replace if cracked, warped, or heavily stained.

Replace your oven door gasket when it becomes brittle, cracked, or no longer seals properly. Restores heat containment and energy efficiency. Confirm fit.

Oven door gasket seal creates an airtight barrier to maintain consistent cooking temperature. Replace when worn, cracked, or heat escapes. Verify fit.

Oven not heating or baking unevenly? This lower bake element restores proper oven temperature. DIY-friendly repair takes about 20 minutes to install.

Broiler won't heat or sparked out? This broil element restores high-heat broiling. DIY-friendly repair takes 20-30 minutes with basic tools.

8-32 thread screw fastens panels and components inside ranges, ovens, and cooktops. Replace stripped, missing, or damaged screws to secure covers properly.

This male/female electrical terminal connects appliance wiring harnesses to components, restoring a secure, conductive connection for safe operation. Use when a bent, corroded, or loose terminal causes intermittent power or loss of function. What it does:

• Provides a stable male-to-female connection for wiring and component terminals
• Restores proper electrical contact to stop intermittent power, arcing, or poor connection
• Replaces damaged, corroded, or bent terminal ends to improve safety and reliability
• Works where a direct spade/quick-disconnect style mating is required

• One male/female terminal assembly

• Always disconnect power to the appliance before inspecting or replacing electrical parts
• Use proper crimping or fastening tools; avoid exposed wire or loose connections

Small cushioning pad that spaces and protects oven door glass panels. Replace if cracked, worn, or missing to prevent glass damage and reduce noise.

Mounting screw for range installation and assembly. Replace missing, stripped, or damaged screws to secure panels, brackets, or components properly.

Replacement mounting screw for appliances. Secures components and reduces vibration. Needed when original screws are missing, stripped, or damaged.

Hex head screws for securing panels and components in ranges and ovens. Replace missing, stripped, or corroded fasteners during repairs or reassembly.
