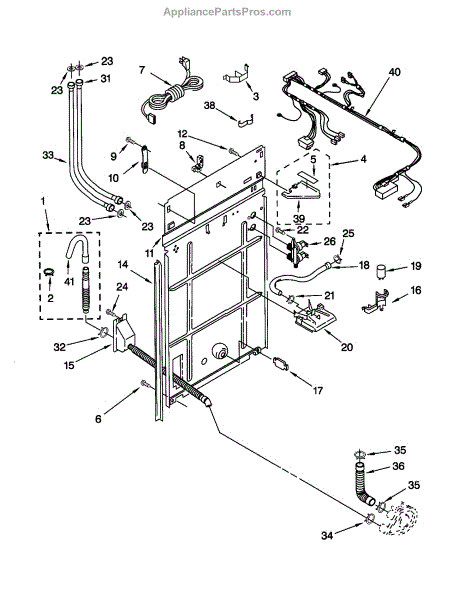

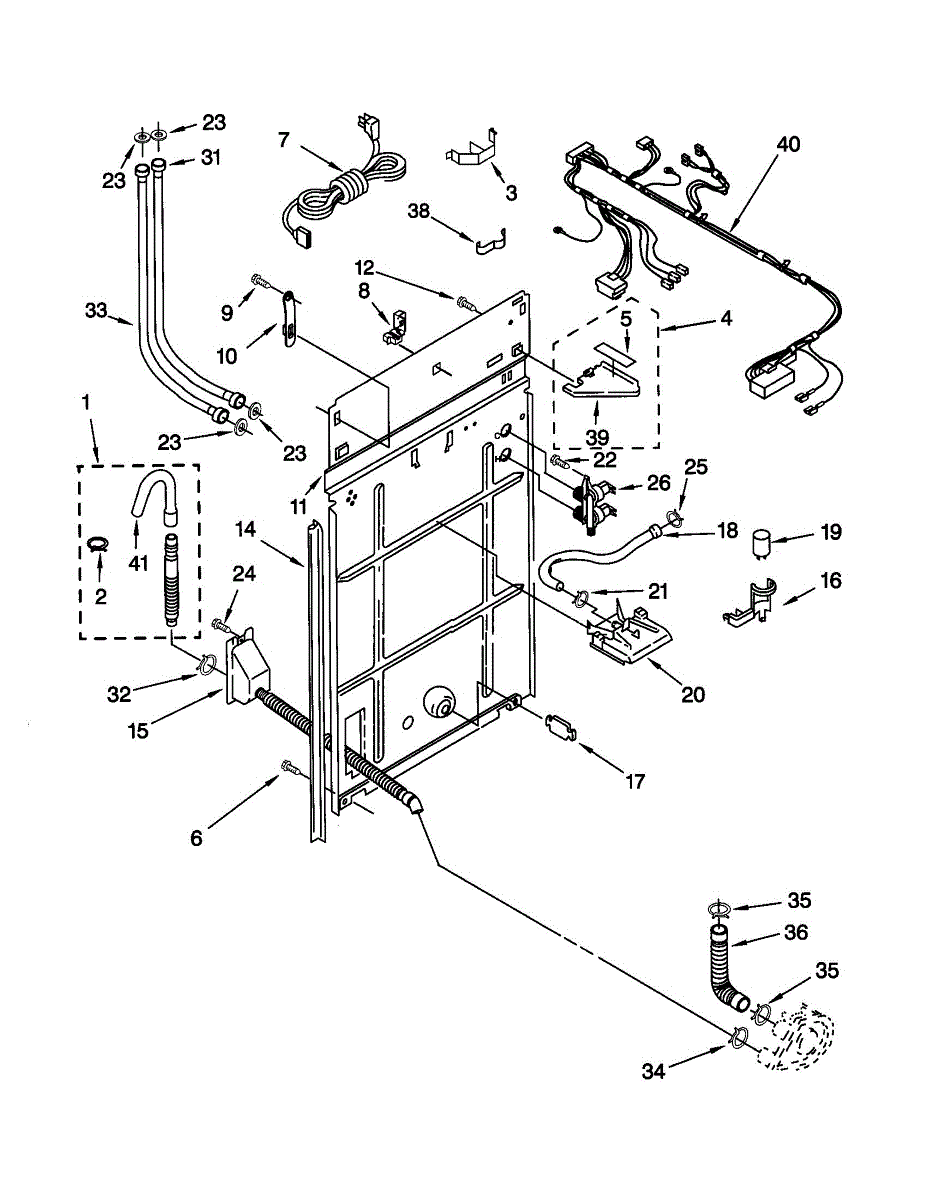

Parts for Kenmore 110.47662950 (11047662950, 110 47662950): Rear Panel Parts

Dissolves odor-causing residue and mildew buildup in washing machine tubs. Use every 30 washes to maintain freshness. Verify fit with your model.

Size: 8 foot long. This external washer drain hose is needed when there is more distance between the washer and the drain. Note: comes with 1.5" diameter clamp but hose is 1.25" in diameter; therefore you may need to order the 1.25" diameter clamp separately: WP356138

21-inch drain hose extension for washers. Extends existing drain hose when original is too short to reach standpipe. Includes clamp for secure fit.

Replace a cracked, leaking, or worn washer drain hose. 48 inches long with clamp included. Installs between pump and standpipe for proper drainage.

Leaking washer during drain cycle? This drain hose clamp secures the connection to prevent water leaks and hose pull-off from vibration or pressure.

Used on the pressure switch hose harness.

10 - 16 x 1/2

Replacement power cord that connects your washer to the wall outlet. Includes strain relief for cable protection. Needed when original cord is damaged, pinched, shorted, or worn. Direct plug-in installation.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Replacement console strap that secures the appliance control panel to the cabinet, restoring stable console alignment and preventing the control panel from shifting or sagging during use for safer, neater operation. What it does:

• Secures the control console to the cabinet to prevent wobble, tilt, or separation.
• Replaces a worn or broken strap commonly causing a loose or misaligned control panel.
• Helps reduce strain on control harnesses and connectors that can occur when the console moves.
• Matches OEM fit so the console remains properly seated and functional.

• Disconnect power to the appliance before beginning any repair.
• Typically accessed by removing the console or control panel; retain all screws and clips for reassembly.
• Use common hand tools (screwdriver, nut driver) and follow the model-specific service manual for exact steps.
• If wiring connectors are disturbed, verify secure connections before restoring power.

Size: 10-24 x 3/8 inch.

Rear panel pad cushions and insulates the appliance's rear cabinet to reduce vibration, noise and rubbing against the back panel. Replacing a damaged pad helps stop rattles and protects internal components from wear. What it does:

• Provides rear-cabinet cushioning and thermal/abrasion protection for the back panel.
• Dampens vibration and reduces operational noise.
• Prevents direct metal-to-metal contact that can cause rubbing or wear.
• Common symptom fix: reduces rattling or vibrating noises from the appliance rear.

• Always disconnect power (and gas, if applicable) before starting any repair.
• Remove the rear access panel to access the pad; replace using the original mounting points, adhesive or clips.
• Inspect surrounding insulation and mounting hardware; replace any damaged fasteners.

Internal drain hose assembly routes water from washer tub to drain pump. Replace if cracked, split, leaking, or connector is broken or damaged.

Structural bracket that secures the rear panel to the washer chassis. Replace if cracked, broken, or missing to restore proper alignment and cabinet stability.

Replaces the vacuum break inlet hose connecting the water inlet to your washer tub. Needed when original hose is cracked, burst, leaking, or damaged.

Washer just hums but won't start? The motor capacitor enables your washer to start and run. Easy 10-minute fix with our installation video guide.

Washer slowly filling or dripping when off? A faulty vacuum break allows water to siphon back into the drum. Takes 30 minutes with our video guide.

The Hose Clamp is an OEM part for Whirlpool appliances. It secures hoses in place, ensuring a tight connection and preventing leaks in various systems such as washing machines, dishwashers, and refrigerators. This clamp is crucial for maintaining the integrity of the water or air lines it secures.

Causes of a bad hose clamp include wear and tear over time, exposure to water and detergents, or mechanical stress from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Leaks at the hose connection points
• Hoses slipping off the connections
• Visible rust or damage on the clamp
• Reduced appliance efficiency due to leaks

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Switch Mounting Screw is an OEM part compatible with Whirlpool washing machines. This screw securely mounts the cycle selector switch within the control console assembly. Proper fastening ensures dependable operation of control functions.

Causes of a bad mounting screw can stem from stress cracks developing over multiple years of operation. Vibrations accumulate, slowly loosening connections housed in a wet environment.

Symptoms of a bad mounting screw include:

• Loose or rattling switch within the console face
• Difficulty selecting cycles as buttons wobble out of place
• Water intrusion hastening corrosion of electrical terminals
• Potential shock hazards if live connections are exposed

This Whirlpool replacement screw restores a tight mounting point. It is compatible with brands like Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Rubber washer gasket for washer fill hose connections. Replace if worn or leaking at coupler adapter. Measures 1-1/16 x 5/8 inch. Verify fit with model.

Dissolves odor-causing residue and mildew buildup in washing machine tubs. Use every 30 washes to maintain freshness. Verify fit with your model.

The Hose Clamp is an OEM part for Whirlpool appliances. It secures hoses in place, ensuring a tight connection and preventing leaks in various systems such as washing machines, dishwashers, and refrigerators. This clamp is crucial for maintaining the integrity of the water or air lines it secures.

Causes of a bad hose clamp include wear and tear over time, exposure to water and detergents, or mechanical stress from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Leaks at the hose connection points
• Hoses slipping off the connections
• Visible rust or damage on the clamp
• Reduced appliance efficiency due to leaks

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Washer won't fill or drips water after cycle? The water inlet valve controls hot and cold water flow. DIY-friendly repair with video guide included.

Size: 5 foot long. Rubber fill hose used on most automatic washing machines. Two hoses used per machine.

The Spring Tension Hose Clamp is an OEM part for Whirlpool washing machines. It is designed to secure hoses in place, preventing leaks by maintaining consistent tension on the hose connections.

Over time, spring tension hose clamps can lose their effectiveness due to metal fatigue, corrosion, or damage from frequent tightening and loosening. This can lead to leaks and improper hose connections.

Symptoms of a bad spring tension hose clamp include:

• Water leaks around hose connections
• Loose or disconnected hoses
• Unusual noises or vibrations during operation
• Water pressure issues within the washing machine

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Size: 5 foot long. Rubber fill hose used on most automatic washing machines. Two hoses used per machine.

The Hose Clamp is an OEM part for Whirlpool washing machines. This clamp secures the hose in place, ensuring a tight connection and preventing leaks during operation. It is essential for maintaining the integrity of the washing machine's water system, securing hoses that carry water to and from the washer.

Common causes of a bad hose clamp include rust, physical damage, or loosening from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Water leaks around the hose connection points
• The hose slipping off the fitting
• Visible rust or wear on the clamp
• Difficulty in tightening the clamp to secure the hose

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

This hose clamp secures a hose connection to prevent leaks and keep your appliance running smoothly. It provides a tight, reliable hold on the hose fitting so water or air stays contained during operation.

• Tightens around a hose and fitting to maintain a secure seal
• Helps stop drips, seepage, or loose connections
• Common fix when you see moisture around a hose joint
• Useful if a clamp is rusted, stretched, or no longer holding tension

• Unplug power and shut off water (if applicable) before servicing
• Note clamp position/orientation before removal
• Use appropriate screwdriver or nut driver to tighten evenly
• Do not overtighten—ensure a snug, leak-free seal without damaging the hose

Replacement drain hose connecting washer tub to pump assembly. Replace if cracked, split, leaking, or worn. Carries water from tub during drain cycle.

Drain hose nozzle that attaches to the end of your washer's drain hose. Replace if cracked, broken, or missing to ensure proper hose connection.

Touch-up paint. Color: Almond. Size: 1 qt. can. (Uncut)

Color: White. Size: 1 qt. can. Acrylic appliance paint.

Use only in brake shoe assembly on roller & pin. Color: White/Grey.

Connects drain hose sections to prevent leaks and restore proper wastewater drainage. Replace if coupling cracks or connection leaks during draining.

Color: Gray. Size: 13 oz. can. Used for coating the dryer drum interior. Acrylic appliance paint.

Touch-up paint for appliances in almond color. Repairs chips, scratches, and worn spots on ovens, refrigerators, microwaves, and dryers.

Almond. Size: 13 oz. can. Acrylic appliance paint.

Lubricates transmission gears for smooth wash and spin cycles. Replace when degraded or after transmission repairs. Verify compatibility with your model.

Touch-up paint for covering scratches, chips, and minor blemishes on appliance exteriors. Restores appearance and protects surfaces when finish is damaged.

Color: White. Size: 13 oz can. Acrylic appliance aerosol can spray paint.

The Appliance Spray Paint is an OEM part for Whirlpool appliances, designed to provide a quick and effective way to touch up or completely refinish the exterior of various appliances. This specialty spray paint is formulated to adhere to metal surfaces, offering a durable and resistant finish that can withstand the routine wear and tear of kitchen environments, including heat, moisture, and everyday use.

The primary reason for using such a specialized paint is to maintain or restore the aesthetic appeal of your appliances while protecting them from further damage.

Symptoms needing for Appliance Spray Paint include:

• Scratches, chips, or rust spots on the appliance's exterior that can lead to further damage or corrosion if left untreated
• A desire to refresh or update the appearance of the appliance without the need for complete replacement
• Discoloration or fading of the original finish due to age, exposure to sunlight, or cleaning agents

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Dissolves odor-causing residue and mildew buildup in washing machine tubs. Use every 30 washes to maintain freshness. Verify fit with your model.
