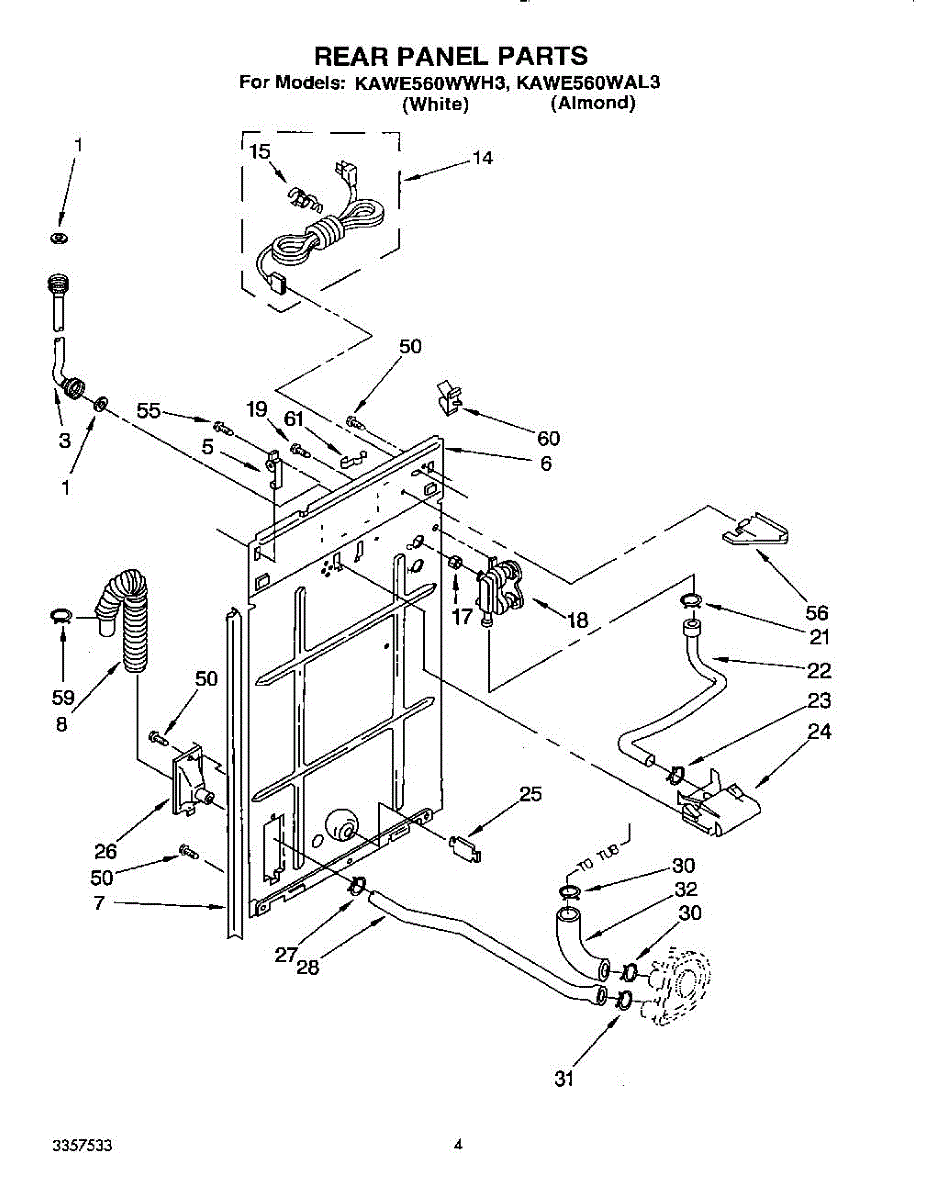

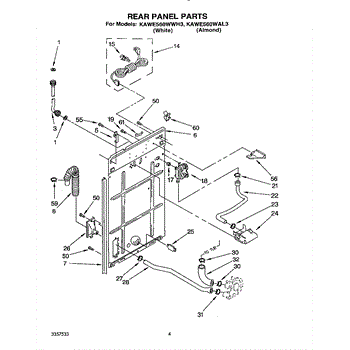

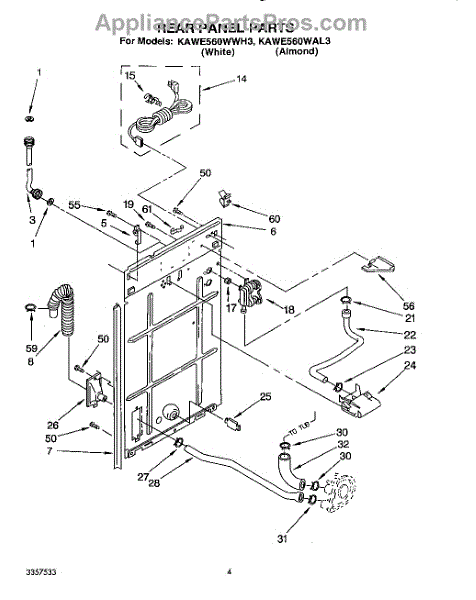

Parts for Kitchenaid KAWE560WAL3: 03 - Rear Panel Parts

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

Size: 1-1/16 x 5/8 inch. Used for fill hose. For a 4 pack order 285448A

Size: 5 foot long. Rubber fill hose used on most automatic washing machines. Two hoses used per machine.

Used for control panel.

Rear panel pad cushions and insulates the appliance's rear cabinet to reduce vibration, noise and rubbing against the back panel. Replacing a damaged pad helps stop rattles and protects internal components from wear. What it does:

• Provides rear-cabinet cushioning and thermal/abrasion protection for the back panel.
• Dampens vibration and reduces operational noise.
• Prevents direct metal-to-metal contact that can cause rubbing or wear.
• Common symptom fix: reduces rattling or vibrating noises from the appliance rear.

• Always disconnect power (and gas, if applicable) before starting any repair.
• Remove the rear access panel to access the pad; replace using the original mounting points, adhesive or clips.
• Inspect surrounding insulation and mounting hardware; replace any damaged fasteners.

Size: 8 foot long. This external washer drain hose is needed when there is more distance between the washer and the drain. Note: comes with 1.5" diameter clamp but hose is 1.25" in diameter; therefore you may need to order the 1.25" diameter clamp separately: WP356138

Size: 48 inches long. Clamp included. For 21 inch extension use 285702.

This is a replacement power cord that supplies electrical power from a wall outlet to your appliance. A fresh cord helps ensure safe, reliable power delivery when the original is damaged, overheated, or worn.

• Delivers household power to the unit's main electrical connection
• Replace if the cord is cut, cracked, burnt, loose, or intermittently powers the appliance
• Helps resolve issues like no power, tripping breakers, or visible cord damage

• Unplug the appliance and turn off the circuit breaker before starting
• Verify outlet type and cord routing match your original installation
• Transfer any cord clamp/retainer as needed and secure against sharp edges
• Inspect for proper grounding and test operation before returning to service

This adapter tube assembly connects sections of the appliance's water line to create a secure, leak-resistant path for water flow. Replace it if the tube is cracked or the connection no longer seals properly to prevent leaks and restore flow.

• Connects water tubing between components within the appliance's water system
• Helps maintain a tight, leak-resistant seal at the joint
• Restores proper water flow when a tube or connector is damaged
• Typical symptoms: water leaking at the connection, reduced or no water flow, visible cracks/kinks, loose fit

• Disconnect power and shut off the water supply before servicing
• Relieve line pressure and place a towel or pan to catch any residual water
• Note routing and orientation before removal to ensure correct reassembly
• After installation, restore water and check all connections for leaks

The Water Inlet Valve is an OEM part for Whirlpool washing machines. It controls the flow of hot and cold water into the washer. This component is crucial for starting the wash cycle, as it opens to allow water to enter and closes to stop the flow once the appropriate level is reached, ensuring efficient wash performance.

Causes of a bad Water Inlet Valve can include mineral deposits and sediment build-up, which can obstruct the flow of water, or mechanical failure such as a broken solenoid that prevents the valve from opening or closing properly.

Symptoms of a bad Water Inlet Valve include:

• Water not filling the tub at the beginning of the cycle
• Water leaking from the valve
• Washer not starting due to inability to fill
• Unusual noises from the valve area during operation

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Size: 10-24 x 3/8 inch.

The Hose Clamp is an OEM part for Whirlpool appliances. It secures hoses in place, ensuring a tight connection and preventing leaks in various systems such as washing machines, dishwashers, and refrigerators. This clamp is crucial for maintaining the integrity of the water or air lines it secures.

Causes of a bad hose clamp include wear and tear over time, exposure to water and detergents, or mechanical stress from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Leaks at the hose connection points
• Hoses slipping off the connections
• Visible rust or damage on the clamp
• Reduced appliance efficiency due to leaks

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Vacuum Break Inlet Hose is an OEM part for Whirlpool washing machines. This hose is designed to prevent backflow of water into the washer, ensuring that water flows in the correct direction during the wash cycle. It plays a crucial role in maintaining the efficiency and hygiene of the washing process.

Common causes of a bad hose include regular wear and tear, exposure to harsh detergents, or accidental punctures. A compromised hose can lead to water flow issues and potentially contaminate the wash water.

Symptoms of a bad vacuum break inlet hose include:

• Water leakage around the hose area
• The washer not filling properly
• Backflow of water into the washer
• Reduced water pressure during the wash cycle

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Hose Clamp is an OEM part for Whirlpool appliances. It secures hoses in place, ensuring a tight connection and preventing leaks in various systems such as washing machines, dishwashers, and refrigerators. This clamp is crucial for maintaining the integrity of the water or air lines it secures.

Causes of a bad hose clamp include wear and tear over time, exposure to water and detergents, or mechanical stress from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Leaks at the hose connection points
• Hoses slipping off the connections
• Visible rust or damage on the clamp
• Reduced appliance efficiency due to leaks

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

The Vacuum Break is an OEM part for Whirlpool washing machines, designed to prevent the siphoning of water back into the machine once it has been drained. This part ensures that dirty water does not re-enter the wash drum, maintaining the cleanliness of the wash cycle and protecting the integrity of the clothes being washed.

A malfunctioning Vacuum Break can lead to various issues, including inefficiencies in water use, prolonged or ineffective wash cycles, and even the risk of mildew or odors developing from standing water.

Symptoms of a bad Vacuum Break include:

• Water siphoning back into the tub after the spin cycle
• Unusual noises coming from the washing machine during or after the drain cycle
• Clothes being wetter than usual at the end of the cycle, indicating incomplete draining
• Potential leaks or water buildup at the back of the washing machine

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This rear panel support is the structural bracket that secures the appliance's rear cover/backguard in place. Replacing a worn or broken support restores proper alignment, helps protect internal components, and reduces vibration noise.

• Secures the rear panel/backguard to the chassis for stable, proper fit
• Maintains alignment of panels and mounting points
• Helps minimize vibration, flexing, and rattles from a loose rear panel
• Common signs of failure: cracked or missing bracket, stripped mounting points, panel movement or buzzing

• Disconnect power at the breaker; shut off gas supply
• Pull the appliance forward carefully to access the back; protect flooring
• Remove fasteners, replace the damaged support, and reuse original hardware/clips
• Keep wiring clear of sharp edges; tighten screws evenly without over-torquing and check for vibration before repositioning

The Internal Drain Hose is an OEM part for Whirlpool washing machines. This hose is responsible for carrying used water from the washer tub to the drain pump, facilitating the efficient removal of water during the drain cycles. It ensures that water is properly directed out of the washer, preventing leaks and maintaining optimal washing performance.

Causes of a bad internal drain hose can include blockages from debris or lint, wear and tear from regular use, or damage such as cracks or splits from mishandling or aging.

Symptoms of a bad internal drain hose include:

• Water leaking inside or around the washer
• Slow or incomplete draining
• Error codes related to draining issues
• Unusual noises during the drain cycle

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Spring Tension Hose Clamp is an OEM part for Whirlpool washing machines. It is designed to secure hoses in place, preventing leaks by maintaining consistent tension on the hose connections.

Over time, spring tension hose clamps can lose their effectiveness due to metal fatigue, corrosion, or damage from frequent tightening and loosening. This can lead to leaks and improper hose connections.

Symptoms of a bad spring tension hose clamp include:

• Water leaks around hose connections
• Loose or disconnected hoses
• Unusual noises or vibrations during operation
• Water pressure issues within the washing machine

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Hose used from Pump to drain connector.

Spring-style hose clamp that secures flexible appliance hoses to fittings, helping keep connections tight to reduce leaks and maintain proper water flow. Use it to replace a worn or damaged clamp and restore a reliable hose seal. What it does:

• Compresses around a flexible hose to lock it onto barbs or fittings
• Helps prevent drips, leaks, and water pooling at hose connections
• Keeps hoses from slipping off during appliance operation
• Useful when a clamp is corroded, stretched, or no longer holds tension

• Disconnect power and shut off water to the appliance before starting any repairs
• Use pliers to compress the clamp for removal and installation; keep hands and face clear when releasing tension
• Inspect the hose and fitting for damage; replace the hose if cracked or excessively worn

Spring-style hose clamp that secures flexible appliance hoses to fittings, helping keep connections tight to reduce leaks and maintain proper water flow. Use it to replace a worn or damaged clamp and restore a reliable hose seal. What it does:

• Compresses around a flexible hose to lock it onto barbs or fittings
• Helps prevent drips, leaks, and water pooling at hose connections
• Keeps hoses from slipping off during appliance operation
• Useful when a clamp is corroded, stretched, or no longer holds tension

• Disconnect power and shut off water to the appliance before starting any repairs
• Use pliers to compress the clamp for removal and installation; keep hands and face clear when releasing tension
• Inspect the hose and fitting for damage; replace the hose if cracked or excessively worn

The Tub to Pump Hose is an OEM replacement part for Whirlpool washing machines. It connects the washer tub assembly to the pump, carrying water drained from the tub into the pump housing. This hose is a component that allows the machine to drain water efficiently during the spin cycle.

Causes of a bad tub to pump hose can include mineral buildup that restricts water flow, fatigue and wearing that cause cracks or splits, damage from rodents or sharp/heavy objects in the wash load, and deterioration from age that increases brittleness.

Symptoms of a bad hose include:

• Water leaks during or after the drain cycle
• Inability to fully drain water from the tub
• Water remaining in the tub after spinning

This genuine Whirlpool OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

10 - 16 x 1/2

This cover screw secures appliance panels and covers, keeping components protected and aligned. Replace missing, stripped, or corroded screws to restore a tight fit and help eliminate rattles, gaps, or panels that won't stay in place.

• Attaches an access cover or panel to the appliance frame
• Helps maintain proper alignment to protect internal components
• Replaces missing, stripped, or rusted hardware
• Typical signs: loose or rattling panel, cover won't stay secure, damaged or rounded screw head

• Disconnect power before servicing
• Support the panel while removing and installing screws to prevent misalignment
• Start threads by hand to avoid cross-threading; do not overtighten
• Use a matching driver bit to avoid damaging the screw head

This drain hose clamp secures the hose connection to keep water where it belongs during the drain cycle. A tight, reliable clamp helps prevent leaks and hose pull-off from vibration or pressure changes. What it does:

• Secures the drain hose to a pump outlet or drain port to maintain a watertight seal
• Helps prevent the hose from slipping off during operation
• Reduces leaks at the hose connection point
• Common symptoms of a bad clamp: water leaking at the drain hose joint, a loose/detached hose, or a visibly rusted/broken clamp

• 1 clamp

• Disconnect power and turn off the water supply; place a towel to catch residual water
• Access the hose connection, remove the old clamp, and inspect the hose end and fitting; replace the hose if cracked or swollen
• Position the new clamp correctly over the hose and behind the fitting bead; tighten/seat evenly without overtightening
• Reassemble and run a brief drain test to check for leaks

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.
