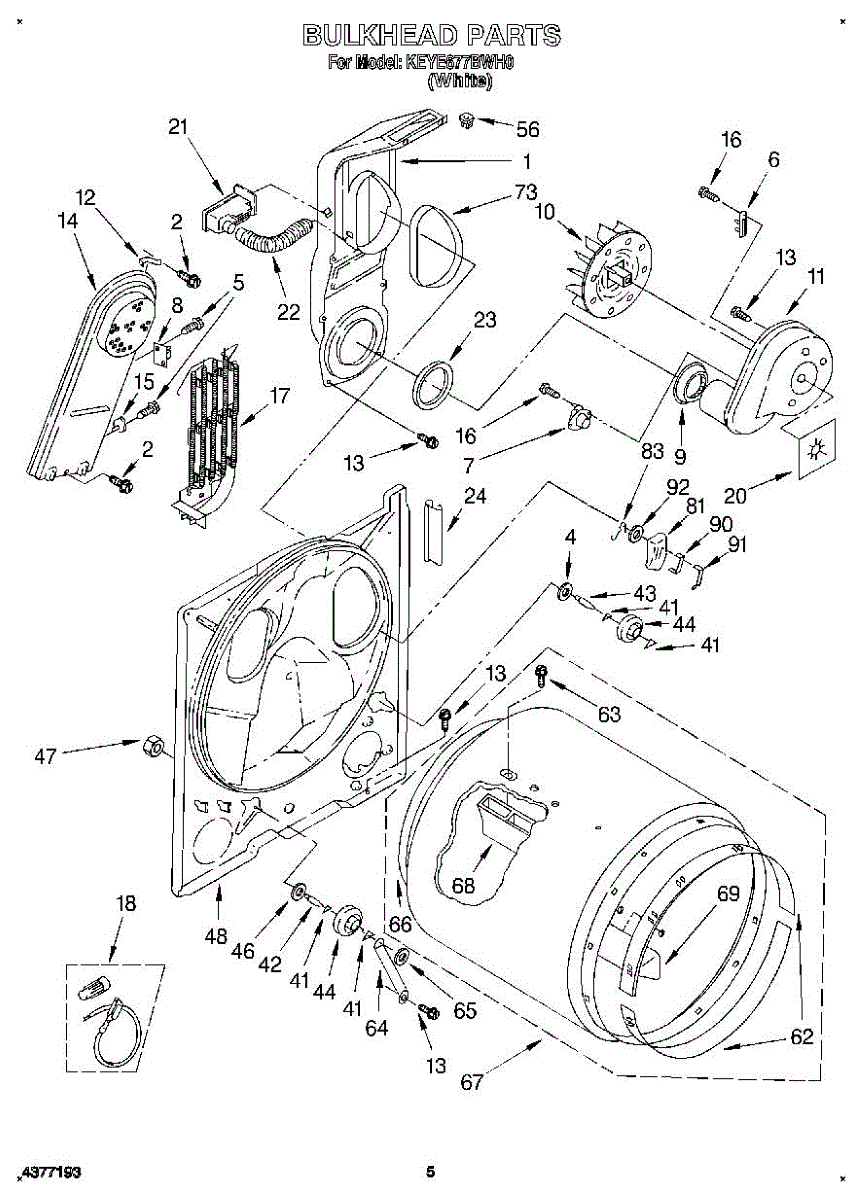

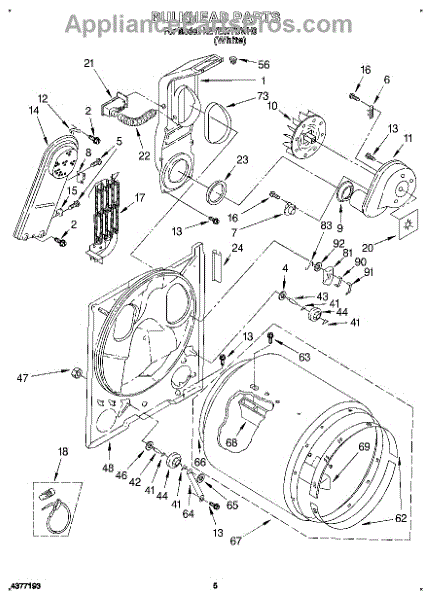

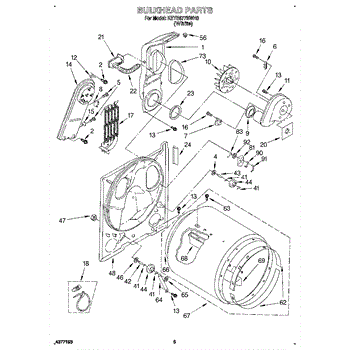

Parts for Kitchenaid KEYE677BWH0: 03 - Section Parts

This factory fastener secures appliance components and panels, helping keep assemblies properly aligned and tight. Replace worn, stripped, or missing hardware to eliminate looseness and vibration and maintain safe, reliable operation.

• Fastens brackets, panels, trim, and internal assemblies to the cabinet/frame
• Helps maintain alignment of doors, consoles, or covers
• Restores a tight fit to reduce rattling, vibration, or shifting
• Common symptoms: missing screw, stripped head/threads, loose panel or handle, recurring vibration/noise

• Disconnect power (and shut off gas/water if applicable) before servicing
• Match thread and length to the original fastener for proper fit
• Start threading by hand to avoid cross-threading; use the correct driver
• Do not overtighten into plastic or thin sheet metal

This flat support washer provides a stable bearing surface under a fastener. Its 1-1/2-in diameter helps distribute load, maintain spacing, and keep components aligned so hardware stays tight and assemblies operate smoothly. What it does:

• Distributes clamping force to prevent pull-through and gouging
• Maintains proper spacing and alignment between mating parts
• Helps reduce vibration, rubbing, or wobble from a loose assembly
• Replaces a cracked, deformed, or missing support washer

• One support washer

• Disconnect power and shut off water/gas before servicing.
• Note the order and orientation of any washers/spacers during disassembly.
• Inspect mating hardware and surfaces; replace any worn or damaged parts.
• Tighten fasteners to manufacturer specifications—do not over-tighten.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Stop dryer downtime in its tracks — install the Whirlpool WP3392519 OEM Thermal Fuse in minutes.

OEM Quality Fast 1–2 Day Shipping* Free Tech Help

Why choose this fuse?

• Guaranteed OEM: built by Whirlpool to Whirlpool specs — no risky aftermarket clones.
• Broad compatibility: works with Whirlpool, Kenmore, Maytag, KitchenAid, Roper & more.
• Quick delivery: over 94 % of APP orders arrive in 2 days or less.

Fixes these common dryer problems

4-step DIY installation (≈10 min)

1. Unplug dryer and remove rear panel.
2. Locate thermal fuse on blower housing.
3. Transfer wires; secure new fuse with ¼-inch nut-driver.
4. Clean the vent & lint path before testing to prevent repeat failure.

*Video tutorial below.

Ready to get heat back?
Click Add to Cart now & enjoy industry-leading 1–2 day delivery on

This Dryer Cycling Thermostat is an OEM replacement part for Whirlpool dryers. It monitors internal temperatures and cycles power to the heating element accordingly. The thermostat ensures the drying air reaches and maintains the optimal heat level selected for fast, effective drying results.

Symptoms of a bad cycling thermostat include:

• The dryer not heating or heating inconsistently
• Frequent trips of the circuit breaker
• Slower than normal drying times
• Burned clothes due to overheating

Causes of failure may be related to normal wear over time, dust buildup affecting sensor readings, or incorrect thermostat calibration.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Thermal Cut-Off Kit is an OEM part for Whirlpool dryers. This safety kit is designed to protect the dryer from overheating by interrupting the heat source when the dryer air temperature reaches dangerously high levels. The kit typically includes one high-limit thermostat and one thermal cut-off fuse. These components are critical for preventing potential fire hazards by ensuring that the dryer operates within safe temperature ranges.

Symptoms of a failing thermal cut-off kit include:

• Dryer not heating up at all, as the thermal fuse may have been triggered
• Excessive heat in the dryer, prior to the fuse being triggered
• Frequent stopping of the dryer during cycles

Causes of thermal cut-off failure often involve restricted airflow (from lint buildup or obstructed vents), component failure within the heating system, or issues with the dryer cycling thermostat that cause abnormal heating.

This OEM part is also compatible with Kenmore, Maytag, KitchenAid, Roper, and other brands manufactured by Whirlpool.

This factory shield is a protective panel used within the appliance assembly. It helps guard nearby components and maintain proper operation by directing heat, air, or moisture as designed. Replacing a damaged or missing shield restores correct fit and protection.

• Provides a protective barrier for internal components in the specified area
• Helps manage airflow/heat/moisture path as engineered for the system
• Replace if cracked, warped, missing, or not securing firmly
• Typical signs include visible damage, rubbing/rattling, or evidence of heat/moisture exposure near the shield

• Disconnect power; shut off gas/water if applicable before servicing
• Access the location per your model's service information
• Transfer and reuse original clips/fasteners as needed; do not overtighten
• Verify alignment and clearances before reassembly and testing

The Blower Wheel is an OEM part for Whirlpool dryers. This component is crucial for the proper circulation of hot air within the dryer drum, ensuring efficient drying of clothes by directing airflow through the drum and out the exhaust.

Common causes of a bad blower wheel include accumulated lint and debris obstructing the wheel, physical damage from foreign objects, or general wear from prolonged use. A faulty blower wheel can significantly reduce drying efficiency and may cause the dryer to overheat.

Symptoms of a bad blower wheel include:

• Longer drying times for clothes
• Unusual noises during the drying cycle
• Overheating of the dryer
• Poor airflow from the dryer vent

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This blower housing assembly directs airflow from the dryer's drum to the exhaust, helping the appliance vent properly for efficient drying. It replaces a damaged or cracked housing to restore correct air path and reduce airflow loss. What it does:

• Guides air from the drum to the blower wheel and exhaust vent for proper drying performance
• Supports and locates the blower wheel and related seals to maintain airflow integrity
• Can reduce or stop airflow issues like poor drying or extended cycle times when cracked or broken
• May resolve abnormal noise caused by a loose or damaged housing contacting the blower wheel

• One blower housing assembly

• Disconnect electrical power (and gas supply for gas dryers) before servicing
• Access typically requires removing the dryer cabinet or back panel; follow the OEM service manual
• Inspect the blower wheel and motor while replacing the housing; replace any worn components
• After installation, check for proper wheel clearance and exhaust airflow and quiet operation

This retainer clip secures a component in place to prevent movement and maintain proper alignment during appliance operation. Replacing a damaged or missing clip helps restore safe, reliable performance.

• Holds the mating part firmly to reduce vibration and noise
• Helps prevent intermittent operation caused by loose fitment
• Common fix when a component feels loose, rattles, or won't stay seated

• Disconnect power and shut off gas/water before servicing
• Note original clip orientation and location before removal
• Use needle-nose pliers to carefully release and install the clip
• Do not over-bend the clip; replace if deformed or fatigued

A replacement mounting screw to secure appliance panels and components so parts stay properly fastened during normal use. Small but essential hardware for stable, rattle-free operation and reliable repairs. What it does:

• Fastens panels, brackets or components to the appliance chassis
• Prevents loose panels, vibration noise, or parts shifting during operation
• Used when original screw is lost, damaged, or stripped
• Restores proper fit and alignment after disassembly for service

• Disconnect power and water before starting any repair
• Use the correct screw type and length; do not force or substitute oversized fasteners
• Tighten until snug—avoid overtightening to prevent stripped threads or cracked parts
• Keep small parts away from children and pets

Specs: 10-16 x 1/2 inch.

This is the heater box only, does not include heating element.

This Thermostat L225 is a temperature limit thermostat that helps regulate heat and prevent overheating in the appliance. It restores proper temperature control so the unit runs safely and more reliably. What it does:

• Acts as a temperature-regulating limit switch to stop heating when limits are reached
• Prevents overheating by opening the circuit at excessive temperatures
• Common symptom: appliance heating inconsistently or cutting out during cycles
• Can be checked for continuity when diagnosing heating problems

• Always disconnect power to the appliance before starting any repair
• Handle and install the part in the same orientation and mounting as the original
• Verify electrical connections are secure and use a multimeter to test continuity
• If other safety devices (thermal fuses/thermistors) failed, inspect and replace as needed per OEM guidance

This is a genuine replacement screw used to secure panels, brackets, and components on compatible Whirlpool appliances. It restores proper fastening so loose parts stop rattling and panels stay aligned. What it does

• Fastens trim, panels, brackets, or mounting hardware to appliance chassis
• Helps stop vibration and rattling caused by missing or stripped fasteners
• Restores secure connections after repair or part replacement
• Matches OEM thread specification to fit intended mounting holes

• Disconnect power to the appliance before beginning any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Start threads by hand and tighten until snug; do not overtighten
• Inspect mating threads and replace if damaged

This heating element assembly is designed for 240-volt installations and restores proper heat to your appliance. Replace a burned-out element to bring temperatures back to spec and recover consistent, reliable performance. What it does:

• Generates the heat required on a 240V circuit to reach and maintain set temperatures
• Common failure symptoms: no heat or insufficient heat
• May show a visible break/hot spot on the coil or test open (no continuity)
• Intermittent or uneven heating can indicate a fatigued element or loose connections

• Disconnect power at the breaker/fuse and allow the appliance to cool completely
• Photograph/label wiring; transfer terminals to the new element one at a time
• Do not bend, stretch, or handle the coil surface with bare hands; mount securely per model guidance
• Check related high-limit/thermal devices, fuses, and wiring for continuity

The Heating Element Connecting Wire is an OEM part for Whirlpool dryers, designed to provide a secure electrical connection to the dryer's heating element. This critical component ensures that the heating element receives the power it needs to generate heat for drying clothes.

Causes of a bad heating element connecting wire can include overheating, physical damage, or wear and tear over time. These issues can lead to a loss of connectivity, resulting in the heating element failing to heat up.

Symptoms of a bad Heating Element Connecting Wire include:

• The dryer not heating up despite having power
• Intermittent heating, suggesting a loose or faulty connection
• Unusual smells or signs of burning, indicating overheating or damage to the wire

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Seal is an OEM part for Whirlpool dryers. This specific seal is designed to fit around the blower housing, ensuring a tight seal that prevents air leaks within the dryer. The blower housing is a critical component of the dryer's air circulation system, which moves air through the drum to dry clothes efficiently.

Causes of damage to the Seal can include wear and tear from regular use, excessive heat degrading the material over time, or improper maintenance practices that can cause physical damage to the seal.

Symptoms of a bad Seal include:

• Longer drying times than usual
• Excessive heat buildup in the dryer
• Unusual noises from the dryer, such as rattling or buzzing

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This blower-housing pad is a replacement foam/rubber seal that cushions the blower assembly and helps maintain proper airflow and fit. It restores the original fit between the blower housing and cabinet to reduce vibration and air gaps. What it does:

• Cushions and supports the blower housing to reduce noise and vibration during operation
• Helps seal the blower housing to prevent air leaks that can reduce performance
• Maintains proper alignment and spacing of the blower assembly inside the cabinet
• Common symptom: excessive vibration, rattling, or airflow leakage near the blower area

• Designed for direct replacement; part number matches your unit before ordering
• Turn off power to the appliance at the breaker before beginning repair
• Handle foam/rubber parts gently to avoid tearing; ensure pad seats fully around the housing
• If other blower components are worn or damaged, inspect and replace as needed

The Drum Support Wheel Retainer is an OEM part for Whirlpool dryers. This part secures the drum support wheels in place, ensuring that the dryer drum rotates smoothly and quietly during operation. The retainer is designed to fit precisely, preventing the support wheels from loosening or wobbling, which can lead to inefficient drying and increased wear on other components.

Over time, retainers can wear out or become damaged, potentially leading to a loose drum support wheel. This can cause the dryer to operate noisily, vibrate excessively, or even damage the drum itself if not addressed promptly.

Symptoms of a bad Drum Support Wheel Retainer include:

• Unusual noises, such as squeaking or thumping, coming from the dryer
• Excessive vibration during operation
• The dryer drum may feel unstable or wobble when turned by hand

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Drum Support Roller Shaft - Left is an OEM part for Whirlpool dryers. It is specifically designed to support the drum roller, ensuring smooth rotation of the dryer drum during operation. This shaft is essential for maintaining the drum's alignment and stability, allowing for effective and efficient drying of clothes.

Causes of a bad drum support roller shaft can include wear and tear from regular use, accumulation of lint and debris, or damage from overloading the dryer. These factors can lead to the shaft becoming worn out or bent, impairing the dryer’s performance.

Symptoms of a bad drum support roller shaft include:

• Squeaking or grinding noises during the drying cycle
• The dryer drum not rotating smoothly or being off-balance
• Increased drying times or incomplete drying of clothes

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Drum Support Roller Shaft - Right is an OEM part for Whirlpool dryers. This shaft provides support for the drum roller, allowing the dryer drum to rotate smoothly and efficiently during drying cycles.

You should replace the drum support roller shaft if it becomes worn, bent, or damaged. Causes of a bad drum support roller shaft can include regular wear and tear, overloading the dryer, or exposure to high temperatures, which can affect its structural integrity.

Symptoms of a bad drum support roller shaft include:

• Unusual noises such as squeaking or grinding during operation
• The dryer drum not rotating smoothly or becoming stuck
• Excessive vibration or wobbling of the dryer drum
• Visible wear or damage on the roller shaft

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Drum Support Roller is an OEM replacement part for Whirlpool dryers. It plays a crucial role in supporting and facilitating the smooth rotation of the dryer drum during the drying cycle.

Symptoms of needing to replace the drum support roller include:

• Excessive noise or grinding sounds coming from the dryer drum
• Difficulty in rotating the drum or drum not turning at all
• Visible signs of wear, cracking, or damage on the existing roller(s)
• Increased vibrations or shaking during the drying cycle

Causes of a faulty drum support roller can include normal wear and tear over time, exposure to excessive heat or lint buildup, or physical damage due to impact or overloading.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore dryer models.

This support washer is a flat spacer used within the mechanism to support and separate mating parts, maintaining alignment and smoother movement. Replacing a worn washer helps reduce friction and wear so components operate properly. What it does:

• Maintains proper spacing and support between adjoining parts
• Helps prevent metal-to-metal contact, reducing scraping or grinding noises
• Addresses wobble or excess play when the original washer is worn, deformed, or missing
• Restores smoother movement and alignment in the assembly

• One support washer

• Disconnect power and water supply before servicing; for gas combos, also shut off gas
• Refer to your model's parts diagram for location and orientation
• Track the order of any shims/spacers during disassembly and reinstall in the same sequence
• Tighten fasteners to manufacturer guidance to avoid deforming the washer or binding parts

This locking nut is used for many purposes on a range of machines including household appliances. This nut is often used for leg leveling for machines. It will help with vibrations from washers and dryers. If the nut is used for this purpose and goes missing or becomes damaged, it could cause the machine to vibrate more and seem louder.Nuts are made from metal and are built to last a long time. However, there can still be issues that arise. In some cases, the nuts might go missing if they become loose and the machine is moved. They could also corrode over time and need to be replaced. The replacement of the nut is typically a fast and simple repair.The nut is a genuine OEM replacement part sourced from the manufacturer. It can work with washers, dryers, and combo machines, and is compatible with models from Whirlpool, Kenmore, Maytag, and Roper. The part is sold individually. Owners may want to have several on hand.

The Bearing Ring for Front Support is an OEM part for Whirlpool dryers. It provides support and stability to the dryer's front drum. The bearing ring helps to reduce friction and ensure smooth rotation of the drum during the drying cycle. It helps to maintain proper alignment and balance, preventing excessive noise and vibration during operation.

A bad bearing ring can occur due to wear and tear over time, high usage, or damage from foreign objects getting caught in the drum. If the bearing ring becomes worn, cracked, or damaged, it can lead to loud squeaking or grinding noises coming from the dryer.

Symptoms of a bad bearing ring for front support include:

• Loud squeaking or grinding noises during operation.
• Excessive vibration or shaking of the dryer.
• Difficulty in rotating the drum manually.
• Visible damage or wear on the bearing ring.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This replacement screw secures panels, brackets, and other components in your appliance to keep them aligned and rattle-free. Replacing worn, stripped, or missing hardware restores a tight fit and helps maintain safe, quiet operation.

• Fastens panels, brackets, or internal parts to the cabinet/frame
• Helps maintain alignment to reduce vibration and rattling
• Replaces lost, stripped, or corroded screws
• Common symptoms: loose panels/trim, rattles, or a screw that won't tighten

• Disconnect power; shut off water or gas if applicable
• Match thread and length to the original; replace one at a time to keep alignment
• Start threads by hand to avoid cross-threading; use the correct driver
• Tighten snugly—do not overtighten, especially into plastic or thin sheet metal

Replace a cracked or missing bracket to keep appliance components securely mounted and aligned. Restoring this support helps prevent movement, vibration, and premature wear, so the connected part operates as intended.

• Provides a rigid mounting point for an associated component or assembly
• Maintains correct alignment and spacing within the appliance
• Helps reduce vibration, rattling, or shifting during operation
• Replaces brackets that are cracked, bent, or broken
• Common signs: loose or wobbly parts, misalignment, rattling noises, or visible bracket damage

• Disconnect power; also shut off the water supply before servicing
• Wear cut-resistant gloves—bracket edges can be sharp
• Reuse original screws/clips unless replacements are specified
• Hand-start fasteners, align parts, and tighten evenly without overtightening

The Push Clip is an OEM replacement part for Whirlpool dryers. Situated internally near the rear cylinder wall, it firmly secures the drum support roller assembly.

Causes of failure relate to fatigue from years of absorbing drum impacts and associated mechanical stresses. Corrosion penetration if moisture enters the clip mounting area increases operational resistance over time as well.

Symptoms consist of:

• Uneven drying and weakened tumbling action inside the cylinder
• Vibration or noise emerging from the rear roller area
• Premature wear signals stemming from dislocated roller assembly

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

The Rear Drum Felt Seal with Adhesive is an OEM part for Whirlpool dryers. This part creates a tight seal at the rear of the dryer drum. This seal prevents hot air from escaping the drum during cycles, ensuring efficient and even drying of clothes.

Causes of a deteriorating rear drum felt seal can range from normal wear and tear, excessive heat exposure, to mechanical issues that cause misalignment or excessive wear on the seal itself.

Symptoms of a bad Rear Drum Felt Seal include:

• Clothes taking longer to dry or not drying thoroughly
• Increased lint outside the dryer or in the venting system
• Unusual noises during operation, indicating a gap or friction issue
• Heat escaping from the rear of the dryer

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This drum is the rotating tub that holds clothes and provides the tumbling action needed for cleaning or drying. It restores the drum surface and rotation area to help the appliance tumble items properly. What it does:

• Replaces a damaged, dented, or cracked drum to restore a smooth tumbling surface
• Supports normal rotation so clothes move through the wash or dry cycle evenly
• Helps reduce rubbing, scraping, or loud metal-on-metal noises from the cabinet
• Addresses symptoms like visible drum damage, fabric catching, or items not tumbling

• One replacement drum

• Disconnect power and water before starting any repair
• Installation typically requires disassembling the front or top panel and removing the old drum, belt, and related fasteners
• Inspect and replace worn belts, rollers, seals, or bearings while servicing the drum

The Dryer Drum Baffle is an OEM replacement part designed for Whirlpool dryers. The baffle, located inside the drum, helps lift and tumble clothes during the drying cycle, ensuring even and efficient drying. It agitates the clothing, allowing air to circulate freely and preventing tangling.

Note: This is the tall baffle.

Over time, the drum baffle can become loose or damaged due to frequent use and contact with clothing or objects left in pockets. Physical wear or repeated impacts might cause it to crack, detach, or warp, reducing its ability to tumble clothes properly.

Symptoms of a faulty Drum Baffle include:

• Clothes not drying evenly or efficiently
• Unusual noises coming from the drum, such as rattling or banging
• Loose or detached baffle within the drum

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Short baffle

The Lint Screen Housing Foam Seal is an OEM part for Whirlpool dryers. This seal is placed around the lint screen housing to prevent air leaks and ensure that the dryer operates efficiently by directing airflow properly through the lint screen. By maintaining a tight seal, this foam helps to optimize the dryer’s performance, reduce drying times, and prevent lint from escaping into the internal parts of the dryer, which can lead to potential maintenance issues and decreased efficiency.

Symptoms of a failing lint screen housing foam seal include:

• Increased lint buildup inside the dryer beyond the lint screen
• Longer drying times due to inefficient air circulation
• Excessive heat and humidity within the dryer

Causes of foam seal deterioration typically involve normal wear and tear, exposure to high heat which can degrade the material, or improper maintenance that can tear or dislodge the foam.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Moisture Sensor is an OEM part for Whirlpool dryers. This part detects the moisture level in the clothing during the drying cycle, allowing the dryer to adjust the drying time accordingly.

Causes of a bad moisture sensor can include regular wear and tear, buildup of lint or residue, or physical damage.

Symptoms of a bad moisture sensor include:

• Clothes taking longer to dry or coming out still damp
• The dryer not stopping when clothes are dry
• The dryer shutting off prematurely
• Inconsistent drying results

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This ignition electrode delivers the spark needed to light the burner in compatible gas ovens and ranges, restoring reliable ignition so burners and bake/broil functions light properly. What it does:

• Produces the spark for the gas burner to ignite
• Helps ensure consistent ignition timing and burner starts
• Commonly used when a burner fails to light or ignition is intermittent
• Works with the oven/range ignition system to start bake and broil cycles

• Disconnect power and shut off the gas supply before starting any repair
• Handle the ceramic/insulated tip carefully to avoid cracking or contamination
• Verify correct electrode position and secure mounting for reliable sparking
