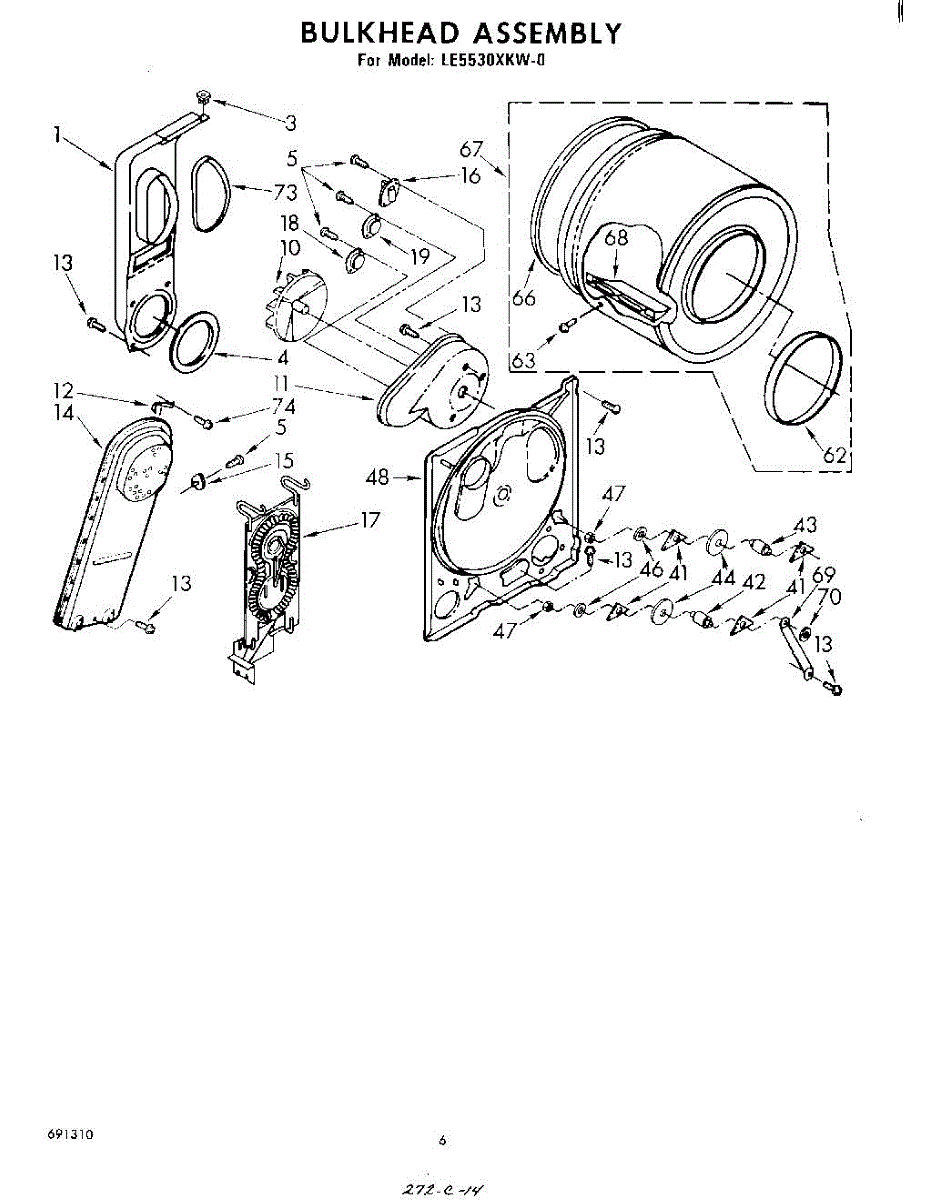

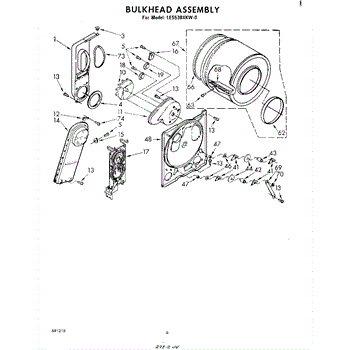

Parts for Whirlpool LE5530XKW0: 04 - Section Parts

Lint chute directs lint and debris from the dryer drum to the lint screen. Replace if cracked, broken, or clogged to maintain proper airflow.

The Seal is an OEM part for Whirlpool dryers. This specific seal is designed to fit around the blower housing, ensuring a tight seal that prevents air leaks within the dryer. The blower housing is a critical component of the dryer's air circulation system, which moves air through the drum to dry clothes efficiently.

Causes of damage to the Seal can include wear and tear from regular use, excessive heat degrading the material over time, or improper maintenance practices that can cause physical damage to the seal.

Symptoms of a bad Seal include:

• Longer drying times than usual
• Excessive heat buildup in the dryer
• Unusual noises from the dryer, such as rattling or buzzing

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Blower Wheel is an OEM part for Whirlpool dryers. This component is crucial for the proper circulation of hot air within the dryer drum, ensuring efficient drying of clothes by directing airflow through the drum and out the exhaust.

Common causes of a bad blower wheel include accumulated lint and debris obstructing the wheel, physical damage from foreign objects, or general wear from prolonged use. A faulty blower wheel can significantly reduce drying efficiency and may cause the dryer to overheat.

Symptoms of a bad blower wheel include:

• Longer drying times for clothes
• Unusual noises during the drying cycle
• Overheating of the dryer
• Poor airflow from the dryer vent

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This retainer clip secures a component in place to prevent movement and maintain proper alignment during appliance operation. Replacing a damaged or missing clip helps restore safe, reliable performance.

• Holds the mating part firmly to reduce vibration and noise
• Helps prevent intermittent operation caused by loose fitment
• Common fix when a component feels loose, rattles, or won't stay seated

• Disconnect power and shut off gas/water before servicing
• Note original clip orientation and location before removal
• Use needle-nose pliers to carefully release and install the clip
• Do not over-bend the clip; replace if deformed or fatigued

Specs: 10-16 x 1/2 inch.

L250-40. Dryer

The Thermal Fuse is an OEM part for Whirlpool dryers. It is a critical safety component designed to protect the dryer from overheating by blowing and cutting off power if the temperature exceeds safe limits. This disposable, one-time fuse is essential for preventing potential fire hazards and ensuring the appliance operates within safe temperatures.

Symptoms of a bad Thermal Fuse include:

• The dryer not starting or suddenly stopping during a cycle
• No heat being produced while the dryer is running
• Unexplained cessation of all dryer functions

Causes of a bad thermal fuse can stem from restricted airflow due to lint buildup, a malfunctioning heating element that causes excessive temperatures, or other electrical issues within the dryer.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Dryer not heating or drying clothes? A failed heating element is the most common cause. This part generates heat to dry your laundry effectively.

The Cycling Thermostat is an OEM part for Whirlpool dryers. It regulates and monitors the temperature inside the dryer during the drying cycle. It ensures that the dryer doesn't overheat and prevents potential damage to clothes or the dryer itself.

Causes of a faulty cycling thermostat can include wear and tear over time, electrical issues, or sensor malfunction.

Symptoms of a bad cycling thermostat may include:

• Clothes taking longer than usual to dry
• Inconsistent drying results
• Overheating or burning smell
• The dryer not heating at all

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Cycling Thermostat is an OEM part for Whirlpool dryers. It regulates and monitors the temperature inside the dryer during the drying cycle. It ensures that the dryer doesn't overheat and prevents potential damage to clothes or the dryer itself.

Causes of a faulty cycling thermostat can include wear and tear over time, electrical issues, or sensor malfunction.

Symptoms of a bad cycling thermostat may include:

• Clothes taking longer than usual to dry
• Inconsistent drying results
• Overheating or burning smell
• The dryer not heating at all

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Secures drum support rollers to their shafts in your dryer. Replace if broken, missing, or damaged during roller maintenance to keep drum wheels stable.

Left-side shaft that supports the drum roller assembly in your dryer. Replace if worn, bent, or damaged to restore proper drum rotation and alignment.

Right-side shaft for dryer drum support roller. Replace if worn, bent, scored, or damaged to restore proper drum rotation. Installs on right side of cabinet.

Rear drum support roller kit for dryers. Mounts behind the drum to maintain alignment and smooth rotation. Replace when rollers are worn or damaged.

This support washer is a flat spacer used within the mechanism to support and separate mating parts, maintaining alignment and smoother movement. Replacing a worn washer helps reduce friction and wear so components operate properly. What it does:

• Maintains proper spacing and support between adjoining parts
• Helps prevent metal-to-metal contact, reducing scraping or grinding noises
• Addresses wobble or excess play when the original washer is worn, deformed, or missing
• Restores smoother movement and alignment in the assembly

• One support washer

• Disconnect power and water supply before servicing; for gas combos, also shut off gas
• Refer to your model's parts diagram for location and orientation
• Track the order of any shims/spacers during disassembly and reinstall in the same sequence
• Tighten fasteners to manufacturer guidance to avoid deforming the washer or binding parts

This lock nut secures appliance components and resists loosening from vibration. Replacing a stripped, rusted, or missing nut restores a firm, reliable connection to reduce noise and prevent parts from shifting or backing off.

• Secures brackets, shafts, pulleys, panels, or other hardware as designed by the manufacturer
• Helps prevent fasteners from loosening due to vibration and thermal cycling
• Common fix for rattling/vibration noises and components that work loose over time
• Replaces damaged, rounded, or missing original nut to restore proper fit

• Disconnect power and shut off gas/water supplies before servicing
• Remove the worn nut with the appropriate wrench or socket
• Start the new nut by hand to avoid cross-threading; tighten securely—do not overtighten
• Inspect the mating bolt/stud and any washers; replace if worn or damaged

Supports the front drum edge for smooth, quiet rotation. Replace when worn to stop scraping noises or drum wobble. Confirm fit with your model number.

Seals the rear drum opening to prevent air leaks and reduce noise. Replace if worn, frayed, or causing rattling sounds. Confirm fit with your model number.

Replacement drum front bulkhead for dryers. Installs at the front of the drum assembly. Needed when original is cracked, damaged, or worn out.

Replacement drum baffle that lifts and tumbles clothes inside the dryer drum. Needed when original is cracked, broken, or missing from the drum wall.

The Push Clip is an OEM replacement part for Whirlpool dryers. Situated internally near the rear cylinder wall, it firmly secures the drum support roller assembly.

Causes of failure relate to fatigue from years of absorbing drum impacts and associated mechanical stresses. Corrosion penetration if moisture enters the clip mounting area increases operational resistance over time as well.

Symptoms consist of:

• Uneven drying and weakened tumbling action inside the cylinder
• Vibration or noise emerging from the rear roller area
• Premature wear signals stemming from dislocated roller assembly

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

Seals the lint screen housing to prevent air leaks and maintain proper airflow. Replace if damaged, missing, or causing lint buildup. Verify fit.

Specs: 10-16 x 1/2 inch.
