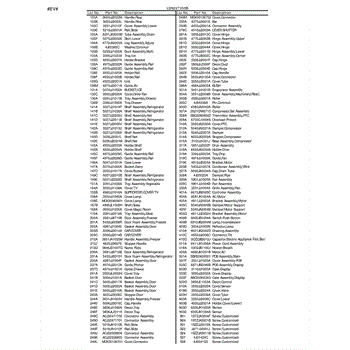

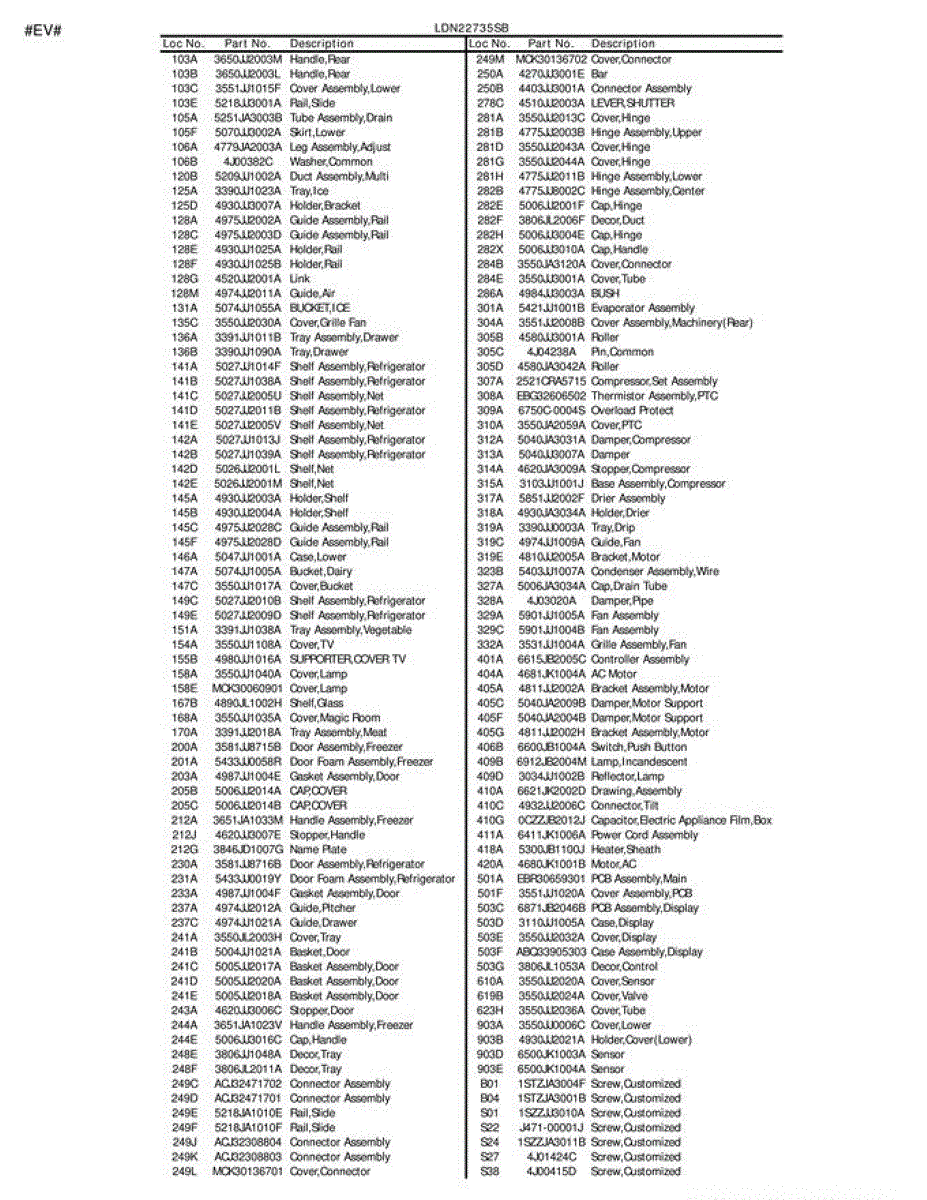

Parts for Lg LDN22735ST / ASTCLGZ: Section 5 Parts

Door hinge screws secure the refrigerator door hinges to the cabinet frame, allowing proper door operation and alignment. Replace when doors sag, don't close properly, or screws are loose, stripped, or missing causing door misalignment.

Mounting screw for refrigerator internal components and panels. Replaces lost, stripped, or damaged screws during repairs or part installations.

Replacement mounting screw for refrigerator assembly. Secures panels, brackets, or components. Needed when original screw is stripped, lost, or damaged.

The Screw is an OEM part for LG refrigerators. This part secures the shelf brackets within the refrigerator compartment.

Causes of a bad Screw can range from physical damage or impact to general wear and tear over time.

Symptoms of a faulty Screw  include:

• Shelves feeling loose or unstable
• Shelves sagging or not sitting level
• Shelves falling out or collapsing when loaded with items

This OEM LG part is also compatible with some Kenmore models.

Replacement screw for refrigerators. Secures panels, brackets, and internal components. Install when original is missing, stripped, or damaged.

This is a genuine replacement screw used to secure appliance panels and components. It restores proper fastening so panels and assemblies stay aligned and operate safely. What it does:

• Fastens panels, brackets, and small assemblies to maintain structural integrity
• Replaces missing or stripped screws that cause rattling or loose parts
• Helps stop vibration-related noise when used in its original mounting locations
• Matches the OEM fit to ensure proper alignment and clearance

• Use the correct screwdriver or bit to avoid stripping the head
• Tighten until snug; do not overtighten to prevent thread or component damage
• Disconnect power to the appliance before working on electrical components
• Replace all matching fasteners for even fit

Mounts inside your refrigerator to guide storage drawers for smooth opening and closing. Replace if cracked, broken, or worn to restore drawer alignment.

Fastener washer for refrigerators. Replaces worn, missing, or damaged washers that support screws and nuts. Restores proper spacing and load distribution.

Replaces a cracked or broken air duct assembly that routes cold air from the freezer to the refrigerator compartment. Mounts on the back wall of the fridge.

This holder bracket secures and positions components inside your refrigerator, typically holding items like water filters, light fixtures, or small parts. It ensures proper alignment and prevents movement during normal operation. Replace this bracket if components are loose, misaligned, or falling out of position.

This is a plastic link piece used in the shelf track or door bin system of a refrigerator. It connects shelf rails or retaining components, allowing shelves or bins to slide and lock into position securely. Replace this link if shelves or door bins are sagging, won't stay in place, or if the original link is cracked or broken.

Shelf rail guide assembly for refrigerators. Mounts inside the compartment to support and guide shelves along the interior walls. Replace if cracked or broken.

This holder rail secures and supports internal components in select LG appliances, restoring proper alignment and reducing movement or vibration. Replace a cracked, broken or worn rail to help stop rattling and improper component fit. What it does:

• Provides a stable mounting/support surface for internal parts that rely on the rail for alignment.
• Prevents shifting or vibration that can cause noise, wear, or misalignment.
• Install a new rail if the original is cracked, broken, warped or missing.
• Helps restore correct component positioning for reliable operation.

• Disconnect power and unplug the appliance before beginning any repair.
• Basic hand tools may be required; refer to the exploded parts list for disassembly steps.
• Inspect surrounding mounting points and fasteners; replace any damaged clips or screws.

Rail guide assembly that supports and steers refrigerator drawers along their tracks. Replace if cracked, broken, or worn to restore smooth sliding.

Stores ice from the icemaker inside the freezer compartment. Replace if cracked, warped, or missing to prevent leaks and ice dispensing jams.

Protective grille cover that shields the cooling fan and directs airflow in your refrigerator. Replace if cracked, broken, or missing to restore finish.

Replaces cracked, broken, or worn glass shelf in your refrigerator. Restores stable storage surface for food and containers. Easy-to-clean design.

This shelf net is a mesh-style refrigerator shelf designed to support and contain food items while allowing airflow. It replaces torn, stretched, or missing nets to restore storage organization and help prevent items from shifting. What it does:

• Provides a flexible, ventilated surface for storing packaged foods, produce, or deli items
• Helps keep small or irregularly shaped items from falling through larger shelves
• Restores proper storage function when original netting is damaged, loose, or missing
• Compatible with designated shelf frames and snaps into place where equipped

• Unplug the appliance or turn off power to the unit before servicing for safety.
• Empty and remove food items from the affected shelf area before installation.
• Install by aligning the net with the shelf frame and securing per the owner's manual; do not force or modify parts.
• If installation requires removal of shelves or trim, keep fasteners and small parts organized and follow manufacturer instructions.

Replace your cracked or broken refrigerator glass shelf. This sturdy, easy-to-clean shelf restores lost storage space and keeps food organized.

Replacement glide rail that mounts to the freezer wall to support and guide the upper basket. Needed when the original rail is cracked, broken, or missing.

The Right Side Drawer Rail Guide is an OEM part for LG refrigerators. This component is designed to support and guide the movement of the refrigerator's drawers, allowing them to slide in and out smoothly. It is mounted on the right side of the drawer compartment and helps ensure the proper alignment and stability of the drawer.

Symptoms of a failing Right Side Drawer Rail Guide include:

• The drawer not sliding smoothly or getting stuck
• The drawer tilting or sagging on one side
• Unusual noises such as grinding or scraping when moving the drawer
• Visible damage, cracks, or wear on the rail guide

Causes of a bad drawer rail guide can include regular wear and tear from frequent use, physical damage from heavy or improperly loaded drawers, and deterioration over time due to temperature changes within the refrigerator.

This OEM LG part is also compatible with some Kenmore models.

Replaces cracked, broken, or worn glass shelf in your refrigerator. Restores stable storage surface for food and containers. Easy-to-clean design.

Replaces cracked, broken, or worn glass shelf in your refrigerator. Restores stable storage surface for food and containers. Easy-to-clean design.

This is the plastic frame that sits above the crisper drawers in the refrigerator, providing a shelf surface when paired with a glass insert. It supports items stored on the shelf and helps maintain proper airflow and humidity levels around the crisper compartment. Replace this frame if it is cracked, warped, or broken, which can cause the glass panel to sit unevenly or fall through.

Protects and diffuses your refrigerator's interior light bulb. Replace when cracked, discolored, or missing to restore safe, even lighting. Confirm fit.

Protects and diffuses your refrigerator's interior light bulb. Replace when cracked, discolored, or missing to restore safe, even lighting. Confirm fit.

Color: clear. Measures about 28 inches wide by 14 inches deep.

This Magic Room cover is the replacement shelf cover for the refrigerator's convertible compartment, restoring a flat, stable surface to hold food and containers. It helps keep items supported and the compartment functioning as intended. What it does:

• Replaces a cracked, chipped or missing Magic Room shelf cover
• Provides a stable surface for storing foods and containers in the convertible compartment
• Helps maintain proper spacing and support for drawer/bin components
• Prevents items from falling through or contacting temperature controls below

• Remove food and any drawers or bins that block access before installing
• Handle carefully to avoid chipping; support edges when sliding into place
• Reassemble components in reverse order and ensure the cover seats securely
• Follow all safety steps in the refrigerator owner's manual; unplug or power off if recommended for your model

Replacement meat pan assembly for refrigerators. Installs in the fresh food compartment. Replace if cracked, broken, or damaged from stress or impact.

This refrigerator door gasket creates an airtight seal between the door and cabinet to keep cold air in and moisture out. Replace a worn or torn seal to restore cooling performance, reduce frost, and prevent temperature fluctuations.

• Forms a continuous seal around the door perimeter to minimize air leaks
• Helps maintain proper temperatures and humidity inside the refrigerator
• Common failure signs: gaps, tears, or hardened/warped corners
• Symptoms may include doors not closing flush, condensation or frost buildup, and longer run times

What's included: 1 door gasket assembly Installation notes:

• Unplug the refrigerator before servicing
• Warm the new gasket in hot water or with a hair dryer on low to improve flexibility
• Pull the old gasket from the retainer channel; press the new gasket into the channel, starting at the corners
• Close the door and check for uniform contact all around; re-seat and adjust as needed

This name plate is the exterior emblem that mounts to the appliance's front panel. It replaces a missing, cracked, or faded badge to restore a clean, factory look and cover the designated trim area.

• Attaches to the outer panel to display brand/series identification
• Restores a finished appearance where the original emblem sits
• Direct replacement for a lost, damaged, or worn badge
• Typical symptoms: missing emblem, loose or broken tabs, peeling, or discoloration

• Disconnect power before servicing the appliance
• Carefully remove the old emblem; release any tabs from behind or peel away remaining adhesive
• Clean and dry the mounting surface; remove all residue for best fit
• Align with the recess/holes and press evenly until fully seated

This is a plastic drawer guide that helps a refrigerator drawer slide smoothly in and out on its track. It mounts inside the refrigerator compartment and keeps the drawer aligned during operation. Replace this guide if the drawer is sticking, tilting, derailing, or not closing properly.

Replace a cracked or broken refrigerator door bin to restore secure storage for bottles and condiments. Durable molded plastic shelf installs on door.

The Door Basket Assembly is an OEM part for LG refrigerators. It provides additional storage space on the refrigerator door, allowing you to organize items such as beverages, condiments, and other small items for easy access. This basket is designed to fit securely on the door, making efficient use of available space.

Over time, the door basket assembly can become damaged due to heavy use, overloading, or accidental impacts. When the basket is compromised, it may not hold items securely or fit properly on the door.

Symptoms of a bad door basket assembly include:

• Cracks or breaks in the plastic
• The basket not staying securely in place
• Items falling out of the basket
• Difficulty in inserting or removing the basket

This OEM LG part is also compatible with Sears/Kenmore.

Plastic cap that snaps over refrigerator door handle ends to cover mounting screws and finish the handle. Replaces lost, cracked, or broken caps.

Slide rail for bottom-mount refrigerator freezer drawer. Replaces broken, binding, or worn rails that prevent drawer from opening or closing smoothly.

Slide rail for bottom-mount refrigerator freezer drawers. Replaces broken, cracked, or binding rails causing uneven drawer movement or closure issues.

This is a support bar that guides and supports the freezer drawer as it slides in and out of the refrigerator. It attaches to the interior of the freezer compartment and ensures the drawer moves smoothly along its track. Replace this part if the freezer drawer is difficult to open or close, sits unevenly, or has become wobbly due to a broken or cracked slide bar.

Secures and transmits motion between drawer drive and slide assembly. Replace if broken, cracked, or missing to restore smooth drawer operation and alignment.

Replacement control lever for your refrigerator. Installs on the control panel or mechanism. Order this part if your original lever is cracked, broken, or missing.

Replace your refrigerator's broken or missing hinge cover cap. This decorative cover installs over the door hinge to conceal hardware and provide a finished look.

Replacement door hinge assembly for refrigerators. Supports and pivots the door for smooth operation. Replace if bent, worn, or broken to restore alignment.

Replacement door hinge bushing for refrigerators. Installs in door hinge mechanism. Replace when worn, cracked, or causing door grinding or misalignment.

Refrigerator not cooling or freezing properly? This evaporator coil assembly absorbs heat to cool your fridge. Advanced repair requiring refrigerant work.

Replaces the back cover assembly for your refrigerator's machine compartment. Order this part if your original cover is cracked, broken, or missing.

A small pin that secures the wheels or rollers on the bottom of a refrigerator, keeping them locked in position during normal use. It holds the roller assembly together so the appliance can be moved smoothly without the wheels falling apart. Replace this part if a roller keeps falling off or the refrigerator is difficult to roll when you need to reposition it.

Fridge not cooling or freezing? Compressor running constantly? This compressor set assembly restores cooling. Complex repair requiring professional tools.

Fridge not cooling or freezing? Compressor running constantly? This compressor set assembly restores cooling. Complex repair requiring professional tools.

Refrigerator clicking but not cooling? The compressor start relay kickstarts your compressor. Simple 30-minute DIY fix that gets your fridge cold again.

Refrigerator clicking but not cooling? The compressor start relay kickstarts your compressor. Simple 30-minute DIY fix that gets your fridge cold again.

Fix a refrigerator that hums and shuts down or won't start with this compressor overload protector. Simple DIY repair that restores safe operation.

Protective cover for your refrigerator's PTC and compressor start device assembly. Replace if cracked, melted, or missing to shield components from damage.

Rubber seat bumper for refrigerator shelves and drawers. Replaces worn, cracked, or missing rubber cushions that protect surfaces and reduce noise.

Refrigerator door stopper bumper that prevents door from overextending. Replace if cracked, broken, or missing to protect door hinges and cabinet.

This holder is a small mounting bracket used to secure internal components in place, helping keep parts aligned and stable for reliable operation. It provides a direct, OEM-compatible replacement to restore proper fit and function. What it does

• Secures and supports nearby components to prevent shifting or vibration.
• Restores proper alignment where a worn or broken holder causes rattling or loose parts.
• Helps maintain normal operation by keeping assemblies seated correctly.
• Works behind panels or inside assemblies where a dedicated bracket is required.

• One holder/mounting bracket as shown.

• Installation generally requires removing the panel or access cover where the holder is located.
• Use proper fasteners shown in your appliance; replace any damaged screws or clips as needed.
• Disconnect power before servicing electrical appliances to reduce shock risk.

Fan guide for refrigerators. Directs airflow from the evaporator fan. Replace if cracked, broken, or missing to restore proper air circulation.

Motor running loud or vibrating excessively? This motor mounting bracket secures the motor to the cabinet, reducing vibration and noise for stable operation.

The Fan Assembly is an OEM part for LG refrigerators. It is responsible for circulating air within the refrigerator and freezer compartments, ensuring consistent cooling and optimal temperature distribution. The fan assembly helps maintain the freshness of your food by evenly distributing cold air.

Common causes of a bad fan assembly include electrical issues, worn-out bearings, or obstructions that prevent the fan from spinning properly.

Symptoms of a bad fan assembly include:

• Unusual noises coming from the refrigerator
• Inconsistent temperatures within the fridge or freezer
• Frost buildup in the freezer
• Refrigerator running continuously or not cooling effectively

This OEM LG part is also compatible with Sears/Kenmore models.

Fix ice buildup on evaporator coils or freezer not defrosting properly. This defrost thermostat monitors temperature to prevent frost. 2-hour repair.

This DC fan motor drives the refrigerator's fan to circulate air across the coils and through the cabinet. Replacing a weak or failed motor restores proper airflow for consistent temperatures and reliable cooling performance.

• Spins the fan blade to move air through the cabinet and across heat-exchange coils
• Helps maintain even, stable temperatures throughout the appliance
• Typical failure symptoms: fan not running or intermittent, unusual humming/squealing/rattling near the fan area, poor cooling or temperature fluctuations
• Can reduce hot spots by restoring proper air circulation

• Disconnect power before servicing; use cut-resistant gloves
• Access the motor behind the rear cover or interior panel (location varies by model)
• Note connector orientation; disconnect harness, mount the new motor, and securely route wiring
• Ensure the blade spins freely with no obstructions; restore power and verify fan operation

Motor mounting bracket assembly for refrigerators. Secures the motor in place. Replace if bracket is cracked, broken, or won't hold motor securely.

This is a rubber or elastomer damper that supports and isolates the evaporator fan motor inside the refrigerator. It absorbs vibration from the motor to reduce noise during normal operation. Replace this part if you hear excessive buzzing, rattling, or vibration coming from the freezer section, which often indicates the damper has hardened or deteriorated.

Interior light won't turn on when door opens? This refrigerator door switch signals when the door opens or closes. DIY-friendly repair, takes about 5 minutes.

Interior light won't turn on when door opens? This refrigerator door switch signals when the door opens or closes. DIY-friendly repair, takes about 5 minutes.

Reflector lamp housing directs and diffuses interior bulb light for brighter refrigerator illumination. Replace if cracked, discolored, or missing.

The Light Bulb is an OEM part for LG refrigerators. It can be used in either the fresh food section or freezer compartment, providing illumination for easy visibility of the stored items.

Causes of a faulty light bulb can include regular wear and tear, reaching the end of its lifespan, or accidental breakage. These factors can result in issues such as a dark or poorly lit interior, making it difficult to see the contents of the refrigerator.

Symptoms of a bad light bulb may include:

• No illumination or dim lighting inside the refrigerator
• A flickering or intermittent light
• Visible damage or broken filament inside the bulb

This LG OEM bulb is also compatible with Sears/Kenmore models.

The Light Bulb is an OEM part for LG refrigerators. It can be used in either the fresh food section or freezer compartment, providing illumination for easy visibility of the stored items.

Causes of a faulty light bulb can include regular wear and tear, reaching the end of its lifespan, or accidental breakage. These factors can result in issues such as a dark or poorly lit interior, making it difficult to see the contents of the refrigerator.

Symptoms of a bad light bulb may include:

• No illumination or dim lighting inside the refrigerator
• A flickering or intermittent light
• Visible damage or broken filament inside the bulb

This LG OEM bulb is also compatible with Sears/Kenmore models.

This run capacitor provides the continuous electrical boost needed to keep the refrigerator's compressor motor running efficiently. It stores and releases energy to maintain the proper phase and voltage for the compressor during normal operation. Replace this capacitor if the compressor struggles to start, hums without running, shuts off intermittently, or if the refrigerator stops cooling altogether.

This replacement lamp socket holds and powers the appliance light bulb, restoring clear, reliable illumination when the light is switched on. Replace a heat-damaged, cracked, or loose socket to stop flickering or a light that won't come on.

• Holds the bulb securely and supplies electrical power
• Restores consistent interior lighting for visibility
• Replaces sockets with heat damage, cracks, or worn contacts
• Symptoms: light stays off with a good bulb, flickers intermittently, or the bulb feels loose

• Disconnect power before servicing and allow the area to cool
• Remove the lens/cover and bulb; release the socket (tabs or screws) to remove
• Transfer wires one at a time to the new socket; ensure tight, correct connections
• Use only the bulb type and wattage specified for your model; test before reassembly

Refrigerator won't power on or loses power intermittently? This power cord assembly replaces frayed or damaged cords to restore safe, reliable operation.

Fix error code ER DH, frost buildup, or warm refrigerator temps with this defrost heater. Restores airflow and prevents ice-clogged coils. Moderate DIY.

Refrigerator running hot or not cooling? A failed condenser fan motor prevents heat removal from the compressor. DIY repair in under an hour.

Control panel decorative overlay for your refrigerator. Replaces cracked, faded, or missing cosmetic trim around control buttons and display area.

The Case Assembly is an OEM part for LG side-by-side refrigerators housing electronic display modules. This assembly securely mounts LCD panels governing temperature readings and interface menus.

Causes of a bad case assembly can include moisture ingress degrading connections, stress fractures from repeated door openings, or impact damage compromising protective seals over time.

Symptoms of a bad case assembly include:

• Dimming or blank display lacking visibility
• Unresponsive touch controls with miscalibrated inputs
• Insecure mounting losing calibration on door
• Openings allowing corrosive vapors to damage electronics

Replace yours today with this genuine OEM LG assembly to safeguard refrigerator displays and customizable settings. Snap-fit clips produce a robust, water-tight seal around precision components. This replacement part is compatible with Kenmore, Samsung, and GE side-by-side models featuring similar interactive panels. Reliable mounting maximizes product life.

Secures the toe grille to the base of your refrigerator. Replace if broken, cracked, or missing to keep the lower kickplate panel firmly attached.

This is a temperature sensor that monitors the internal temperature of the refrigerator compartment and sends readings to the main control board. The control board uses this data to regulate the compressor and cooling cycles. Replace this sensor if the refrigerator is too warm, too cold, runs continuously, or displays incorrect temperature readings.
