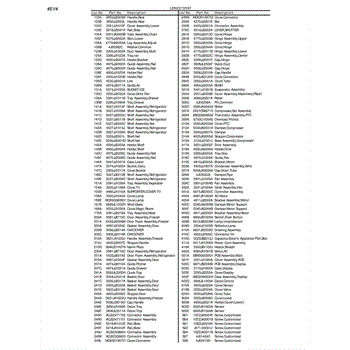

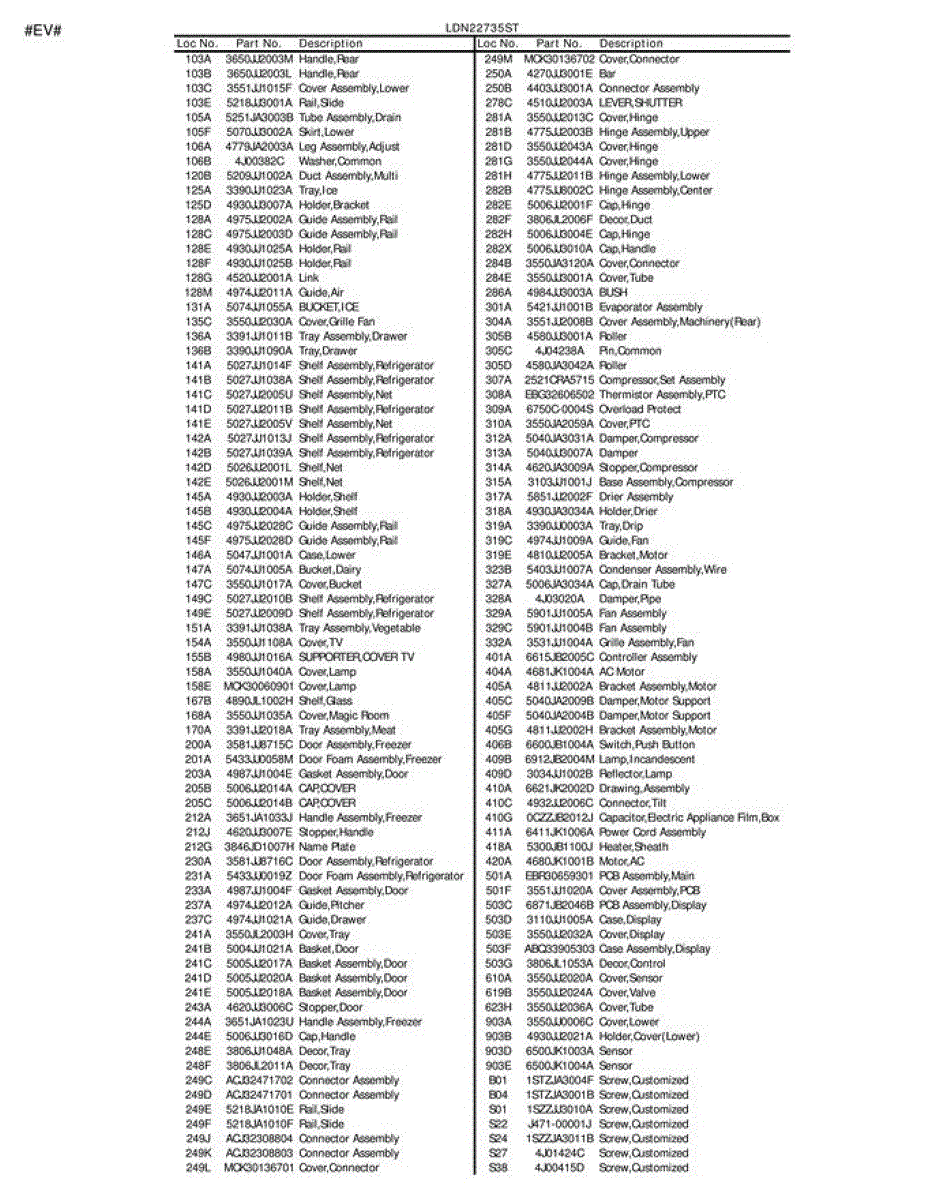

Parts for Lg LDN22735ST / ASTCLGZ: Section 6 Parts

This hinge bolt secures the hinge to the appliance cabinet or door, keeping alignment true and motion smooth. Replacing a stripped, missing, or corroded bolt helps restore proper door operation and reliable closing.

• Fastens the hinge to support and stabilize the door
• Helps maintain alignment for smooth opening and closing
• Replaces damaged, stripped, or missing hardware

• Disconnect power to the appliance; shut off water supply if applicable
• Support the door to prevent strain on remaining hardware; enlist a second person if needed
• Note the order/orientation of any shims or washers and transfer them during reassembly
• Start threads by hand to avoid cross-threading; tighten securely without overtightening

The Screw is an OEM part for LG refrigerators. This part secures the shelf brackets within the refrigerator compartment.

Causes of a bad Screw can range from physical damage or impact to general wear and tear over time.

Symptoms of a faulty Screw  include:

• Shelves feeling loose or unstable
• Shelves sagging or not sitting level
• Shelves falling out or collapsing when loaded with items

This OEM LG part is also compatible with some Kenmore models.

This replacement screw secures appliance components in their proper position. Replacing a missing or damaged fastener restores a snug fit, reduces rattling or vibration, and helps keep assemblies aligned for reliable operation.

• Secures panels, brackets, and internal components as specified by your model's parts diagram
• Replaces stripped, rusted, or missing hardware
• Helps address symptoms like rattling/vibration noise, loose panels/trim, or minor misalignment
• Maintains a stable, safe assembly during normal use

• Disconnect power; turn off water and gas supplies if applicable
• Match screw to its original location; do not mix different lengths or types
• Start threads by hand to avoid cross-threading; tighten snugly—do not overtighten
• Follow your model's service/parts diagram for correct placement

This is a genuine replacement screw used to secure appliance panels and components. It restores proper fastening so panels and assemblies stay aligned and operate safely. What it does:

• Fastens panels, brackets, and small assemblies to maintain structural integrity
• Replaces missing or stripped screws that cause rattling or loose parts
• Helps stop vibration-related noise when used in its original mounting locations
• Matches the OEM fit to ensure proper alignment and clearance

• Use the correct screwdriver or bit to avoid stripping the head
• Tighten until snug; do not overtighten to prevent thread or component damage
• Disconnect power to the appliance before working on electrical components
• Replace all matching fasteners for even fit

This slide rail mounts inside the refrigerator and guides a storage drawer so it opens and closes smoothly. Replacing a worn or broken rail restores proper drawer alignment and easy access to stored items. What it does:

• Supports the drawer and provides a smooth glide path along the cabinet wall
• Maintains alignment to keep the drawer level and on track
• Replaces cracked, warped, or worn rails that cause rough, uneven movement
• Common symptoms: drawer binds or sticks, tilts or sags, falls off track, or shows visible rail damage

• 1 slide rail

• Disconnect power to the refrigerator before servicing interior components
• Remove the drawer and any shelf/glass cover to access the rail
• Save and reuse existing mounting screws and any end caps/brackets; match the rail's orientation to the original if your model uses left/right rails
• Align the new rail with factory mounting points, tighten screws, and test for smooth operation

This small fastener washer restores proper spacing and support under a screw or nut in your appliance. It helps distribute clamping force, protect mounting surfaces, and keep brackets and panels secure during normal operation and vibration. What it does:

• Distributes load under a screw or nut to prevent damage to the mounting surface
• Helps maintain correct spacing and alignment of the attached components
• Aids in keeping fasteners secure under vibration when assembled correctly
• Common symptoms: missing or damaged washer, loose/rattling parts, fastener won't tighten flush

• One washer

• Disconnect power and shut off water supply before servicing
• Note the original hardware order and orientation; replace any deformed or corroded pieces
• Install the washer flat against the mating surface under the fastener head or nut
• Tighten fasteners securely; do not overtighten to avoid stripping threads or deforming parts

This duct assembly routes dryer airflow through the appliance's venting system to help remove hot, moist air during cycles. It restores proper airflow routing so the dryer can vent efficiently and dry loads more reliably. What it does:

• Channels exhaust air from the blower to the external vent or internal ductwork
• Helps prevent moisture buildup and reduces drying times when functioning correctly
• Can reduce hot spots and minimize lint accumulation in the cabinet area
• May eliminate abnormal airflow noises caused by damaged or disconnected ducting

• One duct assembly

• Disconnect power (and gas if applicable) before servicing to avoid shock or fire hazard
• Inspect surrounding seals, clamps and mounting points; replace any damaged hardware for a secure fit
• Use basic hand tools; avoid sharp bends or kinks in the duct to maintain airflow

This holder rail secures and supports internal components in select LG appliances, restoring proper alignment and reducing movement or vibration. Replace a cracked, broken or worn rail to help stop rattling and improper component fit. What it does:

• Provides a stable mounting/support surface for internal parts that rely on the rail for alignment.
• Prevents shifting or vibration that can cause noise, wear, or misalignment.
• Install a new rail if the original is cracked, broken, warped or missing.
• Helps restore correct component positioning for reliable operation.

• Disconnect power and unplug the appliance before beginning any repair.
• Basic hand tools may be required; refer to the exploded parts list for disassembly steps.
• Inspect surrounding mounting points and fasteners; replace any damaged clips or screws.

This rail guide assembly supports and steers a refrigerator drawer along its track. Replacing a worn or broken guide restores smooth sliding and proper alignment, helping prevent binding and damage to bins and rails.

• Guides the drawer as it opens and closes for smooth movement
• Helps keep the drawer level and properly aligned on the track
• Restores easy operation when the rail is cracked, worn, or deformed
• Typical symptoms: drawer hard to slide, tilts or drops, scraping/grinding noises, visible damage to the rail

• Disconnect power and empty the affected drawer before servicing
• Remove the drawer/bin and any screws or locking tabs securing the old guide
• Transfer any reusable clips or end caps from the old guide to the new assembly if present
• Reinstall, ensure proper engagement on the track, and test for smooth operation

This replacement ice bucket stores ice from the icemaker and engages the dispenser drive for smooth dispensing. Swap a cracked or warped bin to prevent leaks, jams, and inconsistent ice dispensing performance. What it does:

• Holds ice produced by the icemaker inside the freezer
• Interfaces with the dispenser drive to move ice toward the chute
• Keeps cubes contained to reduce spills and jams
• Common symptoms: cracked bin, ice not dispensing, bucket won't seat properly, clumping or leaking ice

• 1 ice bucket

• Disconnect power to the refrigerator before servicing
• Empty the old bucket and pull it straight out; avoid forcing the auger/drive area
• Align and seat the new bucket so the rear hub fully engages the drive coupler
• Restore power and test ice dispensing; the bucket is fully latched and stable

This grille cover protects the appliance's cooling/ventilation fan and helps direct airflow where it's needed. It restores the cabinet finish and keeps debris away from the fan housing for more reliable operation. What it does:

• Shields the fan from loose debris and small objects that can cause damage
• Helps channel airflow for proper cooling/ventilation
• Prevents direct contact with fan blades for improved safety
• Reduces rattling or vibration caused by damaged or missing grille

• Disconnect power to the appliance before beginning any work
• Remove any trim or access panels as required to reach the fan area
• Secure with the factory fasteners; do not overtighten to avoid cracking
• Handle edges carefully; wear gloves if needed and test operation after reassembly

This refrigerator shelf assembly replaces a broken or worn internal shelf to restore usable storage and stable support for food and containers. The glass shelf provides a flat, easy-to-clean surface that maintains organized chilling. What it does

• Replaces a damaged or cracked internal refrigerator shelf to restore safe storage
• Provides a sturdy, level surface for containers, produce and deli items
• Helps maintain organized interior layout and prevents items from falling
• Compatible with refrigerators that use this exact OEM shelf assembly

• One (1) refrigerator shelf assembly (glass shelf with trim/frame as shipped by manufacturer)

• Remove power or disconnect the appliance before performing service when required by your model's safety instructions
• Handle glass parts carefully; wear gloves to avoid cuts and support the shelf during removal and installation
• Verify exact fit and orientation before tightening any retainers; do not force the shelf into slots

A replacement glass refrigerator shelf that provides a sturdy, easy-to-clean surface for storing food and containers. Restores lost storage space and helps keep items organized and visible. What it does:

• Supports food, containers and small appliances inside the refrigerator
• Creates a flat, stable storage surface for better organization
• Helps contain spills on a single surface for easier cleanup
• Restores damaged, cracked or missing shelving to regain full shelving capacity

• One glass shelf

• Handle glass carefully and wear cut-resistant gloves to prevent injury
• Remove food and other items from adjacent shelves before installing
• Slide into existing shelf tracks or clips until fully seated; do not force
• If shelf hardware is damaged or missing, replace mounting clips or supports before use

This shelf net is a mesh-style refrigerator shelf designed to support and contain food items while allowing airflow. It replaces torn, stretched, or missing nets to restore storage organization and help prevent items from shifting. What it does:

• Provides a flexible, ventilated surface for storing packaged foods, produce, or deli items
• Helps keep small or irregularly shaped items from falling through larger shelves
• Restores proper storage function when original netting is damaged, loose, or missing
• Compatible with designated shelf frames and snaps into place where equipped

• Unplug the appliance or turn off power to the unit before servicing for safety.
• Empty and remove food items from the affected shelf area before installation.
• Install by aligning the net with the shelf frame and securing per the owner's manual; do not force or modify parts.
• If installation requires removal of shelves or trim, keep fasteners and small parts organized and follow manufacturer instructions.

The Guide Assembly Rail is an OEM part for LG refrigerators. This assembly provides structural support and guidance for the refrigerator drawers, allowing them to slide in and out smoothly. It measures approximately 15 1/2 by 3 inches,.

Causes of a bad guide assembly rail can include wear and tear from regular use, damage from overloading the drawers, or physical impact. A compromised guide assembly rail can lead to difficulty in moving the drawers, affecting the usability of the refrigerator.

Symptoms of a bad guide assembly rail include:

• Drawers not sliding smoothly or getting stuck
• Drawers not aligning properly with the rail
• Unusual noises when opening or closing the drawers
• Visible damage or wear on the rail

This OEM LG part is also compatible with Sears/Kenmore models.

The Right Side Drawer Rail Guide is an OEM part for LG refrigerators. This component is designed to support and guide the movement of the refrigerator's drawers, allowing them to slide in and out smoothly. It is mounted on the right side of the drawer compartment and helps ensure the proper alignment and stability of the drawer.

Symptoms of a failing Right Side Drawer Rail Guide include:

• The drawer not sliding smoothly or getting stuck
• The drawer tilting or sagging on one side
• Unusual noises such as grinding or scraping when moving the drawer
• Visible damage, cracks, or wear on the rail guide

Causes of a bad drawer rail guide can include regular wear and tear from frequent use, physical damage from heavy or improperly loaded drawers, and deterioration over time due to temperature changes within the refrigerator.

This OEM LG part is also compatible with some Kenmore models.

This refrigerator shelf assembly replaces a broken or worn internal shelf to restore usable storage and stable support for food and containers. The glass shelf provides a flat, easy-to-clean surface that maintains organized chilling. What it does

• Replaces a damaged or cracked internal refrigerator shelf to restore safe storage
• Provides a sturdy, level surface for containers, produce and deli items
• Helps maintain organized interior layout and prevents items from falling
• Compatible with refrigerators that use this exact OEM shelf assembly

• One (1) refrigerator shelf assembly (glass shelf with trim/frame as shipped by manufacturer)

• Remove power or disconnect the appliance before performing service when required by your model's safety instructions
• Handle glass parts carefully; wear gloves to avoid cuts and support the shelf during removal and installation
• Verify exact fit and orientation before tightening any retainers; do not force the shelf into slots

This refrigerator shelf assembly replaces a broken or worn internal shelf to restore usable storage and stable support for food and containers. The glass shelf provides a flat, easy-to-clean surface that maintains organized chilling. What it does

• Replaces a damaged or cracked internal refrigerator shelf to restore safe storage
• Provides a sturdy, level surface for containers, produce and deli items
• Helps maintain organized interior layout and prevents items from falling
• Compatible with refrigerators that use this exact OEM shelf assembly

• One (1) refrigerator shelf assembly (glass shelf with trim/frame as shipped by manufacturer)

• Remove power or disconnect the appliance before performing service when required by your model's safety instructions
• Handle glass parts carefully; wear gloves to avoid cuts and support the shelf during removal and installation
• Verify exact fit and orientation before tightening any retainers; do not force the shelf into slots

A replacement rear housing that restores the TV's outer enclosure and protects internal components. Replaces a damaged or cracked back panel to help maintain proper airflow and keep electronics secure. What it does:

• Replaces the TV's rear outer cover to protect circuit boards, power supply, and wiring from dust and impact
• Restores the cabinet fit and finish to eliminate gaps, rattles, or visible damage
• Helps maintain intended ventilation openings so cooling performs as designed
• Useful when back panel is cracked, warped, missing mounting tabs, or cosmetically damaged

• One TV rear cover

• Disconnect power and remove all external cables before service
• Handle panel edges and internal components carefully to avoid damage to boards or connectors
• Retain and reuse original screws and brackets unless replacements are specified

This lamp cover encloses and shields the light bulb while diffusing illumination inside the appliance. Replacing a cracked, discolored, or missing cover restores safe, even lighting and protects the bulb from accidental contact and debris.

• Covers and protects the light bulb; diffuses light for better visibility inside the compartment
• Helps prevent bulb damage from impact, moisture, and debris
• Common symptoms: cover is cracked, warped/melted, yellowed, loose, or missing; exposed bulb or harsh glare
• Sometimes called a light lens; may rattle or fall out when tabs or screws break

• Disconnect power to the appliance and allow the lamp area to cool completely
• Handle the lens carefully; align tabs/clips and seat fully before securing—do not overtighten
• Inspect and replace the bulb if damaged or heat-darkened

This lamp cover encloses and shields the light bulb while diffusing illumination inside the appliance. Replacing a cracked, discolored, or missing cover restores safe, even lighting and protects the bulb from accidental contact and debris.

• Covers and protects the light bulb; diffuses light for better visibility inside the compartment
• Helps prevent bulb damage from impact, moisture, and debris
• Common symptoms: cover is cracked, warped/melted, yellowed, loose, or missing; exposed bulb or harsh glare
• Sometimes called a light lens; may rattle or fall out when tabs or screws break

• Disconnect power to the appliance and allow the lamp area to cool completely
• Handle the lens carefully; align tabs/clips and seat fully before securing—do not overtighten
• Inspect and replace the bulb if damaged or heat-darkened

Color: clear. Measures about 28 inches wide by 14 inches deep.

This Magic Room cover is the replacement shelf cover for the refrigerator's convertible compartment, restoring a flat, stable surface to hold food and containers. It helps keep items supported and the compartment functioning as intended. What it does:

• Replaces a cracked, chipped or missing Magic Room shelf cover
• Provides a stable surface for storing foods and containers in the convertible compartment
• Helps maintain proper spacing and support for drawer/bin components
• Prevents items from falling through or contacting temperature controls below

• Remove food and any drawers or bins that block access before installing
• Handle carefully to avoid chipping; support edges when sliding into place
• Reassemble components in reverse order and ensure the cover seats securely
• Follow all safety steps in the refrigerator owner's manual; unplug or power off if recommended for your model

The Meat Tray Assembly is an OEM replacement part for LG refrigerators. Located in the refrigerator door, it provides an organized storage solution for meats and other perishables requiring ventilation.

Causes of a failed meat tray can include damage from overfilling or stress from repeated removal and insertion. Trays experience wear from continuous use.

Symptoms of a compromised assembly include:

• Cracks or breaks in the plastic tray material
• Loose or detached rear mounting clips that do not securely attach the tray
• Missing venting elements that reduce airflow and aerate stored items

This tray assembly is also compatible with Kenmore and Samsung fridges for convenient replacements.

This refrigerator door gasket creates an airtight seal between the door and cabinet to keep cold air in and moisture out. Replace a worn or torn seal to restore cooling performance, reduce frost, and prevent temperature fluctuations.

• Forms a continuous seal around the door perimeter to minimize air leaks
• Helps maintain proper temperatures and humidity inside the refrigerator
• Common failure signs: gaps, tears, or hardened/warped corners
• Symptoms may include doors not closing flush, condensation or frost buildup, and longer run times

What's included: 1 door gasket assembly Installation notes:

• Unplug the refrigerator before servicing
• Warm the new gasket in hot water or with a hair dryer on low to improve flexibility
• Pull the old gasket from the retainer channel; press the new gasket into the channel, starting at the corners
• Close the door and check for uniform contact all around; re-seat and adjust as needed

This name plate is the exterior emblem that mounts to the appliance's front panel. It replaces a missing, cracked, or faded badge to restore a clean, factory look and cover the designated trim area.

• Attaches to the outer panel to display brand/series identification
• Restores a finished appearance where the original emblem sits
• Direct replacement for a lost, damaged, or worn badge
• Typical symptoms: missing emblem, loose or broken tabs, peeling, or discoloration

• Disconnect power before servicing the appliance
• Carefully remove the old emblem; release any tabs from behind or peel away remaining adhesive
• Clean and dry the mounting surface; remove all residue for best fit
• Align with the recess/holes and press evenly until fully seated

This replacement guide provides a secure mounting surface to keep the appliance component aligned and operating smoothly. It restores proper fit and reduces rubbing or binding caused by a worn or broken guide. What it does

• Positions and supports the associated component to prevent misalignment and excessive movement
• Reduces scraping, rubbing, or grinding noises caused by a damaged guide
• Helps drawers, doors, or internal assemblies slide and seat correctly
• Restores smooth operation when original guide is cracked, worn, or missing

• One replacement guide

• Disconnect power (and water, if applicable) before starting any repair
• Minimal hand tools are typically required; follow the appliance service manual for exact steps
• Inspect surrounding clips, screws, and tracks; replace any damaged hardware for best results

This door basket replaces a cracked or worn refrigerator door shelf to restore secure storage for bottles and small items. Durable molded plastic keeps contents organized and prevents spills on the door. What it does:

• Provides a stable shelf on the refrigerator door for bottles, condiments and small containers
• Replaces broken, cracked or loose door bins that allow items to fall or shift
• Restores proper alignment so the door closes without obstruction
• Matches OEM fit and mounting locations for a direct replacement

• Remove all food and items from the door before starting
• Lift out the old basket and snap the new basket into the same door track; no cutting or modification required
• Inspect door seals and surrounding trim during installation; handle edges carefully to avoid injury

The Door Basket Assembly is an OEM part for LG refrigerators. It provides additional storage space on the refrigerator door, allowing you to organize items such as beverages, condiments, and other small items for easy access. This basket is designed to fit securely on the door, making efficient use of available space.

Over time, the door basket assembly can become damaged due to heavy use, overloading, or accidental impacts. When the basket is compromised, it may not hold items securely or fit properly on the door.

Symptoms of a bad door basket assembly include:

• Cracks or breaks in the plastic
• The basket not staying securely in place
• Items falling out of the basket
• Difficulty in inserting or removing the basket

This OEM LG part is also compatible with Sears/Kenmore.

This is the small trim cap that snaps over the end of a refrigerator door handle. It finishes the handle, covers the mounting hardware, and helps keep the handle secure and looking clean.

• Covers exposed door-handle screws and mounting points
• Restores a finished appearance if the original cap is missing or damaged
• May help reduce handle looseness if the old cap no longer held properly
• Common symptoms: missing end cover, visible handle screws, loose or rattling handle

• Unplug the appliance before starting and open the door for access
• Remove the old cap by gently prying at the seam; avoid scratching the door finish
• Align the new cap with the handle end and press until it snaps fully into place
• If required, tighten handle mounting screws before installing the cap

RAIL,SLIDE-LEFT

RAIL,SLIDE-RIGHT

This replacement door shelf bar secures items on a refrigerator door shelf, restoring proper storage and helping keep bottles and containers from sliding or falling when the door is opened. A simple, direct fix for broken or missing shelf retainers. What it does

• Holds door-bin items in place so bottles, jars and containers stay secure during normal use
• Replaces cracked, warped or missing shelf retainer bars that allow items to tip or fall
• Helps restore proper shelf function and usable door storage
• Designed to match the OEM fit and mounting points for a direct replacement

• Remove contents from the door shelf before replacing the bar
• Install by aligning with the shelf slots or mounting tabs and snapping or sliding into place per the original orientation
• Use gentle pressure to avoid damaging surrounding bins or trim; do not force metal parts
• Refer to your refrigerator's owner's manual for model-specific instructions and safety guidance

This connector secures and transmits motion between the drawer drive and the sliding assembly, restoring smooth drawer movement and alignment. It's a direct-fit replacement that helps fix sticking, slipping, or non-moving drawers. What it does:

• Couples the drawer drive mechanism to the sliding gear, allowing the drawer to open and close reliably
• Replaces worn or broken connector teeth or mounts that cause skipping or jammed operation
• Helps correct uneven or noisy drawer movement caused by damaged linkage
• Restores proper engagement so the drawer responds to normal open/close controls

• One connector as shown

• Disconnect power to the appliance before servicing to avoid electrical shock or injury
• Inspect surrounding gears, tracks, and mounting points; replace any damaged parts for best results
• Basic hand tools are typically required; handle plastic gears carefully to avoid further damage

This replacement hinge assembly supports and pivots the refrigerator door. Replacing a worn or bent hinge restores smooth door movement and proper alignment so the gasket can seal correctly to help maintain performance. What it does:

• Provides the pivot point for the door to open and close
• Supports the door's weight to keep it aligned
• Helps the door gasket seal evenly against the cabinet
• May correct issues such as door sagging, rubbing, popping, or not closing/sealing fully

• One hinge assembly

• Unplug the refrigerator and remove items from the affected door
• Support the door while removing hinge screws; note the orientation of any spacers/bushings
• Transfer any reusable hardware from the old hinge to the new assembly
• Reinstall and tighten fasteners; verify door is level and check gasket seal

The Hinge Bushing is an OEM part for LG refrigerators. It serves as a crucial component in the door hinge mechanism, ensuring smooth and stable operation when opening and closing the refrigerator door.

You should replace this hinge bushing if it becomes worn out or damaged. Common causes of a bad hinge bushing include constant use leading to wear and tear, misalignment of the door, or physical damage due to impact.

Symptoms of a bad hinge bushing include:

• Difficulty in opening or closing the door
• The door sagging or not aligning properly
• Unusual noises like squeaking or grinding when the door is moved

This OEM LG part is also compatible with Sears/Kenmore.

This is a replacement retaining pin used to secure small moving parts and assemblies in compatible LG appliances. It restores proper alignment and holds components in place so assemblies operate smoothly. What it does:

• Secures and locates components within an assembly to prevent shifting or disengagement
• Helps maintain proper alignment for moving parts that can cause noise or malfunction when loose
• Commonly used where a small, durable metal pin is needed to retain clips, levers, or linkages
• Simple, single-purpose part — replacement when the original is bent, worn, or missing

• One retaining pin

• Unplug the appliance or disconnect power before servicing
• Access the affected assembly per the appliance service instructions; small fasteners or clips may need removal
• Use pliers or appropriate hand tools to remove/install the pin; avoid forcing to prevent damage
• Keep track of orientation and any associated clips or washers during disassembly

The Compressor Start Relay is an OEM part for LG refrigerators, playing a critical role in the starting mechanism of the compressor. This small but crucial component helps to kickstart the compressor, enabling it to begin the refrigeration cycle that cools the interior of the fridge.

Causes of a bad Compressor Start Relay include wear and tear over time, electrical surges that can damage the relay, or overheating of the compressor unit.

Symptoms of a bad Compressor Start Relay include:

• The refrigerator failing to cool properly or maintain the set temperature.
• A noticeable increase in the electric bill due to the refrigerator working harder to maintain temperatures.
• Strange noises, such as clicking sounds from the compressor area
• The compressor not starting at all, leading to a complete lack of cooling within the refrigerator.

This OEM LG part is also compatible with some Kenmore models.

The Compressor Start Relay is an OEM part for LG refrigerators, playing a critical role in the starting mechanism of the compressor. This small but crucial component helps to kickstart the compressor, enabling it to begin the refrigeration cycle that cools the interior of the fridge.

Causes of a bad Compressor Start Relay include wear and tear over time, electrical surges that can damage the relay, or overheating of the compressor unit.

Symptoms of a bad Compressor Start Relay include:

• The refrigerator failing to cool properly or maintain the set temperature.
• A noticeable increase in the electric bill due to the refrigerator working harder to maintain temperatures.
• Strange noises, such as clicking sounds from the compressor area
• The compressor not starting at all, leading to a complete lack of cooling within the refrigerator.

This OEM LG part is also compatible with some Kenmore models.

This overload protector is a safety device that helps prevent compressor damage by stopping electrical current during overheating or locked-rotor conditions. It's a direct-fit replacement that restores proper compressor protection and helps keep the appliance running safely. What it does:

• Protects the compressor by interrupting power if the motor overheats or experiences an electrical fault
• Common symptom: refrigerator runs but compressor won't start or only hums
• Common symptom: fridge cycles frequently or doesn't maintain temperature due to compressor protection tripping
• Works with the start device to help ensure reliable compressor startup

• Disconnect power before servicing; work only with the appliance unplugged
• Access typically requires removing the rear access panel to reach the compressor area
• Replace using the same mounting and terminal connections; ensure secure electrical connections

This PTC cover protects the refrigerator's PTC/compressor start device from dirt, moisture and accidental contact, helping the start device operate reliably. It's a simple replacement that restores the protective enclosure for the start assembly. What it does:

• Shields the PTC/compressor start relay and wiring from debris and moisture that can cause malfunctions
• Helps prevent accidental shorting or contact with terminals during operation or service
• Can resolve symptoms where the start device is exposed or the compressor area shows visible wear or damage
• Maintains correct positioning and protection of the start components for consistent compressor starting

• One PTC cover (protective enclosure) as shown

• Disconnect power to the appliance before starting any repair
• Replace only when the start device or cover is exposed and you can access compressor/start assembly safely
• Avoid bending or stressing terminals and wiring when removing or installing the cover

This holder is a small mounting bracket used to secure internal components in place, helping keep parts aligned and stable for reliable operation. It provides a direct, OEM-compatible replacement to restore proper fit and function. What it does

• Secures and supports nearby components to prevent shifting or vibration.
• Restores proper alignment where a worn or broken holder causes rattling or loose parts.
• Helps maintain normal operation by keeping assemblies seated correctly.
• Works behind panels or inside assemblies where a dedicated bracket is required.

• One holder/mounting bracket as shown.

• Installation generally requires removing the panel or access cover where the holder is located.
• Use proper fasteners shown in your appliance; replace any damaged screws or clips as needed.
• Disconnect power before servicing electrical appliances to reduce shock risk.

This motor bracket is the OEM-style mounting bracket that secures the appliance motor to the cabinet, keeping the motor aligned and reducing vibration for reliable operation. It helps restore proper motor support and stable running. What it does:

• Provides a secure mounting point to hold the motor in correct position
• Maintains motor alignment to prevent belt slip and uneven wear
• Reduces vibration and noise caused by a loose or damaged motor mount
• Can resolve symptoms such as unusual motor noise, excessive vibration, or motor movement during operation

• Disconnect power (and gas if applicable) before starting any repair
• Basic hand tools are typically required; follow the appliance service manual for access steps
• Inspect surrounding components (mounting fasteners, motor and belts) and replace any damaged parts

The Defrost Sensor Assembly is an OEM part for LG refrigerators. It plays a critical role in the defrost system by monitoring the temperature of the evaporator coil to ensure that it remains at the optimal temperature to prevent frost buildup. The sensor sends signals to the control board, triggering the defrost cycle when necessary.

Over time, the defrost sensor assembly can fail due to wear and tear, electrical issues, or exposure to moisture and temperature fluctuations. When the defrost sensor malfunctions, it can cause improper defrost cycles, leading to excessive frost buildup, reduced cooling efficiency, or the refrigerator not defrosting at all.

Symptoms of a bad defrost sensor assembly include:

• Excessive frost buildup on the evaporator coils
• Refrigerator or freezer not maintaining the correct temperature
• Increased energy consumption
• Refrigerator not defrosting properly

This OEM LG part is also compatible with Sears/Kenmore.

This DC fan motor drives the refrigerator's fan to circulate air across the coils and through the cabinet. Replacing a weak or failed motor restores proper airflow for consistent temperatures and reliable cooling performance.

• Spins the fan blade to move air through the cabinet and across heat-exchange coils
• Helps maintain even, stable temperatures throughout the appliance
• Typical failure symptoms: fan not running or intermittent, unusual humming/squealing/rattling near the fan area, poor cooling or temperature fluctuations
• Can reduce hot spots by restoring proper air circulation

• Disconnect power before servicing; use cut-resistant gloves
• Access the motor behind the rear cover or interior panel (location varies by model)
• Note connector orientation; disconnect harness, mount the new motor, and securely route wiring
• Ensure the blade spins freely with no obstructions; restore power and verify fan operation

The Front Evaporator Motor Grommet is an OEM part for LG refrigerators. This grommet cushions and secures the evaporator motor, reducing vibrations and noise during operation to ensure efficient cooling.

Causes of a bad grommet can include prolonged use leading to material fatigue, exposure to extreme temperatures, or physical damage from accidental impacts. A damaged grommet can result in increased noise and potential misalignment of the evaporator motor.

Symptoms of a bad evaporator motor grommet include:

• Increased noise from the refrigerator
• Vibrations or rattling sounds
• Poor cooling performance
• The evaporator motor becoming loose

This OEM LG part is also compatible with Sears/Kenmore.

The Refrigerator Door Switch is an OEM part for LG refrigerators, designed to signal the control system when the door is open or closed. This small but essential component plays a critical role in the overall operation of your refrigerator, including the activation of interior lights and the control of cooling functions.

Over time, the door switch can fail due to mechanical wear, accidental damage, or a buildup of debris that may prevent it from functioning correctly.

Symptoms of a bad Refrigerator Door Switch include:

• Interior lights not turning on or off appropriately with the door's position
• The refrigerator running longer than necessary, potentially leading to increased energy bills
• Unusual fluctuations in temperature inside the fridge, affecting food preservation

This OEM LG part can also be used on Kenmore/Sears appliances.

The Refrigerator Door Switch is an OEM part for LG refrigerators, designed to signal the control system when the door is open or closed. This small but essential component plays a critical role in the overall operation of your refrigerator, including the activation of interior lights and the control of cooling functions.

Over time, the door switch can fail due to mechanical wear, accidental damage, or a buildup of debris that may prevent it from functioning correctly.

Symptoms of a bad Refrigerator Door Switch include:

• Interior lights not turning on or off appropriately with the door's position
• The refrigerator running longer than necessary, potentially leading to increased energy bills
• Unusual fluctuations in temperature inside the fridge, affecting food preservation

This OEM LG part can also be used on Kenmore/Sears appliances.

This reflector lamp is the interior light housing that helps direct and diffuse the refrigerator/freezer bulb for brighter, more usable interior illumination. Replaces a cracked, discolored, or missing reflector to restore even light inside the compartment. What it does:

• Reflects and directs the interior lamp's light to improve visibility inside the compartment
• Covers and protects the light bulb and lamp socket from splashes and debris
• Helps reduce hot spots and uneven lighting caused by a damaged reflector
• Common symptom: interior light is dim, uneven, flickering, or reflector is cracked/discolored

• One reflector lamp housing

• Disconnect power to the appliance before starting any repair
• Typically secures with a few screws or snap tabs; use appropriate screwdriver and keep fasteners
• Handle carefully to avoid cracking the plastic; check the bulb and socket when replacing the reflector
• Test the light after reassembly and restore power only when the housing is properly installed

The Light Bulb is an OEM part for LG refrigerators. It can be used in either the fresh food section or freezer compartment, providing illumination for easy visibility of the stored items.

Causes of a faulty light bulb can include regular wear and tear, reaching the end of its lifespan, or accidental breakage. These factors can result in issues such as a dark or poorly lit interior, making it difficult to see the contents of the refrigerator.

Symptoms of a bad light bulb may include:

• No illumination or dim lighting inside the refrigerator
• A flickering or intermittent light
• Visible damage or broken filament inside the bulb

This LG OEM bulb is also compatible with Sears/Kenmore models.

The Light Bulb is an OEM part for LG refrigerators. It can be used in either the fresh food section or freezer compartment, providing illumination for easy visibility of the stored items.

Causes of a faulty light bulb can include regular wear and tear, reaching the end of its lifespan, or accidental breakage. These factors can result in issues such as a dark or poorly lit interior, making it difficult to see the contents of the refrigerator.

Symptoms of a bad light bulb may include:

• No illumination or dim lighting inside the refrigerator
• A flickering or intermittent light
• Visible damage or broken filament inside the bulb

This LG OEM bulb is also compatible with Sears/Kenmore models.

The Capacitor is an OEM replacement part for  LG refrigerators. It is an electronic component located next to the refrigerator compressor that stores electric charge between cycles of the power supply circuit. The capacitor plays an important role in providing stable starting power to the compressor motor.

Causes of a bad capacitor next to the compressor can include heat distress over thousands of start/stop cycles of the refrigerator.

Symptoms of a bad capacitor include:

• The compressor makes loud buzzing or grinding noises during the operation
• The compressor fails to start or cycles on and off frequently
• Temperature fluctuations inside the refrigerator
• Error codes related to compressor issues

This genuine LG replacement is compatible also with Kenmore Elite model refrigerators

This replacement lamp socket holds and powers the appliance light bulb, restoring clear, reliable illumination when the light is switched on. Replace a heat-damaged, cracked, or loose socket to stop flickering or a light that won't come on.

• Holds the bulb securely and supplies electrical power
• Restores consistent interior lighting for visibility
• Replaces sockets with heat damage, cracks, or worn contacts
• Symptoms: light stays off with a good bulb, flickers intermittently, or the bulb feels loose

• Disconnect power before servicing and allow the area to cool
• Remove the lens/cover and bulb; release the socket (tabs or screws) to remove
• Transfer wires one at a time to the new socket; ensure tight, correct connections
• Use only the bulb type and wattage specified for your model; test before reassembly

This power cord assembly supplies AC power from the wall outlet to your appliance. Replacing a frayed, heat-damaged, or loose cord restores safe, reliable operation and can eliminate intermittent power loss.

• Carries line voltage and ground into the unit to power controls and components
• Routes electricity safely into the cabinet to protect internal wiring
• Replace at the first sign of damage to reduce shock or fire risk

• Disconnect power at the outlet/breaker before servicing
• Compare the new cord to the original; transfer any clips or grommets from the old cord if needed
• Route and secure the cord exactly as original; keep clear of sharp edges and moving parts
• Ensure all connections are fully seated and the ground is properly secured before restoring power

This sheathed defrost heater mounts at the evaporator and melts frost during the automatic defrost cycle to restore airflow and stable temperatures. Replacing a failed heater helps prevent ice-clogged coils, warm spots, and noisy fan interference.

• Melts frost from the evaporator coil during the defrost cycle to maintain proper airflow
• Symptoms of failure: persistent ice on the back panel, weak cooling, or the evaporator fan striking ice
• A failed heater can cause long run times and temperature swings
• Replace if the element tests open/short or shows visible damage

• Disconnect power before service; allow components to warm to reduce risk of cracking brittle plastics
• Remove shelves and the evaporator cover; carefully defrost ice—do not chip or pry against the fins
• Transfer original clips/insulators if present; route wires as original and make firm electrical connections
• After reassembly, ensure the drain area is clear and the fan spins freely

This condenser fan motor spins the cooling fan that draws air across the condenser coils and around the compressor. Replacing a weak or seized motor restores proper heat removal so the refrigerator can hold temperature and run more efficiently. What it does:

• Drives the condenser fan to move air through the rear condenser/compressor compartment
• Helps dissipate heat from the refrigerant and protects the compressor from overheating
• Supports stable internal temperatures and efficient cooling performance
• Common symptoms: fan not running, louder rattling/grinding at the back-bottom, hot cabinet sides, warmer-than-normal refrigerator temperatures

• Includes 1 cooling fan motor

• Disconnect power before servicing; pull the unit away from the wall for access
• Remove the rear lower access panel to reach the condenser fan area
• Note wiring and fan-blade orientation; transfer the blade and any mounting hardware from the old motor as needed
• The fan spins freely and airflow direction matches the original before reassembly

The Case Assembly is an OEM part for LG side-by-side refrigerators housing electronic display modules. This assembly securely mounts LCD panels governing temperature readings and interface menus.

Causes of a bad case assembly can include moisture ingress degrading connections, stress fractures from repeated door openings, or impact damage compromising protective seals over time.

Symptoms of a bad case assembly include:

• Dimming or blank display lacking visibility
• Unresponsive touch controls with miscalibrated inputs
• Insecure mounting losing calibration on door
• Openings allowing corrosive vapors to damage electronics

Replace yours today with this genuine OEM LG assembly to safeguard refrigerator displays and customizable settings. Snap-fit clips produce a robust, water-tight seal around precision components. This replacement part is compatible with Kenmore, Samsung, and GE side-by-side models featuring similar interactive panels. Reliable mounting maximizes product life.

The Toe Grille Clip is an OEM part for LG refrigerators. This part secures the toe grille to the base of the refrigerator, ensuring it remains in place while providing easy access for cleaning and maintenance.

Causes of a bad Toe Grille Clip can include breakage due to accidental impacts during cleaning or general wear and tear over time.

Symptoms of a faulty Toe Grille Clip include:

• The toe grille coming loose or falling off
• Difficulty attaching or detaching the grille for routine maintenance
• Visible damage or deformation of the clip
• Unusual gaps between the grille and the refrigerator base

This OEM LG part is also compatible with some Kenmore models.

The Freezer Temperature Sensor is an OEM part for LG refrigerators. This sensor monitors the temperature within the freezer compartment, sending readings to the refrigerator’s control board to maintain optimal temperature levels. It plays a crucial role in ensuring that the freezer operates efficiently and keeps food items properly frozen.

Over time, the temperature sensor can fail due to regular wear and tear, electrical issues, or exposure to extreme temperatures. A faulty sensor can lead to inaccurate temperature readings, affecting the freezer's performance.

Symptoms of a bad freezer temperature sensor include:

• Inconsistent freezer temperatures
• The freezer running continuously or not running at all
• Frost buildup in the freezer compartment
• The control board displaying error codes related to temperature

This OEM LG part is also compatible with Sears/Kenmore.
