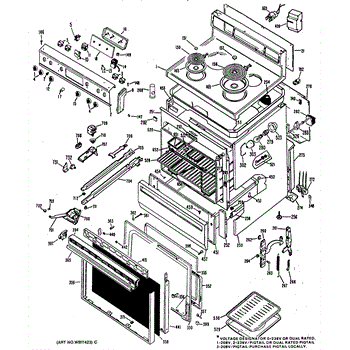

Parts for Ge JBP24GXP2: 01 - Section1 Parts

The Infinite Heat Switch Kit is an OEM part for GE ranges and cooktops. This kit is essential for controlling the temperature of the burners on your range or cooktop, allowing you to adjust the heat level from low to high.

Causes of damage to the infinite heat switch can include normal wear and tear from frequent use, electrical issues such as short circuits or power surges, and physical damage from cleaning or impact.

Symptoms of a bad Infinite Heat Switch include:

• Burners not heating to the desired temperature, either staying too hot or not getting hot enough.
• The burner not turning on at all, indicating a possible failure in the switch's electrical contacts or circuit.
• Inconsistent cooking temperatures, where the burner cycles on and off too frequently or not often enough, affecting cooking performance.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Clock Knob Kit is an OEM replacement part for GE ranges. It contains the necessary knobs to control clock and timer functions from the control panel. This 3 pack of range clock knobs is all you need to cover one timer control. Color: Black. Each knob measures about 1/2 an inch in diameter, and 1 inch deep

Symptoms of faulty knobs include:

• Knobs no longer stay securely attached to shafts
• Issues selecting timer options or adjusting clock settings
• Incorrect rotation feel or knobs difficult to turn
• Display issues arising from loose or faulty internal connections

This GE replacement kit is also compatible with Hotpoint, RCA and some Kenmore ranges for convenient cooking.

NOTE: For chrome order WB3X459.

The 6-Inch Small Surface Element is an OEM part for GE cooktops and ranges. It is designed to provide consistent and reliable heat for cooking on the stovetop. This heating element fits into the designated slot on the cooktop and is used for preparing smaller dishes or for simmering.

You should replace the surface element if it becomes faulty. Causes of a bad surface element can include wear and tear from regular use, electrical issues, or damage from overheating. A malfunctioning surface element can lead to uneven cooking, insufficient heat, or the element not heating up at all.

Symptoms of a bad 6-inch small surface element include:

• The element not heating up or only heating intermittently
• Visible damage such as burn marks or deformation
• Uneven heating or hotspots on cookware
• The element not fitting securely into its slot

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Matching 8-inch surface element - WB30M2; terminal block - WB17X5113

The 8 Inch Large Surface Element is an OEM part for GE ranges and cooktops. This heating element is used on the cooktop to provide a consistent heat source for cooking. It fits into the designated spot on the stove and connects to the electrical system, allowing users to control the temperature for various cooking needs.

Causes of a bad surface element can include wear and tear from frequent use, electrical malfunctions, or damage from spills and food debris. Overheating or accidental impacts can also impair its functionality.

Symptoms of a bad 8 Inch Large Surface Element include:

• The element not heating up
• Uneven heating or hot spots on the element
• Sparks or electrical noises when the element is in use
• Visible damage or burns on the element

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This center trim is the molded bezel that fits the front center of the cooktop/oven control area, restoring a finished look and protecting the control panel edges from heat and grime. What it does:

• Covers and protects the exposed edge of the control panel for a clean appearance
• Hides gaps, chips or discolored trim that make the console look worn
• Helps prevent dirt and grease from getting behind the control assembly
• Restores proper alignment and fit where the original trim is cracked or broken

• Disconnect power to the appliance before starting any repair.
• Typically secures with clips or screws—retain hardware and note orientation when removing old trim.
• Handle edges carefully; replacement may require gentle prying with a trim tool.
• If mounting hardware or support brackets are damaged, replace them separately.

The Surface Unit Receptacle is an OEM part for GE cooktops and ranges. It is designed to hold and connect the surface heating element to the cooktop’s electrical system, providing a secure and reliable connection for the element to receive power.

Causes of a bad surface unit receptacle can include wear and tear from regular use, exposure to high temperatures, or electrical arcing. A malfunctioning receptacle can lead to improper heating element performance or electrical hazards.

Symptoms of a bad surface unit receptacle include:

• The heating element not heating up or only heating intermittently
• Visible damage or burn marks on the receptacle
• Sparks or electrical arcing when the element is in use
• The heating element feeling loose or not fitting securely in the receptacle

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

For the large 8-inch surface element order WB30M2. For the small 6-inch surface element order WB30M1.

The 6 Inch Burner Bowl is an OEM part for GE electric ranges and stovetops. Designed to fit beneath the 6-inch electric coil elements, this burner bowl serves as a catchment for spills, drips, and crumbs that occur during cooking. Not only does it help keep the cooktop area clean, but it also reflects heat back to the cookware, improving cooking efficiency.

Causes for replacement often include accumulated spills and high heat exposure over time, leading to aesthetic wear and tear or functional degradation.

Symptoms of a bad 6 Inch Burner Bowl include:

• Rusting or corrosion that can affect the reflectivity and heat distribution
• Deep scratches or dents that may harbor bacteria and debris
• Discoloration or stubborn stains that can't be removed, affecting the appearance of your cooktop

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The 8 Inch Burner Bowl is an OEM part for GE ranges and cooktops. Designed to fit beneath the burner element, this part reflects heat back onto the cookware for efficient cooking and catches spills and drips to keep the cooktop clean. Made from durable materials, the burner bowl is easy to remove and clean.

Causes of a bad burner bowl include excessive heat exposure leading to discoloration or warping, accumulation of spills and debris that can corrode or damage the bowl, and physical damage such as dents or cracks.

Symptoms of a bad 8 Inch Burner Bowl include:

• Noticeable discoloration or warping from heat exposure.
• Rust or corrosion caused by accumulated moisture and debris.
• Difficulty fitting the bowl properly due to physical damage.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

Porcelain. Color: black. It measures about 10 inches in diameter at its widest point at the top.

Almond

Right hand side

Left hand side

Clip for door hinge.

The Terminal Block is an OEM part for GE electric ranges. It serves as a critical junction point where the range's wiring connects to the heating elements, ensuring proper electrical flow and operation of the oven and cooktop. This component is essential for the safe and efficient functioning of your appliance.

Causes of a bad terminal block can include overheating due to electrical surges, corrosion from prolonged exposure to heat and moisture, or physical damage from improper installation or handling.

Symptoms of a bad terminal block include:

• The oven or burners not heating properly
• Visible signs of burn marks or corrosion on the block
• Electrical arcing or sparking
• Intermittent or no power to the heating elements

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Receptacle Push-In is an OEM replacement part for GE ranges. This component securely holds the electrical receptacle/plug in place on the back of the range. Proper functioning of the receptacle push-in allows for a stable electrical connection and safe cord positioning.

Causes of a bad receptacle push-in include normal wear over time, bending/stress on the receptacle area, or damage affecting its securing ability.

Symptoms of a bad receptacle push-in are:

• Loose or wobbly electrical plug connection
• Exposed wiring or fragile cord positioning
• Tripped breakers or recurring electrical issues

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

The Oven Light Lens is an OEM part for GE ovens, designed to protect and cover the oven light bulb. It allows for a clear view of the oven's interior, making it easier to monitor the cooking progress without opening the oven door, thus maintaining a consistent temperature.

Over time, the oven light lens can become discolored or cloudy from exposure to high temperatures, grease, and food splatters, which can diminish its effectiveness. Additionally, accidental bumps or cleaning can lead to cracks or breaks in the lens.

Symptoms of a bad Oven Light Lens include:

• Diminished light output, making it hard to see inside the oven
• Cracks or damage to the lens itself
• Discoloration or cloudiness that cannot be cleaned off
• The lens becoming loose or falling off

This OEM GE  part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Oven Door Gasket is an OEM replacement part for GE ranges and wall ovens. It provides a secure seal around the oven door to contain heat within the cooking cavity. The gasket is essential for efficient operation as it helps maintain optimal cooking temperatures.

Causes of a bad door gasket can include heat damage over time, warping from repeated door openings and closings, or accidental tears and ruptures.

Symptoms of a bad oven door gasket include:

• Excessive heat loss around the door area
• Inconsistent or inefficient cooking performance
• The door not sealing properly, allowing heat to escape
• Rust or corrosion on interior door parts

This OEM GE part is compatible with GE, Hotpoint, Monogram, and certain Kenmore wall oven models.

Includes 12 screws.

Includes 12 screws.

Includes 12 washers.

This mounting spacer keeps exterior panels and components properly separated for correct alignment and fit, helping prevent rubbing and vibration. It's a small, durable replacement used where original spacers have worn or been lost. What it does:

• Maintains correct gap and alignment between panels or assembly parts
• Prevents rubbing, noise, and premature wear from metal-to-metal contact
• Helps secure components in the intended position during operation
• Restores factory spacing after repair or disassembly

• Disconnect power or unplug appliance before servicing
• Replace only with the same spacer location and orientation as the original
• Require removal of trim or panels; keep fasteners and note placement
• If damaged hardware or fasteners are found, replace them to ensure secure fit

Endcap Kit - Contains (1) left hand (1) right hand endcap.

Part is no longer available

This speed nut is a clip-on fastener that provides threads for a screw on the appliance. It secures sheet-metal panels, brackets, or trim and helps keep assemblies tight under vibration and repeated use.

• Provides captive threads so a screw can tighten into thin sheet metal
• Helps secure panels, brackets, and trim pieces in place
• Replace if a screw spins without tightening, a panel rattles/feels loose, or the original clip is missing or damaged
• Restores a snug, reliable attachment point without a loose nut

• Disconnect power and, if applicable, shut off gas; allow the appliance to cool before servicing
• Note the clip's orientation; slide it onto the panel edge or stud as designed
• Start the screw by hand to avoid cross-threading; do not overtighten
• Wear cut-resistant gloves when handling sheet-metal parts

Includes 12 speed nuts.

Package of 12

This replacement screw is a simple fastener used to secure panels, trim, and internal components on GE appliances, restoring proper fit and preventing loose parts. It's a direct-replacement hardware piece for common mounting and assembly points. What it does

• Secures panels, brackets, and trim to prevent rattling or gaps
• Replaces missing, stripped, or corroded fasteners that compromise fit
• Helps maintain proper alignment of controls and components
• Keeps internal parts fixed for safe, reliable operation

• Screw as shown

• Unplug or disconnect power to the appliance before starting repairs
• Use the correct screwdriver or bit to avoid stripping the head
• Install with moderate torque; do not overtighten to prevent thread or component damage
• If threads are damaged or the mating hole is stripped, replace the mating hardware or repair the thread before reuse

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.

The Oven Rack is an OEM part for GE ovens. It is a fundamental component that provides a stable platform for placing baking sheets, pans, and other cookware inside the oven. The oven rack is designed to fit securely into the oven cavity, allowing for efficient heat circulation and even cooking.  It measures approximately 23” wide by 16” deep.

Causes of a faulty oven rack can include wear and tear over time, exposure to high temperatures or heavy loads, or damage due to accidental impacts. These factors can result in bent or warped rack wires.

Symptoms of a bad oven rack may include:

• Difficulty sliding the rack in and out of the oven
• Uneven cooking or browning of food items
• Visible damage or deformation of the rack wires

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Broiler Pan Kit is an OEM part for GE ranges. It serves as a secure platform for positioning meats, vegetables, and various foods directly beneath the broiler element, ensuring safe and efficient cooking. The pan is about 17 inches wide by 13 inches deep.

Over time, wear and tear can affect broiler pans, causing issues such as flaking or stripping of the non-stick coating and the development of small ridges or holes that permit grease to drip down.

Symptoms of bad broiler pans include:

• Grease fires caused by dripping grease contacting the heating element
• A burnt or smoky flavor transferring to foods
• Difficulty removing baked-on grease and food deposits
• Pans that are misshapen or developing small cracks

This OEM GE replacement part is also compatible with select Hotpoint, RCA, and some Kenmore ranges

The Broiler Pan Kit is an OEM part for GE ranges. It serves as a secure platform for positioning meats, vegetables, and various foods directly beneath the broiler element, ensuring safe and efficient cooking. The pan is about 17 inches wide by 13 inches deep.

Over time, wear and tear can affect broiler pans, causing issues such as flaking or stripping of the non-stick coating and the development of small ridges or holes that permit grease to drip down.

Symptoms of bad broiler pans include:

• Grease fires caused by dripping grease contacting the heating element
• A burnt or smoky flavor transferring to foods
• Difficulty removing baked-on grease and food deposits
• Pans that are misshapen or developing small cracks

This OEM GE replacement part is also compatible with select Hotpoint, RCA, and some Kenmore ranges

The Oven Bake Element is an OEM replacement part for GE ovens. It is a critical component responsible for generating the heat necessary for baking and cooking food in the oven cavity. Measuring 18 ¼ inches wide and 14 ½ inches deep to the mounting flange. It has an element extension of approximately 2 1/4 inches past the bracket to the terminals. This element is rated at 220 volts and 2300 watts.

Causes of needing to replace the bake element can include normal wear over time, electrical malfunctions, or physical damage from impact or excessive temperature fluctuations.

Symptoms of a faulty oven bake element include:

• Uneven baking or hot/cold spots within the oven
• The oven not heating up to the desired temperature
• Visible signs of damage or burnout on the bake element itself
• Unusual smells or burning odors coming from the oven

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore oven models, ensuring a perfect fit and reliable heat generation for your specific appliance.

The Broil Element is an OEM part for GE ovens. It is designed to provide the high heat necessary for broiling food, such as meats and vegetables, allowing for a quick cooking process that seals in flavors and creates a deliciously crispy exterior.

Causes of a bad Broil Element can include failure due to internal coil damage, burnout from excessive use, or electrical issues such as short circuits or loose connections that prevent it from heating.

Symptoms of a bad Broil Element include:

• The oven not heating up to the set broil temperature.
• Uneven cooking or browning of food.
• No visible glow from the element during operation.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This retainer is a small mounting clip that secures compatible appliance components in place to prevent movement and wear. It restores proper alignment so related parts stay seated and operate quietly and safely. What it does:

• Holds a specific component or harness firmly to the appliance frame or assembly
• Prevents rubbing, vibration noise, or parts shifting during operation
• Helps maintain correct part alignment for reliable function
• Common symptom: loose, rattling, or misaligned components where the retainer is missing or damaged

• One retainer

• Disconnect power and any fuel sources before starting work
• Inspect surrounding parts for damage before installing the retainer
• Typically installs with basic hand tools; avoid over-tightening nearby fasteners

This is a replacement screw used to secure appliance panels and small components. It restores proper fastening and helps eliminate loose parts, rattling, or misaligned panels for a tight, safe fit. What it does:

• Secures panels, trim, brackets, or small assemblies to restore proper alignment
• Stops rattling or vibration caused by missing or loose fasteners
• Provides the correct threaded fastening where the original screw is lost or damaged
• Matches OEM fastening function for reliable reassembly

• Disconnect power or unplug the appliance before starting any repair
• Use the correct screwdriver or driver bit to avoid stripping the head
• Thread the screw in by hand first, then tighten snugly—do not overtighten to avoid stripping or cracking
• Keep small parts away from children and pets during installation

Includes: Anti-tip bracket, screws and instruction sheet.
