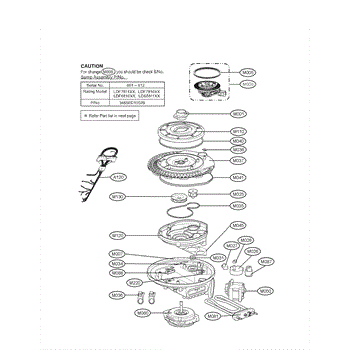

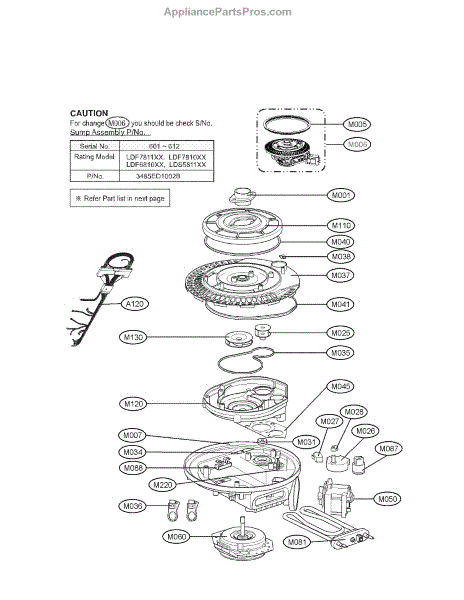

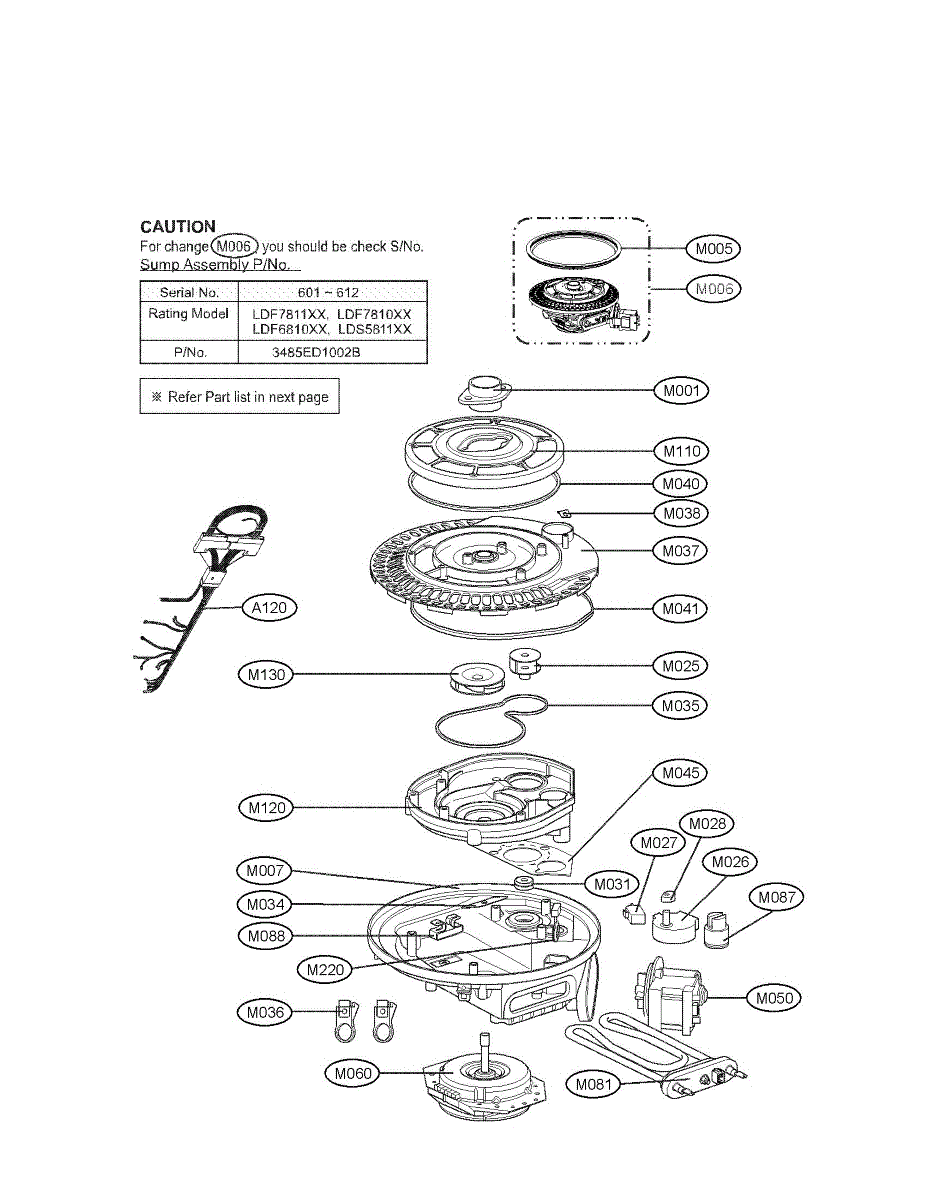

Parts for Lg LDF7810BB: Sump Assy Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This thermistor holder secures the temperature sensor in place inside the dishwasher, ensuring accurate water temperature readings for proper wash and dry performance.

• Holds the thermistor securely in the sump/tub area
• Helps the control accurately monitor wash water temperature
• A loose or missing holder can cause temperature-related wash issues
• Common symptoms include temperature errors or poor cleaning/drying when the sensor isn't properly positioned

• Disconnect power and turn off water supply before servicing
• Access the sensor location from the tub/sump area; note original orientation
• Transfer the thermistor into the new holder and snap the holder into place
• Inspect the sensor wiring and seals while reassembling

This dishwasher sump gasket seals the joint between the sump assembly and the tub to prevent leaks and maintain wash performance. Replace it if the old seal is worn, flattened, cracked, or damaged to stop water escaping beneath the unit.

• Creates a watertight seal where the sump attaches to the tub
• Helps prevent water leaks from the base of the dishwasher
• Supports proper circulation and overall wash performance
• Common failure signs: puddles under the unit, leaks during a cycle, or a visibly torn/deformed gasket

• Disconnect power and turn off the water supply before servicing
• Access the sump from inside the tub (remove lower rack, spray arm, filters, and sump cover) or from below, depending on model
• Clean mating surfaces; install the new gasket evenly without twists or gaps
• Reassemble and run a short cycle to check for leaks

The Diverter Motor Assembly is an OEM part for LG dishwashers. It is a critical component used to control the direction of water flow within the dishwasher, ensuring that water is properly diverted between the different spray arms during various wash cycles.

Symptoms of a failing Diverter Motor Assembly include:

• Inadequate cleaning of dishes, with some areas remaining dirty
• Unusual noises, like humming or clicking, indicating the diverter motor is struggling to operate
• Error codes displayed on the dishwasher that relate to water distribution problems
• Water not reaching all spray arms

Causes of a bad diverter motor can include wear and tear from regular use, electrical issues such as faulty wiring or motor failure, and mechanical obstructions or debris that prevent the diverter from moving smoothly.

This OEM LG part is also compatible with Sears/Kenmore models.

The Micro Switch is an OEM part for LG dishwashers. It plays a crucial role in detecting when the door is securely closed prior to starting a cycle. This important safety feature prevents accidental exposure to hot water, detergent, and chemicals.

Causes of a bad micro switch include degradation from years of repeated use, debris interfering with mechanisms, or damage from attempts to force or slam the dishwasher door closed.

Symptoms of a bad micro switch include:

• Cycles failing to start despite a closed door
• Hot water or steam visible escaping when running
• The dishwasher not detecting the closed door position
• Error codes displayed related to door position sensors

This OEM LG part is also compatible with Sears/Kenmore. Replacing only when truly faulty helps ensure safe and reliable dishwasher function.


The Cam Motor Shaft Seal is an OEM part for LG dishwashers. It provides a watertight seal around the cam motor shaft, preventing water from leaking into the motor and other electrical components. This seal is essential for maintaining the efficiency and safety of the dishwasher.

You should replace the cam motor shaft seal if it becomes worn out or damaged. Common causes of a bad shaft seal include regular wear and tear, exposure to high temperatures and chemicals from detergents, or improper installation. A compromised seal can lead to leaks and potential damage to the motor.

Symptoms of a bad cam motor shaft seal include:

• Water leaks from the bottom of the dishwasher
• Unusual noises during the wash cycle
• Reduced efficiency in cleaning due to water escaping
• Visible damage or wear on the seal

This OEM LG part is also compatible with Sears/Kenmore models.

This dishwasher spray arm, also called a blade, directs high-pressure wash water through its jet ports and rotates to cover the tub. Replace a cracked, warped, or clogged blade to restore spray coverage and cleaning performance.

• Distributes wash water through multiple jets during wash and rinse cycles
• Rotates using water pressure for even, consistent spray coverage
• Helps remove soils from dishes throughout the tub
• Helps resolve poor cleaning, weak spray, a non-spinning arm, or visible cracks/deformation

• Disconnect power and shut off water supply before servicing
• Open the dishwasher and clear access to the spray arm (remove rack(s) if needed)
• Release the retaining clip or nut, lift off the old arm, and clear any debris at the hub
• Install the new arm, secure the fastener, ensure it spins freely, restore utilities, and run a test cycle

This holder is a small mounting bracket that secures internal components in place, helping reduce movement and noise while keeping parts aligned for reliable operation. It's a direct-fit replacement when the original holder is broken or missing. What it does

• Secures and supports nearby components or assemblies to prevent shifting during operation
• Helps reduce vibration and rattling caused by loose parts
• Maintains proper alignment for connected parts to ensure consistent performance
• Commonly replaced when cracked, warped, or missing after impact or wear

• One holder

• Disconnect power (and water supply if appliance uses water) before servicing
• Inspect surrounding clips and screws; replace any that are damaged
• Typically installs with existing fasteners; keep orientation the same as the original

This holder is a small mounting bracket that secures related components in place, helping maintain proper alignment and quiet operation. It replaces worn or broken holders to restore stable support for the attached part. What it does:

• Secures and supports the associated component to prevent shifting or sagging
• Maintains alignment to help ensure smooth operation and reduce noise
• Worn, cracked, or broken holders can cause rattling, misalignment, or component movement
• Used where a fixed support point is required inside the appliance

• One holder/mounting bracket

• Disconnect power (and water if applicable) before starting any repair
• Remove nearby panels or components as needed for access; keep fasteners for reassembly
• Inspect surrounding clips, screws, and mounting points and replace if damaged

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The PUMP MOTOR is an OEM part for LG washing machines. It is an electric motor that powers the pump responsible for circulating water inside the washing machine tub and through hoses during all wash cycles. Efficient water flow is necessary for proper cleaning and rinsing performance.

Causes of a bad pump motor can include mineral buildup inhibiting smooth rotation, worn motor windings affecting current flow, or damage from water damage into the motor housing.

Symptoms of a bad pump motor include:

• Incomplete or failed wash cycles
• Inability to fill or drain properly
• Strange noises emanating from the pump area
• Leaks or water issues related to poor water circulation

This OEM LG part is also compatible with Sears/Kenmore.

The Dishwasher Circulation Motor is an OEM part for LG dishwashers. It plays a crucial role in the dishwasher's operation by pumping water through the spray arms during the wash cycle, ensuring that dishes are thoroughly cleaned.

Over time, the circulation motor can fail due to normal wear and tear, electrical issues, or blockages caused by debris. A malfunctioning motor can lead to inefficient cleaning and increased noise levels. Regular maintenance and avoiding overloading the dishwasher can help extend the motor's lifespan.

Symptoms of a bad circulation motor include:

• Dishes not being cleaned properly
• Unusual noises during the wash cycle
• The dishwasher not completing cycles
• Water not circulating within the dishwasher

This OEM LG part is also compatible with Sears/Kenmore.

The Heater Assembly is an OEM replacement part for LG dishwashers. Located internally behind the tub wall, it works to boost incoming water temperatures for optimal sanitization during hot rinse cycles.

Symptoms of a bad heater assembly include:

• Inadequate heating resulting in lukewarm final rinses
• Fault codes or cycle interruptions during prolonged heating
• Diminished drying performance from lack of hot air
• Noticeable decline in overall cleaning from colder wash water

Causes related to mineral deposits clogging component coils over many years of use. Damage may also be caused by harsh chemicals left inside during wash cycles.

Compatible models include some Kenmore and Sears dishwashers.

This impeller screw secures the pump impeller so the washer's drain system operates correctly. It's a small but critical fastener that keeps the impeller mounted and aligned for reliable water removal. What it does:

• Holds the pump impeller to the motor or pump shaft to maintain proper rotation
• Prevents the impeller from coming loose or wobbling during operation
• Can help stop grinding or unusual pump noises caused by a loose impeller
• Supports proper draining by keeping the impeller engaged with the pump assembly

• Disconnect power and water before accessing the pump or impeller assembly
• Small part — keep track of screws and use appropriate tools to avoid stripping
• Inspect mating threads and the impeller for wear; replace damaged components as needed

This impeller assembly spins on the dishwasher's pump to move water through the system. Replacing a worn or broken impeller restores proper water flow, helping maintain wash performance and reducing noise from the pump area. What it does:

• Moves water through the dishwasher's pump system for circulation and cleaning
• Helps maintain correct water flow and spray pressure to the spray arms
• Typical failure signs: poor cleaning or weak spray, unusual grinding/humming from the sump, or slow/no draining depending on which impeller has failed
• Physical clues include damaged/broken blades or a loose fit on the motor shaft

• 1 impeller assembly

• Disconnect power and turn off the water supply before servicing
• Remove the lower rack and filters to access the pump/sump; follow your model's service information
• Note the impeller's orientation; transfer any reusable seals or hardware from the original as required
• After reassembly, check for leaks and verify the pump spins freely before running a test cycle

The Check Valve is an OEM part for LG dishwashers. It prevents the backflow of water into the dishwasher, ensuring that water only flows in the intended direction. This helps maintain the efficiency of the washing cycle and prevents contamination of clean dishes.

The check valve can fail due to reasons such as wear and tear, blockage from debris or hard water deposits, or damage from high water pressure. Over time, the internal components can degrade, leading to improper sealing.

Symptoms of a bad check valve include:

• Water backing up into the dishwasher
• Poor cleaning performance due to improper water flow
• The dishwasher not draining properly
• Unusual noises during the wash or drain cycles

This OEM LG part is also compatible with certain models of Kenmore dishwashers.
