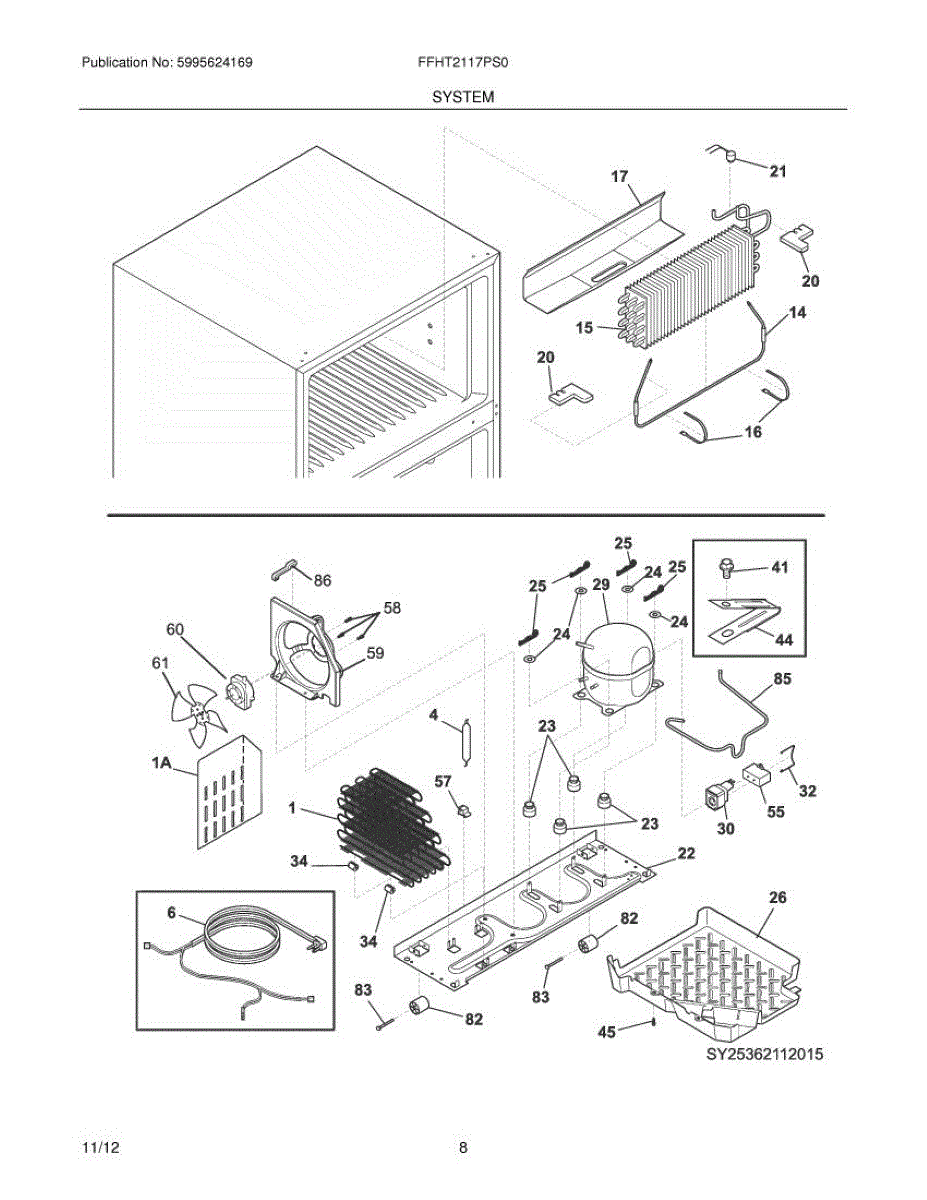

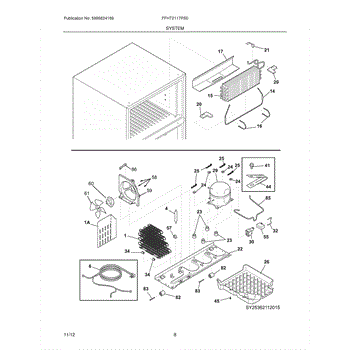

Parts for Frigidaire FFHT2117PS0: 09 - System Parts

This evaporator air deflector directs cold air across the evaporator coil and into the fresh food compartment to help even refrigerator cooling and reduce hot spots. Durable plastic design replaces a worn or broken guide. What it does:

• Guides refrigerated air from the evaporator to improve temperature distribution
• Helps prevent warm spots and inconsistent cooling in the compartment
• Replaces cracked, damaged, or missing deflector pieces that rattle or block airflow
• Works with existing mounting tabs and ducts to restore intended airflow pattern

• One evaporator air deflector

• Install with the refrigerator unplugged or power turned off to avoid electrical shock
• Align mounting tabs and press into place; secure any retaining screws if present
• Inspect adjacent seals and ducts for damage while installing
• No special tools typically required; for details

This condenser coil assembly helps release heat from the refrigerant so your refrigerator can keep food cold and run efficiently. Replaces a worn or damaged condenser to restore normal cooling performance. What it does:

• Releases heat from the sealed refrigerant loop so the compressor and evaporator can maintain proper temperatures.
• A failing condenser can cause the refrigerator to run continuously, run hot, or raise internal temps.
• Damaged or clogged condenser fins can increase energy use and make the compressor work harder.
• Restoring a functional condenser often reduces compressor strain and improves overall cooling consistency.

• One condenser coil assembly

• Disconnect power before servicing; follow all safety precautions.
• Access may require removing the rear or lower access panel; handle fins carefully to avoid damage.
• Avoid bending fins or contaminating the sealed refrigerant loop; do not attempt refrigerant repairs unless certified.

Includes service line.

The Power Cord is an OEM replacement part for Frigidaire refrigerators. As the lifeline connecting the appliance to a wall outlet, this cord safely delivers necessary voltage to operate refrigerator systems.

Potential causes for needing a new power cord include exposure to cuts, abrasions or rodent damage over time in the storage area. Repeated bending stress during installation or removal can also wear out plastic insulation faster.

Symptoms of a faulty power cord include:

• Refrigerator fails to power on at all
• Flickering lights or inconsistent runs of the compressor
• Shock, buzzing or humming sounds coming from the cord
• Bare copper wire showing through damaged insulation

This power cord also fits some Electrolux and Gibson refrigerators.

The Frigidaire Defrost Heater is an OEM replacement part compatible with select Frigidaire brand refrigerators. This part is designed to maintain optimal freezer temperature and prevent frost buildup.

Symptoms of a bad part:
• Excessive frost buildup in the freezer
• Freezer not cooling properly
• Loud clicking or buzzing noises

Causes of a bad part:
• Age and wear and tear
• Power surge or electrical issues
• Dirty or clogged condenser coils
• Malfunctioning thermostat

This defrost heater is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore refrigerators.


This genuine replacement part is an evaporator used in refrigerators. The evaporator is the part that exchanges heat to cool the refrigerator. It is the component of the refrigerator that absorbs the heat from the air inside, turning it cool through absorption. If the refrigerator is no longer cooling properly, this could mean it's time for a new evaporator.This is a genuine replacement evaporator compatible with Frigidaire, Electrolux, Gibson, Kelvinator, and Westinghouse brand refrigerators.

This aluminum strap secures the defrost heater firmly against the evaporator coil to maintain proper contact during defrost. Correct contact improves heat transfer so frost melts evenly and helps prevent recurring ice buildup on the evaporator.

• Secures the defrost heater to the evaporator for proper contact and heat transfer
• Promotes complete, even defrosting across the evaporator coil
• Helps reduce repeat frost/ice accumulation caused by a shifted or loose heater
• Typical clues include a loose heater, uneven frost pattern, or rattling near the evaporator

• Disconnect power and allow ice to melt before accessing the evaporator
• Use care around sharp fins and fragile refrigerant tubing; do not puncture or deform the coil
• Position the heater per your model's parts diagram and tighten the strap for firm, even contact
• Verify wiring is routed clear of the fan and moving parts before reassembly

This drain trough directs defrost water from the evaporator to the refrigerator drain, helping prevent pooling, leaks and ice build-up in the fresh-food compartment. A correct trough keeps defrost water flowing and reduces odors or floor damage. What it does:

• Channels defrost/condensate water from the evaporator to the drain system
• Prevents water pooling under shelves or in the crisper area
• Reduces ice buildup and attendant leaks when the drain path is clear
• Replace if cracked, warped, or if water is collecting where it shouldn't

• Disconnect power to the appliance before servicing
• Remove interior shelves/drawers as needed to access the trough
• Clean the drain channel and clear any debris before installing the new trough
• Make sure the trough is fully seated and aligned so water drains properly; follow OEM fastener/placement points

This foam insulation block helps fill gaps and reduce heat transfer inside the refrigerator cabinet to maintain proper cooling and reduce frost/condensation. It restores the designed insulation barrier where the original piece is damaged or missing. What it does:

• Replaces a damaged or missing foam block that seals internal gaps in the cabinet or behind panels
• Helps prevent warm air infiltration that can cause poor cooling or excess frost
• Reduces condensation and moisture buildup around the evaporator area or panel seams
• Supports consistent temperature performance by restoring insulation continuity

• One foam insulation block

• Disconnect power to the appliance before beginning any repair
• Access location may require removing interior panels or shelves; handle panels and clips carefully
• Install in the exact position and orientation of the original part; use any existing adhesive or fasteners as required
• If adhesive is needed, use only appliance-safe adhesives compatible with foam and follow manufacturer guidance

The Defrost Thermostat is an OEM replacement part for Frigidaire refrigerators. This component plays a crucial role in regulating the defrost cycle, which is responsible for removing any built-up frost or ice from the freezer compartment.

Symptoms that may indicate the need to replace the defrost thermostat include:

• Excessive frost or ice buildup in the freezer
• The refrigerator not maintaining proper temperature levels
• The defrost cycle failing to initiate or complete properly

Causes of a faulty defrost thermostat can include normal wear and tear over time, electrical malfunctions, or exposure to extreme temperatures or moisture.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore refrigerator models.

This rubber compressor mounting grommet cushions and isolates the compressor to reduce vibration and noise that can transfer to the cabinet. It helps maintain stable compressor positioning for quieter, smoother operation. What it does:

• Absorbs compressor vibration to lower noise and rattling
• Dampens movement that can cause abrasion or wear on mounting hardware
• Helps maintain proper alignment of the compressor assembly
• Common symptom: excessive buzzing, vibration, or rattling from the back of the appliance

• Always disconnect power to the appliance before servicing.
• Support the compressor before removing mounts to prevent shifting or damage.
• Inspect surrounding mounts and hardware; replace any worn or damaged pieces.

This compressor mounting clip secures the compressor to its chassis to reduce movement and noise for reliable operation. It replaces worn or broken clips that allow the compressor to shift during use. What it does:

• Holds the compressor in place on the mounting bracket to prevent shifting
• Reduces vibration and rattling noises caused by a loose mount
• Helps maintain proper compressor alignment for steady operation
• Useful when a cracked or bent clip no longer secures the compressor

• Disconnect power to the appliance before accessing compressor area
• Inspect surrounding mounts and rubber isolators; replace if damaged
• Secure clip fully so compressor is held without forcing or misaligning components

The defrost drain pan collects water that melts off the evaporator during automatic defrost and holds it near the warm compressor so it can evaporate. Replacing a damaged pan helps prevent leaks, puddles, and odors around the base of the refrigerator.

• Collects defrost water routed from the evaporator drain
• Positions water in warm airflow near the compressor for evaporation
• Replace if the pan is cracked, warped, missing, or leaking
• Symptoms can include water on the floor, moisture under the unit, or musty odors

• Unplug the refrigerator; wear cut-resistant gloves
• Pull the unit forward and remove the lower rear access panel to reach the pan near the compressor
• Lift out the old pan; transfer any reusable clips/brackets; seat the new pan under the drain tube and ensure it's level and clear of moving parts
• Reinstall the panel, restore power, and check for proper drainage and evaporation

The Compressor Start Device is an OEM part for Frigidaire refrigerators. This component is crucial for initiating the operation of the compressor, which is essential for the cooling cycle of the refrigerator. The start device provides the necessary power boost to get the compressor running.

Causes of a bad start device can include electrical failures, wear and tear, or power surges. A malfunctioning start device can prevent the compressor from starting, affecting the refrigerator's ability to maintain the desired temperature.

Symptoms of a bad compressor start device include:

• The refrigerator not cooling properly or not cooling at all
• The compressor not running or starting intermittently
• Clicking noises coming from the compressor area
• The refrigerator frequently cycling on and off

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Color: Black. Rubber. Holds tube/wire

This #8-32 x 3/8 screw secures appliance panels, brackets, and assemblies. Replace a missing or stripped fastener to keep parts tight and aligned, reduce vibration, and restore proper fit in compatible refrigerators and freezers.

• Machine-thread fastener sized #8-32, 3/8-inch length
• Secures control housings, trims, covers, and support brackets per model design
• Replaces missing, worn, or corroded screws that cause loose or rattling parts
• Helps maintain alignment and stability after service

• Unplug the appliance; shut off water if applicable
• Match thread size to the original and start by hand to avoid cross-threading
• Use the correct driver; do not overtighten, especially into plastic
• Verify component alignment and operation after fastening

• Thread size: #8-32
• Length: 3/8 inch

Galvanized Steel

This factory fastener secures appliance panels and components. Replace a missing, stripped, or corroded screw to restore a tight, rattle-free fit and keep brackets and covers properly aligned.

• Fastens panels, brackets, and internal parts as specified by the manufacturer
• Helps maintain alignment and reduces vibration/rattling
• Replace if the head is stripped, threads are damaged, or corrosion is present
• Symptoms include loose/missing hardware, gaps, or rattling during operation

• Disconnect power; shut off gas/water if applicable before servicing
• Use the correct driver/bit size to avoid stripping the head
• Start threads by hand to prevent cross-threading; do not overtighten
• Match screw length/thread to the location; replace in sets when required

The Run Capacitor is an OEM replacement part for Frigidaire refrigerators. This electrical component plays a crucial role in providing the initial torque needed to start and run the compressor motor, ensuring efficient and reliable operation of your refrigerator's cooling system.

Causes of needing to replace the run capacitor can include normal wear and tear over time, exposure to high temperatures or electrical surges, or physical damage to the capacitor itself.

Symptoms that may indicate a failing run capacitor include:

• The refrigerator not running or cooling properly
• The compressor failing to start or running intermittently
• Humming or buzzing noises coming from the compressor area

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore refrigerator models.

This replacement mounting screw fastens panels and components in compatible Frigidaire appliances to restore secure assembly and reduce rattling or loose parts. Simple fastener sized for the original factory location. What it does:

• Secures panels, brackets, or trim to keep parts aligned and stable
• Prevents vibration and noise caused by loose fittings
• Restores proper attachment after repair or disassembly
• Matches the OEM thread and length for a correct fit when specified

• Use the correct screw hole and do not force; cross-threading can damage components
• Tighten to a snug fit—do not overtighten to avoid stripping threads or cracking plastic
• Power tools can be used with care; slow speed and proper bit help prevent slippage
• Turn off power and disconnect the appliance before accessing internal parts

This condenser fan shroud sits in the rear machine compartment and positions the fan and motor to move air through the condenser coil. A cracked or warped shroud can reduce cooling performance and increase noise or vibration.

• Directs and focuses airflow across the condenser coil and compressor to remove heat
• Holds the condenser fan motor and blade in proper alignment
• Helps maintain stable refrigerator/freezer temperatures and efficient operation
• When damaged, may cause weak airflow, warmer temps, vibration, or fan scraping/rubbing noises at the back of the unit

• Unplug the refrigerator and wear cut-resistant gloves
• Pull the unit forward and remove the lower rear access panel to reach the machine compartment
• Take a photo of fan/motor orientation; transfer components to the new shroud and reuse existing hardware
• Confirm blade spins freely with proper clearance before restoring power

The Condenser Fan Motor is an OEM part for Frigidaire refrigerators. It serves a critical role in the refrigerator's cooling system by driving the condenser fan, which cools the refrigerant as it passes through the condenser coils. This cooling process is essential for the refrigerant's efficient circulation throughout the system, ensuring that the refrigerator maintains the proper temperature for preserving food.

Causes of failure can include dust and debris accumulation blocking the fan, electrical issues such as worn or shorted wiring, or the motor wearing out over time due to continuous use.

Symptoms of a bad Condenser Fan Motor include:

• The refrigerator runs warmer than usual, leading to spoiled food.
• Unusual noises coming from the back of the refrigerator where the motor is located.
• The fan stops running, causing the refrigerator's compressor to overheat and cycle off too frequently.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Condenser Fan Motor Blade is an OEM replacement part for Frigidaire refrigerators. This part attaches to the condenser fan motor and works by drawing air through the condenser coils and over the compressor, dissipating heat and allowing the refrigerant to cool effectively.

Causes of damage to the Condenser Fan Motor Blade can include physical damage from moving or cleaning the refrigerator, obstruction from debris that impedes the blade's rotation, or wear and tear over time that can lead to cracks or the blade becoming loose.

Symptoms of a bad Condenser Fan Motor Blade include:

• The refrigerator running hotter than usual
• Unusual noises coming from the back of the refrigerator where the condenser fan is located
• The refrigerator compressor running for longer periods than normal or cycling on and off more frequently

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This replacement rear compressor base roller supports the refrigerator compressor on the cabinet rear base, helping keep the compressor properly seated and reducing wear from vibration and movement. What it does

• Provides a rolling support under the compressor to keep it aligned and off the cabinet floor
• Helps reduce vibration and rattling that can occur from a loose or worn compressor mount
• Prevents compressor body from dragging or scraping the cabinet base
• Commonly replaced when the roller is cracked, worn flat, missing, or causing noise

• Disconnect power to the appliance before starting any work
• Support or secure the compressor and cabinet before removing the old roller to avoid sudden movement
• Basic hand tools usually required; inspect mounting hardware and replace any damaged fasteners
• Do not attempt sealed-system repairs.

This rivet is a metal fastener used to permanently secure panels, brackets, or internal components in your appliance. Replacing a damaged or missing rivet restores a tight fit and helps prevent vibration, rattles, and looseness.

• Permanently joins thin metal parts where screws or nuts aren't used
• Maintains alignment and structural integrity of housings and frames
• Helpful when panels or components are loose, rattling, or won't stay secured
• Direct replacement for a worn, broken, corroded, or drilled-out factory rivet

• Disconnect power and shut off gas/water (as applicable) before servicing
• Support the part being fastened; drill out the old rivet head if needed
• A hand riveter/rivet tool may be required to set the new rivet
• Wear eye and hand protection during drilling/riveting

This tube connector is a small water-line fitting that joins refrigerator water and ice-maker tubing, restoring a secure path for water flow. It helps stop leaks and regain consistent water delivery to the dispenser or icemaker. What it does:

• Joins two sections of refrigerator water tubing to maintain a watertight connection
• Stops leaks at a damaged or worn tube joint
• Restores water flow to the ice maker or dispenser when a broken connector is the cause
• Compatible with rigid and soft tubing in typical refrigerator plumbing layouts

• One tube connector

• Shut off the refrigerator water supply before servicing
• Inspect tubing ends and replace damaged tubing or seals as needed
• Use proper fittings and tighten to manufacturer torque; avoid over-tightening

This condenser tube spacer positions and secures the refrigerator's condenser tubing to maintain proper tube spacing and airflow. Replacing a worn or broken spacer helps reduce vibration, rattling, and rubbing that can damage tubing over time. What it does:

• Holds condenser tubing in the correct position to preserve airflow and cooling efficiency
• Cushions tubing to limit vibration and reduce rattling noises
• Prevents tubing from rubbing against the cabinet or other components, lowering wear risk
• Helps reduce the chance of tubing fatigue that can lead to damage

• Disconnect power to the appliance before accessing rear panels or condenser components.
• Handle condenser tubing gently; avoid kinking, bending, or putting stress on lines during installation.
• Installation may require removing the back or lower access panel to reach the condenser assembly.

Color: Black/natural. Nylon

This replacement fan shroud screw secures the evaporator/condenser fan shroud to the appliance, helping keep the fan assembly stable for proper airflow and quiet operation. Use it to replace stripped or missing mounting hardware. What it does:

• Secures the fan shroud or mounting bracket to the appliance cabinet or fan assembly
• Helps prevent fan wobble, rubbing, and airflow disruption caused by a loose shroud
• Restores proper clearance between fan blades and shroud to reduce noise and wear

• High-level replacement—remove power to the appliance before starting work
• Use appropriate-size driver to avoid stripping the screw head
• Inspect surrounding hardware and shroud for damage; replace any damaged parts before reassembly

This control box wiring harness routes power and signals between the appliance control board and other components to restore reliable control operation and electrical connectivity. It helps resolve intermittent controls and lost function caused by damaged wiring. What it does:

• Connects the control board to switches, sensors and motors to enable normal control functions.
• Replaces damaged or frayed wiring that can cause intermittent operation or unresponsive controls.
• Addresses symptoms such as control panel not responding, random shutdowns, or error codes tied to wiring faults.
• Restores proper signal and power routing when connector damage or wire breaks interrupt circuits.

• Disconnect all power to the appliance before beginning any service.
• Compare the new harness to the original and follow factory connector positions and routing to avoid pin miswiring or chafing.
• Handle connectors gently and ensure all terminals fully seat; inspect mating connectors for damage before reconnecting.

The Screw is an OEM replacement part for Frigidaire refrigerators. This small but essential component is used to secure various parts of the appliance, such as panels, brackets, or internal fixtures, ensuring the refrigerator's structural integrity and proper operation.

Over time, screws may become loose, stripped, or corroded due to regular use, environmental factors, or maintenance work. A damaged or missing screw can lead to misaligned parts or reduced stability of the appliance.

Symptoms of a bad or missing screw include:

• Loose or wobbly components within the refrigerator
• Panels or fixtures coming apart or misaligned
• Difficulty securing parts during maintenance or repair
• Rattling or unusual noises during operation

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.
