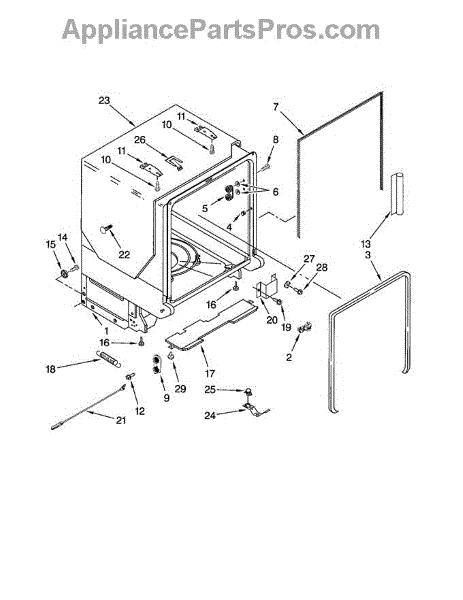

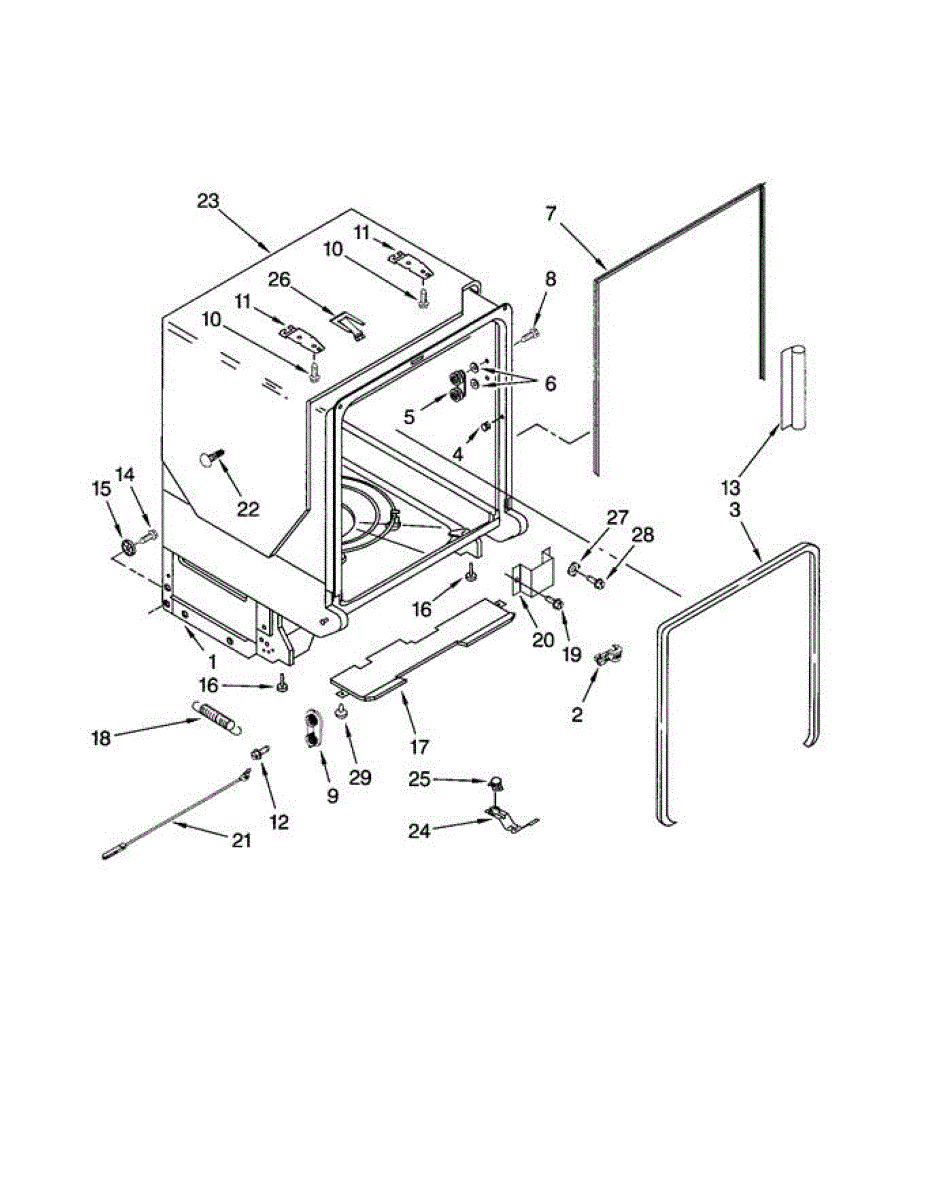

Parts for Kitchenaid KUDC20FVBL0: Tub And Frame Parts

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

This is a small plastic or rubber fitting that secures the power cord where it enters the dishwasher's junction box or base. It prevents the electrical wiring from being pulled, kinked, or damaged by absorbing tension on the cord. Replace this part if it is cracked or missing, which can leave wiring exposed and vulnerable to damage during installation or use.

Seals the door to tub gap, preventing leaks during wash cycles. Replace if water leaks from the door or seal is torn. Confirm fit by model number.

The Screw Hole Cap is an OEM part for Whirlpool dishwashers. It covers the screw holes, providing a clean and finished appearance while preventing moisture and debris from entering the screw openings. This helps maintain the dishwasher's aesthetic and ensures that screws remain protected from rust and corrosion.

Causes of a bad screw hole cap can include regular wear and tear, accidental impacts, or misplacement during maintenance.

Symptoms of a bad screw hole cap include:

• Missing or loose caps
• Moisture or debris accumulating in screw holes
• Visible wear or damage to the caps

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is a wheel and bracket assembly that mounts to the bottom of a dishwasher dishrack, allowing it to slide in and out smoothly on the track. The roller supports the weight of the loaded rack and reduces friction during movement. Replace this assembly if the dishrack is difficult to slide, sits unevenly, or if the roller is cracked, worn, or no longer spins freely.

Gasket for upper wheel.

Seals the dishwasher tub to the cabinet opening, reducing noise and preventing gaps. Replace if worn, damaged, or missing for proper fit and sound control.

Factory #10-16 screw secures dishwasher panels, brackets, and covers. Replace worn, stripped, or missing screws to restore tight assembly.

If your dishwasher door drops, slams, or feels heavy, the door balance mount may be broken. This side-frame bracket anchors the spring system.

Screw secures appliance panels and access covers. Replace missing, stripped, or corroded screws to restore tight fit and eliminate rattles or gaps.

Secures your dishwasher to the underside of the counter. Replace if bracket is broken, cracked, or missing to prevent the unit from shifting forward.

10-24 threaded machine screw secures panels, brackets, and internal assemblies in appliances. Replace missing, stripped, or damaged screws.

Size: 10-32 x 15/16 inch.

Rear wheel support that guides and stabilizes the dishwasher rack as it slides. Replace if cracked, broken, or worn to restore smooth gliding motion.

This adjustable leveling leg threads into the appliance base to set height and stabilize the cabinet. Replacing a worn or missing leg helps stop rocking and vibration and helps maintain proper alignment for reliable operation.

• Provides adjustable support at one corner of the appliance
• Helps level the unit for correct alignment with floor or cabinetry
• Reduces rocking, vibration, and rattling noises
• Replaces stripped, bent, cracked, or missing leg

• Disconnect power and, if applicable, shut off water before servicing
• Carefully support or brace the appliance to access the base safely
• Start the new leg by hand to avoid cross-threading; adjust height gradually
• Use a level to check side-to-side and front-to-back, then recheck after positioning

Insulation pad that fits behind dishwasher panels to restore thermal protection and reduce noise. Replace if damaged, missing, or rattling occurs.

Replacement door balance spring for dishwashers. Provides tension so the door opens smoothly and stays in position. Needed when spring is rusted, broken, or stretched causing door to slam open or fall without resistance.

Replacement 8-32-thread screw used to secure panels, brackets and small components in compatible household appliances. Restores missing or stripped fasteners so panels and parts stay firmly attached during normal use. What it does:

• Secures trim, panels, brackets and control housings to maintain proper assembly.
• Replaces missing or damaged screws that can cause rattling, loose panels or misaligned components.
• Fits locations that require an 8-32 threaded fastener; correct length and head style for your application.
• Helps restore stable, vibration-free operation when worn or stripped fasteners are replaced.

• Disconnect power and water before servicing; wear eye protection and gloves.
• Use the correct screwdriver or driver bit to avoid stripping the screw head.
• Do not overtighten—turn until snug and secure to avoid damaging threads or surrounding parts.
• If the original used a washer or nut, reuse or replace as needed and the screw length and head type match the original.

Covers the dishwasher's electrical junction box under the unit. Replace if cracked, loose, or missing to restore safe wire enclosure and containment.

Door balance link kit for dishwashers. Connects door springs to control door movement. Replace if rope is frayed, broken, or plastic clips are cracked or worn.

Secures knobs, trim, or linkages to shafts inside your dishwasher. Replace if broken, cracked, or missing to prevent components from loosening.

This is an insulating sound shield that attaches to the outside of the dishwasher tub. It dampens noise and vibration during wash and drain cycles, helping to reduce overall operating sound levels. Replace this shield if it has become damaged, detached, or deteriorated, resulting in a noticeably louder dishwasher.

Mounting bracket that secures the thermostat assembly in your dishwasher. Replace this bracket if it's cracked, broken, or missing to restore stability.

Thermostat has 1/4 inch terminals.

The High Limit Thermostat is an OEM part for Whirlpool dishwashers. This safety feature is designed to prevent the dishwasher from overheating by shutting off the power if the internal temperature exceeds a certain limit. It acts as a safeguard against potential hazards, such as fires, and ensures the dishwasher operates within safe temperature ranges.

Over time, the high limit thermostat can become defective due to normal wear or electrical issues within the dishwasher. A malfunctioning thermostat may not accurately respond to temperature changes, which can lead to overheating or the dishwasher not reaching the necessary temperature for optimal cleaning.

Symptoms of a bad High Limit Thermostat include:

• Dishwasher not starting or completing a cycle
• The dishwasher stops heating water, affecting cleaning performance
• Overheating, which could potentially damage dishes or the dishwasher itself

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This door latch secures your dishwasher door in the closed position during operation. It engages with the strike plate to create a watertight seal and allows the dishwasher to start. Replace this latch if your dishwasher door won't stay closed or the unit won't start even when the door appears shut.

Pronged cup washer for securing internal dishwasher components. Provides reliable retaining force for assembly hardware.

Size: 8-32 x 1/2 inch.

Secures interior panels and trim to prevent vibration and movement. Replace when clips break or lose grip. Verify fit with your model number.

Color: White. Other colors: For black use 8171657, for biscuit use 8171657.For stainless use 8171659

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Color: Biscuit. Other colors: For black use 8171657, for white use 8171656, for stainless steel use 8171659.

Color: Bisque

Color: Biscuit. Size: 1 qt. can uncut. Enamel paint.

Trim kit for installing a custom wood panel on your dishwasher door. Replaces broken, cracked, or missing trim pieces. Does not include wood panel.

This dishwasher rack repair kit contains touch-up paint to restore damaged or chipped dish rack coating. It prevents rust and maintains the protective finish on wire racks. Use it to repair small chips or worn spots that could snag dishes or spread rust.

Color: Black

Color: White

Color: Stainless steel. Other colors: For black use 8171657, for white use 8171656, for biscuit use 8171658.

Color: Black. Other colors: For white use 8171656, for biscuit use 8171657, for stainless steel use 8171659.

Color: White. Size: 1 qt. can. Acrylic appliance paint.

This mounting kit secures your dishwasher's tall tub to the floor, preventing movement and vibration during operation. It replaces worn or missing floor mounting hardware that can cause your dishwasher to rock or shift during wash cycles.

13 oz. enamel spray paint in biscuit color for appliances. Restores scratched, chipped, or discolored surfaces on refrigerators, dishwashers, and more.

Touch-up paint for restoring chips, scratches, and nicks on painted appliance surfaces. Covers minor cosmetic damage on exterior panels and finishes.

Color: Black. Size: 12 oz. Acrylic appliance aerosol can spray paint.

White dishwasher rack repair kit includes 150 tine tips and vinyl paint to cover chipped, rusted, or worn rack tines. Extends rack life and prevents rust.

Touch-up paint for appliances. Covers chips, scratches, and worn areas on range tops, refrigerators, and other appliances. Includes brush applicator.

The dishwasher rack repair kit provides components to fix damaged dish racks, including replacement wheels, tines, and clips. Use this kit when rack wheels break, tines bend or snap off, or the rack becomes difficult to slide in and out smoothly.

The dishwasher rack repair kit provides components to fix damaged dish racks, including replacement wheels, tines, and clips. Use this kit when rack wheels break, tines bend or snap off, or the rack becomes difficult to slide in and out smoothly.

12 Ft in length

Bottle with brush. Color: Black. Size: 0.6 fl.oz.

Color: Stainless   Note: Comes with Allen wrench, spare set screw, and instructions.

Color: White. 4oz bottle with brush used for touching up damage to your dishracks. For blue use W10840471. For grey use WP676455. For tips use 675679

Grey vinyl touch-up paint for repairing chipped, rusted, or damaged dishwasher rack coating. 4oz bottle with brush. Restores protective coating.

The Power Cord Kit is an OEM replacement part for Whirlpool dishwashers. It is a 3-prong grounded, 16-gauge cord that includes all the hardware needed for installation. Includes all hardware needed for installation.

Causes of a bad power cord can include normal wear and tear over years of use, accidental impacts or cuts to the wiring, or improper installation that damages components.

Symptoms of a bad power cord include:

• The dishwasher not turning on or completing cycles
• Warm or hot power cords during operation
• Frayed, cracked, or exposed copper wiring

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air, and some Kenmore models.

Color: White. Size: 13 oz can. Acrylic appliance aerosol can spray paint.

The Appliance Spray Paint is an OEM part for Whirlpool appliances, designed to provide a quick and effective way to touch up or completely refinish the exterior of various appliances. This specialty spray paint is formulated to adhere to metal surfaces, offering a durable and resistant finish that can withstand the routine wear and tear of kitchen environments, including heat, moisture, and everyday use.

The primary reason for using such a specialized paint is to maintain or restore the aesthetic appeal of your appliances while protecting them from further damage.

Symptoms needing for Appliance Spray Paint include:

• Scratches, chips, or rust spots on the appliance's exterior that can lead to further damage or corrosion if left untreated
• A desire to refresh or update the appearance of the appliance without the need for complete replacement
• Discoloration or fading of the original finish due to age, exposure to sunlight, or cleaning agents

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Touch-up paint for covering scratches, chips, and minor blemishes on appliance exteriors. Restores appearance and protects surfaces when finish is damaged.
