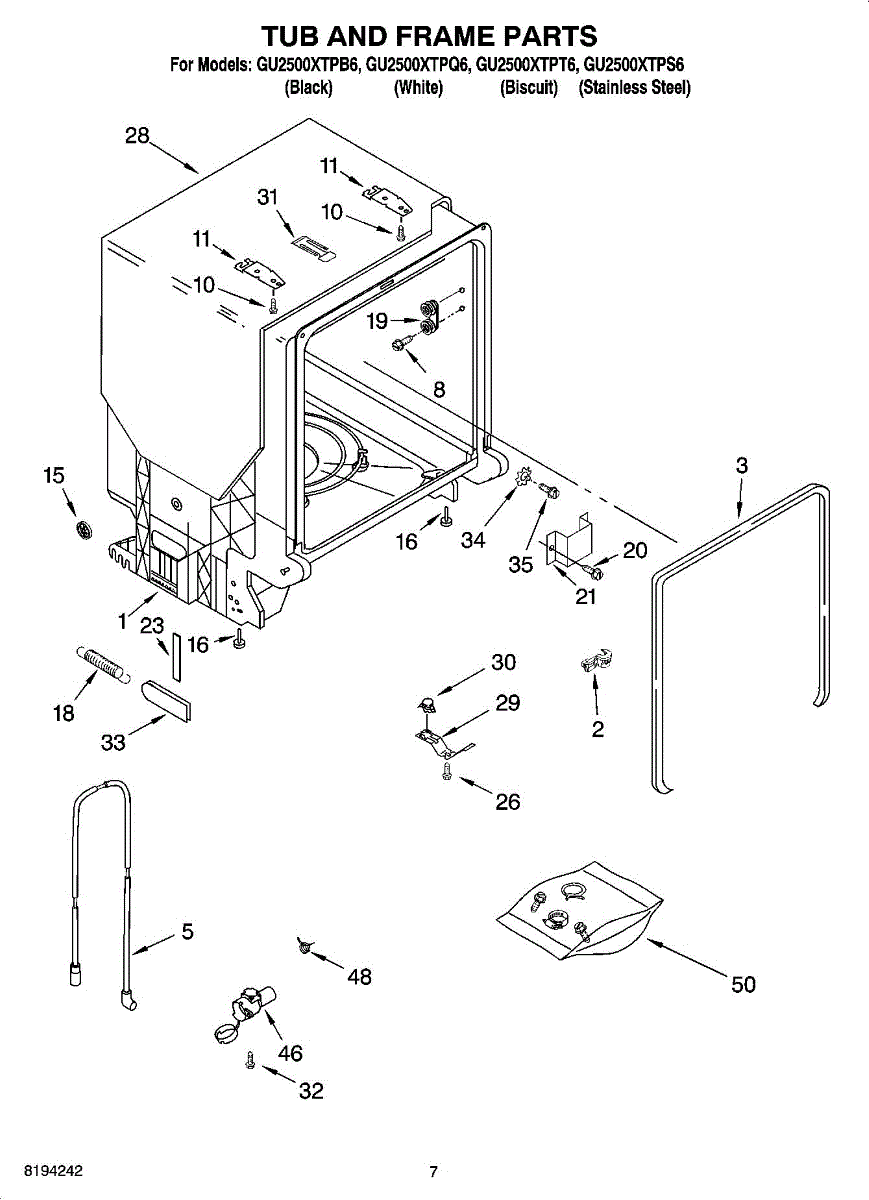

Parts for Whirlpool GU2500XTPS6: 07 - Tub And Frame Parts

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Complete dishwasher tub assembly. Replaces cracked, leaking, or damaged tubs that cannot be reliably repaired due to heat and detergent exposure.

This is a small plastic or rubber fitting that secures the power cord where it enters the dishwasher's junction box or base. It prevents the electrical wiring from being pulled, kinked, or damaged by absorbing tension on the cord. Replace this part if it is cracked or missing, which can leave wiring exposed and vulnerable to damage during installation or use.

Fix dishwasher leaks on the floor with this door gasket and strike kit. Easy 15-minute repair—gasket presses into groove, no glue needed. Video included.

Drain hose connects dishwasher pump to exterior drain. Replace if cracked, leaking, chewed by rodents, or when check valve fails. Includes elbow connector.

This factory-spec screw secures panels and components in your appliance. Replacing a missing or stripped fastener restores a tight, rattle-free fit so parts stay aligned and operate as designed.

• Fastens brackets, panels, and internal components to their mounting points
• Maintains alignment and reduces vibration during operation
• Replaces missing, worn, rusted, or stripped hardware
• Helpful when you notice rattling, loose panels, gaps, or parts shifting out of position

• Disconnect power; shut off water or gas supply if applicable
• Align the part being secured and remove any damaged hardware
• Hand-start threads to avoid cross-threading; tighten with the correct driver
• Do not overtighten; verify the assembly is secure and operates freely

Screw secures appliance panels and access covers. Replace missing, stripped, or corroded screws to restore tight fit and eliminate rattles or gaps.

Secures your dishwasher to the underside of the counter. Replace if bracket is broken, cracked, or missing to prevent the unit from shifting forward.

Replacement wheel leg assembly for dishwashers. Restores mobility and stable support when original leg is cracked, broken, or worn. Snaps into groove.

This adjustable leveling leg threads into the appliance base to set height and stabilize the cabinet. Replacing a worn or missing leg helps stop rocking and vibration and helps maintain proper alignment for reliable operation.

• Provides adjustable support at one corner of the appliance
• Helps level the unit for correct alignment with floor or cabinetry
• Reduces rocking, vibration, and rattling noises
• Replaces stripped, bent, cracked, or missing leg

• Disconnect power and, if applicable, shut off water before servicing
• Carefully support or brace the appliance to access the base safely
• Start the new leg by hand to avoid cross-threading; adjust height gradually
• Use a level to check side-to-side and front-to-back, then recheck after positioning

Replacement door spring for dishwashers. Balances and supports the door during opening and closing. Replace if broken, fatigued, or door drops too fast.

Upper rack wheel and mount assembly for dishwashers. Mounts to the upper dishrack to allow smooth rolling. Replace if cracked, broken, or worn.

Replacement 8-32-thread screw used to secure panels, brackets and small components in compatible household appliances. Restores missing or stripped fasteners so panels and parts stay firmly attached during normal use. What it does:

• Secures trim, panels, brackets and control housings to maintain proper assembly.
• Replaces missing or damaged screws that can cause rattling, loose panels or misaligned components.
• Fits locations that require an 8-32 threaded fastener; correct length and head style for your application.
• Helps restore stable, vibration-free operation when worn or stripped fasteners are replaced.

• Disconnect power and water before servicing; wear eye protection and gloves.
• Use the correct screwdriver or driver bit to avoid stripping the screw head.
• Do not overtighten—turn until snug and secure to avoid damaging threads or surrounding parts.
• If the original used a washer or nut, reuse or replace as needed and the screw length and head type match the original.

Covers the dishwasher's electrical junction box under the unit. Replace if cracked, loose, or missing to restore safe wire enclosure and containment.

Friction pad for dishwasher door hinge assembly. Reduces friction for smooth door operation. Replace if cracked, broken, worn, or missing from spring bushing.

Size: 8-18 x 1/2 inch.

This is an insulating sound shield that attaches to the outside of the dishwasher tub. It dampens noise and vibration during wash and drain cycles, helping to reduce overall operating sound levels. Replace this shield if it has become damaged, detached, or deteriorated, resulting in a noticeably louder dishwasher.

The Thermostat Clip is an OEM part for Whirlpool dishwashers. It plays an important supporting role by securely fastening the thermostat sensor inside the wash chamber.

Symptoms of a faulty Thermostat Clip can include:

• Fluctuating or inconsistent water temperatures between cycles
• Inability to properly detect temperature for desired heat levels
• Longer cycle times needed for reaching required temperatures
• Strange sounds or condensation around thermostat connection

Causes could arise from typical wear and tear stresses weakening plastic retaining clips. Exposure to harsh detergents may also erode clip material integrity over time.

This OEM replacement part is compatible with KitchenAid, Jenn-Air, Kenmore, and select Hotpoint and Roper dishwasher models as well.

Thermostat has 1/4 inch terminals.

The High Limit Thermostat is an OEM part for Whirlpool dishwashers. This safety feature is designed to prevent the dishwasher from overheating by shutting off the power if the internal temperature exceeds a certain limit. It acts as a safeguard against potential hazards, such as fires, and ensures the dishwasher operates within safe temperature ranges.

Over time, the high limit thermostat can become defective due to normal wear or electrical issues within the dishwasher. A malfunctioning thermostat may not accurately respond to temperature changes, which can lead to overheating or the dishwasher not reaching the necessary temperature for optimal cleaning.

Symptoms of a bad High Limit Thermostat include:

• Dishwasher not starting or completing a cycle
• The dishwasher stops heating water, affecting cleaning performance
• Overheating, which could potentially damage dishes or the dishwasher itself

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Door won't latch or close properly? The door latch strike secures your dishwasher door for a watertight seal. Simple 5-minute snap-in repair with video.

Quantity of ONE. Size: 8-18 x 5/8 inch. (#8 screw, 18 threads per inch, 5/8 inch long)

Replace worn or cracked door spring bushings that secure the tension springs on your dishwasher door hinge assembly. Essential for smooth door operation.

Pronged cup washer for securing internal dishwasher components. Provides reliable retaining force for assembly hardware.

Size: 8-32 x 1/2 inch.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Maybe referred to as Soil Sensor.

The Spring Tension Hose Clamp is an OEM part for Whirlpool washing machines. It is designed to secure hoses in place, preventing leaks by maintaining consistent tension on the hose connections.

Over time, spring tension hose clamps can lose their effectiveness due to metal fatigue, corrosion, or damage from frequent tightening and loosening. This can lead to leaks and improper hose connections.

Symptoms of a bad spring tension hose clamp include:

• Water leaks around hose connections
• Loose or disconnected hoses
• Unusual noises or vibrations during operation
• Water pressure issues within the washing machine

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This kit includes hose clamps and fasteners used during dishwasher installation to secure the drain hose and water supply connections. It ensures tight, leak-free connections between the dishwasher and household plumbing. Replace this kit if you notice water leaking at hose connections or if clamps are corroded, broken, or missing during a new installation or reinstallation.

Color: Black

Color: White. This is not the door seal, this piece seals the cabinet to reduce noise.

Color: Bisquit. This is not the door seal, this piece seals the cabinet to reduce noise.

Color: White. Other colors: For black use 8171657, for biscuit use 8171657.For stainless use 8171659

Color: Biscuit. Other colors: For black use 8171657, for white use 8171656, for stainless steel use 8171659.

Color: Stainless steel. Other colors: For black use 8171657, for white use 8171656, for biscuit use 8171658.

Color: White. Size: 1 qt. can. Acrylic appliance paint.

Color: Biscuit. Size: 1 qt. can uncut. Enamel paint.

Color: Black. Other colors: For white use 8171656, for biscuit use 8171657, for stainless steel use 8171659.

Anti Tip

Includes 6` Stainless Steel Braided Hose, Power cord & Connectors

13 oz. enamel spray paint in biscuit color for appliances. Restores scratched, chipped, or discolored surfaces on refrigerators, dishwashers, and more.

Color: Black. Size: 12 oz. Acrylic appliance aerosol can spray paint.

Touch-up paint for appliances. Covers chips, scratches, and worn areas on range tops, refrigerators, and other appliances. Includes brush applicator.

Bottle with brush. Color: Black. Size: 0.6 fl.oz.

The Power Cord Kit is an OEM replacement part for Whirlpool dishwashers. It is a 3-prong grounded, 16-gauge cord that includes all the hardware needed for installation. Includes all hardware needed for installation.

Causes of a bad power cord can include normal wear and tear over years of use, accidental impacts or cuts to the wiring, or improper installation that damages components.

Symptoms of a bad power cord include:

• The dishwasher not turning on or completing cycles
• Warm or hot power cords during operation
• Frayed, cracked, or exposed copper wiring

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air, and some Kenmore models.

Color: White. Size: 13 oz can. Acrylic appliance aerosol can spray paint.

The Appliance Spray Paint is an OEM part for Whirlpool appliances, designed to provide a quick and effective way to touch up or completely refinish the exterior of various appliances. This specialty spray paint is formulated to adhere to metal surfaces, offering a durable and resistant finish that can withstand the routine wear and tear of kitchen environments, including heat, moisture, and everyday use.

The primary reason for using such a specialized paint is to maintain or restore the aesthetic appeal of your appliances while protecting them from further damage.

Symptoms needing for Appliance Spray Paint include:

• Scratches, chips, or rust spots on the appliance's exterior that can lead to further damage or corrosion if left untreated
• A desire to refresh or update the appearance of the appliance without the need for complete replacement
• Discoloration or fading of the original finish due to age, exposure to sunlight, or cleaning agents

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Touch-up paint for covering scratches, chips, and minor blemishes on appliance exteriors. Restores appearance and protects surfaces when finish is damaged.

Seals the dishwasher tub to the cabinet opening, reducing noise and preventing gaps. Replace if worn, damaged, or missing for proper fit and sound control.
