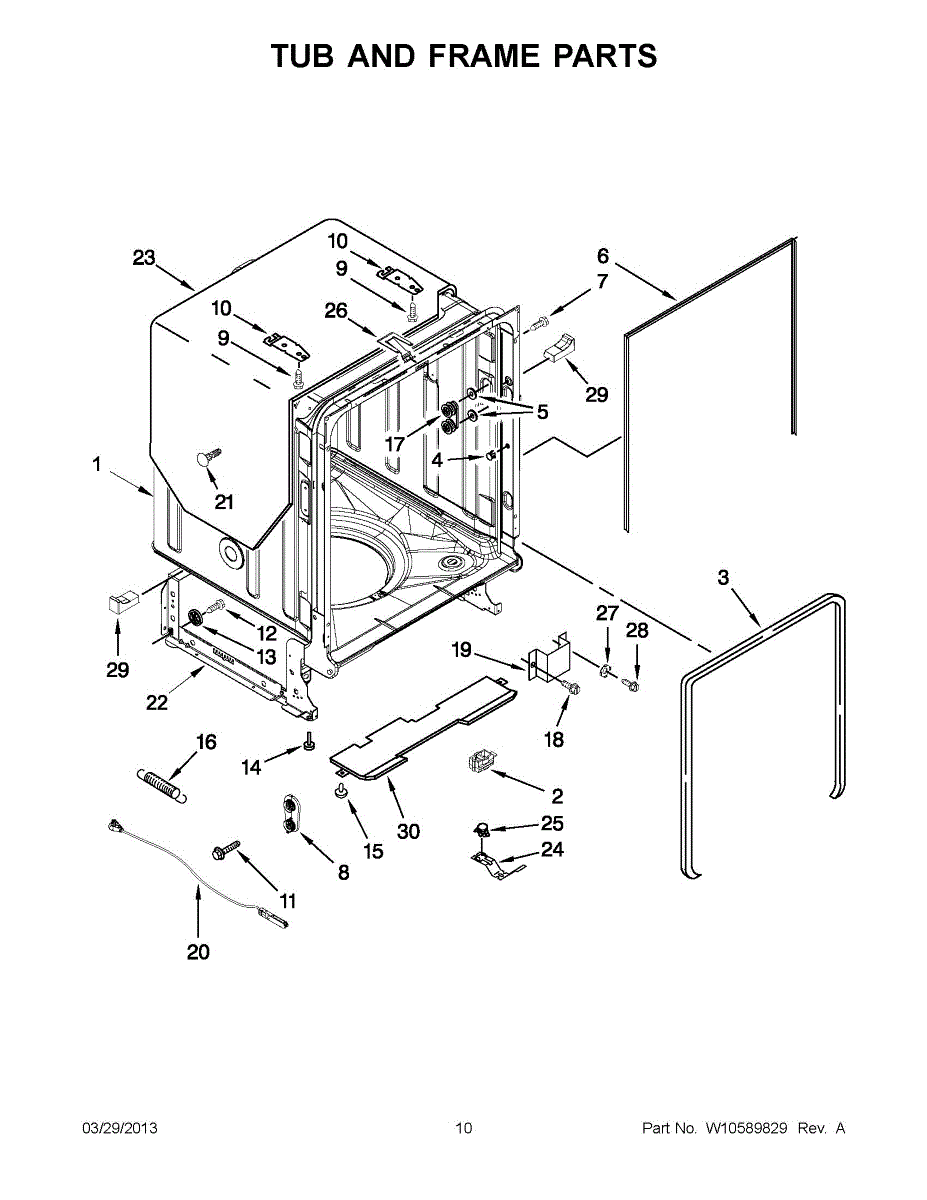

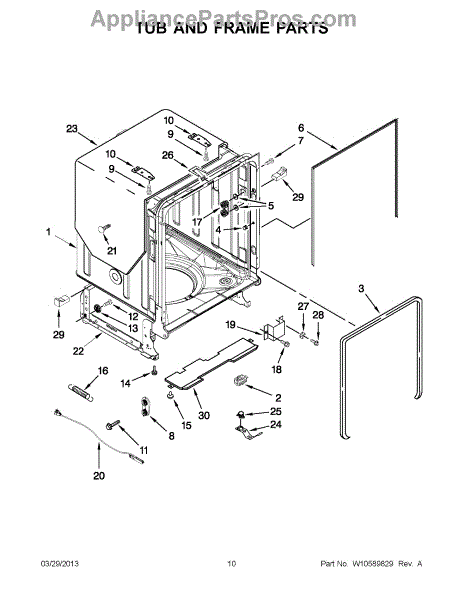

Parts for Whirlpool IUD7500BS0: 05 - Tub And Frame Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Thermostat Housing is an OEM part for Whirlpool dishwashers. It encases the thermostat responsible for accurately monitoring water temperatures throughout cleaning cycles.

Symptoms of a faulty housing include:

• Inconsistent or improper water heating
• Delayed or incomplete cycles from temperature control issues
• Error codes or failure detection by the control board

Causes may involve cracks allowing steam penetration, loose mounting points compromising seals, or damaged seals leaking interior thermostat components.

This OEM replacement fits Whirlpool, KitchenAid, Jenn-Air, and some Kenmore models as well.

The Dishwasher Door Seal is an OEM replacement part for Whirlpool dishwashers. It provides a tight seal around the dishwasher door to prevent water, sound, and heat from escaping during the wash cycle. Measuring 71” in length (and stretching up to 75”), this door seal prevents water from leaking out during wash cycles.

Causes of a bad seal can include cracks, tears, or splits that develop due to regular use and age. Damage may also occur from over-tightening of the door or accidental impact.

Symptoms of a bad dishwasher door seal include:

• Water or moist air leaks around the door during a cycle
• Higher energy bills due to hot air escaping
• Excess moisture or mineral deposits around the door seal area
• Food particles or debris trapped under a torn seal

This genuine OEM Whirlpool replacement seal is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Screw Hole Cap is an OEM part for Whirlpool dishwashers. It covers the screw holes, providing a clean and finished appearance while preventing moisture and debris from entering the screw openings. This helps maintain the dishwasher's aesthetic and ensures that screws remain protected from rust and corrosion.

Causes of a bad screw hole cap can include regular wear and tear, accidental impacts, or misplacement during maintenance.

Symptoms of a bad screw hole cap include:

• Missing or loose caps
• Moisture or debris accumulating in screw holes
• Visible wear or damage to the caps

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Gasket for upper wheel.

The Cabinet Seal is an OEM part for Whirlpool dishwashers. This seal is crucial for preventing water leaks by creating a watertight barrier between the dishwasher tub and the door. It ensures that water stays inside the dishwasher during the wash cycle, maintaining the appliance's efficiency and protecting your kitchen from water damage.

You should replace this cabinet seal if it becomes damaged, worn out, or loses its elasticity. Causes of a bad cabinet seal can include regular wear and tear, exposure to high temperatures, or buildup of detergent and mineral deposits, which can degrade the seal material over time.

Symptoms of a bad cabinet seal include:

• Water leaking from the bottom or sides of the dishwasher door
• Visible cracks or tears in the seal
• Increased moisture or puddles around the dishwasher
• A loose or improperly seated seal

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This factory screw secures panels, brackets, or components within your appliance. Using the correct OEM fastener helps ensure a snug fit and prevents loosening, rattling, or misalignment over time.

• Fastens metal or plastic components to maintain proper alignment
• Helps prevent vibration, noise, and loosened parts
• Common wear item that can strip, rust, or go missing
• Replaces damaged or missing hardware to restore secure mounting

• Disconnect power and shut off water or gas before service
• Note original screw location and orientation for proper reassembly
• Start threads by hand to avoid cross-threading; do not overtighten
• If threads are damaged, inspect the mating hole or clip before reuse

The door balance mount is the side-frame bracket that supports the dishwasher's door counterbalance system. When worn or broken, it can let the door drop, slam, bind, or feel heavy. Replacing it restores smooth, controlled door movement. What it does

• Anchors the door springs and balance link/cable to counterbalance the door's weight
• Helps the door open and close smoothly without dropping or slamming
• Guides the balance link for consistent, quiet movement
• Common symptoms: door feels heavy or uneven, falls open, won't stay put, or makes grinding/squeaking noises; visible damage to the bracket or rollers

• One door balance mount (bracket)

• Disconnect power and shut off water before servicing
• Pull the dishwasher out slightly to access the side where the mount is installed
• Carefully relieve spring tension; note link/cable routing before removal
• Transfer the spring/link to the new mount, secure the bracket, and check door balance on both sides

This cover screw secures appliance panels and covers, keeping components protected and aligned. Replace missing, stripped, or corroded screws to restore a tight fit and help eliminate rattles, gaps, or panels that won't stay in place.

• Attaches an access cover or panel to the appliance frame
• Helps maintain proper alignment to protect internal components
• Replaces missing, stripped, or rusted hardware
• Typical signs: loose or rattling panel, cover won't stay secure, damaged or rounded screw head

• Disconnect power before servicing
• Support the panel while removing and installing screws to prevent misalignment
• Start threads by hand to avoid cross-threading; do not overtighten
• Use a matching driver bit to avoid damaging the screw head

The Undercounter Bracket is an OEM replacement part for Whirlpool dishwashers. It is a sturdy mounting component that secures the dishwasher in place under the kitchen counter, ensuring a stable and secure installation.

Symptoms of a damaged or missing undercounter bracket include:

• The dishwasher shifting or moving during operation
• Difficulty in opening or closing the dishwasher door
• Potential for leaks or water damage due to an unstable installation

Causes of a faulty undercounter bracket can include improper installation, physical damage from impact or mishandling, or wear and tear over time.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This 10-24 threaded screw secures appliance components that use a #10 machine screw. It provides reliable fastening for panels, brackets, and assemblies so parts stay aligned and stable during normal use and service. What it does:

• Fastens panels, brackets, or assemblies that accept a 10-24 machine screw
• Maintains alignment and structural connection under normal operating loads
• Replaces worn, stripped, or missing screws to restore secure mounting
• Works with sheet-metal and component mating nuts or threaded inserts commonly used in appliances

• One 10-24 threaded screw

• Power tools can be used; avoid overtightening to prevent stripped threads or damaged components
• Disconnect power and follow all safety steps for your appliance before servicing
• Ensure proper engagement and torque to avoid damage

This is a 10-32 threaded machine screw used to fasten appliance panels and components securely. It restores proper fit and prevents rattling or loose parts when a missing or stripped fastener causes instability. What it does:

• Fastens panels, trim, brackets, and internal components that use 10-32 threads
• Restores secure fit when a missing or damaged screw lets parts shift or vibrate
• Helps eliminate rattling, loose connections, and alignment issues caused by lost hardware
• Works where a standard 10-32 machine screw is specified by the manufacturer

• Disconnect power and gas before accessing internal components
• Use the correct screwdriver or nut driver to avoid stripping the head
• Do not overtighten; snug until secure to avoid thread damage
• Keep removed hardware for reference and replace only with identical thread size

This rear support wheel replaces a worn roller that helps a sliding drawer or rack glide smoothly and stay aligned. Restores easy, even movement and reduces dragging, scraping, or tilting during everyday use.

• Supports the rear of a sliding assembly on its track
• Provides smooth rolling action and helps maintain alignment
• Helps prevent binding, popping off the track, or uneven travel
• Replace if the wheel is cracked, flattened, missing, or if movement is noisy or difficult

• Disconnect power before servicing; allow the appliance to cool
• Remove the sliding assembly to access the wheel area
• Transfer or reinstall any axle/retainer from the original wheel as needed
• Verify smooth travel and proper alignment after replacement

This adjustable leveling leg threads into the appliance base to set height and stabilize the cabinet. Replacing a worn or missing leg helps stop rocking and vibration and helps maintain proper alignment for reliable operation.

• Provides adjustable support at one corner of the appliance
• Helps level the unit for correct alignment with floor or cabinetry
• Reduces rocking, vibration, and rattling noises
• Replaces stripped, bent, cracked, or missing leg

• Disconnect power and, if applicable, shut off water before servicing
• Carefully support or brace the appliance to access the base safely
• Start the new leg by hand to avoid cross-threading; adjust height gradually
• Use a level to check side-to-side and front-to-back, then recheck after positioning

This push-in retainer secures panels, trim or light-weight components inside the appliance to prevent vibration and movement during operation. It's a small, low-profile fastener that snaps into a pre-drilled hole for a clean, tool-free hold. What it does:

• Holds interior trim, access panels or wiring looms in place to reduce rattles and movement
• Replaces worn or broken plastic retainers that no longer grip securely
• Helps maintain proper alignment of lightweight components for reliable operation
• Can prevent loose parts from contacting moving components

• Disconnect power to the appliance before starting any work
• Access the area and remove any surrounding trim or panels as needed
• Align retainer with the hole and push straight in until it snaps or seats flush
• Inspect fit after installation; replace if damaged or does not secure properly

The Door Balance Spring is an OEM part for Whirlpool dishwashers. This part provides tension and balance to the dishwasher door, ensuring it opens and closes smoothly and stays in the desired position when loading or unloading dishes.

Causes of damage to the door balance spring can include normal wear and tear from frequent use, corrosion due to moisture and detergent exposure, or mechanical failure from excessive force being applied to the door.

Symptoms of a bad Door Balance Spring include:

• The dishwasher door falling open too quickly or with too much force
• Difficulty in keeping the door open or having it snap shut unexpectedly
• A noticeable difference in the effort required to open or close the dishwasher door

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Wheel and Bracket Assembly is an OEM part for Whirlpool dishwashers. This assembly includes the wheel and bracket components that support and guide the dishwasher rack, allowing it to slide in and out smoothly. It ensures ease of access to load and unload dishes efficiently.

Over time, the wheel and bracket assembly can wear out or become damaged due to repeated use, heavy loads, or accidental impacts. Such issues can cause difficulty in maneuvering the dishwasher rack, leading to inconvenience and potential damage to the dishes or dishwasher.

Symptoms of a bad wheel and bracket assembly include:

• Difficulty sliding the dishwasher rack in or out
• The rack becoming misaligned or falling off its tracks
• Unusual noises when moving the rack
• Visible damage to the wheels or brackets

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

Replacement 8-32-thread screw used to secure panels, brackets and small components in compatible household appliances. Restores missing or stripped fasteners so panels and parts stay firmly attached during normal use. What it does:

• Secures trim, panels, brackets and control housings to maintain proper assembly.
• Replaces missing or damaged screws that can cause rattling, loose panels or misaligned components.
• Fits locations that require an 8-32 threaded fastener; correct length and head style for your application.
• Helps restore stable, vibration-free operation when worn or stripped fasteners are replaced.

• Disconnect power and water before servicing; wear eye protection and gloves.
• Use the correct screwdriver or driver bit to avoid stripping the screw head.
• Do not overtighten—turn until snug and secure to avoid damaging threads or surrounding parts.
• If the original used a washer or nut, reuse or replace as needed and the screw length and head type match the original.

This terminal box cover closes the dishwasher's electrical junction box under the unit, protecting and retaining the supply-wire connections. Replace a cracked, loose, or missing cover to restore a safe enclosure and proper wire containment. What it does:

• Encloses the dishwasher's junction box to prevent accidental contact with live wiring
• Helps secure and contain the incoming power wires
• Keeps debris out of the electrical connection area
• Common signs of failure: missing or broken cover, loose fit, stripped fastener point, rattling behind the kick panel

• Includes 1 terminal box cover

• Disconnect power at the circuit breaker before servicing
• Remove the lower access/kick panel to reach the junction box; remove the fastener and old cover
• Ensure all wiring is inside the box and the strain relief is secure; position the new cover and secure the fastener
• Do not operate the dishwasher without the junction box cover installed

The Door Balance Link Kit is an OEM replacement part for Whirlpool dishwashers. This kit includes the necessary components to ensure proper balancing and operation of the dishwasher door.

Causes of needing to replace the door balance link kit include wear and tear over time, damage due to mishandling or impact, or issues with the door hinges or springs.

Symptoms that may indicate the need for a new door balance link kit include:

• The dishwasher door feeling loose or unstable
• Difficulty in opening or closing the door smoothly
• The door failing to stay in the desired position when opened

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore dishwasher models.

This push retainer is a small press-on fastener that secures components to shafts or studs inside your appliance. It restores a tight, reliable hold so knobs, trim, or linkages don't loosen or fall off during use. What it does:

• Presses onto a shaft or stud to secure knobs, trim, or linkages—no threads required
• Maintains spring tension to resist vibration during normal operation
• Replaces a missing, bent, or weakened retainer
• Common symptoms: loose or wobbly knobs/trim, parts slipping off, or a retainer that won't stay on

• 1 push retainer

• Disconnect power; for gas appliances, also shut off the gas supply
• Access the shaft/stud and carefully remove the old retainer with pliers; avoid damaging adjacent plastic parts
• Press the new retainer on squarely using a deep socket or nut driver; do not hammer directly
• If the mating shaft or component is damaged or deformed, address that before installing the new retainer

This support mounting bracket secures and aligns internal components to keep assemblies stable and operating smoothly. It helps prevent part movement that can cause noise, misalignment, or improper panel fit. What it does:

• Stabilizes and supports adjacent components or panels to reduce vibration and rattling
• Keeps doors or internal assemblies aligned for correct operation
• Prevents shifting that can lead to intermittent contact or wear
• Helps maintain proper spacing where a fixed mount is required

• Disconnect power or unplug the appliance before beginning work
• Handle sharp edges carefully and use the proper screwdriver or nut driver
• Reuse existing fasteners only if they are in good condition; replace stripped or damaged hardware

The Insulation is an OEM part for Whirlpool dishwashers, specifically engineered to enhance the appliance's efficiency by reducing heat loss and minimizing noise. This insulation wraps around the dishwasher, acting as a barrier that keeps heat within the appliance during cycles and dampens the sound of its operation, making for a quieter kitchen environment.

Causes of a bad insulation part can include wear and tear over time, moisture damage leading to mold or mildew buildup, or physical damage from pests or mishandling during installation or repairs.

Symptoms of inadequate insulation include:

• Noticeable increase in the dishwasher's noise level
• Exterior surfaces of the dishwasher feeling warmer than usual
• Longer wash cycles due to inefficient temperature maintenance

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This thermostat bracket secures the refrigerator/freezer temperature sensor or thermostat to the cabinet, keeping the sensor in the correct position for accurate temperature control. Durable replacement for factory mounting hardware. What it does:

• Holds the thermostat/temperature sensor in place so it reads interior temperatures correctly
• Helps prevent loose or misaligned sensors that can cause irregular cooling or cycling
• Restores proper sensor positioning after damage or broken mounting clips
• Works with the thermostat assembly to maintain consistent appliance operation

• One thermostat mounting bracket

• Disconnect power to the appliance before service to avoid electrical shock
• Handle thermostat/sensor elements carefully; avoid bending or pinching the sensing tube
• Retain or reuse original fasteners unless replacement hardware is explicitly included

The High Limit Thermostat is an OEM part for Whirlpool dishwashers. It is a safety device that monitors the temperature inside the dishwasher and cuts off power to the heating element if the water temperature exceeds safe levels, preventing overheating and potential damage.

Causes of a bad high limit thermostat can include normal wear and tear, exposure to high temperatures, or electrical faults. A faulty thermostat can prevent the dishwasher from heating water correctly, affecting the cleaning performance.

Symptoms of a bad high limit thermostat include:

• Dishwasher not drying dishes properly
• Dishwasher not completing cycles
• Water not heating up during cycles
• Error codes related to temperature issues

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This plate-latch strike secures the appliance door by engaging the latch assembly so the door stays closed during operation. It replaces a worn or damaged strike to restore proper door closure and reliable operation. What it does:

• Provides a sturdy contact point for the door latch to engage and hold the door closed
• Helps prevent the door from popping open during use, which can cause cycle interruption
• Addresses symptoms like a door that won't stay latched, won't close fully, or causes the unit to stop mid-cycle
• Works as the mating strike for the existing latch assembly to ensure proper alignment

• One plate-latch strike

• Disconnect power to the appliance before beginning any repair
• Access the strike by opening the door; remove any trim or screws as needed to reach the strike mounting location
• Install replacement in the same orientation as the original and tighten fasteners securely without over-torquing
• After installation, verify the door latches smoothly and the appliance completes its normal cycle

A pronged cup washer that secures and cushions mating parts on appliances, restoring proper fit and reducing wobble. Replaces worn or damaged cup-style washers to help maintain stable component alignment and reliable operation. What it does:

• Fits into a cup or socket to hold shafts, knobs, or trim pieces in place
• Pronged design grips the mounting surface to prevent rotation and slippage
• Helps reduce vibration and noise caused by loose or worn washers
• Commonly used when a knob, shaft, or trim feels loose or wobbly

• Disconnect power to the appliance before servicing to avoid shock or injury
• Remove the related knob or trim carefully to access the washer; note orientation for correct reassembly
• Press the washer fully into the cup or socket so the prongs engage the mounting surface
• Inspect the surrounding components for wear and replace any damaged parts

Size: 8-32 x 1/2 inch.

This spacer positions and supports the appliance tank/tub assembly to maintain proper alignment and spacing for reliable operation. Replaces a worn or damaged spacer to restore correct fit and reduce movement. What it does:

• Keeps the tank/tub assembly correctly spaced and aligned with the cabinet and mounting points
• Helps prevent rubbing, binding, and excess vibration caused by a missing or damaged spacer
• Restores proper clearance to support seals and hoses that rely on correct tank positioning
• Useful when reassembling the appliance after service or repair

• One spacer

• Disconnect power and water supply before starting any repair
• Access may require removal of outer panels, console, or access covers depending on model
• Handle parts carefully to avoid damaging surrounding seals and wiring; reuse fasteners unless replacement is specified

This spacer fits between tank components to maintain proper spacing and alignment, helping reduce vibration and wear. Use this genuine replacement to restore correct clearances and improve stability in the appliance's tank assembly. What it does:

• Positions and separates tank parts to maintain correct alignment during operation
• Helps reduce noise and vibration caused by misaligned components
• Prevents metal-to-metal contact that can cause premature wear or damage
• Restores factory clearances after service or replacement of tank parts

• One spacer

• Designed for direct replacement; use the OEM mounting location and orientation
• Disconnect power and water (if applicable) before beginning repair
• If fasteners or surrounding components are worn or damaged, replace them to ensure a secure fit

Insulation pad that fits behind appliance panels to restore thermal protection and reduce noise. Replacing a damaged or missing pad helps protect nearby wiring and components from heat and can reduce vibration-related rattling. What it does:

• Provides thermal insulation to help limit heat transfer to adjacent panels and components.
• Dampens vibration and reduces rattling or buzzing caused by loose or worn insulation.
• Protects wires, connectors and plastic parts from excess heat when installed correctly.
• Common symptom: missing, torn, or deteriorated pad with increased exterior heat or noise.

• Disconnect power to the appliance before servicing to avoid shock or injury.
• Remove access panels as needed; position the pad flat against the cabinet surface or mounting area.
• Use original clips/adhesive or manufacturer-recommended fasteners to secure the pad; avoid covering vents or controls.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces
