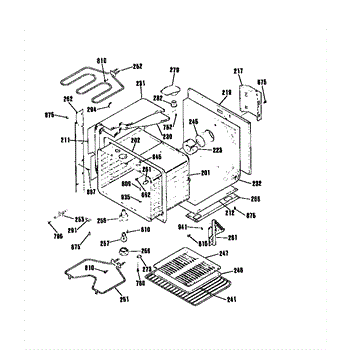

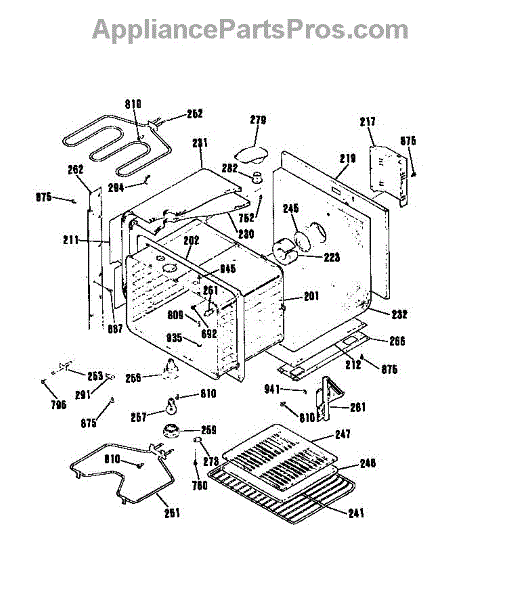

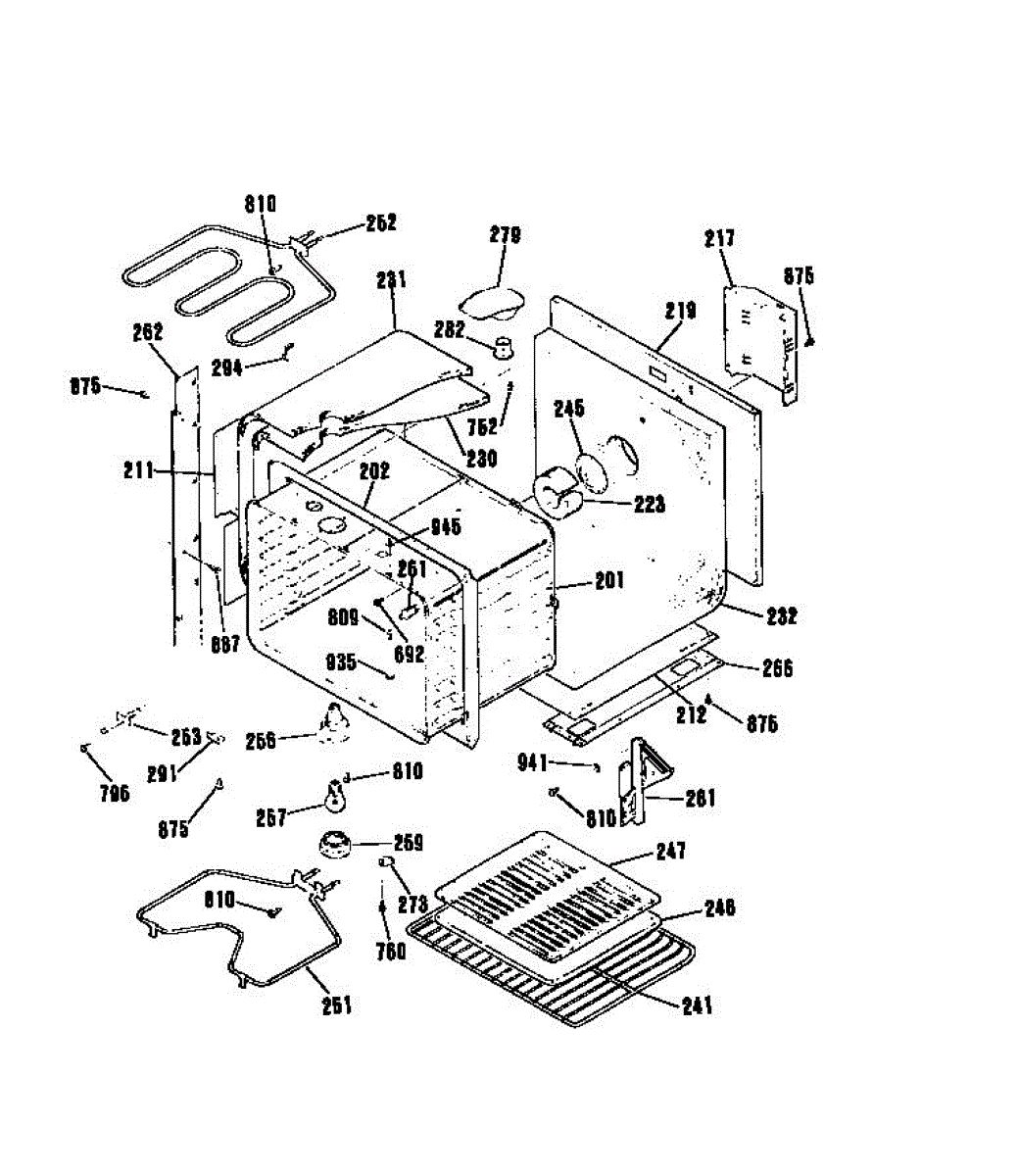

Parts for Kenmore 911.41159590 (91141159590, 911 41159590): Upper Body Section Parts

Insulation panel that installs on the back and bottom of your oven cavity. Replace if damaged, torn, compressed, or missing to maintain heat efficiency.

Insulation panel that installs on top of the oven cavity. Replace if damaged, torn, compressed, missing, or contaminated by pests or moisture.

Insulation panel that installs on the back and bottom of your oven cavity. Replace if damaged, torn, compressed, or missing to maintain heat efficiency.

Slotted grid that rests over the broiler pan to support food during broiling. Replace if cracked, warped, worn, or missing to restore proper function.

Oven not heating or baking unevenly? A faulty bake element is often the cause. This bottom heating element is a straightforward DIY fix in 5-10 minutes.

Broiler won't heat up? This upper heating element restores high-heat broiling and surface browning. Takes about 15 minutes to replace with basic tools.

If your oven won't preheat or shows an F3 error code, this temperature sensor monitors oven heat and safety features. Direct plug replacement, 15-minute fix.

NOTICE: Part has been redesigned. Wire terminals are no longer straight off the the back they are from the side. Depending on your model you may have to make changes to make it fit.

This high-amp SPDT switch routes power between circuits in cooking appliances to control items such as locks, element relays, or fans. Replacing a worn switch restores dependable operation and helps eliminate intermittent on/off issues. What it does:

• Single-pole, double-throw action directs power between NO/NC circuits based on actuator position
• Used to signal or control a component per the model's design (e.g., latch/lock, relay, fan)
• Failure symptoms can include no activation, stuck-on/off behavior, intermittent operation, or heat-damaged terminals
• Electrical tests may show incorrect continuity between COM–NO/NC when pressed or released

• Includes: 1 SPDT high-amp switch

• Disconnect power at the breaker or unplug the appliance before servicing
• Label or photograph wiring; move leads to matching COM/NO/NC terminals on the new switch
• Mount with the correct actuator orientation and secure any bracket or screws
• Inspect connectors for heat damage; ensure tight spade fits, restore power, and test operation

Base rail that guides and supports oven racks for smooth sliding. Replace this structural component if cracked, bent, or worn to restore proper rack movement.

Lower housing cover for ovens and ranges. Replaces cracked, broken, or missing covers that expose internal components. Protects and encloses the lower section.

Left side hinge assembly for oven doors. Replaces broken, cracked, or worn hinges that prevent proper door opening and closing. Direct fit component.

This panel conceals and protects internal freezer components while providing a finished interior appearance. Located inside the freezer compartment, replace it when cracked, warped, or allowing moisture and cold air to reach sensitive mechanical parts.

This metal bracket provides structural support for range components like burner assemblies or control panels. It securely holds parts in their proper position during normal cooking operations. Replace when range components become loose, sag, or don't align properly.

Replacement mounting screw for securing panels, trim, and internal brackets. Needed when original fasteners are missing, stripped, or damaged.

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.

Replacement mounting screw for securing panels, brackets, and trim on electric ranges and wall ovens. Needed when original fastener is stripped or missing.

Replacement screw for securing panels, brackets, and internal components in ranges, ovens, and cooktops. Replace missing, stripped, or damaged screws.

Replacement screw for securing panels, brackets, and internal components. Needed when original hardware is stripped, missing, or damaged during repairs.

Black trim screw secures exterior trim and panels on ovens and ranges. Replace missing, stripped, or corroded screws to restore proper fit and finish.

Replace your missing, worn, or damaged range washer. This small metal component secures parts and assemblies throughout your oven, ensuring proper fit.

This washer secures components inside your range. Replace if the original is lost, stripped, corroded, or damaged during service or repair work.

This owner's manual provides the official operating, care, and safety information for your appliance so you can use it correctly and keep it running safely. Clear instructions help prevent misuse and reduce avoidable service calls. What it does:

• Explains basic operation, control functions, and feature descriptions in plain language
• Lists safety warnings and recommended precautions to reduce risk of injury or damage
• Provides routine cleaning and maintenance guidance to help preserve performance
• Includes troubleshooting tips for common user-level issues
• Supplies parts diagrams and reference information to identify replaceable components

• Read the manual completely before first use and follow all safety instructions
• Keep the manual near the appliance for quick reference; store a digital copy if available
• Replace the manual if it is lost or damaged to ensure continued safe operation
