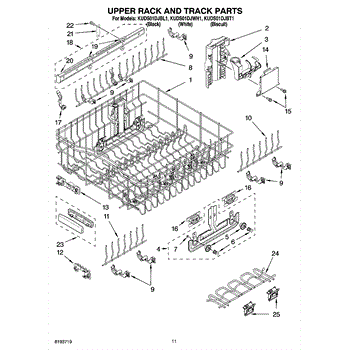

Parts for Kitchenaid KUDS01DJBT1: 09 - Upper Rack And Track Parts

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

Replace your dishwasher's upper dishrack if it's cracked, rusted, or has damaged coating. This top shelf holds plates and bowls securely during wash cycles.

This upper rack adjuster sets and secures the dishwasher's top rack height so dishes clear the spray arms and load properly. When the adjuster wears or breaks, the rack can become uneven or stuck, leading to poor cleaning and loading issues.

• Provides the mechanism to raise/lower and lock the upper dishrack height
• Keeps the top rack level and secured to the rail during operation
• Common symptoms of failure: rack drops on one side, won't adjust, feels loose, or comes off the track
• Contribute to poor wash results when the rack can't be positioned correctly

• Disconnect power and water supply before servicing
• Remove upper rack end caps/stops and slide the rack out to access the adjuster
• Release or unfasten the old adjuster, transfer any reusable clips/wheels if applicable, and install the new adjuster
• Set both sides of the rack to the same height; reinstall rack and confirm smooth travel and secure locking

To order retainers use WP3400918.

Fix upper rack that won't adjust or is stuck. This left side actuator adjuster replaces broken mechanisms. Moderately easy DIY with torx driver.

Dishrack adjuster assembly for dishwashers. Mounts to upper rack and slides along track rails. Replace if wheels are broken, housing is cracked, or worn.

Replacement wheel for dishwasher upper rack. Attaches to the rack and rolls along interior tracks for smooth gliding. Needed when wheels are broken, cracked, or missing.

Replacement axle for dishwasher upper rack height adjustment mechanism. Needed when the axle is broken, cracked, or missing from the rack roller assembly.

This replacement screw fastens appliance components such as panels, brackets, or trim. Use it to replace a missing, stripped, or rusty fastener and restore a secure, rattle-free fit in your appliance assemblies.

• Secures panels, brackets, or hardware to maintain proper alignment
• Helps eliminate vibration, rattling, or loose-feeling parts
• Replaces fasteners that are missing, corroded, or cross-threaded
• Typical signs you need it: loose handle or panel, gaps, or hardware that won't stay tight

• Disconnect power (and shut off gas, if applicable) before servicing
• Match thread type and length to the original fastener for proper fit
• Start threads by hand to avoid cross-threading; do not overtighten
• Reuse any original washers or clips if present

Replace your cracked, rusted, or broken dishwasher tine row. This adjustable row installs in the upper or lower rack for flexible dish loading.

This dual positioner assembly helps align and hold the control shaft/knob mechanism so selections register correctly and controls operate smoothly. It replaces a worn or broken positioner to restore reliable selector alignment. What it does:

• Secures and centers the control shaft/knob so detents register properly
• Prevents loose or wandering knobs and helps ensure accurate cycle selection
• Commonly replaced when knobs feel sloppy, skip positions, or controls don't stay set
• Works with the control panel mounting to stabilize selector movement

• Disconnect power to the appliance before starting any work
• Remove the control panel or console to access the positioner per your model's service instructions
• Handle plastic tabs and mounting points carefully to avoid breakage during removal/installation
• Test control function after reassembly to confirm correct alignment and operation

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

This upper rack adjuster sets and secures the dishwasher's top rack height so dishes clear the spray arms and load properly. When the adjuster wears or breaks, the rack can become uneven or stuck, leading to poor cleaning and loading issues.

• Provides the mechanism to raise/lower and lock the upper dishrack height
• Keeps the top rack level and secured to the rail during operation
• Common symptoms of failure: rack drops on one side, won't adjust, feels loose, or comes off the track
• Contribute to poor wash results when the rack can't be positioned correctly

• Disconnect power and water supply before servicing
• Remove upper rack end caps/stops and slide the rack out to access the adjuster
• Release or unfasten the old adjuster, transfer any reusable clips/wheels if applicable, and install the new adjuster
• Set both sides of the rack to the same height; reinstall rack and confirm smooth travel and secure locking

Quantity of ONE. Size: 8-18 x 5/8 inch. (#8 screw, 18 threads per inch, 5/8 inch long)

Fix dishwasher racks that won't adjust or stay in place with this positioner arm. Guides rack movement and reduces noise from misaligned positions.

Replacement track assembly for dishwasher upper rack. Mounts to dishwasher tub side wall. Includes left and right tracks with bearings and stops.

Stops the dishwasher rack from pulling out too far on ball-bearing rails. Replace if worn or missing to restore smooth gliding and secure dish loading.

Gasket for upper wheel.

Factory #10-16 screw secures dishwasher panels, brackets, and covers. Replace worn, stripped, or missing screws to restore tight assembly.

Upper rack cup shelf for dishwashers. Snaps into rack clips to hold cups securely. Replace when cracked, rusted, broken, or missing from your rack.

Replacement dishwasher cupshelf clip secures the cup shelf to the upper rack. Order a new clip if yours is cracked, broken, or missing from the rack assembly.

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.
