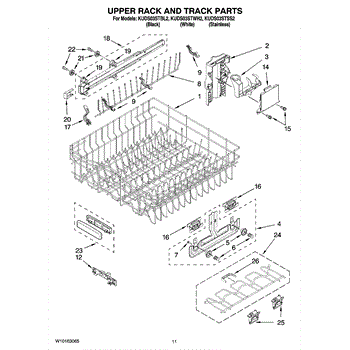

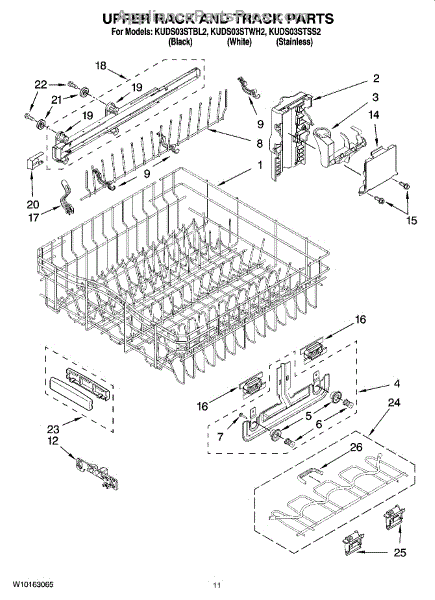

Parts for Kitchenaid KUDS03STSS2: 09 - Upper Rack And Track Parts

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Replacement dishwasher housing assembly that encloses internal components and aligns panels. Use to replace cracked, warped, or damaged housings.

For left hand use W10077839

For right hand use W10077838

Dishrack adjuster assembly for dishwashers. Mounts to upper rack and slides along track rails. Replace if wheels are broken, housing is cracked, or worn.

Replacement wheel for dishwasher upper rack. Attaches to the rack and rolls along interior tracks for smooth gliding. Needed when wheels are broken, cracked, or missing.

Replacement axle for dishwasher upper rack height adjustment mechanism. Needed when the axle is broken, cracked, or missing from the rack roller assembly.

This replacement screw fastens appliance components such as panels, brackets, or trim. Use it to replace a missing, stripped, or rusty fastener and restore a secure, rattle-free fit in your appliance assemblies.

• Secures panels, brackets, or hardware to maintain proper alignment
• Helps eliminate vibration, rattling, or loose-feeling parts
• Replaces fasteners that are missing, corroded, or cross-threaded
• Typical signs you need it: loose handle or panel, gaps, or hardware that won't stay tight

• Disconnect power (and shut off gas, if applicable) before servicing
• Match thread type and length to the original fastener for proper fit
• Start threads by hand to avoid cross-threading; do not overtighten
• Reuse any original washers or clips if present

Replace your cracked, rusted, or broken dishwasher tine row. This adjustable row installs in the upper or lower rack for flexible dish loading.

The Tine Row Pivot is an OEM replacement part for Whirlpool dishwashers. This component is an integral part of the upper rack assembly, allowing the tine rows to fold down or pivot inward to accommodate taller items or create additional space within the rack.

Symptoms of a faulty tine row pivot may include:

• Tine rows not folding or pivoting smoothly
• Difficulty adjusting the tine rows to the desired position
• Tine rows becoming stuck or jammed in an open or closed position

Causes of needing to replace the tine row pivot can include normal wear and tear over time, physical damage from mishandling or impact, or issues with the pivot mechanism becoming corroded or obstructed.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore dishwasher models.

Secures tines in your dishwasher rack to hold dishes and utensils in place. Replace if cracked, broken, or missing to restore proper rack function.

Factory replacement access panel cover for dishwashers. Protects internal wiring and controls from dust and accidental contact. Needed when cracked or missing.

Quantity of ONE. Size: 8-18 x 5/8 inch. (#8 screw, 18 threads per inch, 5/8 inch long)

Replacement dishwasher dishrack positioner that aligns and secures rack components. Install if your original is cracked, worn, or missing for proper fit.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Secures tines in your dishwasher rack to keep dishes properly aligned. Replace this clip if it's cracked, broken, or missing to restore rack stability.

Guides the upper dishrack as it slides in and out. Replace if cracked, broken, or if rollers have fallen out, causing loose or unsteady rack movement.

This upper dishrack track mounts to the dishwasher tub wall and provides a smooth glide path for the rack rollers. Replacing a damaged track restores easy in-and-out movement and helps keep the upper rack aligned and secure.

• Guides and supports the upper dishrack as it slides in and out
• Maintains rack alignment to prevent binding or derailing
• Typical failure signs: rack jams or falls off, rough/squeaky travel, visible cracks or breaks in the track
• Can keep the rack from fully sliding in, making the door harder to close

• Disconnect power and turn off the water supply before servicing
• Remove the upper rack by releasing the end caps/stops
• Unfasten the old track from the tub (screws/clips), then position and secure the new track
• Reinstall the rack and end caps; verify smooth rack travel before restoring power and water

Support bracket mount that secures internal dishwasher components. Replaces broken or worn brackets to restore proper alignment and stability.

This is a small plastic stop clip that mounts on the upper dishrack track to prevent the rack from sliding out too far when pulled forward. It acts as a catch to keep the rack securely on its rails during loading and unloading. Replace this clip if your upper rack slides off its track, falls forward when extended, or if the original stop is cracked or missing.

Left side.

Gasket for upper wheel.

Factory #10-16 screw secures dishwasher panels, brackets, and covers. Replace worn, stripped, or missing screws to restore tight assembly.

Upper rack cup shelf for dishwashers. Snaps into rack clips to hold cups securely. Replace when cracked, rusted, broken, or missing from your rack.

Small retaining clip that secures trim, panels, or components in your dishwasher to prevent rattling or detachment. Replaces broken or missing clips.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.
