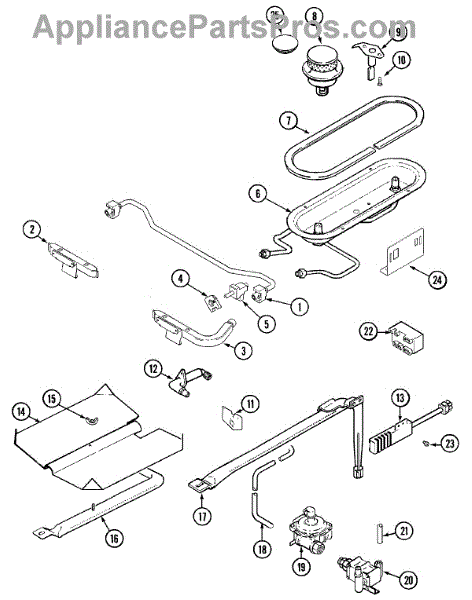

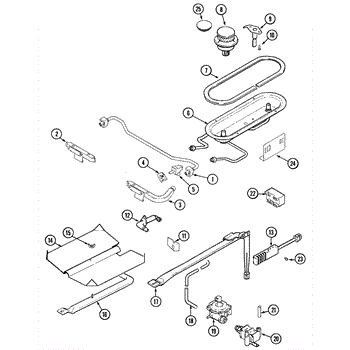

Parts for Maytag MGS5770ADW: 03 - Gas Controls Parts

This ignitor switch assembly controls the spark/ignition signal for gas cooktop/oven burners, restoring reliable ignition and safe burner operation. It replaces a worn or failed switch to help re-establish consistent spark firing. What it does

• Sends the ignition spark signal to the burner when a cooktop or oven control calls for ignition.
• Commonly replaced when burners fail to light or ignition is intermittent.
• Helps eliminate clicking without ignition when the switch portion of the ignitor circuit is faulty.
• Works with the appliance's existing ignitor/spark system.

• Disconnect power and shut off the gas supply before attempting service.
• Handle the assembly and any ceramic/sensitive components with care to avoid damage.
• Replace only the faulty switch assembly; secure all connectors.
• After installation, restore power/gas and test all burners for proper ignition and safe operation.

This surface burner igniter switch mounts on the gas valve shaft and signals the spark module to ignite when you turn the knob. Replacing a worn or stuck switch restores consistent clicking and dependable lighting of the cooktop burners.

• Closes the ignition circuit as the knob is turned from OFF, triggering spark at the surface burners
• Typical symptoms: no spark/click at a burner, intermittent ignition, or continuous clicking when knobs are off
• Fits over the valve stem and connects to the spark harness

• Disconnect electrical power and shut off gas before servicing
• Remove the knob and access the control panel/top to reach the valve switch
• Note wire positions; transfer connectors one at a time and align the switch correctly on the valve shaft
• Test for proper spark at each burner before reassembly

This burner seal assembly replaces the gasket-like ring that sits around a cooktop surface burner, helping keep spills and debris out of the burner area for easier cleaning and consistent ignition. What it does:

• Seals the gap between the cooktop and surface burner to reduce debris and liquid intrusion
• Helps prevent food and grease from falling into the burner cavity
• Supports stable burner placement for reliable ignition and flame performance
• Can reduce the need for frequent deep cleaning under burners

• One burner seal assembly

• Disconnect power and shut off gas supply before servicing
• Allow the cooktop and burners to cool completely before attempting removal/installation
• Remove burner heads and lift out the old seal, then seat the new seal evenly around the burner opening

This is a replacement sealed burner cap. This is a genuine OEM part made by Whirlpool and has been sourced directly from the manufacturer. This part is intended to replace a broken, misplaced, or defective burner cap in various models of gas ranges and stoves. Electrodes are included.This sealed burner cap protects the surface burner and allows the cooktop to light properly. If the gas igniter is glowing but does not ignite, the stove won't start up, or there will be a gas smell. Proper tools may be required to replace this part. Always ensure the appropriate safety precautions are adhered to when attempting to fix any appliances. Make sure that the stove is entirely disconnected from gas and power before starting the repair work. For more accurate information on how and where to install this sealed burner cap, the appropriate owner's manual and included diagrams should be referenced.As an authentic replacement part, this burner cap is suitable for use on several different models of gas stoves, ranges, and cooktops manufactured by Whirlpool, Maytag, KitchenAid, Amana, and other Whirlpool brands. This is a genuine part made of high-quality, durable materials and is sold individually.

This sealed burner igniter is the spark electrode for a gas cooktop burner. It creates the ignition spark at the burner head so your surface burner lights reliably when you turn the control knob.

• Produces the high-voltage spark that ignites gas at a sealed surface burner
• Helps resolve a single burner that won't light or lights intermittently
• Common signs: no visible spark at that burner, continuous clicking without ignition, or a cracked/chipped ceramic insulator
• A shorted or misaligned electrode can cause the spark to jump to ground instead of the burner

• Disconnect power and shut off gas supply before servicing
• Remove the burner cap and head; lift the cooktop if needed to access the electrode
• Handle the ceramic insulator carefully; disconnect/reconnect the wire lead and reuse mounting hardware
• Align the tip toward the burner port and secure; verify a strong, consistent spark before reassembly

The Top Burner Spark Igniter is an OEM part for Whirlpool ranges. It is responsible for igniting the gas on the stove burners, allowing you to start cooking quickly and efficiently. The spark igniter produces a spark that lights the gas, providing the flame needed for cooking.

Causes of a bad igniter can include wear and tear over time, buildup of food debris or grease that interferes with the spark, or electrical issues that prevent the igniter from generating a spark.

Symptoms of a bad Top Burner Spark Igniter include:

• Burner not igniting
• Weak or no spark
• Clicking sound without ignition
• Delayed ignition of the burner

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This sheet-metal pan-head screw secures appliance panels, brackets, and components to the cabinet or frame. Replacing a missing or damaged screw restores a tight fit and helps stop rattles, misalignment, and loosening.

• Fastens sheet-metal panels, covers, ducts, and brackets to the appliance chassis
• Helps keep components aligned and secure during operation
• Replace if the original is missing, rusted, stripped, or damaged
• Common symptoms: loose or vibrating panels, gaps or misaligned parts, hardware that won't tighten

• Disconnect power; shut off gas or water supply before servicing
• Support the panel or part being attached; hand-start threads to avoid cross-threading
• Use the correct driver bit; tighten snugly but do not overtighten into sheet metal
• If multiple matching screws secure a part, consider replacing them as a set for consistent hold

The Oven Igniter is an OEM part for Whirlpool ovens, designed to ignite the gas in the oven burner, allowing it to heat. This crucial component is responsible for creating the spark that starts the combustion process, enabling your oven to reach the desired temperature for baking or broiling.

Causes of a bad oven igniter include wear and tear from regular use, a buildup of residue that can inhibit the igniter's ability to heat properly, or electrical issues that prevent the igniter from drawing enough current.

Symptoms of a bad Oven Igniter include:

• Oven not heating up at all
• Oven takes longer than usual to heat up
• Gas smell when the oven is turned on, indicating gas is not igniting

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This wing nut is a hand-tightening fastener used to secure small appliance components for easy tool-free adjustment or removal. It offers a simple replacement when the original nut is lost, stripped, or broken. What it does:

• Secures panels, brackets, or components that require occasional removal or adjustment
• Allows tool-free tightening and loosening with built-in wings for finger grip
• Restores proper fit where a missing or damaged nut causes rattling, looseness, or instability
• Designed for repeated hand-operation without specialized tools

• Disconnect power to the appliance before performing any work to avoid shock or injury
• Thread by hand until snug; avoid overtightening to prevent stripping threads or cracking surrounding parts
• Inspect mating threads and replace if damaged to ensure secure fastening
• Use appropriate size and thread type—do not force a mismatched nut onto the stud

This pressure regulator controls incoming water pressure to the appliance's water/ice system, helping maintain steady flow for proper dispenser and ice maker operation. Replaces a worn or failing regulator to restore correct water delivery. What it does:

• Reduces and stabilizes incoming household water pressure for the appliance's water valve/ice maker
• Helps prevent overfilling, leaking, erratic dispenser flow, or poor ice production caused by excessive pressure
• Works with the water inlet system to ensure consistent fill cycles and reliable dispensing
• Compatible with models that use WP74006429 as the factory regulator

• One pressure regulator

• Shut off water supply and unplug the appliance before replacing the regulator
• Inspect fittings and tubing for damage; replace any worn connectors or seals
• Tighten fittings securely and check carefully for leaks after restoring water and power

This oven gas valve controls the flow of gas to the oven burner. When functioning properly, it allows the burner to ignite and maintain a steady flame for consistent preheating and baking performance.

• Opens and closes to supply gas to the oven burner as commanded by the control system
• Helps ensure gas only flows when ignition is called for
• Common symptoms include no heat/no flame, slow preheat, or temperature not reaching set point
• May also present as intermittent heat or a weak/irregular burner flame

• Disconnect power and shut off the gas supply before servicing
• Verify igniter condition/current; a weak igniter can mimic a failed valve
• Transfer any required fittings or brackets from the original valve
• Use gas-rated thread sealant on threaded joints; leak-test all connections and run a test cycle to proper ignition

This spark module generates high-voltage pulses to ignite the surface burners on your gas cooktop or range. Replacing a failed module helps restore fast, reliable ignition when you turn a burner knob.

• Converts line voltage into high-voltage pulses for the surface igniters to light gas
• Sends spark when a burner switch calls for ignition; multiple electrodes may spark together by design
• May help address: no spark on all burners, intermittent or weak spark, burners that click but won't light
• Continuous rapid clicking can also occur with a failed module or wet/stuck burner switches

• Disconnect electrical power and shut off gas before servicing
• Access the module under the cooktop/top panel or behind the control area; label or photograph wiring and move leads one at a time to the new module
• Mount the new module securely in the original location; ensure all connectors are clean, dry, and fully seated
• Restore power and test each burner for proper spark and ignition

Size: 10-24X5/16-NI

A removable burner cap that covers the burner head to help direct flame and promote even heating on gas cooktops. Replaces a damaged or missing cap to restore proper burner performance and appearance. What it does:

• Sits on top of the burner head to shape and protect the flame for consistent heat distribution
• Helps prevent uneven cooking, weak or erratic flames, and flame lifting from the burner head
• Protects the burner head from spills and debris that can interfere with ignition
• Restores a secure seating surface so the burner ignites and burns as intended

• Turn off the gas supply and ensure the cooktop is completely cool before servicing
• Lift off the old cap, clean the burner head and surrounding area of debris, then set the new cap in place so it seats flat
• No tools typically required; seat by hand and test burner operation before regular use

This orifice hood directs LP (liquid propane) gas to the burner for correct flow and stable flame performance. It's used when servicing or replacing the small gas orifice assembly on compatible gas cooktops and ranges. What it does:

• Seats over the burner orifice to help shape and protect the gas jet for proper combustion.
• Restores correct flame size and stability when a worn or damaged hood causes weak or uneven flames.
• Can resolve ignition issues or yellow/turbulent flames when the hood is cracked, clogged, or deformed.
• Intended for LP (liquid propane) systems — not a universal orifice size for all fuel types.

• One orifice hood (LP 0.49), single piece as shown.

• Only install if part number and fuel type match your appliance; follow the appliance service manual for disassembly/reassembly.
• Turn off gas supply and electrical power before servicing; verify there is no gas odor before testing.
• Use basic hand tools; avoid forcing fittings or overtightening components.
