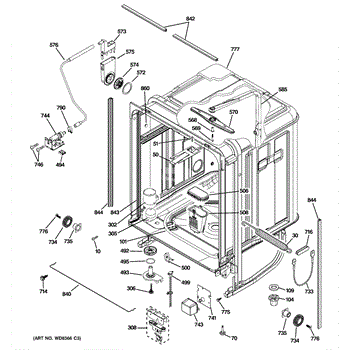

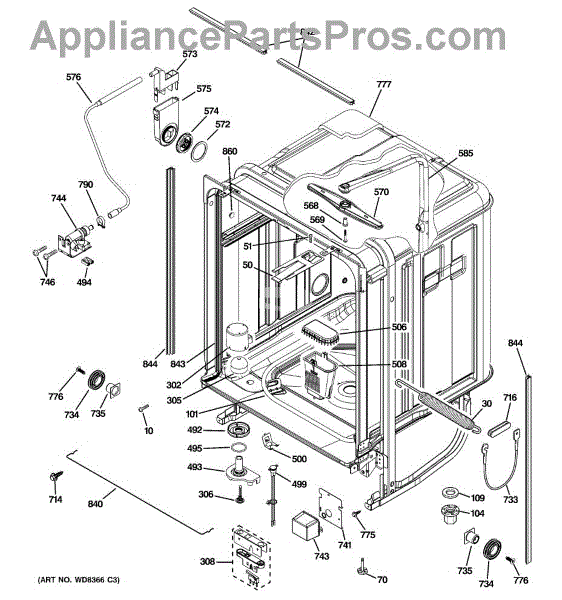

Parts for Ge CDWT280V00SS: 02 - Body Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The front door of a dishwasher is operated in part by the use of door springs. There are typically two door springs on most models. The door spring helps the user open and shut the door efficiently. If the door springs are worn out or broken, a replacement part is required.A visual inspection will determine if a door spring is missing, damaged, or worn out. If the dishwasher door no longer opens and closes smoothly, it's an indication that a repair is required. Replacing a dishwasher door spring is a straightforward process. Locate the existing springs and remove them. Line up the new door springs and hook the ends into place. Wear gloves for protection. Disconnect the dishwasher before starting the replacement.This door spring is an authentic OEM replacement part. It is sold individually. The component is made of durable, high-quality metal materials. The replacement door spring comes sourced directly from the manufacturer. The door spring is fitting for several different models of dishwashers. The part can be installed in General Electric, Hotpoint, and RCA devices.

This latch keeper assembly secures the appliance door for a reliable latch connection and helps restore proper door closing. Replace a worn or broken keeper to stop the door from popping open or failing to engage. What it does

• Provides the capture point for the door latch/bolt so the door stays closed during operation
• Restores proper door engagement when the keeper is cracked, warped, or broken
• Helps prevent cycles from stopping due to a door that won't fully latch
• Fits into the cabinet striker area and works with the existing latch mechanism

• One latch keeper assembly (single piece)

• Disconnect power (and water, if applicable) before beginning any repair
• Access is usually from the front by removing the door trim or the cabinet striker panel — verify your model's disassembly steps
• Inspect the mating latch for wear and replace if both parts show damage

Specs: 8-18 va trt 7/16

This mounting nut secures the tower heater assembly in the appliance, keeping the heater stable and properly positioned for safe, efficient operation. Replacing a damaged nut restores secure attachment and reduces rattling or loose components. What it does

• Secures the tower heater assembly to the appliance chassis or mounting bracket
• Helps maintain proper heater alignment for reliable heating performance
• Prevents movement that can cause noise, intermittent contacts, or wear on connections
• Used when the original nut is stripped, corroded, or missing

• One tower heater assembly mounting nut

• Disconnect power to the appliance before attempting any repair
• Use appropriate hand tools; avoid over-tightening which can strip threads or damage the heater assembly

This float dome sits in the dishwasher's float well and rises with the water level to trigger the float switch and stop filling. Replace a cracked or missing dome to restore reliable water-level control and overfill protection.

• Moves up and down with the water level to actuate the overfill/flood switch
• Helps prevent overfilling by signaling the inlet valve to shut off at the correct level
• Guides and shields the float mechanism from dishes and debris
• Common symptoms: broken or missing dome, float sticking, dishwasher won't fill or keeps filling

• Disconnect power and turn off water supply before servicing
• Remove the lower rack to access the float area on the tub floor
• Lift straight up or twist to remove the old dome; clear any mineral/debris from the float well
• Seat the new dome and run a brief fill test

This dishwasher float sits in the tub and works with the float switch to control the fill level and prevent overfilling. Replace it if cracked or sticking to restore reliable water level control and help avoid leaks.

• Rises with the water level to trigger the float switch and stop filling at the correct point
• Helps prevent overfilling and door leaks
• Common symptoms of a damaged or obstructed float include continuous filling, overfill/leaks, or no/insufficient fill
• Restores consistent water level sensing when the original float is worn or missing

• Disconnect power and turn off the water supply
• Open the door and remove the lower rack
• Remove the float cover; pull the old float straight up and clear any debris from the well
• Insert the new float and verify free up-and-down movement before reassembly and testing

This float stem is the vertical rod that links the dishwasher's tub float to the float switch. It ensures the fill valve shuts off at the correct level to help prevent overfilling, leaks, and poor cleaning results.

• Transfers the float's up/down movement to the float switch to stop water intake
• Helps maintain proper water level and protect against overfill-related leaks
• Failure may cause continuous filling/overfilling, low water level/poor cleaning, or a float that binds or feels loose
• Replace if the stem is cracked, warped, or missing

• Disconnect power and shut off water before servicing
• Remove the lower rack, take off the float cap, and lift out the float to access the stem
• From below the tub, detach the stem from the switch/retainer and install the new stem in the same orientation
• Ensure the float moves freely and actuates the switch; run a fill test and check for leaks
• Steps can vary by model.

This flood switch is a small water-sensing switch that alerts the appliance control when liquid collects where it shouldn't, helping stop leaks and prevent additional water damage. It's a direct-fit replacement used in compatible GE appliances. What it does:

• Detects presence of unwanted water and signals the appliance control or valve
• Can stop water flow or trigger an error when a leak or overflow occurs
• Commonly replaces a failed sensor that leaves water pooling in the appliance base
• Helps resolve symptoms such as water in the bottom pan, intermittent leak-related error codes, or continuous filling faults tied to a failed sensor

• One flood switch (water sensor) as pictured

• Disconnect power (and water supply, if applicable) before installing
• Handle the sensor and connector carefully; avoid pushing the sensing surface into sharp objects
• Reconnect wiring/fasteners exactly as removed and secure any mounting clips to prevent false readings
• Test the appliance per OEM instructions after installation to ensure proper operation

This harness plug connects the dishwasher's wiring to the water inlet valve. Replacing a burnt, brittle, or loose connector restores a solid electrical connection so the valve energizes correctly and the tub fills when the cycle begins.

• Provides a secure, keyed connection between the harness and water inlet valve terminals
• Helps resolve no-fill or intermittent fill caused by heat damage, corrosion, or loose contacts at the connector
• Supports proper valve operation to reduce humming-without-fill complaints
• Useful when replacing a damaged plug during valve or harness service

• Disconnect power at the breaker and shut off water supply before servicing
• Note wire orientation; transfer or splice leads per appliance wiring and connector design
• Seat the plug fully on the valve and ensure tight, insulated connections
• Restore power and run a fill test; check for leaks at the valve and hose connections

This inlet cover is a replacement trim piece that protects and finishes the washer's water inlet area, restoring a clean appearance and guarding internal inlet components from dirt and accidental contact. What it does

• Covers the water inlet opening and surrounding inlet assembly for a finished look
• Helps shield inlet valves and connections from debris and incidental contact
• Maintains proper alignment and fit of the inlet area trim
• Restores cosmetic appearance after damage or loss of the original cover

• One inlet cover

• Disconnect power and shut off water supply before starting any work
• Access may require removal of the washer top or control console depending on model
• Typically secures with clips or a few screws; have a screwdriver set on hand
• Replace if cracked or broken—do not attempt to use a damaged cover

The Sump Filter and Cover is an OEM part for GE dishwashers. It filters out food particles and debris from the water during the dishwashing cycle, preventing the particles from recirculating and depositing on dishes. The cover ensures that the filter stays in place and also aids in the proper flow of water through the dishwasher.

A well-functioning sump filter and cover are vital for maintaining the cleanliness and efficiency of your dishwasher. Over time, the filter can become clogged with food particles and debris, which can reduce the effectiveness of your dishwasher.

Symptoms of a bad Sump Filter and Cover include:

• Poor cleaning results
• Visible debris on dishes after washing
• Water not draining properly
• Unusual noises during the dishwasher cycle

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Upper Spray Arm Bearing is an OEM part for GE dishwashers. It supports the upper spray arm, allowing it to rotate smoothly and distribute water evenly throughout the dishwasher. This ensures that all dishes receive a thorough cleaning during each cycle.

Over time, the upper spray arm bearing can wear out or become damaged. Causes of a bad bearing can include repeated use, mineral buildup from hard water, or physical damage due to mishandling.

Symptoms of a bad Upper Spray Arm Bearing include:

• The upper spray arm not rotating properly
• Ineffective cleaning of dishes on the upper rack
• Unusual noises during the wash cycle

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Upper Spray Arm Screw is an OEM replacement part for GE dishwashers. It is a component that secures the upper spray arm into place inside the dishwasher tub. The spray arm is responsible for distributing water above the top rack during wash cycles to help rinse and clean dishes.

Causes of a bad upper spray arm screw can include wear and tear from extended use that results in a loose or stripped screw. Failure to secure the spray arm properly affects washing performance.

Symptoms of an improperly fastened upper spray arm include:

• Water not spraying properly from the arm jets
• Loose or rattling noises coming from inside the tub

This part is also compatible with Hotpoint, RCA, and select Kenmore dishwashers.

 The Upper Arm Spray Assembly is an OEM part for GE dishwashers. It is responsible for distributing water evenly throughout the dishwasher during the cleaning cycle, ensuring all dishes are thoroughly cleaned. The arm measures approximately 11 inches long.

You should replace the upper arm spray assembly if it becomes clogged, damaged, or worn out. Causes of a bad spray assembly can include mineral buildup from hard water, food particles blocking the spray holes, or physical damage such as cracks or breaks.

Symptoms of a bad upper arm spray assembly include:

• Poor cleaning performance, with dishes coming out dirty
• Uneven water distribution inside the dishwasher
• Visible cracks or blockages in the spray arm
• Unusual noises during the wash cycle

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This water inlet cover replaces a cracked or missing inlet-valve trim to protect and conceal the appliance's water inlet area. It restores a finished look while keeping hoses and valve components shielded from debris. What it does:

• Covers and protects the water inlet valve and hose connections from dust and impact
• Conceals exposed hoses and wiring for a cleaner rear-cabinet appearance
• Helps prevent snagging or accidental contact with the inlet valve assembly
• Reduces debris buildup around the inlet area that can affect connections

• Disconnect power to the appliance and shut off the water supply before starting.
• Usually fastens with a few screws or clips—have a screwdriver or nut driver ready.
• Align cover over the inlet valve area, then secure with the original fasteners.
• After installation, turn water and power back on and inspect connections for leaks.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Fill Funnel Service Kit is an OEM replacement part for GE dishwashers. It contains the funnel assembly and seal/gasket used for the water inlet. Reliable filling is important for effective cleaning.

Causes can be cracks, tears, or deformities developing in seals over extended use periods. Mineral buildup may also compromise sealing surfaces.

Symptoms of a bad service kit include:

• Water leaks from around the inlet area
• Inconsistent water filling during dishwasher cycles
• Damp residue or puddles below inlet assembly

This is a genuine OEM part that works for some models of GE, and Hotpoint models.

This water injector fill hose connects the household water supply to the refrigerator's water/ice system, restoring reliable water flow for dispensing and ice production. Designed as a direct replacement to restore proper fill operation. What it does:

• Delivers water from the inlet to the ice maker/water dispenser assembly.
• Restores proper water fill for ice production and dispenser use when the hose is damaged or leaking.
• Helps stop leaks, sputtering dispensers, or slow/irregular ice fill caused by cracked or blocked tubing.
• Works with the refrigerator's injector/fill pathway to maintain consistent water delivery.

• One water injector fill hose.

• Disconnect power and shut off the water supply before installing.
• Inspect and replace any worn clamps or connectors; tighten fittings to prevent leaks.
• Avoid kinking the hose; route it following the original path to prevent flow restriction.

This SCR 8-18 silicon-controlled rectifier replaces the control semiconductor that switches and regulates power to heating or motor circuits in compatible appliances, restoring proper power delivery and control. It's a direct-fit electrical replacement part. What it does

• Acts as a switching device on control boards to allow or block current flow when signaled.
• Regulates power delivered to heating elements or motor circuits to enable proper operation.
• Commonly linked to symptoms like no heat or intermittent heating, motors that won't start, or erratic control-board behavior.
• Helps restore reliable on/off control when a failed SCR is causing open or shorted conditions.

• One SCR 8-18 silicon-controlled rectifier (WD02X10160).

• Always disconnect power before servicing the appliance to avoid shock.
• Handle the part carefully; avoid touching leads and use anti-static precautions if available.
• Inspect surrounding connectors and wiring for damage; replace any corroded terminals.

The Hinge Arm Link is an OEM part for GE dishwashers. This component functions as a connection point between the dishwasher door and the hinge mechanism, allowing the door to open and close smoothly. The hinge arm link ensures that the door can bear the weight of itself, often laden with a mounted dish rack when fully loaded, without straining the hinges or misaligning.

Causes of damage to the hinge arm link often involve regular wear and tear from the constant motion of opening and closing the dishwasher door.

Symptoms of a bad Hinge Arm Link include:

• Difficulty opening or closing the dishwasher door
• A door that won't stay closed or opens unexpectedly
• Visible wear or damage to the hinge arm link, such as bending, breaking, or severe wear marks

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Door Cable is an OEM part for GE dishwashers. This part is essential for the smooth and balanced opening and closing of the dishwasher door. It connects the door to the spring mechanism, providing the necessary tension to prevent the door from slamming open or shut.

Over time, the door cable can wear out or become damaged due to the constant tension and movement, leading to a door that drops too quickly or is difficult to open or close.

Symptoms of a bad Door Cable include:

• The dishwasher door slams open or shut
• The door feels heavier than usual or difficult to open
• Visible fraying or damage to the cable
• The door does not stay in the open position or opens too quickly

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Door Hinge Pulley is an OEM part for GE dishwashers. It is a critical component that assists in the smooth opening and closing of the dishwasher door by providing the necessary tension and balance through a pulley system.

Over time, the door hinge pulley can wear out or become damaged, leading to issues with the door's operation. Causes of a bad door hinge pulley include wear and tear from repeated use, buildup of dirt or debris, and accidental impacts that can damage the pulley or its mechanism.

Symptoms of a bad door hinge pulley include:

• The dishwasher door dropping or not staying open at the desired angle
• Difficulty in opening or closing the door smoothly
• Unusual noises when the door is moved
• The door feeling loose or unbalanced

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This hinge cup mounts at the lower front corner of the dishwasher tub to cradle the door hinge arm as the door pivots. Replacing a worn cup restores smooth, quiet door operation and helps prevent hinge misalignment.

• Supports the door hinge arm where it meets the tub frame
• Provides a smooth pivot point to reduce friction and wear
• Helps keep the door aligned and opening/closing evenly
• Failure signs can include creaking, binding, or the door dropping abruptly; visible wear or cracking on the cup

• Disconnect power and shut off the water supply before servicing
• Support the door and relieve hinge spring tension as needed
• Remove the toe panel/kickplate to access the hinge area
• Install the cup and ensure the hinge arm seats fully; test door movement before reassembly

The Water Inlet Valve is an OEM part for GE dishwashers. This component controls the flow of water into the dishwasher, functioning to ensure the right amount of water is supplied during each wash cycle. The valve operates via electronic controls from the dishwasher, responding to the needs of various cycles and adjustments in water pressure.

Symptoms of a bad Water Inlet Valve include:

• Dishwasher not filling with water
• Water leaking from underneath the dishwasher
• Unusual noises, such as humming or buzzing, coming from the valve area

Causes of a bad water inlet valve can include sediment build-up which can obstruct the flow or prevent the valve from closing, wear and tear over time leading to leaks, or electrical failures that affect the valve’s operation.

This replacement part is also compatible with certain models of Hotpoint, RCA, and Kenmore dishwashers, enhancing its versatility and utility in home appliance repair.

This is a replacement fastener screw used to secure panels and components on compatible appliances, restoring proper fit and reducing movement. It's a simple, direct replacement when an original screw is missing or damaged. What it does:

• Secures access panels, covers, or internal components to prevent rattling and movement
• Helps maintain proper alignment of parts so doors and panels close correctly
• Replaces missing, stripped, or broken screws that can cause loose parts or noise
• Restores the appliance's original fit where a matching OEM fastener is required

• One replacement screw

• Turn off and unplug the appliance before starting any repair
• Use the correct driver and avoid over-tightening to prevent stripping threads
• If the original screw was holding electrical components, ensure power is disconnected and follow OEM safety instructions

Size: 10-16 ab.

This 10-32 hex head screw secures appliance panels and components where a small machine screw is required. It provides a durable, threaded fastening point for repair or reassembly. What it does:

• Fastens panels, brackets, and small components using a 10-32 machine thread
• Hex head accepts a 7/16" socket or wrench for positive torque application
• Replaces worn or damaged screws that cause loose or rattling parts
• Compatible with common metal-to-metal and tapped-hole connections

• One 10-32 hex head screw with 7/16" socket head

• Use the correct 7/16" socket or wrench to avoid rounding the head
• Thread engagement should match the appliance's threaded insert; do not force if resistance is felt
• Follow manufacturer service manual for torque specs and installation sequence
• Disconnect power and follow safety procedures before servicing the appliance

The Tub Insulation Blanket is an OEM part for GE dishwashers. This insulation blanket wraps around the dishwasher tub, helping to reduce noise during operation and improve energy efficiency by maintaining consistent temperatures inside the dishwasher.

Causes of a bad insulation blanket can include wear and tear over time, exposure to moisture, or damage from pests or improper installation.

Symptoms of a bad tub insulation blanket include:

• Increased noise levels during the dishwasher cycle
• Higher energy consumption or longer cycle times
• Visible damage or deterioration of the insulation material
• Excessive heat escaping from the dishwasher

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This hose clamp kit secures the washer's hoses at the pump, tub, or valve connections, helping stop leaks and hose blow-offs. Replace worn or missing clamps to restore a tight, reliable seal during fill, wash, and drain.

• Secures drain, pump, and fill hoses to fittings to maintain a watertight seal
• Helps prevent drips, leaks, and hoses slipping off during vibration
• Replaces clamps that are rusted, stripped, deformed, or missing
• Common symptoms: water leaking at hose joints, loose hose connections, clamp won't tighten
• Useful when installing a new hose, pump, or valve

• Unplug the washer and turn off water supplies; have towels or a pan ready for residual water
• Release and remove old clamps; seat the hose fully over the fitting before installing new clamps
• Tighten evenly and do not overtighten to avoid hose or fitting damage
• Restore power and water, then run a short cycle to check for leaks at each connection

The Gasket Spring is an OEM part for GE dishwashers. It plays a crucial role in maintaining a tight seal around the dishwasher door, ensuring that water does not leak during operation. This spring helps keep the door gasket in place, providing a reliable and consistent seal.

Over time, the gasket spring can wear out, lose tension, or become damaged due to repeated use and exposure to the dishwasher’s high temperatures and moisture. A faulty spring can compromise the effectiveness of the door gasket, leading to potential leaks and inefficient washing cycles.

Symptoms of a bad gasket spring include:

• Water leaking from the dishwasher door
• Difficulty closing or latching the dishwasher door securely
• Reduced cleaning performance due to improper sealing

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This gasket trim seals the dishwasher door opening, helping contain moisture and steam during cycles. Replacing a worn, torn, or missing trim restores a proper barrier and helps prevent drips or condensation at the door area. What it does:

• Provides a moisture/steam barrier where the door meets the tub opening
• Helps protect the console and surrounding surfaces from escaping steam
• Cushions the door for a snug, secure close
• Common signs to replace: cracked, flattened, deformed, or missing trim; moisture around the door edges; visible wear

• 1 gasket trim

• Disconnect power and turn off the water supply before servicing
• Open the door and pull the old trim straight out of the channel
• Clean the groove; press the new trim fully into the channel without stretching
• Open and close the door to confirm even contact; reseat if needed

The Dishwasher Tub Gasket is an OEM part for GE dishwashers. It provides a watertight seal around the dishwasher door to prevent water from leaking out during operation. This gasket is crucial for maintaining the efficiency and safety of your dishwasher, ensuring that all washing actions occur within a contained environment.

Causes of a bad Dishwasher Tub Gasket can include drying out and losing elasticity, wear and tear from regular use, and damage from harsh cleaning chemicals or debris buildup, which might compromise its sealing ability.

Symptoms of a bad Dishwasher Tub Gasket include:

• Water leaking from around the dishwasher door.
• Signs of moisture or drips on the kitchen floor near the dishwasher.
• A visible gap or break in the gasket itself.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Side Trim Gasket is an OEM part for GE dishwashers. This part provides a watertight seal along the sides of the dishwasher door. This part prevents water from leaking out during the washing cycle, ensuring your kitchen remains dry and safe from water damage.

Causes of a bad Side Trim Gasket can range from natural wear and tear over time, which can degrade the gasket's material, to improper cleaning practices that may cause damage or allow buildup of debris, affecting the seal's integrity.

Symptoms of a malfunctioning Side Trim Gasket include:

• Visible leaks or moisture along the sides of the dishwasher door
• Deterioration or damage to the gasket, such as cracks, splits, or areas where it has become hard and lost its flexibility
• Difficulty closing the dishwasher door properly due to a misaligned or damaged gasket

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces
