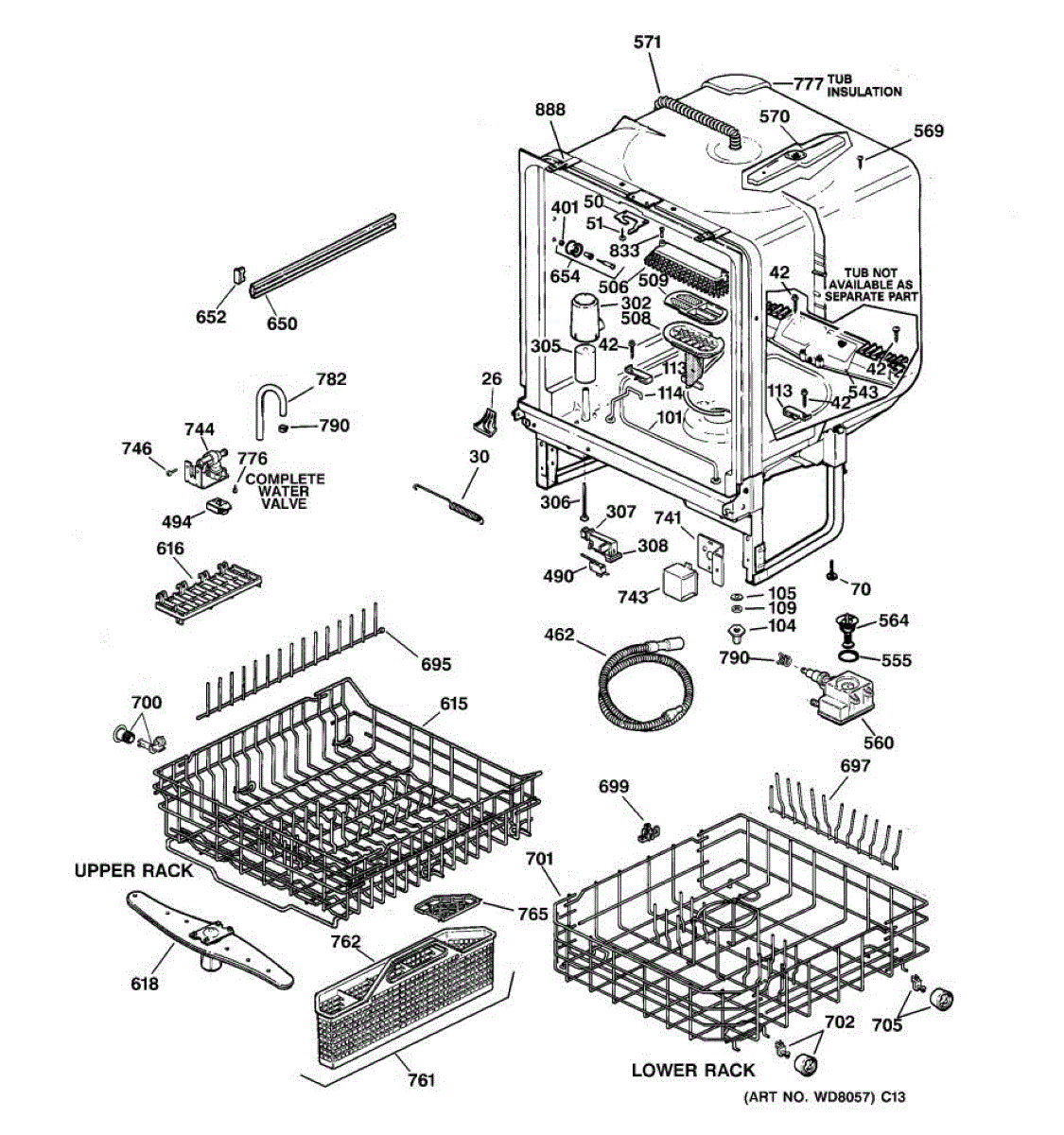

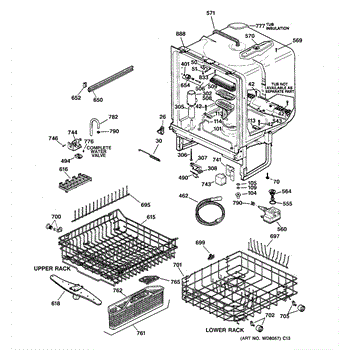

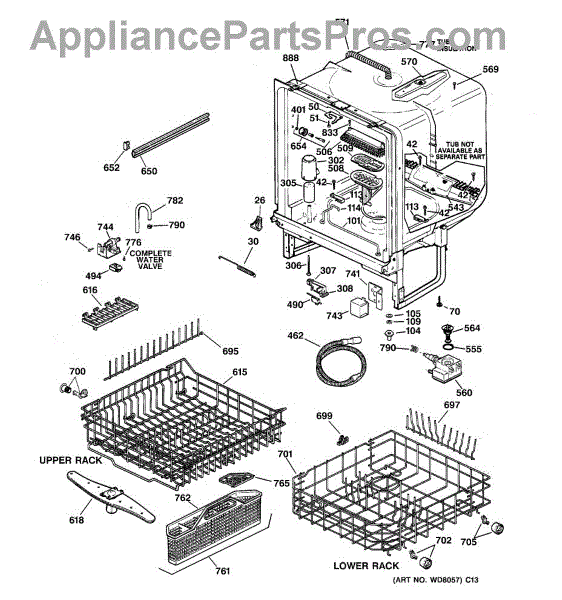

Parts for Ge GSD5124D02BB: 02 - Body Parts

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

The Tub Corner Baffle is an OEM part for GE dishwashers. It is strategically placed at the corners of the dishwasher tub to prevent water from leaking out during operation.  For the left side use WD8X228. Color: Black.

Symptoms of a ba

The Tub Corner Baffle is an OEM part for GE dishwashers. This rubber component is placed in the corners of the dishwasher tub to prevent water from leaking out during the wash cycle. It acts as a barrier, directing water back into the tub and ensuring

Color: Purple.

Replacement mounting screw for securing handles, panels, and internal components. Needed when original screws are stripped, lost, or broken during repairs.

Door won't close or latch properly? This latch keeper secures the door strike so your dishwasher stays closed during cycles. Quick DIY repair.

Size: 10-24 x 1/2 inch.

Replacement leveling screw threads into your dishwasher's leveling leg to adjust cabinet height. Install when original is stripped, damaged, or missing.

Dishes not drying or wet after cycle? The heating element heats air during drying. Simple DIY repair with video guide, typically under 30 minutes.

Secures the dishwasher heating element to the tub from underneath. Replace if cracked, stripped, or missing to prevent leaks at the element mounting point.

Support bracket that secures the heating element in place at the bottom of your dishwasher tub. Replace if cracked, broken, or no longer holding element.

Fix dishwasher overfilling or not filling properly with a new float dome. Protects the float sensor for accurate water level control. Easy 15-minute repair.

Fix dishwasher overflows or underfilling with a new water level float. This part regulates filling by rising with water to signal the switch.

This float stem is part of the dishwasher's water-level/overfill system. It guides the tub float and actuates the float switch so the unit fills correctly and shuts off on time. Replace a worn or broken stem to restore reliable fill protection.

Replacement bracket that secures the flood switch in your dishwasher. Holds the leak detection switch in proper position. Needed when bracket is cracked or broken.

Replaces cracked, kinked, or chewed drain hose that carries wastewater from your dishwasher to household plumbing. Essential for proper drainage function.

This float switch detects rising water in the refrigerator drain pan or lower cabinet area and signals the appliance control to help prevent overflow and water damage. Use it to replace a failed or intermittent water-level sensor. What it does:

2 wire insulator.

Fix a dishwasher that won't drain completely with this piston and nut valve assembly. Simple DIY repair when water remains in tub after cycles.

A stainless steel hex-washer-head screw used to secure panels and components on compatible appliances. Corrosion-resistant construction helps maintain a secure fit where short, strong fasteners are required. What it does

• Fastens appliance panels

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

Replaces broken or cracked 3rd level spray arm assembly that mounts at the top of the tub. Includes mounting tabs and collar for secure installation.

Used to supply water to the upper spray washarm.

Inlcudes rollers.

Middle spray arm assembly that directs pressurized water to the dishwasher's mid-level rack for improved cleaning coverage. Replacing a damaged or clogged arm helps restore spray rotation and reduce poor cleaning on the middle rack. What it does:

• Delivers rotating spray to the middle rack to rinse and wash dishes and utensils.
• Restores proper spray coverage when the arm is cracked, broken, clogged, or not rotating.
• Helps reduce leftover food, spots, and uneven cleaning on items in the middle rack.
• Integrates with the dishwasher's spray system to distribute water evenly across the mid-level.

What's included: One middle spray arm assembly. Install notes:

• Always disconnect power to the dishwasher at the breaker before beginning any service.
• Remove the middle rack to access the spray arm; follow the OEM instructions for removal and replacement.
• Inspect spray holes and rotation after installation and run a short test cycle to confirm operation.

Replacement slide rail for dishwasher upper rack. Installs on cabinet wall to guide rack in and out. Needed when original is bent, twisted, or broken.

Secures the end of the dishwasher rack slide rail. Replace if cracked, broken, or missing to prevent racks from sliding off track or misaligning.

Includes screws.

Replacement 15-tine comb for dishwasher lower or upper dishrack. Restores proper dish spacing when original tines are cracked, broken, or missing.

For the right side. Color: white. It measures about 1 inch high by 1-1/2 inches deep.

Replacement roller and stud assembly for dishwasher racks. Installs on upper or lower rack to restore smooth gliding. Needed when rollers crack or studs break.

NOTE: Can use dishrack WD28X31819 with silverware basket WD28X265.

Replace broken or missing lower dishrack rollers and axles. Attaches to the bottom rack for smooth gliding when loading dishes. Sold as one roller kit.

Replacement roller and axle kit for dishwasher lower racks. Includes 8 wheels and 8 axles. Replace when rollers are broken, cracked, or missing.

Covers the electrical junction box where the power cord enters your dishwasher. Replace if cracked, broken, or missing to protect wiring connections.

Dishwasher not filling with water? A faulty water inlet valve is often the cause. This valve controls water flow into your dishwasher. 20-30 minute fix.

Replacement mounting screw for dishwashers and electric ranges. Secures panels, covers, and internal components. Order when original is missing or stripped.

Replace your cracked, broken, or worn dishwasher silverware basket. Sits in the lower rack to hold and separate utensils during wash cycles.

Replace your cracked, broken, or worn dishwasher silverware basket. Sits in the lower rack to hold and separate utensils during wash cycles.

Specs: 10 - 32 t hex 7/16 s

Routes water from inlet valve to tub. Replace if cracked, leaking at connections, or worn from age. Installs between valve and tub exterior connection point.

Secures dishwasher drain or inlet hoses to fittings to prevent leaks and slipping. Replace when loose, corroded, or during hose installation. Verify fit.

Secures washer hoses at pump, tub, and valve connections to prevent leaks and hose blow-offs. Replace worn or missing clamps for a tight seal. Confirm fit.

Size: 8-16 x 2 inch ss.

Secures dishwasher cabinet to chassis for improved stability. Replace if original brackets are broken, missing, or causing movement and panel gaps.

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.
