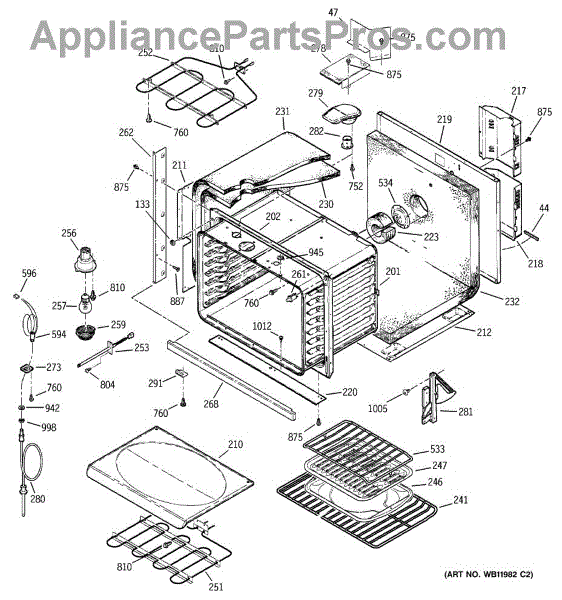

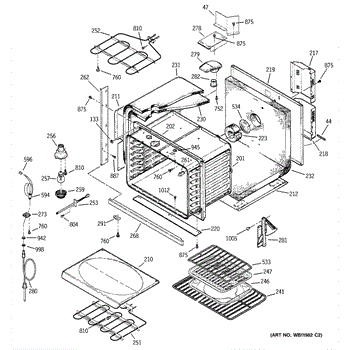

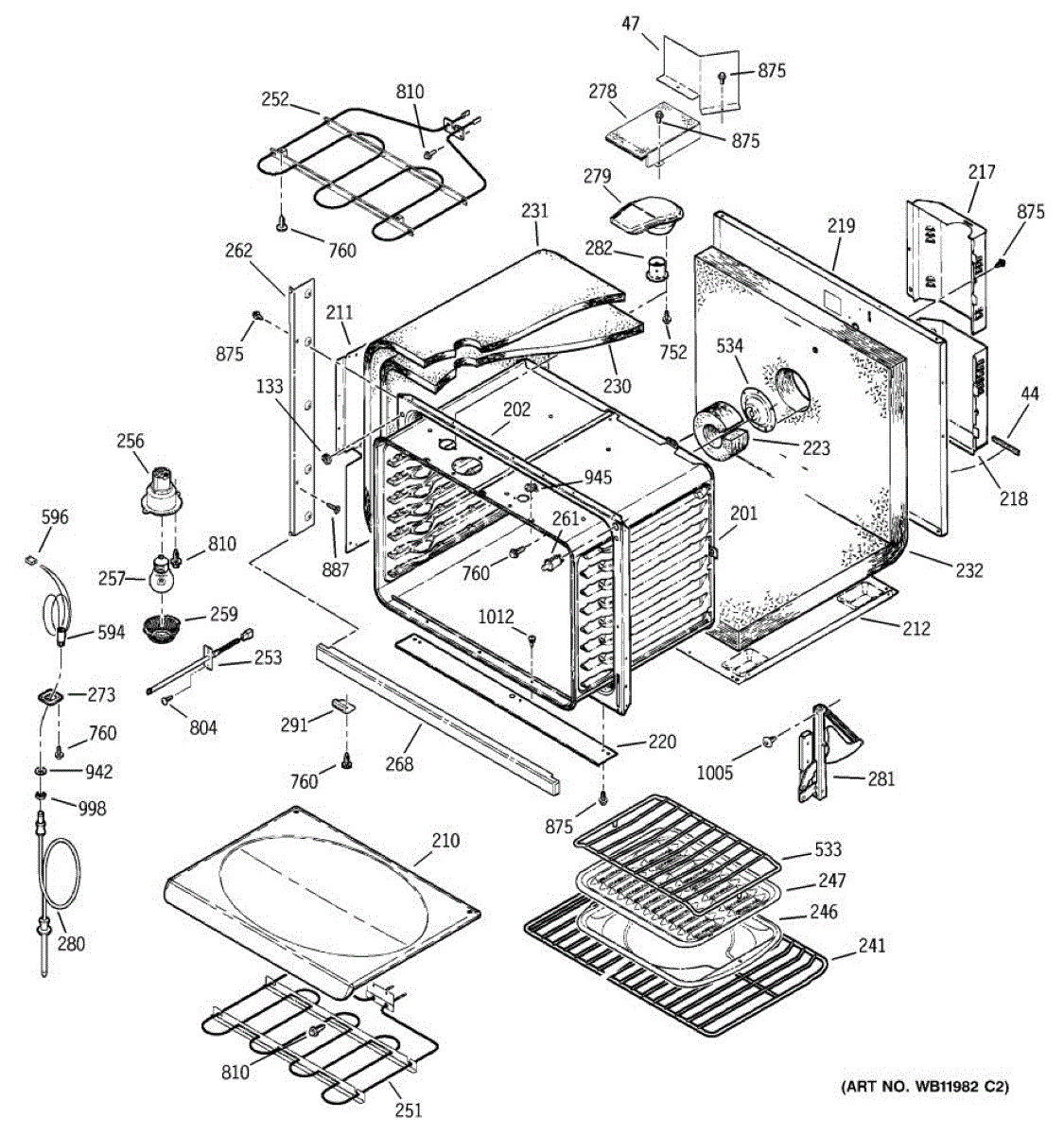

Parts for Ge JTP18AA4AA: 02 - Body Parts

This foam tape seals and cushions the oven door assembly to reduce vibration and help keep the door glass and inner components stable. It restores proper spacing and helps reduce rattling or light air leaks around the door. What it does:

• Provides a soft, compressible seal between the door and frame to reduce noise and movement
• Cushions and protects glass and trim from contact and vibration
• Helps limit minor air leakage that can allow heat or odors to escape
• Commonly used when door trim or glass is loose, rattling, or shows visible gaps

• One adhesive-backed foam tape strip

• Clean and dry mating surfaces before applying to ensure good adhesive contact
• Measure and trim to fit; press firmly along the full length for proper adhesion
• Replace only with the same style of tape—do not use electrical or non-heat-rated foam in high-temperature areas
• Disconnect power/cool the appliance before working on the door assembly to avoid burns or injury

A small rubber door bumper that cushions the contact point between the appliance door and cabinet to reduce noise, prevent chipping, and help the door close smoothly. Simple replacement restores quiet operation and protects finishes. What it does:

• Cushions the door edge to stop metal-on-metal or door-on-cabinet contact
• Helps the door sit and close more evenly to reduce misalignment symptoms
• Reduces banging, rattling, and scraping noises when the door closes
• Prevents wear and cosmetic damage at the door contact point

• Inspect the door/cabinet contact area to locate the bumper before replacing
• Most installations press the bumper into a hole or recess; use steady, even pressure to seat it
• If the old bumper is glued or fastened, remove residue and check the mounting method in your parts diagram
• Turn off power to the appliance before working near electrical components or wiring

This bottom false assembly replaces the lower interior trim piece that covers the refrigerator base, restoring a finished look and preventing items from falling behind the cabinet. It helps maintain proper airflow paths and interior appearance. What it does

• Covers and protects the lower interior area of the refrigerator, concealing components and providing a finished appearance.
• Helps keep stored items from sliding into gaps at the base.
• Restores a secure trim piece if the original is cracked, broken, or missing.
• Reduces visible gaps that can allow dirt or debris to collect beneath the cabinet.

• Disconnect power to the appliance before starting work and remove food/items from the area for safe access.
• Remove any drawers, shelves, or kick plates that block access to the lower interior before replacing the assembly.
• Handle the plastic trim carefully to avoid cracking; retain and reuse original fasteners unless replacements are supplied.
• Follow the manufacturer's service instructions for removal and installation.

The Broiler Pan Kit is an OEM part for GE ranges. It serves as a secure platform for positioning meats, vegetables, and various foods directly beneath the broiler element, ensuring safe and efficient cooking. The pan is about 17 inches wide by 13 inches deep.

Over time, wear and tear can affect broiler pans, causing issues such as flaking or stripping of the non-stick coating and the development of small ridges or holes that permit grease to drip down.

Symptoms of bad broiler pans include:

• Grease fires caused by dripping grease contacting the heating element
• A burnt or smoky flavor transferring to foods
• Difficulty removing baked-on grease and food deposits
• Pans that are misshapen or developing small cracks

This OEM GE replacement part is also compatible with select Hotpoint, RCA, and some Kenmore ranges

The Broiler Pan Kit is an OEM part for GE ranges. It serves as a secure platform for positioning meats, vegetables, and various foods directly beneath the broiler element, ensuring safe and efficient cooking. The pan is about 17 inches wide by 13 inches deep.

Over time, wear and tear can affect broiler pans, causing issues such as flaking or stripping of the non-stick coating and the development of small ridges or holes that permit grease to drip down.

Symptoms of bad broiler pans include:

• Grease fires caused by dripping grease contacting the heating element
• A burnt or smoky flavor transferring to foods
• Difficulty removing baked-on grease and food deposits
• Pans that are misshapen or developing small cracks

This OEM GE replacement part is also compatible with select Hotpoint, RCA, and some Kenmore ranges

Restore dependable oven heat with this lower bake element. Replacing a burned-out bottom element helps your range preheat properly and bake or roast evenly, eliminating long preheat times and no-heat conditions.

• Supplies the primary heat from the bottom of the oven during Bake
• Typical failure symptoms: no heat in Bake mode, long preheat times, uneven baking, visible cracks or blisters on the element, or tripping the circuit breaker
• Replacing a failed element restores consistent, reliable oven temperatures

• Disconnect power at the breaker and allow the oven to cool completely
• Remove oven racks; take out the element's mounting screws; gently pull the element forward to access wires
• Move one wire at a time to the new element; prevent wires from slipping back into the rear panel
• Re-secure the element, ensure it isn't contacting the cavity, restore power, and test Bake

The Broiler Assembly is an OEM replacement part for GE range. Located inside the oven, it houses the heating elements responsible for the broil cooking function.

Causes of a bad broiler assembly can include cracked or burnt-out heating elements that no longer ignite, damage from accidentally being cleaned with abrasive chemicals, or warping of metal components from overheating.

Symptoms of a bad broiler assembly include:

• Inability to activate or incomplete activation of the broil setting
• Reduced or uneven heating from compromised elements
• Warping or discoloration visible on assembly surfaces
• Presence of unusual odors from potential heating element failures

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Temperature Sensor is an OEM part for GE ovens. It plays a role in monitoring and regulating the oven's internal temperature, ensuring accurate heating and cooking performance. This sensor works by detecting the temperature inside the oven cavity and communicating with the main control board to maintain the set temperature throughout the cooking process.

Causes of a bad Temperature Sensor can include exposure to extreme temperatures leading to sensor failure, wear and tear over time, or damage from oven cleaning agents or spills that may affect its functionality.

Symptoms of a bad Temperature Sensor include:

• Oven not reaching the set temperature.
• Overheating or underheating, leading to unevenly cooked food.
• Frequent error messages from the oven's electronic control.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Oven Lamp Holder is an OEM part for GE ovens. This component securely holds the oven light bulb in place, ensuring proper illumination inside the oven cavity for better visibility during cooking and baking.

Causes of a bad lamp holder can include repeated exposure to high temperatures, physical damage, or electrical issues. A malfunctioning lamp holder can lead to the oven light not functioning correctly or at all.

Symptoms of a bad oven lamp holder include:

• The oven light not turning on
• Flickering or intermittent operation of the light
• Visible damage or corrosion to the lamp holder
• The light bulb not staying securely in place

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This oven bulb lens covers and protects the interior light bulb while letting you clearly see food as it cooks. Replace a cracked or missing lens to restore safe, even illumination inside the oven cavity.

• Covers the oven light bulb and diffuses light for better visibility
• Shields the bulb from grease, splatter, and moisture
• Helps keep the bulb securely enclosed
• Common signs it's needed: lens is cracked, missing, discolored, or won't stay in place

• Disconnect power at the breaker or unplug the appliance; allow the oven to cool completely
• Wear gloves to protect hands from sharp edges and hot surfaces
• Remove the existing lens by releasing the retainer or turning it, per your model's design; retain any clip or gasket for reuse
• Seat the new lens fully and restore power to test the light

This high-amp SPDT switch routes power between circuits in cooking appliances to control items such as locks, element relays, or fans. Replacing a worn switch restores dependable operation and helps eliminate intermittent on/off issues. What it does:

• Single-pole, double-throw action directs power between NO/NC circuits based on actuator position
• Used to signal or control a component per the model's design (e.g., latch/lock, relay, fan)
• Failure symptoms can include no activation, stuck-on/off behavior, intermittent operation, or heat-damaged terminals
• Electrical tests may show incorrect continuity between COM–NO/NC when pressed or released

• Includes: 1 SPDT high-amp switch

• Disconnect power at the breaker or unplug the appliance before servicing
• Label or photograph wiring; move leads to matching COM/NO/NC terminals on the new switch
• Mount with the correct actuator orientation and secure any bracket or screws
• Inspect connectors for heat damage; ensure tight spade fits, restore power, and test operation

The Probe Thermistor is an OEM replacement part for GE wall ovens and ranges. Located inside the oven cavity, this temperature-sensitive probe precisely monitors interior heat to safeguard against overcooking.

Causes of a faulty thermistor involve exposure to excessive cooking temperatures, moisture infiltration from spills or steam, or basic failure due to old age.

Symptoms of an inadequate probe thermistor include:

• Inaccurate temperature readings and baking inconsistencies
• Oven temperature exceeding desired setting risking fire

This OEM GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Hinge assembly is an OEM component specifically designed for GE electric ranges. This left hinge assembly supports and allows for the controlled opening and closing of the range oven door.

Causes of a bad hinge assembly can include wear and tear from repeated use over time, excess weight or stress placed on the door during opening and closing, or damage due to impact or mishandling.

Symptoms of a bad hinge assembly include

• difficulty opening or closing the range door
• lack of stability when the door is open
• sagging or misalignment of the door,
• Squeaking or grinding noises coming from the hinge area.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This roast rack is an oven insert that holds roasts and pans above the oven floor to improve air circulation and promote even browning. It restores proper clearance for drip pans and helps keep food out of accumulating juices. What it does

• Supports roasts, poultry and bakeware above the oven floor so hot air circulates evenly
• Prevents food from sitting in drippings for crisper browning and better roasting results
• Replaces bent, warped or missing oven racks that interfere with cookware stability
• Fits into oven side supports for secure placement during roasting

• One roast rack

• Allow the oven to cool and disconnect power before handling or replacing parts
• Slide the rack into the oven side supports until secure; ensure it sits level before use
• Use oven mitts when placing or removing hot cookware from the rack
• Clean by hand washing with warm, soapy water; avoid abrasive cleaners that can damage the finish

This replacement mounting screw is used in cooking appliances to fasten components securely. It restores a tight, rattle-free fit so panels, brackets, or burner-related parts stay properly aligned during everyday use.

• Secures appliance components to the chassis or assembly
• Replaces a missing, stripped, or corroded screw
• Helps resolve loose panels, wobbling parts, or vibration noises
• Supports proper alignment of mounted parts

• Disconnect power at the breaker; for gas units, also shut off gas supply
• Allow the appliance to cool completely before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly without overtightening; replace damaged threads or hardware as needed

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.

This replacement screw secures appliance panels and components to restore proper fit and prevent rattling or movement. Use it to replace a missing or stripped fastener for a snug, durable connection. What it does:

• Secures trim, panels, brackets, or internal components in place
• Restores proper alignment and reduces vibration or noise
• Replaces missing, worn, or damaged screws that cause loose parts
• Compatible with the original mounting point and fastening method

• Turn off power and unplug the appliance before starting any repair
• Use the correct driver to avoid stripping the head; match thread engagement fully
• If threads are damaged, inspect the mating part and replace or repair as needed

This replacement screw secures appliance components so panels, brackets, and assemblies stay tight and aligned. Replace stripped or missing hardware to eliminate rattles and keep your unit assembled safely and correctly.

• Fastens panels, brackets, or components to the appliance frame
• Restores a secure fit when the original screw is lost, stripped, or corroded
• Helps prevent vibration noise and movement during operation
• Supports proper alignment of trim and assemblies

• Disconnect power; for gas units, also shut off the gas supply
• Use the correct driver to avoid stripping the head; do not overtighten
• Inspect and address damaged mating threads, clips, or brackets before reinstalling
• Refer to your model's parts diagram to confirm location and quantity

Black. 8-18 AB HXW 3/8

This 10-32 machine screw secures brackets, panels, and other hardware in cooking appliances. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned and safely fastened. What it does:

• Fastens panels, brackets, and components using a 10-32 machine thread
• Replaces hardware that is missing, rusted, or stripped
• Helps address loose or rattling parts and minor panel misalignment
• Maintains secure mounting after service or part replacement

• One 10-32 machine screw

• Disconnect power; for gas appliances, also shut off gas before service
• Support the panel or bracket while removing/installing hardware
• Start threads by hand to avoid cross-threading; do not overtighten
• Replace them one at a time to keep alignment

This is a 10-16 shoulder-type A screw used to fasten appliance panels and components, providing secure assembly and stable operation. It replaces worn or missing screws to stop rattling and restore proper fit. What it does:

• Secures control panels, trim pieces, and mounting brackets
• Helps prevent loose or vibrating panels and noisy operation
• Keeps electrical or mechanical assemblies held in correct position
• Restores proper alignment after disassembly or repair

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or nut driver to avoid stripping the head
• Tighten until snug; avoid over-torquing which can strip threads or damage parts
• Keep removed hardware organized for reassembly
