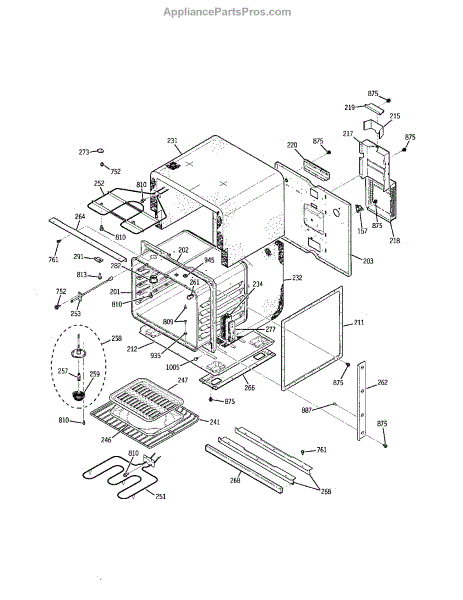

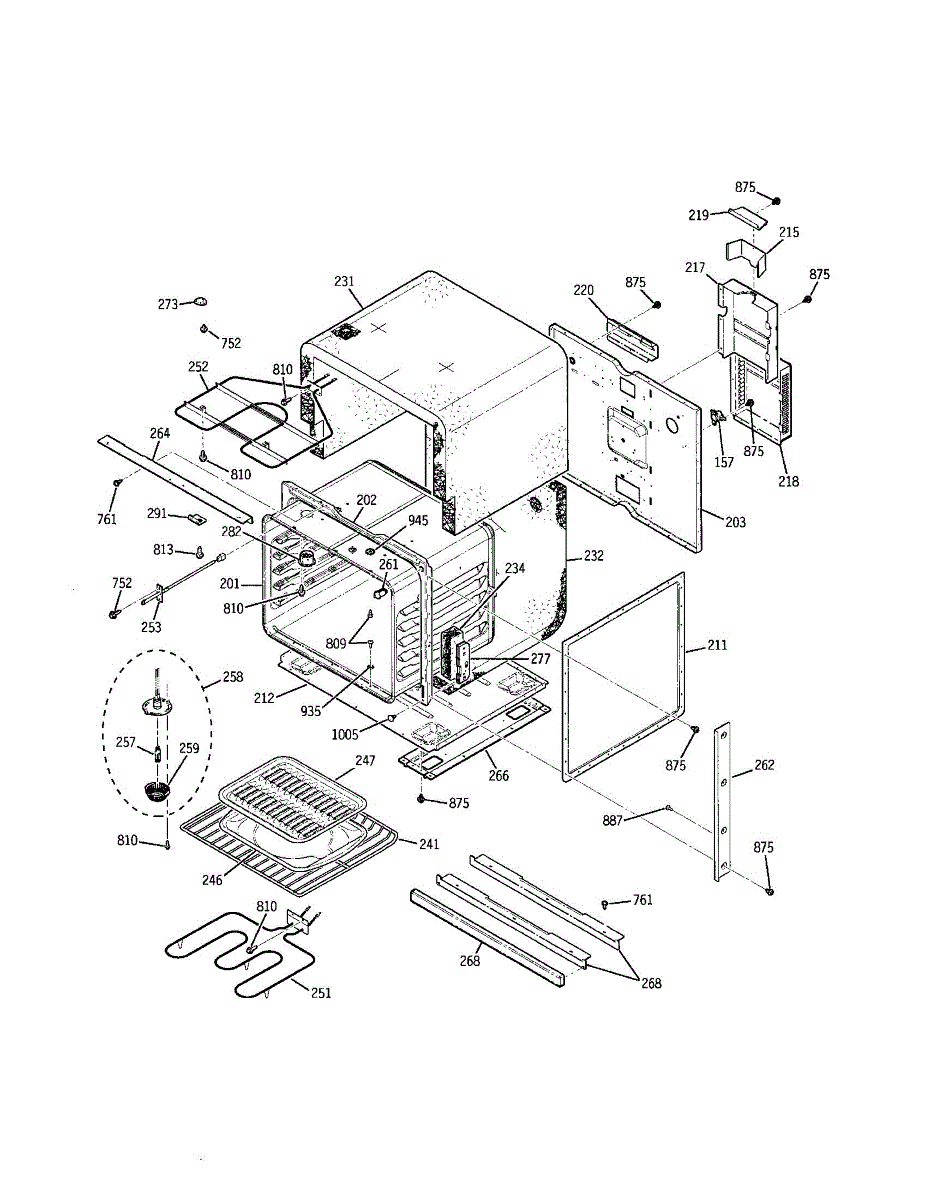

Parts for Kenmore 911.47799202 (91147799202, 911 47799202): Body Parts

Fix an oven that won't heat or has no display with this electronic control board. Restores bake and broil functions. Moderately difficult replacement.

The Guide Roller Assembly is an OEM part for GE microwaves. It supports the turntable as it rotates, ensuring even cooking by allowing the turntable to move smoothly and consistently. This assembly typically includes the rollers and the frame that houses them, fitting securely at the bottom of the microwave cavity.

Common causes of a bad guide roller assembly include normal wear and tear, exposure to heavy loads, or accidental impacts.

Symptoms of a bad guide roller assembly include:

• The turntable not rotating or moving unevenly
• Unusual noises, such as grinding or clicking, during operation
• The turntable being off-balance or wobbling
• Difficulty in installing or removing the turntable

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This H.V. bracket secures specific high-voltage or control assemblies to the appliance chassis, keeping components stable and properly aligned so wiring and parts stay protected during normal operation. Durable stamped metal design for reliable support. What it does:

• Holds and positions high-voltage/control assemblies or related components to the appliance frame
• Stabilizes wiring and connectors to reduce strain and prevent intermittent electrical contact
• Helps maintain correct clearance and alignment for safe, consistent operation
• Can address symptoms like loose components, rattling near the control area, or intermittent electrical connections when the bracket is damaged or missing

• One H.V. bracket

• Turn off power to the appliance before attempting any service to avoid risk of shock
• Install in the original mounting location using the factory screws or hardware; do not force into place
• Inspect related wires, connectors, and fasteners while replacing the bracket and replace any damaged items

Support trim bracket for wall ovens. Secures and aligns trim panels to the oven frame. Replace if cracked, bent, or missing to restore proper trim fit.

This control cooling fan assembly circulates air through the oven's control compartment to remove heat. By keeping the console and electronics cool during and after cooking, it helps prevent overheating and protects sensitive components.

• Moves air across the control area to dissipate heat from the board, wiring, and trim
• Runs during/after bake or broil to maintain safe cabinet temperatures
• Typical failure signs: fan doesn't run, loud vibration/squeal, control area feels very hot, or heat-related shutdowns
• Purpose-built for the control compartment; distinct from the convection fan inside the oven cavity

• Disconnect power at the breaker and allow the appliance to cool; wear cut-resistant gloves
• Access is typically from the rear or top; remove panels/guards per your model's service information
• Transfer any required brackets or ducts; secure so the wheel spins freely with no rubbing
• Reconnect wiring as originally routed, keeping harnesses clear of the blade; test operation before reassembly

Replace missing or damaged top door insulation in your oven. Restores thermal barrier inside the door to retain heat and improve temperature stability.

This oven door side insulation replaces the thermal padding inside the oven door to help maintain cooking temperatures and reduce heat transfer to the exterior. Restores proper insulation for safer, more efficient oven operation. What it does:

• Fills the cavity inside the oven door to reduce heat loss and improve temperature stability.
• Helps keep the outer door surface cooler during operation for safer use.
• Can reduce hot spots and improve overall cooking performance when the original insulation is damaged or missing.
• Fits behind the inner door panel and works with the door assembly to seal heat inside the oven.

• One oven door side insulation piece as shown.

• Installation requires removing the oven door—refer to your model's service manual for door removal and reassembly instructions.
• Use care to avoid tearing the insulation; wear gloves and eye protection during handling.
• Ensure the insulation is positioned correctly before reassembling the inner door panel and fasteners.
• Disconnect power to the appliance before servicing to prevent injury.

Insulation strip for oven doors. Installs between door panels to reduce noise and improve heat retention. Replace if worn, compressed, or missing.

Retains insulation material on your oven door assembly. Replace if the retainer is cracked, broken, or missing, causing insulation to shift or fall out.

Door retainer kit secures the oven door glass panels in place. Replace if retainers are cracked, broken, or missing to restore proper door assembly.

Seals the oven door to retain heat and improve baking efficiency. Replace when worn, cracked, or rigid to stop heat leaks. Verify fit by model number.

Rubber door bumper cushions and stabilizes your oven door. Replaces worn, cracked, or missing bumpers that cause rattling or uneven door closure.

Seals and cushions your oven door to reduce vibration and rattling. Replace when worn to restore proper spacing and eliminate air leaks. Verify fit.

Small rubber bumper that cushions contact between oven door and cabinet. Replace if cracked, missing, or worn to reduce noise and protect finishes.

Reinforcement plate restores structural support where the oven door or trim attaches. Replaces cracked or broken plates to stop sagging and keep panels aligned.

Oven won't heat or shuts off after reaching temperature? The hi-limit thermal switch prevents overheating. DIY repair takes 30-60 minutes.

Secures bottom insulation panel in place to maintain proper thermal protection. Replace if cracked, broken, or missing to keep insulation positioned.

This cover wire is a molded harness cover that protects and organizes wiring inside the microwave oven, helping prevent abrasion and loose wires that can cause shorts or arcing. It restores safe routing and clearance for the wire bundle. What it does:

• Shields wire insulation from sharp edges and moving parts to reduce chafing and damage
• Keeps wiring grouped and routed to factory locations for reliable electrical connections
• Helps prevent electrical shorts, arcing, and intermittent power issues related to exposed wiring
• Supports safe airflow and component clearance by maintaining proper wire placement

• One wire harness cover

• Always disconnect power at the household breaker or unplug the appliance before servicing
• Inspect surrounding wiring and connectors; replace any damaged wires or insulation as needed
• Usually fastens into place with clips or screws—retain hardware and panels removed during access

Replacement air duct for your oven. Directs hot air through the cooking chamber. Order a new duct if yours is cracked, damaged, or missing.

This glass tray is a flat oven shelf that provides a smooth, easy-to-clean surface for baking and roasting. It restores a stable cooking surface and replaces cracked, chipped, or otherwise damaged oven glass trays. What it does:

• Supports bakeware and cookware for even heating on the oven floor or shelf area
• Replaces trays that are cracked, chipped, or shattered and may cause uneven cooking
• Provides a smooth, non-porous surface that's simple to wipe clean
• Helps prevent food drips from contacting the oven floor when used as intended

• One glass tray

• Handle carefully; glass can break and cause injury—wear cut-resistant gloves
• Allow the oven to cool completely before removing or installing the tray
• Inspect tray for chips or stress cracks before first use; do not use if damaged
• Follow the appliance manufacturer's instructions for placement and safe use

Broiler pan for ranges and ovens. Installs in main oven cavity to hold food under broiler element. Replace if cracked, warped, or heavily stained.

Broiler pan for ranges and ovens. Installs in main oven cavity to hold food under broiler element. Replace if cracked, warped, or heavily stained.

Oven not heating or baking unevenly? A faulty bake element is often the cause. This bottom heating element is straightforward to replace yourself.

Oven not broiling or browning food? The broil element provides high heat at the top of the oven. Simple 5-10 minute DIY fix with basic tools.

Fix F2 error codes and inaccurate oven temperatures by replacing a faulty temperature sensor. Simple 15-minute DIY repair with basic tools.

Replace your oven's halogen bulb when the interior light burns out or dims. Illuminates the oven cavity so you can monitor cooking without opening the door.

White lower brow trim for ovens. Installs along the bottom edge of the control panel. Replace if cracked, discolored, broken, or missing.

This is a metal base rail that mounts inside the oven cavity and provides a track or support structure for internal components such as racks or drawer slides. It helps guide and stabilize parts as they slide in and out of the oven. Replace this rail if it is bent, corroded, or broken, causing racks or other components to sit unevenly or not slide smoothly.

Restores the lower front edge appearance of your 27-inch wall oven. Replaces cracked, dented, or missing trim for a clean, finished look.

Black bottom trim panel for wall ovens. Covers the lower edge of the oven opening. Replace if cracked, chipped, or discolored for a finished look.

Lower housing cover for ovens and ranges. Replaces cracked, broken, or missing covers that expose internal components. Protects and encloses the lower section.

Oven vent box assembly that routes hot air and steam from the cooking cavity. Replace if cracked, damaged, or missing to restore proper ventilation.

Vent tube for electric ranges and ovens. Connects oven cavity to exhaust system. Replace if cracked, broken, or missing to restore proper ventilation.

This is a protective cover used inside a cooking appliance such as a range or oven. It shields internal components from heat, grease, and debris during normal operation. Replace this cover if it is warped, cracked, corroded, or damaged, which can expose sensitive parts and affect cooking performance.

Replacement inner glass window assembly for oven doors. Installs between door panels for clear visibility while cooking. Order when cracked, shattered, or broken.

Fix a microwave turntable that won't rotate, stalls, or makes grinding noises. This motor spins the glass tray for even heating. DIY repair in 10 minutes.

This is a humidity sensor mounted inside the microwave that detects moisture levels in the cooking cavity. It enables auto-cook and auto-reheat functions by signaling the control board when food has released enough steam. Replace this sensor if auto-cook cycles consistently overcook or undercook food, or if the microwave displays a sensor error code.

This is a monitor or interlock switch that detects whether the microwave door is properly closed before allowing the unit to operate. It is a safety device that shuts off microwave power if the door is open or if other door switches malfunction. Replace this switch if the microwave does not start, runs with the door open, or blows a fuse when the door is closed.

The Fuse is an OEM part for GE microwaves. It serves as a safety device designed to protect the microwave from excessive current that can cause overheating and potential fire hazards. When the current flowing through the microwave circuit exceeds a certain level, the fuse blows or breaks, cutting off the power to prevent damage or fire.

Common causes for a fuse to blow include power surges, faulty wiring within the appliance, or the use of microwave inappropriate containers that cause sparks. It is essential to address these issues not only to replace the fuse but also to correct the underlying problems to prevent future failures.

Symptoms of a bad fuse include:

• The microwave suddenly stops working.
• No signs of power or response even when the microwave door is closed and the start button is pressed.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Microwave Door Switch is an OEM part for GE microwaves, designed to prevent the microwave from operating when the door is open by interrupting the power whenever the door is not securely closed. The door switch is an essential safety feature.

Symptoms of a failing Microwave Door Switch include:

• The microwave not starting or heating
• Running when the door is opened
• Unusual noises when the door is closed

Causes of a bad Microwave Door Switch can result from repeated opening and closing of the door or slamming that can cause the switch to degrade or become misaligned, leading to intermittent or failure.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This microwave high-voltage capacitor stores and releases energy in the high-voltage circuit to power the magnetron. Replacing a failed capacitor helps restore proper heating and protects other components in the high-voltage system.

• Works with the transformer and high-voltage diode to supply the magnetron with the required voltage
• Failure may result in the unit running but not heating
• Shorted capacitors can blow the internal fuse or trip a breaker; opens may cause loud humming or buzzing
• Visible swelling or leakage on the capacitor body are common failure signs

• Unplug the microwave; capacitors can retain a dangerous charge even when unplugged—discharge using an appropriate, insulated method before servicing
• Note wire positions and terminal orientation; transfer any mounting hardware from the original part
• Mount securely and route wires to avoid pinching

Microwave not heating but runs? Replace the magnetron to restore cooking power. Intermediate DIY repair taking 1-2 hours with proper safety steps.

This high-voltage transformer steps up household current to power your microwave's magnetron tube. It converts standard household voltage to the high voltage needed to generate microwaves for cooking. Replace this transformer if your microwave doesn't heat food, makes loud humming noises, or repeatedly blows fuses.

Microwave not heating but lights and timer work? The high voltage diode converts AC to DC for the magnetron. DIY repair in 1-2 hours with basic tools.

White trim screw for ovens and ranges. Secures trim panels and decorative components. Replace missing, stripped, or damaged screws during repairs.

This is a replacement black screw used to secure interior or exterior appliance components. It provides a discrete, color-matched fastener to restore proper fit and stop rattles or loose panels. What it does

• Fastens trim, panels, brackets or control components where a small black screw is required
• Restores secure mounting to eliminate vibration, rattling or misaligned parts
• Matches finished appliance surfaces for a clean, unobtrusive look
• Simple hardware replacement for small fastener loss or damage

• One black screw

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use the correct screwdriver to seat the screw; avoid overtightening to prevent stripping or cracking surrounding material
• Keep track of small fasteners during disassembly and handle with care
• Replace with the exact part number if the original screw is damaged or the thread/length differs

Hex washer head screw secures panels, brackets, and shields inside your appliance. Replace missing, stripped, or corroded fasteners for proper fit.

ST10-16 X 7/16"

This replacement mounting screw is used in cooking appliances to fasten components securely. It restores a tight, rattle-free fit so panels, brackets, or burner-related parts stay properly aligned during everyday use.

• Secures appliance components to the chassis or assembly
• Replaces a missing, stripped, or corroded screw
• Helps resolve loose panels, wobbling parts, or vibration noises
• Supports proper alignment of mounted parts

• Disconnect power at the breaker; for gas units, also shut off gas supply
• Allow the appliance to cool completely before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly without overtightening; replace damaged threads or hardware as needed

Replacement screw for securing oven components, panels, and brackets. Restores tight mounting when original screws are missing, stripped, or lost.

This is a flat-head screw used to secure panels and components in compatible appliances. It provides a flush finish and reliable fastening for trim, interior panels, and small assemblies. What it does:

• Fastens trim, brackets, and small appliance components with a flat, countersunk head
• Provides a flush surface to prevent snagging and keep panels aligned
• Commonly used where a low-profile finish is needed for aesthetics and clearance

• One screw

• Use the matching Phillips or screwdriver bit; avoid over-tightening to prevent stripping
• Inspect mating threads and replace if damaged; use correct screw length to avoid puncturing internal components
• Disconnect power or follow appliance safety procedures before servicing

Replacement mounting screw secures panels, brackets, and components in place. Needed when original fasteners are missing, stripped, or damaged.

Replacement screw for securing panels, brackets, and internal components in ranges, ovens, and cooktops. Replace missing, stripped, or damaged screws.

Replacement screw for securing panels, brackets, and internal components. Needed when original hardware is stripped, missing, or damaged during repairs.

Replacement mounting screw secures panels, brackets, and controls on ranges and ovens. Needed when original screws are missing, stripped, or damaged.

Mounting screw secures range components and panels. Replace if screw is stripped, missing, or damaged during appliance repair or maintenance work.

Black. 8-18 AB HXW 3/8

Black trim screw secures exterior trim and panels on ovens and ranges. Replace missing, stripped, or corroded screws to restore proper fit and finish.

Replace your missing, worn, or damaged range washer. This small metal component secures parts and assemblies throughout your oven, ensuring proper fit.

Replace your oven's control wire harness if the wiring is frayed, damaged, or connections are loose. Connects control board to oven components.

10-32 machine screw secures panels, brackets, door hinges, and handles in ovens and ranges. Replace missing, stripped, or broken screws for tight fit.
