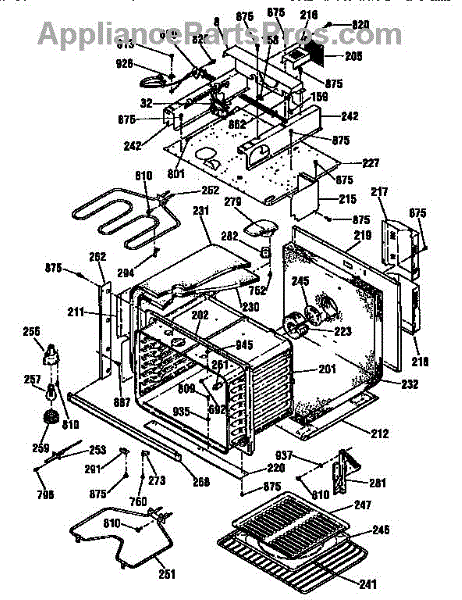

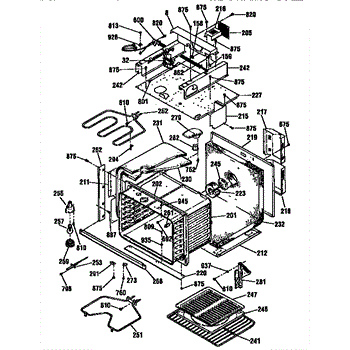

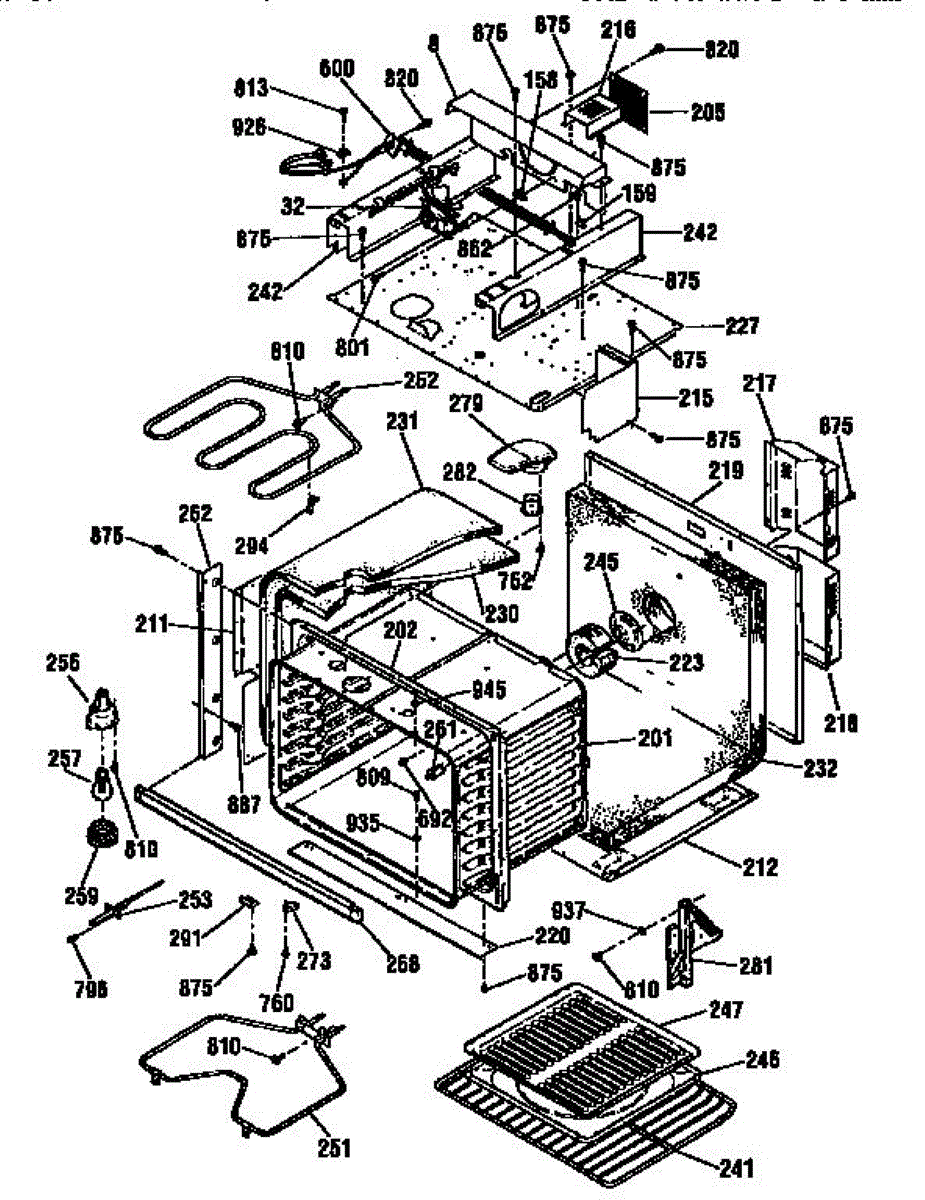

Parts for Kenmore 911.41479690 (91141479690, 911 41479690): Body Section Parts

Fix a noisy or non-working convection fan with this motor assembly. Restores even heating and airflow in your oven. Takes about 30 minutes to install.

This top wire cover protects and hides the cooktop's wiring harness at the rear of the range, keeping wires routed and shielded for safe operation. It restores a finished appearance and helps prevent snagging or accidental contact. What it does

• Covers and secures the cooktop wiring harness at the rear/top area
• Helps prevent wires from rubbing, catching, or being exposed to heat and debris
• Reduces risk of accidental contact with wiring while accessing the cooktop
• Can resolve issues caused by damaged or displaced wiring covers (visible wire exposure, snagging)

• One top wire cover

• Disconnect power to the appliance before inspecting or replacing the cover
• Remove cooktop or access panel per service instructions to reach the wiring area
• Align cover over the wiring harness and secure with the original fasteners or clips
• If wiring shows damage or overheating, replace/repair wiring per OEM instructions

Insulation panel that installs on the back and bottom of your oven cavity. Replace if damaged, torn, compressed, or missing to maintain heat efficiency.

Insulation panel that installs on top of the oven cavity. Replace if damaged, torn, compressed, missing, or contaminated by pests or moisture.

Insulation panel that installs on the back and bottom of your oven cavity. Replace if damaged, torn, compressed, or missing to maintain heat efficiency.

Replacement oven rack for electric and gas ranges. Installs inside oven cavity. Needed when original rack is missing, damaged, or warped from use.

Slotted grid that rests over the broiler pan to support food during broiling. Replace if cracked, warped, worn, or missing to restore proper function.

Oven not heating or baking unevenly? A faulty bake element is often the cause. This bottom heating element is a straightforward DIY fix in 5-10 minutes.

Broiler won't heat up? This upper heating element restores high-heat broiling and surface browning. Takes about 15 minutes to replace with basic tools.

If your oven won't preheat or shows an F3 error code, this temperature sensor monitors oven heat and safety features. Direct plug replacement, 15-minute fix.

NOTICE: Part has been redesigned. Wire terminals are no longer straight off the the back they are from the side. Depending on your model you may have to make changes to make it fit.

This high-amp SPDT switch routes power between circuits in cooking appliances to control items such as locks, element relays, or fans. Replacing a worn switch restores dependable operation and helps eliminate intermittent on/off issues. What it does:

• Single-pole, double-throw action directs power between NO/NC circuits based on actuator position
• Used to signal or control a component per the model's design (e.g., latch/lock, relay, fan)
• Failure symptoms can include no activation, stuck-on/off behavior, intermittent operation, or heat-damaged terminals
• Electrical tests may show incorrect continuity between COM–NO/NC when pressed or released

• Includes: 1 SPDT high-amp switch

• Disconnect power at the breaker or unplug the appliance before servicing
• Label or photograph wiring; move leads to matching COM/NO/NC terminals on the new switch
• Mount with the correct actuator orientation and secure any bracket or screws
• Inspect connectors for heat damage; ensure tight spade fits, restore power, and test operation

This right-side vertical trim piece restores the refrigerator door's finished edge and helps maintain a clean, aligned appearance. Designed to replace a damaged, dented, or missing trim for a factory look. What it does:

• Covers and protects the outer edge of the refrigerator door for a finished appearance
• Helps keep the door edge aligned with adjacent panels and seals
• Replaces cracked, warped, or cosmetically damaged trim
• Reduces snagging on linens or clothing along the door edge

• One right-side vertical trim piece

• Remove power to the appliance before starting any repairs to avoid injury
• Typically secures with clips or screws; fastener locations on your model
• Handle trim carefully to avoid scratching the finish during installation
• If adhesive is present, remove old adhesive residue before installing new trim

This left-side vertical door trim restores the finished edge and appearance of your refrigerator door. It replaces a cracked, faded, or missing trim piece to help the door close cleanly and maintain a uniform look. What it does:

• Covers and protects the outer edge of the refrigerator door for a finished appearance
• Helps align and retain the door gasket area for a proper seal
• Replaces trim that is cracked, warped, loose, or cosmetically damaged
• Reduces gaps and drafts caused by broken or missing trim
• Matches factory fit and mounting locations for straightforward replacement

• Remove contents and open the door to access mounting clips or screws
• Use basic hand tools; handle trim carefully to avoid scratching the finish
• Work with the door supported or held to prevent damage when removing/installing trim
• Disconnect power to the appliance before performing any repairs that require door removal or extensive disassembly

Lower housing cover for ovens and ranges. Replaces cracked, broken, or missing covers that expose internal components. Protects and encloses the lower section.

Left side hinge assembly for oven doors. Replaces broken, cracked, or worn hinges that prevent proper door opening and closing. Direct fit component.

This panel conceals and protects internal freezer components while providing a finished interior appearance. Located inside the freezer compartment, replace it when cracked, warped, or allowing moisture and cold air to reach sensitive mechanical parts.

This metal bracket provides structural support for range components like burner assemblies or control panels. It securely holds parts in their proper position during normal cooking operations. Replace when range components become loose, sag, or don't align properly.

This replacement mounting screw is used in cooking appliances to fasten components securely. It restores a tight, rattle-free fit so panels, brackets, or burner-related parts stay properly aligned during everyday use.

• Secures appliance components to the chassis or assembly
• Replaces a missing, stripped, or corroded screw
• Helps resolve loose panels, wobbling parts, or vibration noises
• Supports proper alignment of mounted parts

• Disconnect power at the breaker; for gas units, also shut off gas supply
• Allow the appliance to cool completely before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly without overtightening; replace damaged threads or hardware as needed

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.

Replacement screw for securing oven components, panels, and brackets. Restores tight mounting when original screws are missing, stripped, or lost.

Replacement mounting screw for securing panels, brackets, and trim on electric ranges and wall ovens. Needed when original fastener is stripped or missing.

ST10-16 X 7/16"

Replacement screw for securing panels, brackets, and internal components in ranges, ovens, and cooktops. Replace missing, stripped, or damaged screws.

Replacement screw for securing panels, brackets, and internal components. Needed when original hardware is stripped, missing, or damaged during repairs.

Replacement mounting screw secures panels, brackets, and controls on ranges and ovens. Needed when original screws are missing, stripped, or damaged.

Package of 12

Black. 8-18 AB HXW 3/8

Black trim screw secures exterior trim and panels on ovens and ranges. Replace missing, stripped, or corroded screws to restore proper fit and finish.

Replace your missing, worn, or damaged range washer. This small metal component secures parts and assemblies throughout your oven, ensuring proper fit.

This washer secures components inside your range. Replace if the original is lost, stripped, corroded, or damaged during service or repair work.
