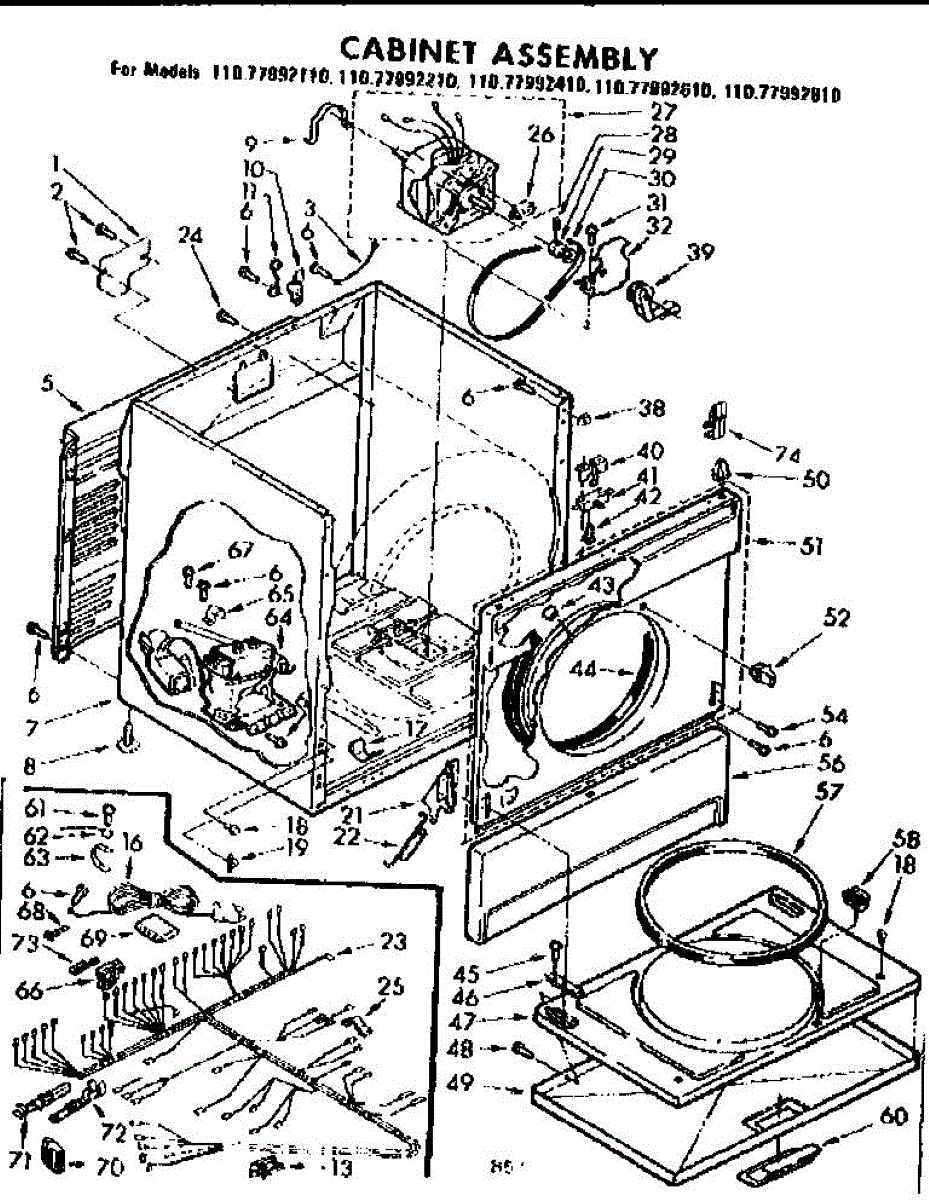

Parts for Sears 11077992810: Cabinet Assembly Parts

Specs: 10-16 x 1/2 inch.

The Dryer Leveling Foot is an OEM part for Whirlpool dryers. It is designed to support and stabilize the dryer by allowing adjustments to the height and leveling of the unit. Proper leveling ensures the dryer operates smoothly and efficiently, reducing vibrations and preventing unwanted movement during cycles.

Causes of a bad leveling foot can include wear and tear from regular use, damage from moving the dryer, or breakage due to heavy loads and stress. Over time, the threads on the leveling foot can wear out, or the foot itself can become cracked or deformed.

Symptoms of a bad leveling foot include:

• Dryer rocking or wobbling during operation
• Unusual noises or vibrations
• Difficulty in adjusting the dryer's height
• Visible damage or wear on the leveling foot

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

This part is a motor clamp. This is a genuine OEM part and has been sourced directly from the manufacturer. This part is intended to replace a deteriorated, damaged, or broken motor clamp on certain makes of indoor appliance models. Motor clamps are essential for properly securing the drive motor on various types of indoor appliances such as washers, dryers, and refrigerators. Without the use of a motor clamp, the drive motor is free to move around or become detached. This can easily cause serious damage to the equipment and prevent proper functionality. Proper tools are needed to replace this part and appropriate safety measures should be adhered to when working on any type of equipment. For accurate information on how and where to install this replacement motor clamp, specific manufacturer diagrams should be referred to.As an authentic replacement part, this motor clamp can be used on multiple different models of washers, dryers, refrigerators, and washer/dryer combos manufactured by Kenmore, Maytag, Whirlpool, and Amana. Please note that this motor clamp is a genuine part made of high-quality materials and is sold individually.

This top hinge supports the hinged top or upper panel, allowing it to lift for service and close securely. Replacing a worn hinge restores smooth motion and proper alignment to help eliminate wobble, scraping, or gaps.

• Provides the pivot point for lifting the top/panel
• Maintains alignment and helps the top seat flat when closed
• Restores smooth opening/closing without binding or rubbing
• Common signs of failure: loose or uneven top, squeaks, difficulty lifting/closing, visible bending or cracks at the hinge

• Disconnect power; also shut off gas and allow all surfaces to cool
• Support the top/panel while removing and installing the hinge to prevent strain
• Transfer and tighten existing mounting screws unless new hardware is provided
• After installation, check alignment and clearances; replacing hinges in pairs can improve fit

This power cord connects your appliance to household electricity, supplying safe, reliable power to its controls and components. Replace a damaged or overheated cord to restore dependable operation and reduce the risk of shorts.

• Supplies AC power from the wall outlet to the appliance's electrical system
• Helps resolve no power, intermittent power loss, or tripped breaker issues
• Replace if the cord is cut, frayed, melted, discolored, or feels hot at the plug
• Restores safe operation when the original plug or insulation is damaged

• Disconnect power at the outlet or circuit breaker before servicing
• Note wire routing and connection points; match the original orientation for hot, neutral, and ground
• Seat the cord properly and secure with the model's required strain relief or clamp to prevent tension on terminals
• Ensure the cord is not pinched and is clear of sharp edges, hot surfaces, and moving parts; test for proper operation

This small retaining clip secures the door hinge in place so the door opens and closes smoothly and stays properly aligned. Replacing a worn or missing clip helps restore reliable hinge support and consistent door operation.

• Retains the hinge/hinge pin to prevent shifting or separation
• Helps maintain door alignment to avoid rubbing, sagging, or binding
• Replaces a clip that is bent, cracked, corroded, or missing
• Common signs it's needed: loose or wobbly door, difficulty closing, misaligned door, visible damaged/missing clip

• Unplug the appliance and, if applicable, remove items from the door to reduce weight
• Support the door before working on the hinge
• Remove any hinge cover/fasteners, swap the clip, and ensure it seats fully
• Reassemble and check door alignment and smooth operation

This kit secures the lower toe/kick panel to the front of the appliance, keeping the panel tight and properly aligned. Replacing worn or missing clips restores a secure fit and makes access for service straightforward.

• Holds the toe/kick panel in place at the base of the cabinet
• Helps prevent panel rattling, gaps, or a loose/hinging lower panel
• Common fix when the lower panel won't stay secured after service
• Durable metal clip design for repeated panel removal and reattachment

• Unplug appliance before servicing; wear gloves to avoid sharp edges
• Support the toe panel while releasing old clips to prevent bending
• Install clips in the cabinet slots first, then engage the panel into the clips
• Verify the panel is fully seated on both sides before restoring power

For R/H hinge use 687905

(for the L/H hinge use 687905

This part has been discontinued by the manufacturer and is no longer available.

The Dryer Drive Motor is an OEM part for Whirlpool dryers. This motor is the heart of the dryer, responsible for turning the drum and enabling the air to circulate properly throughout the machine.

Over time, dryer motors can suffer from wear and tear due to continuous use, accumulation of lint and debris, or overload from heavy laundry loads. These factors can lead to the motor overheating, losing power, or failing to start altogether.

Symptoms of a bad Dryer Drive Motor include:

• The dryer not starting when the start button is pressed
• Unusual noises, such as humming or buzzing
• The dryer stopping unexpectedly during cycles
• A burning smell coming from the dryer

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Dryer Drive Motor is an OEM part for Whirlpool dryers. This motor is the heart of the dryer, responsible for turning the drum and enabling the air to circulate properly throughout the machine.

Over time, dryer motors can suffer from wear and tear due to continuous use, accumulation of lint and debris, or overload from heavy laundry loads. These factors can lead to the motor overheating, losing power, or failing to start altogether.

Symptoms of a bad Dryer Drive Motor include:

• The dryer not starting when the start button is pressed
• Unusual noises, such as humming or buzzing
• The dryer stopping unexpectedly during cycles
• A burning smell coming from the dryer

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Get your dryer spinning smoothly again - install the Whirlpool 341241 OEM Drum Belt in minutes.

Why this belt?

• Exact factory spec: 92 ¼-inch length × ¼-inch width, 4 ribs / 3 grooves - built to Whirlpool standards, not a generic copy.
• Broad compatibility: Fits most Whirlpool-made dryers - Kenmore 110-series, Roper, Estate, Maytag, KitchenAid, Admiral, Crosley, Amana & more.
• Quiet, durable rubber: Reinforced EPDM resists cracking and stretch for years of reliable tumbling.

Fixes these common dryer problems

DIY install — about 15 minutes

1. Unplug dryer; remove lint screen housing & front panel.
2. Release belt tension at idler pulley; lift drum slightly to slide old belt off.
3. Loop new belt around drum, idler pulley and motor pulley (ribbed side down).
4. Re-assemble, run test cycle - enjoy quiet, consistent tumbling.

This 5/16-18 x 3/4 machine bolt replaces a missing or damaged fastener used to secure panels, brackets and components in many home appliances. It restores proper fit and helps stop rattling or loose parts. What it does:

• Secures panels, brackets or assemblies to maintain proper alignment and safe operation
• Restores clamping force where a stripped or missing bolt lets parts shift or vibrate
• Helps eliminate rattling, scraping or movement caused by loose fasteners
• Matches standard 5/16-18 coarse threads for direct replacement of the OEM bolt

• Disconnect power to the appliance before servicing to reduce shock and injury risk
• Start threads by hand to avoid cross-threading; tighten using the correct socket or wrench
• Do not overtighten; snug to manufacturer torque or until secure to avoid stripping threads
• If the original mating threads are damaged, inspect the receiving part and repair or replace as needed

This motor base is the replacement support that secures and positions the dryer motor assembly, helping restore stable alignment and minimize excess noise or vibration during operation. What it does:

• Supports and mounts the motor to the appliance chassis to keep the motor properly aligned
• Helps maintain correct spacing between the motor and drive components for smooth operation
• Reduces motor movement that can cause rubbing, vibration, or unusual noise
• Can address symptoms such as excessive vibration, banging, or misaligned motor movement

• Disconnect power to the appliance before starting any repair
• Follow the appliance's service manual or exploded parts diagram for correct removal and reassembly
• Use appropriate tools and take care with sharp sheet-metal edges
• Retain or transfer any original mounting hardware unless new fasteners are explicitly listed

The Idler Pulley is an OEM part for Whirlpool dryers, responsible for maintaining the correct tension on the drive belt, allowing it to remain tight and aligned, preventing slipping and contributing to the consistent rotation of the drum during cycles.

Symptoms of a bad Idler Pulley include:

• Squealing or squeaking noises
• The dryer drum failing to turn
• Excessive vibration or unusual sounds

Causes of failure can range from normal wear and tear, which can lead to the pulley's bearing wearing out, to the accumulation of lint and debris causing the pulley to seize or function improperly. Additionally, a cracked or damaged pulley can lead to belt misalignment and slippage.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Fits all Whirlpool-made dryers (Whirlpool, Kenmore with prefix 110, Roper, KitchenAid, and Estate). Matching belt 341241 and rear support rollers 349241T. Whirlpool dryer repair manual 677818L.

The Door Switch Lever is an OEM part for Whirlpool dryers. It plays a vital role in ensuring the dryer only operates when the door is securely closed by engaging with the door switch to signal the door's status.

Causes of a bad door switch lever can include normal wear and tear from repeated use, physical damage from accidental impact, or deformation from heat and humidity inside the dryer. A faulty lever can prevent the dryer from starting or stopping correctly.

Symptoms of a bad door switch lever include:

• Dryer not starting
• Dryer stopping mid-cycle
• Door not latching properly
• The dryer continuing to run with the door open

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Washer Door Switch is an OEM part for Whirlpool washing machines. This component is crucial for ensuring the washer operates safely by detecting whether the door is open or closed. The door switch prevents the washer from starting or continuing its cycle when the door is open, and it allows the machine to function only when the door is securely closed.

Symptoms of a failing Washer Door Switch include:

• The washer not starting or stopping unexpectedly during a cycle
• Error codes related to door closure issues displayed on the washer's control panel
• The washer door not locking properly or the lock mechanism not engaging
• The washer continuing to operate with the door open

Causes of a bad door switch can include wear and tear from frequent use, damage from repeated opening and closing of the door, electrical faults such as short circuits, or physical damage from mishandling or impact.

This OEM Whirlpool part is also compatible with some models from Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore.

Includes two bumpers and two locking clips. You will use one or the other depending on hole size.

The Front Bearing and Seal Kit is an OEM replacement part for Whirlpool dryers. This kit includes the front bearing and seal for the dryer drum, which work together to provide smooth operation and prevent premature wear.

Causes of a bad front bearing and seal can include regular wear and tear from normal use, heavy loads that place extra strain on the bearings, or debris accumulation causing increased friction.

Symptoms of issues include:

• Noisy or grinding sounds coming from the drum area
• Vibration noticed during the operation
• Difficulty turning or rotating the dryer drum by hand
• Reduced efficiency and longer drying times

This OEM replacement kit is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This retaining clip secures plastic and metal panels and small assemblies to keep parts aligned and reduce movement. It replaces a worn or broken clip to restore proper fit and stop loose panels or rattling. What it does:

• Holds trim, panels or housings in place to maintain proper alignment
• Prevents parts from shifting or vibrating during operation
• Helps stop rattling or intermittent contact caused by a missing clip
• Serves as a simple mechanical fastener — no tools beyond basic hand tools may be needed for access

• Disconnect power to the appliance before beginning any repair.
• Access may require removing panels or trim; keep fasteners organized.
• Inspect mating surfaces and adjacent clips; replace additional clips if brittle or damaged.

Size: 8-18 x 3/8 inch.

The Top Lock is an OEM component for Whirlpool electric and gas dryers. It secures the outer metal cabinet door during drying cycles for safety and ventilation. This lock provides a method for releasing and latching the door tightly when shut.

Symptoms of a failing top lock may include:

• Inability to fully close or properly latch the dryer door
• Accidental opening from deficient locking during operation
• Difficulty manipulating the lock due to worn or broken parts

Causes related to normal wear of moving parts through frequent use over several years. Deformation from excessive exterior impacts could also damage locking mechanisms.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Door Latch Kit is an OEM replacement part for Whirlpool washers. This component is responsible for securely locking the washer door during the wash cycle, preventing it from opening unexpectedly and ensuring a safe and efficient operation.

Symptoms of needing to replace the door latch kit include:

• Difficulty in closing or latching the washer door
• Door opening unexpectedly during the wash cycle
• Leaks or water seeping due to an improper door seal
• Excessive wear or damage to the latch components

Causes of a faulty door latch kit can include normal wear and tear over time, physical damage due to impact or mishandling, or issues with the door alignment or strike plate.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore washer models.

Size: 10-32 x 1/2 inch.

This part has been discontinued and is no longer available.

This part has been discontinued by the manufacturer and is no longer available.

The Door Latch Kit is an OEM replacement part for Whirlpool washers. This component is responsible for securely locking the washer door during the wash cycle, preventing it from opening unexpectedly and ensuring a safe and efficient operation.

Symptoms of needing to replace the door latch kit include:

• Difficulty in closing or latching the washer door
• Door opening unexpectedly during the wash cycle
• Leaks or water seeping due to an improper door seal
• Excessive wear or damage to the latch components

Causes of a faulty door latch kit can include normal wear and tear over time, physical damage due to impact or mishandling, or issues with the door alignment or strike plate.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore washer models.

The Dryer Door Handle is an OEM replacement part for Whirlpool dryers. A dryer door handle can deteriorate due to prolonged use, repeated force when opening or closing the door, or accidental impact that causes cracks or breakage. These factors may compromise the handle's structural integrity and make it less reliable.

Color: White

Symptoms of a bad Dryer Door Handle include:

• Loose or wobbly handle
• Cracks or visible damage to the handle
• Difficulty opening or closing the dryer door

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Dryer Door Handle is an OEM replacement part for Whirlpool dryers. A dryer door handle can deteriorate due to prolonged use, repeated force when opening or closing the door, or accidental impact that causes cracks or breakage. These factors may compromise the handle's structural integrity and make it less reliable.

Color: White

Symptoms of a bad Dryer Door Handle include:

• Loose or wobbly handle
• Cracks or visible damage to the handle
• Difficulty opening or closing the dryer door

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Complete burner assembly with gas valve, coils and igniter. Setup for natural gas.

Complete burner assembly with gas valve, coils and igniter. Setup for natural gas.

Color: Gray. Size: 13 oz. can. Used for coating the dryer drum interior. Acrylic appliance paint.

The Terminal Block Kit is an OEM part for Whirlpool dryers. This kit includes the terminal block, wires, wire connectors, screws, brackets and instructions.

Common causes of a bad terminal block include overheating due to loose connections, corrosion from moisture exposure, and physical damage from handling or installation errors.

Symptoms of a bad terminal block kit include:

• Dryer not starting or losing power during operation
• Burning smell or visible burn marks near the terminal block
• Loose or frayed wires connected to the terminal block
• Intermittent electrical issues or malfunctioning controls

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
