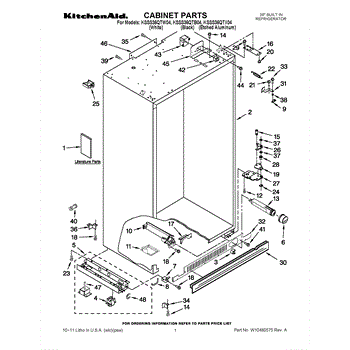

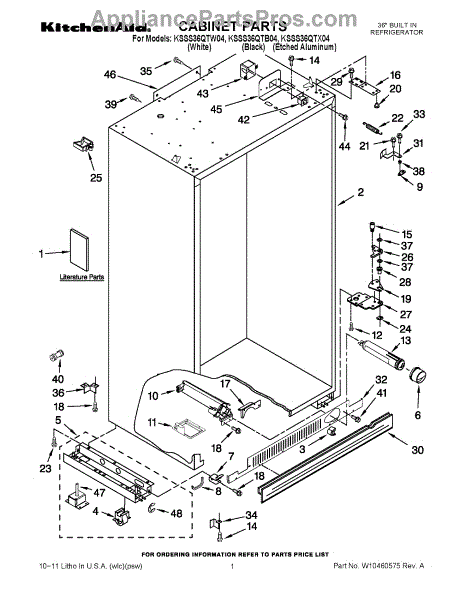

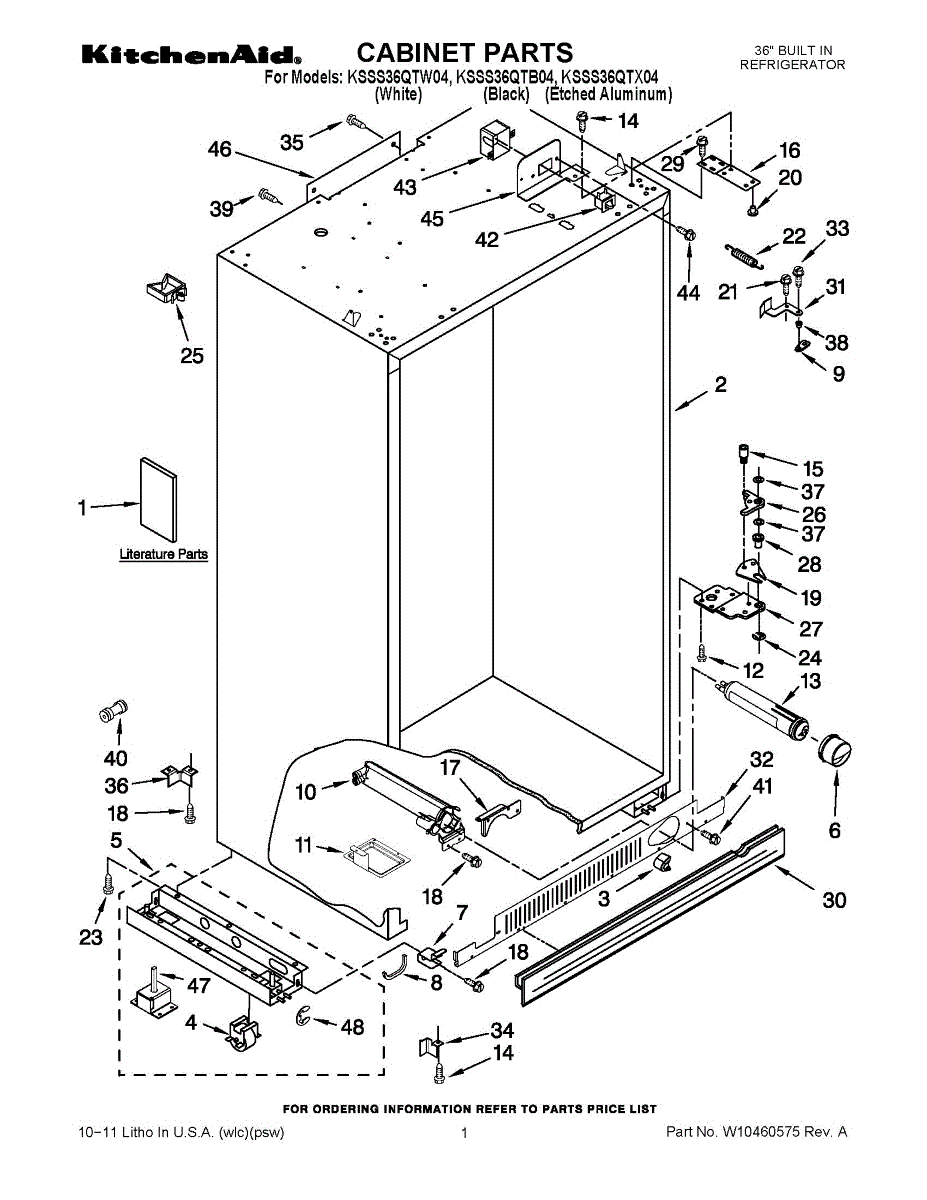

Parts for Kitchenaid KSSS36QTX04: 01 - Cabinet Parts

Reduces contaminants for cleaner, better-tasting water and ice. Replace every 6 months or when indicator light activates. Verify fit by model number.

Color: Black

This replacement roller fits the front or rear position of a slide mechanism, restoring smooth, even movement and reducing noise when a wheel is worn or broken. It helps racks or drawers glide properly and stay aligned. What it does:

• Provides low-friction rolling support for the slide track
• Helps slide-out assemblies move freely without binding or scraping
• Worn or damaged rollers can cause sticking, squeaking, or uneven travel
• Restores proper alignment and smooth operation when replaced

• 1 roller assembly

• Disconnect power and allow the appliance to cool before servicing
• Remove the slide-out assembly; note roller orientation and hardware
• Transfer/reuse existing screws, clips, or retainers as required
• Do not lubricate unless the manufacturer specifies a lubricant

Replacement support bracket that secures internal panels and assemblies inside your refrigerator. Restores proper alignment if the original is cracked or broken.

This Support (mounting bracket) secures internal components and stabilizes the appliance's assembly to help prevent sagging, misalignment and excess vibration. It's a small replacement that restores proper fit and reduces rattling. What it does:

• Provides a stable mounting point for panels or internal assemblies
• Keeps components aligned to prevent binding or wear
• Reduces noise caused by loose or sagging parts
• Helps stop intermittent contact or rubbing that can cause rattles

• Disconnect power (and water, if applicable) before servicing
• Access may require removing outer panels or trim; keep track of fasteners
• Support the assembly while replacing the bracket to avoid strain

Secures and seals the water filter in the refrigerator compartment. Replace if cracked, broken, or missing to ensure proper filter installation.

Replace a cracked or broken mounting bracket in your refrigerator. This structural support plate installs inside the cabinet to secure components in place.

Encloses the water filter to ensure proper flow and filtration. Replace if cracked, leaking when filter is removed, or causing water hammer. Confirm fit.

Reduces contaminants for cleaner, better-tasting water and ice. Replace every 6 months or when indicator light activates. Verify fit by model number.

Size: 8-32 x .312 inch.

Replacement mounting screw for refrigerator panels, hinges, and brackets. Needed when original fastener is stripped, sheared, or missing during repair.

Top door hinge secures your refrigerator door to the cabinet and provides smooth pivot motion. Replace if cracked, worn, or causing misalignment issues.

Secures and aligns refrigerator components for proper fit. Replace if your mounting bracket is cracked, broken, or missing to restore stability.

Replacement mounting screw for refrigerator panels, brackets, and internal components. Replace missing or stripped screws to restore secure fit.

A small replacement bushing that secures and centers the appliance's rotating plate or tray for smooth, stable rotation. Restores proper alignment and reduces noise or wobble caused by a worn or damaged bushing. What it does:

• Centers and locks the rotating plate/tray to the drive hub for steady rotation
• Prevents the plate from wobbling, slipping, or scraping during use
• Helps eliminate grinding, rattling, or uneven rotation symptoms
• Durable replacement for a worn, cracked, or deformed bushing

• One adjustable plate locking bushing

• Disconnect power before servicing and handle any glass plate or trim carefully
• Remove the plate/tray and access the bushing location according to the appliance service instructions
• Test rotation before use

Replacement mounting screw secures panels, brackets, and trim to the appliance frame. Needed when original screw is stripped, missing, or damaged.

Fixes refrigerator doors that drift open, won't stay closed, or feel loose. This door closure spring restores tension for reliable closing and secure latching.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Secures components to prevent axial movement and rattling. Replace worn rings to restore quiet, stable operation. Confirm fit with your model number.

Bottom

Replacement door hinge for side-by-side refrigerators. Secures and supports the refrigerator door. Order a new hinge if yours is cracked or broken.

Bottom refrigerator door hinge for side-by-side models. Replace if cracked, broken, or causing door misalignment. Mounts to cabinet bottom.

Replace this shaft support bushing when you notice excessive noise, wobbling, or rough rotation. Centers rotating shafts to reduce wear. Confirm fit by model.

Mounting screw for refrigerator interior components and panels. Replace if stripped, missing, or damaged during appliance maintenance or repair work.

Bottom front trim panel that covers the lower access area of your refrigerator. Replace if cracked, broken, or missing to restore a finished look.

This is a right-side hinge extension arm that connects to the refrigerator door hinge assembly and assists with smooth door opening and closing. It helps control the door's range of motion and provides a self-closing function. Replace this arm if the right refrigerator door does not close properly on its own, drifts open, or if the existing arm is bent or broken.

Replacement door stop cam riser extension that secures and supports refrigerator door panels. Needed when original extension is damaged, cracked, or missing.

Secures panels and internal components in your refrigerator. Replace this screw if stripped, lost, or broken to restore proper alignment and stability.

Front left hand side

Support base bracket for side-by-side refrigerators. Mounts on the front left side to provide structural support. Replace if cracked or broken.

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

Rear support base bracket for refrigerators. Secures base components at the back of the unit. Replace if cracked, broken, or missing for stability.

This door bearing fits the washer door assembly to restore smooth opening and closing and reduce noise, wobble, or binding. Replacing a worn bearing helps maintain proper door alignment for reliable operation. What it does:

• Supports the door hinge so the door pivots smoothly without sagging or sticking
• Reduces squeaks, grinding, or rough movement when opening or closing the door
• Helps keep the door aligned to reduce stress on the latch and door seal
• Addresses symptoms like door wobble, uneven closing, or noisy operation

• Disconnect power (and water if accessing near waterlines) before starting any repair
• Removing the door panel or inner door trim may be required; retain all fasteners and document their locations
• Inspect surrounding parts (hinge, seal, latch) and replace if damaged; improper alignment can cause premature wear

Color: Stainless steel

Connects water tubes of different sizes at the base of your refrigerator door. Replace if leaking, cracked, or calcified to restore a watertight seal.

Connects water line sections in your refrigerator. Replace if cracked, leaking, or damaged to restore secure connections to ice maker and dispenser.

Replacement screw for securing panels, brackets, and internal components. Replaces missing, stripped, or damaged fasteners to restore proper fit.

Refrigerator light won't turn off or on? The door switch detects when the door opens and closes. Easy 5-minute DIY repair with a pick tool or scraper.

Interior lights staying on or not working? This door switch controls refrigerator lighting and functions. Moderate DIY repair with video guide available.

Replacement 8-18 thread screw for securing panels, brackets, and trim on appliances. Replace worn, stripped, or missing screws to keep components aligned.

Left hand side

Adjustable leveling leg for refrigerators. Installs at the base to stabilize and level your appliance. Replace if worn, damaged, or missing.

Retaining ring clip secures refrigerator components in place. Replace if broken, cracked, or loose to prevent rattling. Verify fit with your model number.
