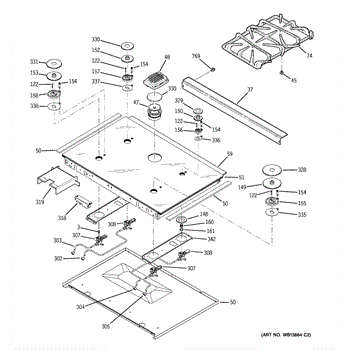

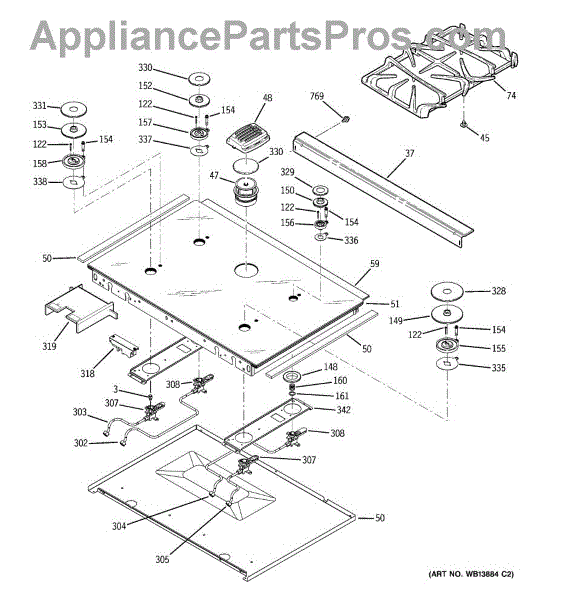

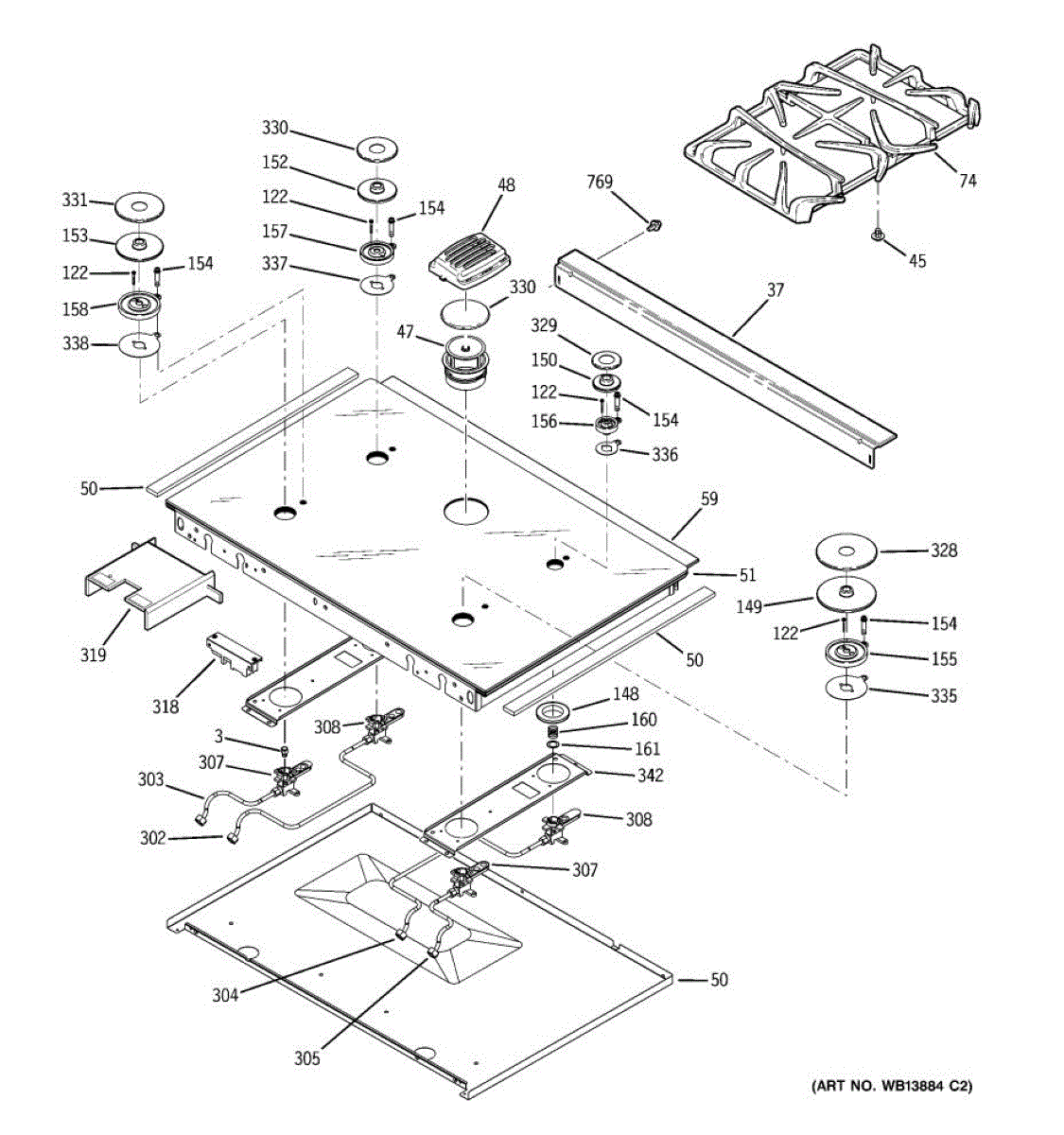

Parts for Ge PGS968BEM2BB: 03 - Cooktop Parts

Natural gas burner orifice spud for cooktops and ranges. Installs in the burner assembly to control gas flow. Replace if damaged or converting fuel type.

Natural gas orifice spud for cooktop burners. Installs at burner base to regulate gas flow. Replace if damaged, worn, or converting fuel type.

Burner orifice spud for cooktop or range. Installs in burner assembly to regulate gas flow. Replace if damaged, worn, or converting between fuel types.

Natural gas orifice spud for cooktop burner assembly. Needed when converting from LP to natural gas or replacing damaged orifice threading.

LP orifice spud directs propane gas flow to the burner on gas cooktops and ranges. Replace if cracked, worn, or missing to restore proper gas metering.

Liquid propane

Converting your cooktop from natural gas to liquid propane? This LP gas orifice spud enables proper fuel conversion for specific burner positions.

Liquid propane orifice spud for cooktop and range burners. Regulates gas flow for proper flame. Replace if damaged, worn, or converting from natural gas.

White backsplash filler trim that installs behind your range. Replace if cracked, discolored, or missing. Measures 32.6" L x 2.4" W x 2.3" H.

Rubber foot that attaches to the bottom of cooktop grates. Replace if cracked, worn, missing, or loose to prevent grates from sliding and scratching.

Vent cap for range ventilation system. Covers and protects the vent opening. Replace if cracked, damaged, or missing to maintain proper airflow.

This bottom burn box fits beneath the oven burner to protect the lower cavity and direct heat. It helps contain drips and debris so the oven heats and cleans more predictably. What it does:

• Shields the oven floor and components from spills, grease and falling food
• Directs heat and flame path for proper burner operation
• Helps prevent soot buildup and reduces flare-ups from drips
• Worn or damaged boxes can cause uneven heating or increased smoke

• Disconnect power and gas supply before beginning any service
• Remove oven racks and the oven floor panel to access the burn box
• Wear gloves to avoid sharp edges; handle the part carefully during removal/installation

Seals the left edge of your range cooktop to the chassis, containing spills and fumes. Replace when worn to restore a clean seal and easier cleanup.

Seals the right edge of your electric range cooktop to prevent spills from entering the chassis. Replace if worn, cracked, or no longer sealing properly.

Glass cooktop surface assembly for slide-in ranges. Replace this main top when the glass is cracked, chipped, scratched, or damaged beyond repair.

Seals the top maintenance panel on over-the-range units to keep grease and steam out of internal cavities. Replace when worn to restore a snug seal.

Gray cast iron grate assembly that supports cookware on gas range burners. Replace your cracked, chipped, or worn cooktop grate for stable pan support.

Secures the burner head to your gas cooktop surface. Replace if rusted, stripped, broken during disassembly, or missing to ensure proper burner stability.

Seals and cushions the edge of your range's glass or ceramic cooktop to keep out spills and reduce vibration. Replace if worn or damaged. Confirm fit.

Burner head sits on top of the burner base on gas cooktops. Replace if warped, cracked, or causing uneven flame distribution across the burner surface.

Burner head component that sits atop the gas burner base on cooktops and ranges. Replace if warped, cracked, or no longer fitting correctly.

B Burner

C burner

Fix a burner that won't light or only clicks by replacing the igniter. This DIY repair takes about 10 minutes with basic tools. Fits GE gas cooktops.

Large burner base for cooktop. Installs beneath the burner cap to distribute heat evenly. Replace if cracked, warped, or corroded for proper burner function.

Burner base installs beneath the burner cap on gas cooktops. Replace if cracked, warped, or dome-shaped to restore proper flame coverage and alignment.

Burner base that sits beneath the burner cap on your cooktop. Replace this component if damaged, cracked, or missing to restore your burner's appearance.

Burner base for gas cooktops, secures to cooktop surface and holds igniter assembly. Replace if cracked, broken, or damaged during repairs.

Fix oven overheating or F9 error codes with a thermal limit switch replacement. This safety shutoff prevents damage when temperature exceeds safe limits.

Replace a cracked or broken burner base on your cooktop. This 3-inch diameter base supports the burner cap and installs directly on the cooktop surface.

Replacement spring that secures the burner head in place on gas cooktops. Needed when the original spring is lost, broken, or no longer holds the burner.

Burner tube for the right rear position on your range cooktop. Replace if cracked, corroded, or damaged to restore proper gas flow to the burner head.

Includes the natural gas orifice

Includes the natural gas orifice

Natural gas orifice spud for cooktop burners. Installs at burner base to regulate gas flow. Replace if damaged, worn, or converting fuel type.

Fix burners that won't ignite or spark continuously. This spark module controls ignition for all surface burners. DIY repair in about 45 minutes.

Grey. D Burner

Black. D Burner

Gray. Large. Used on the white model

Color: Black. Approx 2-3/4 inches in diameter

Grey burner cap for gas cooktops and ranges. Covers the burner head assembly. Replace if cracked, chipped, discolored, or missing for proper flame distribution.

Black burner cap for gas cooktops. Covers the burner head to distribute flame evenly. Replace if cracked, chipped, or discolored from heat exposure.

Grey burner cap for gas cooktop. Sits atop the burner base to distribute flame evenly. Replace if cracked, chipped, discolored, or missing.

Black. B Burner

Black. C Burner

Grey. C Burner

Note: The part is approximately 4" in diameter.

Seals burner assembly to cooktop surface, preventing gas leaks and ensuring proper ignition. Replace if cracked, brittle, or damaged during cleaning.

Small

Note: The part is approximately 2-3/8" in diameter.

Inner glass assembly for oven doors. Replace when cracked, shattered, or broken to restore door visibility and insulation. Verify fit with your model number.

Replace your range's injector bracket if it's cracked, bent, or missing. This structural component secures the gas injector assembly in place.

Hex head screws for securing panels and components in ranges and ovens. Replace missing, stripped, or corroded fasteners during repairs or reassembly.
