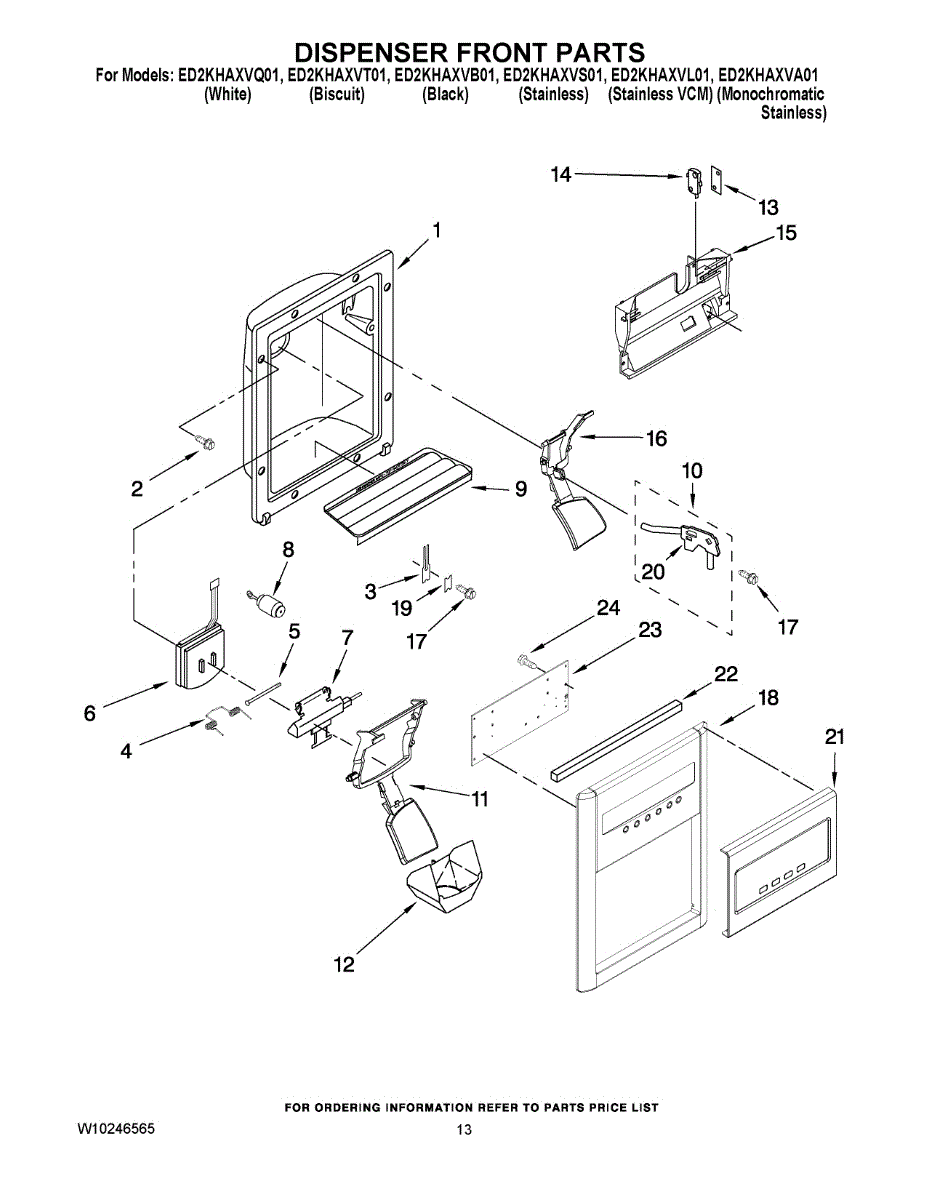

Parts for Whirlpool ED2KHAXVB01: 08 - Dispenser Front Parts

Reduces contaminants for cleaner, better-tasting water and ice. Replace every 6 months or when indicator light activates. Verify fit by model number.

Secures cooktop panels, burner components, and trim pieces. Replace missing, stripped, or damaged screws to eliminate rattles and keep parts aligned.

Loose or non-functioning water dispenser? This retainer secures the lever and restores spring-loaded action. Simple 5-10 minute DIY repair with video.

Holds the ice dispenser chute door closed on your refrigerator. Replace if spring is broken, missing, or worn and the flapper won't seal properly.

Ice dispenser won't close or dispenses continuously? This dispenser door pin kit restores proper flapper operation. Easy DIY repair with video guide.

Replaces a cracked, broken, or worn ice dispenser chute door on your refrigerator. Installs in the freezer door ice dispenser to control ice flow.

Includes door, support, spring and mechanism delay. No longer uses the ribbon heater due to the improved foam design. If your refrigerator uses this ice door kit and the mounting tabs are broken you can use the broken tab ice door kit 8201756.

Includes door, support, spring and mechanism delay. No longer uses the ribbon heater due to the improved foam design. If your refrigerator uses this ice door kit and the mounting tabs are broken you can use the broken tab ice door kit 8201756.

Color: biscuit. It measures about 9 inches wide by 2-1/2 inches deep.

External vent trim grille that covers your refrigerator's lower air opening. Replace this part if cracked, broken, loose, or missing to restore appearance.

White overflow grille for refrigerator water/ice dispenser. Replaces cracked, pitted, discolored, or missing grilles. Snaps into place below dispenser.

Black plastic grille that catches water overflow below the dispenser on side-by-side refrigerators. Replaces cracked, stained, or missing grilles.

Replaces the water tube that runs through your refrigerator door to the dispenser. Needed when the original tube is cracked, broken, or leaking.

Replaces a broken or worn dispenser actuator arm on your side-by-side refrigerator. Restores proper lever function for water and ice dispensing.

Replace your refrigerator's ice dispenser lever if it's cracked, broken, or missing. This paddle actuates ice dispensing from behind the door cover.

White ice dispenser lever for side-by-side refrigerators. Replaces discolored, cracked, or broken levers on the exterior dispenser panel.

Ice dispenser not working? This refrigerator ice lever activates ice release when pressed. Common fix for broken or worn levers. DIY-friendly repair.

Guides ice from the bucket through the dispenser chute. Replace if cracked, broken, or missing to prevent ice jams and ensure smooth dispensing.

Fix a refrigerator water or ice dispenser that won't activate or keeps running continuously. This micro switch controls dispenser operation. DIY-friendly.

Replacement bracket for your refrigerator. Secures internal components in place. Order a new bracket if yours is cracked, broken, or missing.

Replacement dispenser actuator arm for refrigerator water and ice dispensers. Needed when the original arm is cracked, broken, or missing.

Fix a water dispenser that stopped working or won't activate. This dispenser lever replaces broken actuator assemblies. Moderate DIY repair.

Replaces cracked, broken, or discolored water dispenser lever on side-by-side refrigerators. Installs behind dispenser faceplate. White finish.

Secures panels, brackets, and internal components in your refrigerator. Replace missing, stripped, or corroded screws to restore tight assembly fit.

This front cover is the outer panel that restores the appliance's appearance and protects internal components from debris and damage. It replaces a cracked, dented, or missing front panel to help keep the unit operating safely. What it does

• Shields internal components from dust, lint and accidental contact.
• Restores the appliance's finished appearance after cosmetic damage.
• Helps maintain correct alignment for the door/lint path and fasteners.
• Stops rattling or rubbing caused by a loose or damaged front panel.

• Disconnect power (and gas supply if applicable) before starting any repair.
• Removing the old panel may require door or cabinet access; keep all fasteners and trim for reassembly.
• Use appropriate hand tools and avoid forcing components; align panel before tightening screws.
• If any clips, seals or screws are damaged, replace them to ensure a secure fit; do not operate the appliance with missing or loose panels.

Fix a loose or wobbly dispenser paddle with this strain relief. Cushions the dispenser arm connection to prevent wear. Easy 5-minute repair with video guide.

Fix water dispenser leaks or kinks in your refrigerator's water line. This bracket secures the water tube to prevent damage and maintain proper flow.

Refrigerator door gasket seals the door to maintain temperature and prevent air leaks. Replace if torn, cracked, or not sealing properly. Confirm fit with your model number.

Mounting screw for refrigerators. Secures internal components and panels. Replace if stripped, missing, or damaged during appliance maintenance or repair.

The Broken Tab Ice Door Kit is an OEM part for Whirlpool refrigerators. This kit includes all the necessary components to repair or replace the ice door chute, which is responsible for dispensing ice from the ice maker to the ice bucket or directly to the user. The ice door chute must seal properly to prevent warm air from entering the freezer compartment, which can lead to frost and ice buildup.

Symptoms of a failing or broken ice door chute include:

• Ice accumulating around the ice dispenser chute
• Frost buildup in the freezer compartment
• Warm air leaking into the freezer, causing temperature fluctuations
• The ice door not closing properly or becoming stuck
• Unusual noises from the ice dispenser area

Causes of a broken ice door chute can include regular wear and tear, physical damage from mishandling or excessive force, or deterioration of the sealing components over time.

This OEM part is also compatible with some models from Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore.

This kit is used if the ice door mounting tabs are broken off of the dispenser wall. If your model number uses this ice door WP2180353 or this ice door kit W10823377 this kit can be used.
