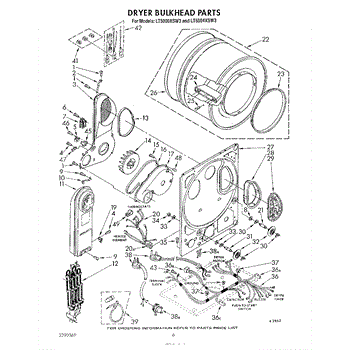

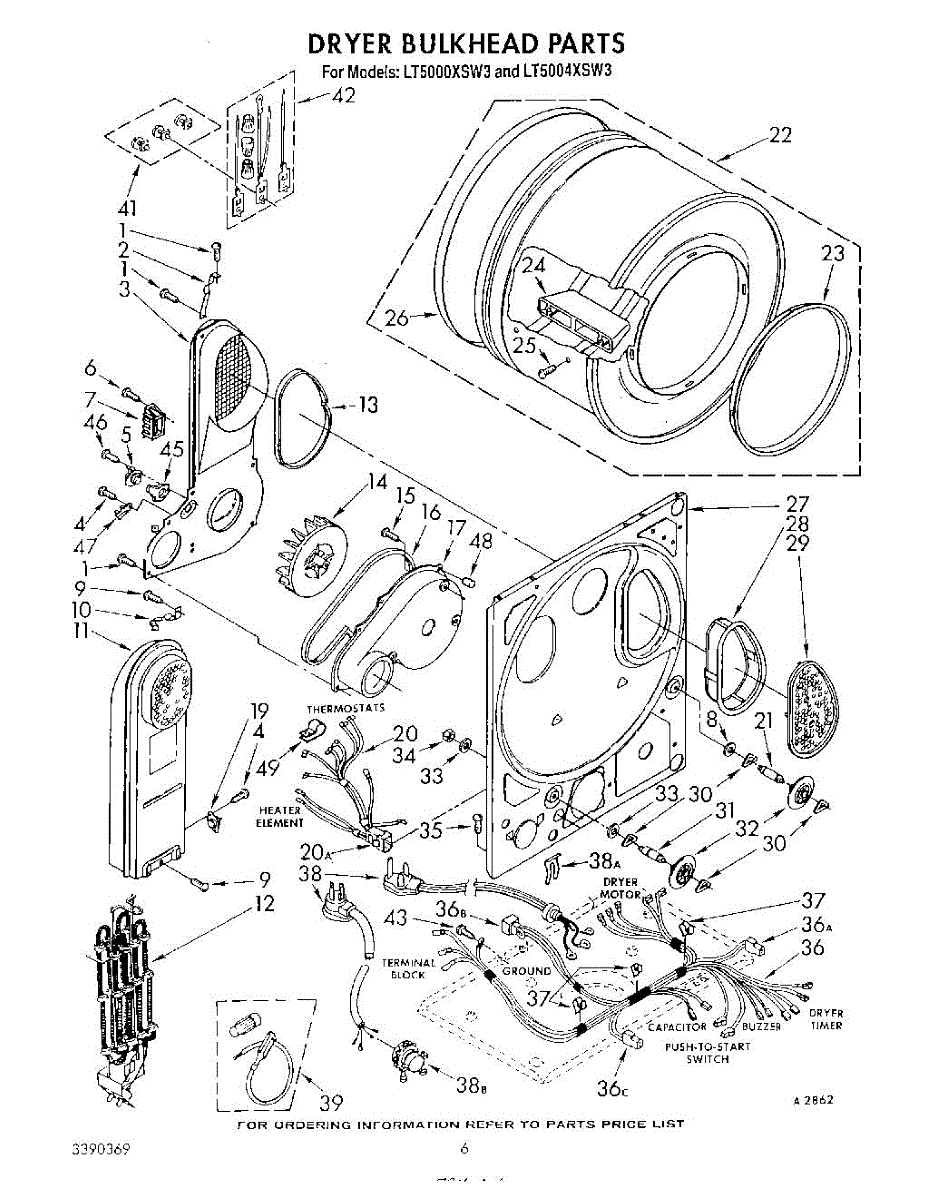

Parts for Whirlpool LT5000XSW3: 05 - Dryer Bulkhead Parts

Specs: 10-16 x 1/2 inch.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Cycling Thermostat is an OEM part for Whirlpool dryers. It regulates and monitors the temperature inside the dryer during the drying cycle. It ensures that the dryer doesn't overheat and prevents potential damage to clothes or the dryer itself.

Causes of a faulty cycling thermostat can include wear and tear over time, electrical issues, or sensor malfunction.

Symptoms of a bad cycling thermostat may include:

• Clothes taking longer than usual to dry
• Inconsistent drying results
• Overheating or burning smell
• The dryer not heating at all

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This cover screw secures appliance panels and covers, keeping components protected and aligned. Replace missing, stripped, or corroded screws to restore a tight fit and help eliminate rattles, gaps, or panels that won't stay in place.

• Attaches an access cover or panel to the appliance frame
• Helps maintain proper alignment to protect internal components
• Replaces missing, stripped, or rusted hardware
• Typical signs: loose or rattling panel, cover won't stay secure, damaged or rounded screw head

• Disconnect power before servicing
• Support the panel while removing and installing screws to prevent misalignment
• Start threads by hand to avoid cross-threading; do not overtighten
• Use a matching driver bit to avoid damaging the screw head

The Terminal Block Kit is an OEM part for Whirlpool dryers. This kit includes the terminal block, wires, wire connectors, screws, brackets and instructions.

Common causes of a bad terminal block include overheating due to loose connections, corrosion from moisture exposure, and physical damage from handling or installation errors.

Symptoms of a bad terminal block kit include:

• Dryer not starting or losing power during operation
• Burning smell or visible burn marks near the terminal block
• Loose or frayed wires connected to the terminal block
• Intermittent electrical issues or malfunctioning controls

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This flat support washer provides a stable bearing surface under a fastener. Its 1-1/2-in diameter helps distribute load, maintain spacing, and keep components aligned so hardware stays tight and assemblies operate smoothly. What it does:

• Distributes clamping force to prevent pull-through and gouging
• Maintains proper spacing and alignment between mating parts
• Helps reduce vibration, rubbing, or wobble from a loose assembly
• Replaces a cracked, deformed, or missing support washer

• One support washer

• Disconnect power and shut off water/gas before servicing.
• Note the order and orientation of any washers/spacers during disassembly.
• Inspect mating hardware and surfaces; replace any worn or damaged parts.
• Tighten fasteners to manufacturer specifications—do not over-tighten.

Specs: 10-16 x 1/2 inch.

This retainer clip secures a component in place to prevent movement and maintain proper alignment during appliance operation. Replacing a damaged or missing clip helps restore safe, reliable performance.

• Holds the mating part firmly to reduce vibration and noise
• Helps prevent intermittent operation caused by loose fitment
• Common fix when a component feels loose, rattles, or won't stay seated

• Disconnect power and shut off gas/water before servicing
• Note original clip orientation and location before removal
• Use needle-nose pliers to carefully release and install the clip
• Do not over-bend the clip; replace if deformed or fatigued

The Lint Screen Housing Foam Seal is an OEM part for Whirlpool dryers. This seal is placed around the lint screen housing to prevent air leaks and ensure that the dryer operates efficiently by directing airflow properly through the lint screen. By maintaining a tight seal, this foam helps to optimize the dryer’s performance, reduce drying times, and prevent lint from escaping into the internal parts of the dryer, which can lead to potential maintenance issues and decreased efficiency.

Symptoms of a failing lint screen housing foam seal include:

• Increased lint buildup inside the dryer beyond the lint screen
• Longer drying times due to inefficient air circulation
• Excessive heat and humidity within the dryer

Causes of foam seal deterioration typically involve normal wear and tear, exposure to high heat which can degrade the material, or improper maintenance that can tear or dislodge the foam.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement blower wheel restores proper airflow by moving air through the appliance's blower housing and out the exhaust. A worn or stripped wheel can cause weak ventilation, vibration, and noisy operation.

• Attaches to the motor shaft and spins to move air through the blower housing and ducting
• Maintains steady airflow for efficient appliance performance and ventilation
• Typical failure signs: reduced airflow at the exhaust, rattling/scraping noises, wobble on the shaft, or cracked/missing fins
• Helps resolve vibration from an out-of-balance or damaged wheel

• Disconnect power; turn off gas supply before servicing
• Access the blower housing; remove debris and inspect seals before installation
• Transfer any reusable retainer, nut, clip, or set screw from the old wheel as required by your model
• Seat the wheel fully and secure per your model design (e.g., reverse-thread, retainer, or set screw); verify free rotation and clearance before reassembly

This cover screw secures appliance panels and covers, keeping components protected and aligned. Replace missing, stripped, or corroded screws to restore a tight fit and help eliminate rattles, gaps, or panels that won't stay in place.

• Attaches an access cover or panel to the appliance frame
• Helps maintain proper alignment to protect internal components
• Replaces missing, stripped, or rusted hardware
• Typical signs: loose or rattling panel, cover won't stay secure, damaged or rounded screw head

• Disconnect power before servicing
• Support the panel while removing and installing screws to prevent misalignment
• Start threads by hand to avoid cross-threading; do not overtighten
• Use a matching driver bit to avoid damaging the screw head

The Drum Support Roller Shaft - Right is an OEM part for Whirlpool dryers. This shaft provides support for the drum roller, allowing the dryer drum to rotate smoothly and efficiently during drying cycles.

You should replace the drum support roller shaft if it becomes worn, bent, or damaged. Causes of a bad drum support roller shaft can include regular wear and tear, overloading the dryer, or exposure to high temperatures, which can affect its structural integrity.

Symptoms of a bad drum support roller shaft include:

• Unusual noises such as squeaking or grinding during operation
• The dryer drum not rotating smoothly or becoming stuck
• Excessive vibration or wobbling of the dryer drum
• Visible wear or damage on the roller shaft

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This front bearing ring sits on the dryer's front bulkhead to provide a smooth, low-friction surface for the drum lip. Replacing a worn ring helps restore quiet, steady drum rotation and prevents scraping against the front panel. What it does:

• Supports the front of the drum and keeps it centered
• Provides a low-friction surface between the drum and front bulkhead
• Helps eliminate squealing, scraping, or grinding noises from the front
• Can address drum drag or rough, uneven rotation

• 1 bearing ring

• Disconnect power; shut off gas supply for gas models before servicing
• Remove the top and front panel to access the front bulkhead and drum
• Support the drum while replacing the ring; install in the same orientation as the original
• Spin the drum by hand to ensure smooth, quiet rotation before reassembly; inspect the belt, idler pulley, rollers, and felt seals while open

This drum baffle restores the internal lift inside the dryer drum to help separate clothes and promote even tumbling. Replacing a cracked or missing baffle can reduce banging noises and help restore consistent drying performance. What it does:

• Lifts and moves clothes for more even tumbling and airflow inside the drum.
• Helps prevent garments from bunching or wrapping around the drum during a cycle.
• A damaged or missing baffle can cause loud thumping, scraping noises, or uneven drying; replacing it addresses these common symptoms.
• Designed to match the OEM drum mounting points for proper fit and function.

• Disconnect power (and gas, if applicable) before servicing the dryer.
• Access typically requires removing the dryer front or drum; keep track of fasteners and take photos for reassembly.
• Use basic hand tools and avoid forcing parts; inspect mounting hardware and drum condition while replacing the baffle.

This felt kit seals the gap between the dryer drum and bulkhead to maintain proper airflow and smooth, quiet rotation. Replacing a worn seal can reduce noise, help prevent snags, and restore consistent drying performance.

• Forms a drum-to-bulkhead seal to keep heated air in the proper airflow path
• Cushions drum movement to minimize scraping or squealing sounds
• Helps prevent clothing from catching at the drum edge
• Common signs of wear: frayed or missing felt, visible gaps, unusual noise, longer dry times

• Disconnect power; turn off gas supply if applicable
• Access the drum and bulkhead; support the drum during service
• Remove the old seal and any residue; install the new felt evenly around the circumference
• After reassembly, rotate the drum by hand to ensure smooth contact and proper alignment

The Lint Screen Cover and Filter is an OEM part for Whirlpool dryers. It serves a dual purpose: the lint screen traps lint and debris from clothes during the drying process, preventing them from clogging the dryer vent, while the cover ensures the lint screen is securely positioned and contributes to optimal airflow within the dryer.
Causes of a bad part include tears or holes in the lint screen that allow lint to pass through and clog the vent, a cracked or broken cover that fails to secure the lint screen properly, or buildup of fabric softener and lint that reduces the effectiveness of the filter.

Symptoms of a bad Lint Screen Cover and Filter include:

• Increased drying times
• Excessive lint buildup around the dryer
• The dryer may run hotter than normal

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Lint Screen Cover and Filter is an OEM part for Whirlpool dryers. It serves a dual purpose: the lint screen traps lint and debris from clothes during the drying process, preventing them from clogging the dryer vent, while the cover ensures the lint screen is securely positioned and contributes to optimal airflow within the dryer.
Causes of a bad part include tears or holes in the lint screen that allow lint to pass through and clog the vent, a cracked or broken cover that fails to secure the lint screen properly, or buildup of fabric softener and lint that reduces the effectiveness of the filter.

Symptoms of a bad Lint Screen Cover and Filter include:

• Increased drying times
• Excessive lint buildup around the dryer
• The dryer may run hotter than normal

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Drum Support Wheel Retainer is an OEM part for Whirlpool dryers. This part secures the drum support wheels in place, ensuring that the dryer drum rotates smoothly and quietly during operation. The retainer is designed to fit precisely, preventing the support wheels from loosening or wobbling, which can lead to inefficient drying and increased wear on other components.

Over time, retainers can wear out or become damaged, potentially leading to a loose drum support wheel. This can cause the dryer to operate noisily, vibrate excessively, or even damage the drum itself if not addressed promptly.

Symptoms of a bad Drum Support Wheel Retainer include:

• Unusual noises, such as squeaking or thumping, coming from the dryer
• Excessive vibration during operation
• The dryer drum may feel unstable or wobble when turned by hand

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Drum Support Roller Shaft - Left is an OEM part for Whirlpool dryers. It is specifically designed to support the drum roller, ensuring smooth rotation of the dryer drum during operation. This shaft is essential for maintaining the drum's alignment and stability, allowing for effective and efficient drying of clothes.

Causes of a bad drum support roller shaft can include wear and tear from regular use, accumulation of lint and debris, or damage from overloading the dryer. These factors can lead to the shaft becoming worn out or bent, impairing the dryer’s performance.

Symptoms of a bad drum support roller shaft include:

• Squeaking or grinding noises during the drying cycle
• The dryer drum not rotating smoothly or being off-balance
• Increased drying times or incomplete drying of clothes

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Dryer Rear Drum Support Roller Kit is an OEM replacement part for  Whirlpool dryers, as well as Kenmore, Samsung and other brands. This kit includes the rear support rollers that are crucial for maintaining proper drum alignment and smooth rotation during the drying cycle. Matching belt 341241 and idler pulley WP691366.

Symptoms of a faulty Rear Drum Support Roller Kit include:

• Excessive vibration or shaking during drying cycles
• Loud grinding or squeaking noises from the rear of the dryer
• Uneven wear or visible damage to the rollers
• Potential drum misalignment, rubbing against the drum casing, or leaks

Causes of a bad Rear Drum Support Roller Kit can include wear and tear over time, excessive load imbalances, or physical damage from impact or mishandling.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore dryer models.

This support washer is a flat spacer used within the mechanism to support and separate mating parts, maintaining alignment and smoother movement. Replacing a worn washer helps reduce friction and wear so components operate properly. What it does:

• Maintains proper spacing and support between adjoining parts
• Helps prevent metal-to-metal contact, reducing scraping or grinding noises
• Addresses wobble or excess play when the original washer is worn, deformed, or missing
• Restores smoother movement and alignment in the assembly

• One support washer

• Disconnect power and water supply before servicing; for gas combos, also shut off gas
• Refer to your model's parts diagram for location and orientation
• Track the order of any shims/spacers during disassembly and reinstall in the same sequence
• Tighten fasteners to manufacturer guidance to avoid deforming the washer or binding parts

This lock nut secures appliance components and resists loosening from vibration. Replacing a stripped, rusted, or missing nut restores a firm, reliable connection to reduce noise and prevent parts from shifting or backing off.

• Secures brackets, shafts, pulleys, panels, or other hardware as designed by the manufacturer
• Helps prevent fasteners from loosening due to vibration and thermal cycling
• Common fix for rattling/vibration noises and components that work loose over time
• Replaces damaged, rounded, or missing original nut to restore proper fit

• Disconnect power and shut off gas/water supplies before servicing
• Remove the worn nut with the appropriate wrench or socket
• Start the new nut by hand to avoid cross-threading; tighten securely—do not overtighten
• Inspect the mating bolt/stud and any washers; replace if worn or damaged

10 - 16 x 1/2

This 6-foot, 4-prong range power cord provides a dedicated 240V connection for electric ranges and stoves, replacing worn or damaged cords to restore reliable power and reduce risk of arcing or intermittent operation. What it does

• Supplies 240V/30A power to the range via a 4-wire (hot/hot/neutral/ground) connection
• Replaces cords with frayed insulation, exposed conductors, or melted ends
• Stops symptoms such as no power to the range, tripping breakers, or intermittent heating
• Ensures a grounded connection when installed correctly

• One 6 ft, 4-prong (30 amp) range power cord, bagged

• Always disconnect household power at the breaker before starting work
• Use the existing strain relief or mounting bracket to secure the cord and prevent tugging

This dryer power cord connects an electric dryer to a 4-prong household outlet. Replace a worn or damaged cord to restore a safe, reliable power connection and help prevent intermittent power or overheating at the cord connection. What it does:

• Connects an electric dryer to a 4-prong receptacle for proper power and grounding
• Four-conductor design supports modern installation requirements
• Replaces cords with cracked insulation, loose prongs, or burned terminals

• 1 dryer power cord

• Disconnect power at the breaker before servicing
• Attach to the dryer terminal block per the appliance's wiring diagram and secure the strain relief

The Heating Element Connecting Wire is an OEM part for Whirlpool dryers, designed to provide a secure electrical connection to the dryer's heating element. This critical component ensures that the heating element receives the power it needs to generate heat for drying clothes.

Causes of a bad heating element connecting wire can include overheating, physical damage, or wear and tear over time. These issues can lead to a loss of connectivity, resulting in the heating element failing to heat up.

Symptoms of a bad Heating Element Connecting Wire include:

• The dryer not heating up despite having power
• Intermittent heating, suggesting a loose or faulty connection
• Unusual smells or signs of burning, indicating overheating or damage to the wire

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Terminal Block Screw Kit is an OEM replacement part for Whirlpool dryers. It is an assembly of screws used to securely fasten electrical terminal blocks within the dryer's control panel. Includes 3 screws and 3 nuts. Screw kit for dryer cord connector.

Over time, terminal block screws can become loose, corroded, or damaged due to regular use or electrical issues. If the terminal block screws are compromised, it can lead to electrical problems or even pose a safety hazard.

Symptoms of a faulty terminal block screw kit include:

• Intermittent power or failure of heating/fan elements to engage
• Repeated blowing of internal fuses or tripping of circuit breakers
• Hot terminal connections detected during operation
• Arc flashes, sparks, or smoke seen around the control panel area

This genuine Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore dryer models.

Includes screws and wire connectors. For the complete terminal block kit use 279320.

Specs: 10-16 x 1/2 inch.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Stop dryer downtime in its tracks — install the Whirlpool WP3392519 OEM Thermal Fuse in minutes.

OEM Quality Fast 1–2 Day Shipping* Free Tech Help

Why choose this fuse?

• Guaranteed OEM: built by Whirlpool to Whirlpool specs — no risky aftermarket clones.
• Broad compatibility: works with Whirlpool, Kenmore, Maytag, KitchenAid, Roper & more.
• Quick delivery: over 94 % of APP orders arrive in 2 days or less.

Fixes these common dryer problems

4-step DIY installation (≈10 min)

1. Unplug dryer and remove rear panel.
2. Locate thermal fuse on blower housing.
3. Transfer wires; secure new fuse with ¼-inch nut-driver.
4. Clean the vent & lint path before testing to prevent repeat failure.

*Video tutorial below.

Ready to get heat back?
Click Add to Cart now & enjoy industry-leading 1–2 day delivery on
