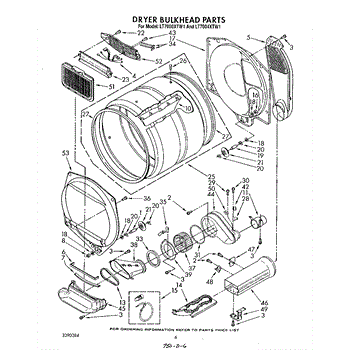

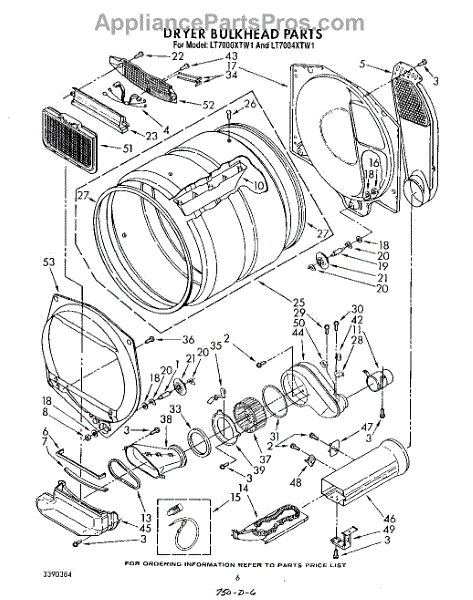

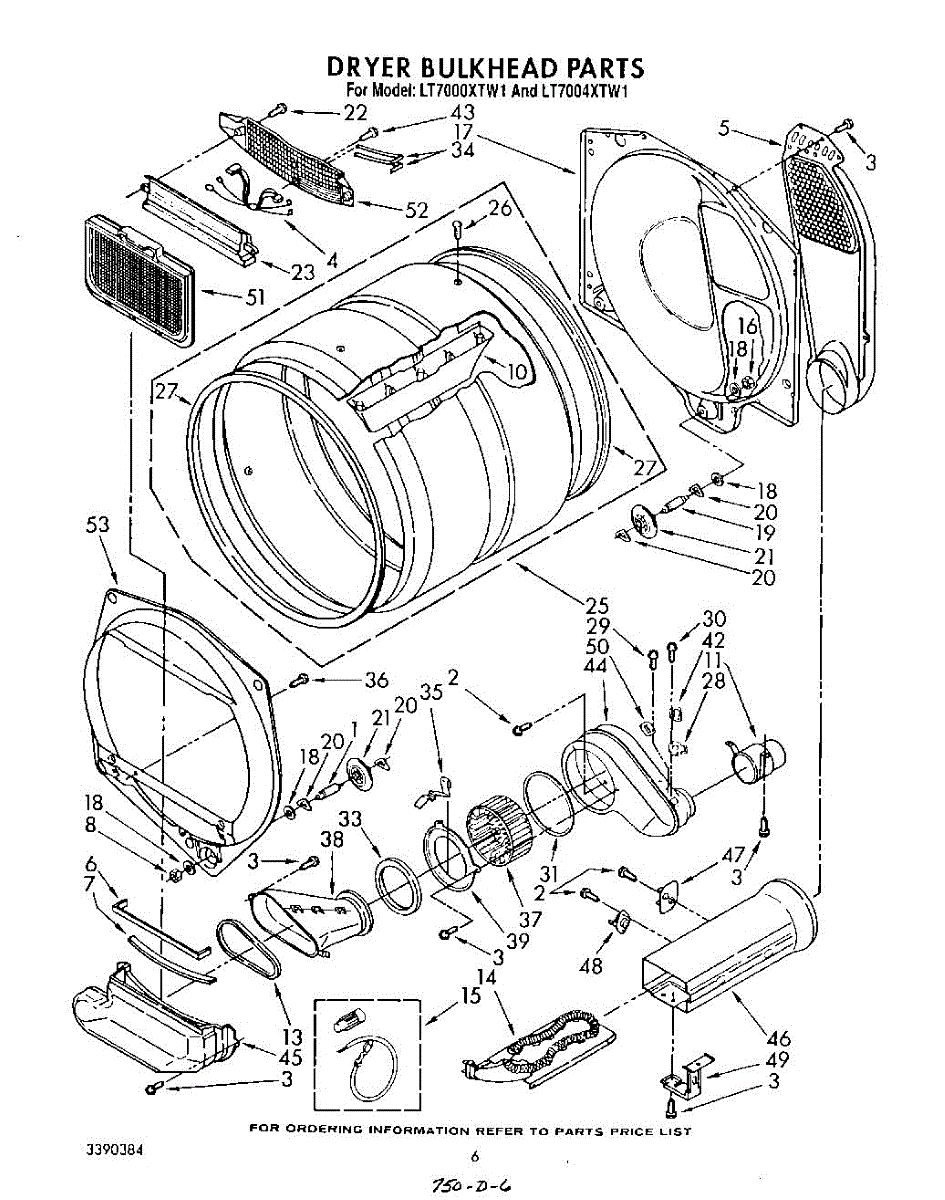

Parts for Whirlpool LT7004XTW1: 05 - Dryer Bulkhead Parts

Shaft that secures front drum support rollers in your dryer. Replace if worn, scored, or damaged to restore proper drum alignment and support.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Specs: 10-16 x 1/2 inch.

Channels dryer exhaust to external vent connection. Replace if rusted, leaking, or screen is damaged to restore proper airflow and drying performance.

Seals the dryer outlet housing to prevent air leaks and maintain venting efficiency. Replace if lint accumulates in cabin or moisture escapes. Verify fit.

Seals the dryer lint duct connection to direct airflow and prevent leaks. Replace if worn or damaged to improve drying efficiency. Verify fit.

This lock nut secures appliance components and resists loosening from vibration. Replacing a stripped, rusted, or missing nut restores a firm, reliable connection to reduce noise and prevent parts from shifting or backing off.

• Secures brackets, shafts, pulleys, panels, or other hardware as designed by the manufacturer
• Helps prevent fasteners from loosening due to vibration and thermal cycling
• Common fix for rattling/vibration noises and components that work loose over time
• Replaces damaged, rounded, or missing original nut to restore proper fit

• Disconnect power and shut off gas/water supplies before servicing
• Remove the worn nut with the appropriate wrench or socket
• Start the new nut by hand to avoid cross-threading; tighten securely—do not overtighten
• Inspect the mating bolt/stud and any washers; replace if worn or damaged

Replace a cracked, broken, or missing drum baffle inside your dryer. This lifter installs on the drum wall to help clothes tumble evenly during cycles.

Extends your dryer's exhaust duct to reach distant venting points. Replace if your current extension is crushed, kinked, or too short for proper routing.

Seals the blower housing to prevent air leaks that reduce drying efficiency. Replace if worn, cracked, or missing to restore optimal airflow.

Dryer not heating or taking multiple cycles to dry clothes? The heating element generates warmth during the drying cycle. DIY-friendly repair.

Connects power to your dryer's heating element. Replace this wire if it's frayed, burned, corroded, or broken to restore the electrical connection.

Front interior panel that supports the drum and directs airflow. Replace if worn, cracked, or causing drum misalignment. Confirm fit with your model number.

The washer is an OEM replacement part for Whirlpool clothes dryers. This part is located on the drum roller support shaft in your dryer. The exterior of the washer is 1 inch in diameter with a hole in the middle and is made of metal. They are installed alongside the drum support rollers and idler pulleys. They help prevent the rollers and pulleys from bumping up against the brackets they are installed on. If you are replacing the rollers, we suggest you replace the washers at the same time.

Causes can be normal wear to bearing surfaces over extended use cycles. Accidental impacts may also potentially bend or damage shaft components.

Symptoms of a bad roller shaft include:

• Noisy squeaks or clanks emanating from within
• Jerky or unbalanced tumbling of dryer loads
• Roller assemblies binding or sticking

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

The Drum Support Shaft for Left Hand Threads is an OEM replacement part for Whirlpool dryers. This component is essential for securing and supporting the drum as it rotates during the drying cycle. It helps maintain the drum’s alignment and stability, ensuring smooth and efficient operation of the dryer.

Over time, the drum support shaft can become worn out or damaged due to continuous use, the weight of laundry loads, or improper installation. Additionally, exposure to high temperatures and repeated mechanical stress can cause the shaft to weaken or fail, leading to issues with the dryer’s performance.

Symptoms of a bad drum support shaft include:

• The drum not rotating smoothly or making grinding noises
• Excessive wobbling or vibrating of the drum during the drying cycle
• The dryer taking longer to dry clothes or not drying them evenly
• Visible damage or wear on the shaft or its threads
• The drum becoming misaligned or not sitting properly within the dryer

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Secures drum support rollers to their shafts in your dryer. Replace if broken, missing, or damaged during roller maintenance to keep drum wheels stable.

Replacement drum support roller for dryers. Mounts on the drum frame to support and guide the drum as it rotates. Replace if cracked, worn, or damaged.

Replacement mounting screw for securing handles, panels, and internal components. Needed when original screws are stripped, lost, or broken during repairs.

Houses and secures the lint filter in your dryer. Replace if cracked, warped, or broken to prevent lint bypass and maintain airflow. Verify fit by model.

If clothes are snagging or drying unevenly, a damaged drum may be the cause. This stamped steel drum assembly restores smooth tumbling. Moderate DIY repair.

Seals the drum perimeter to prevent abrasion and maintain temperature. Replace when worn, torn, or causing marks on clothes. Verify fit by model number.

Replace worn, stripped, or missing 8-18 x 3/8 machine screws that secure control panels, trim pieces, and brackets on your appliance. Restores tight fit.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Seals the blower housing to prevent air leaks that reduce drying efficiency. Replace if worn, cracked, or missing to restore optimal airflow.

Seals the joint between the lint screen housing and blower assembly. Replace when worn to prevent lint buildup in cabinet. Confirm fit by model number.

Dryer shuts off before clothes are dry? The moisture sensor bar detects dryness levels. Easy 10-30 minute DIY fix with video guide included.

Secures panels and components to prevent rattling and vibration. Replace when clips break or loosen. Verify fit with your laundry center model number.

Screw secures appliance panels and access covers. Replace missing, stripped, or corroded screws to restore tight fit and eliminate rattles or gaps.

Dryer making rattling noise or not heating properly? A cracked blower wheel disrupts airflow. Moderate DIY repair—requires panel removal and wrench work.

This transition duct directs dryer exhaust from the appliance to the home vent, helping maintain proper airflow and reduce vent leaks. It keeps exhaust moving out of the cabinet for safer, more efficient drying. What it does:

• Channels dryer exhaust from the appliance outlet to the household vent
• Helps prevent lint and moisture from escaping into the cabinet or laundry area
• Can reduce long dry times and overheating caused by restricted or damaged ducting
• Commonly replaced when venting is crushed, torn, or leaking

• Disconnect power (and gas, if applicable) and move the appliance away from the wall before replacing the duct
• Inspect adjoining vent hoses and seals; replace or reseal as needed for a tight fit
• Use appropriate clamps or connectors and follow local venting codes for safe exhaust routing

Encloses the blower wheel and seals the housing for efficient airflow. Replace if cracked, broken, or missing to restore proper air movement.

The Cycling Thermostat is an OEM part for Whirlpool dryers. It regulates and monitors the temperature inside the dryer during the drying cycle. It ensures that the dryer doesn't overheat and prevents potential damage to clothes or the dryer itself.

Causes of a faulty cycling thermostat can include wear and tear over time, electrical issues, or sensor malfunction.

Symptoms of a bad cycling thermostat may include:

• Clothes taking longer than usual to dry
• Inconsistent drying results
• Overheating or burning smell
• The dryer not heating at all

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Blower housing assembly that directs airflow from the drum to the exhaust vent. Replace if cracked, damaged, or causing excessive noise in your dryer.

Replaces damaged or missing lint duct hose in your laundry center dryer. Directs lint and moisture from the drum to the exhaust vent system.

Dryer not heating? A warped or damaged heater box lets heat escape, reducing efficiency. This housing secures the element and protects components.

Dryer not heating? This thermal cut-off kit prevents overheating by shutting off heat when temps get too high. DIY-friendly repair under $60.

Dryer won't heat or shuts off during cycle? High limit thermostat cuts power when overheating occurs. Quick 2-screw fix restores heating function.

Fix a dryer that won't heat or shuts off after 10-15 minutes with this thermal cutoff fuse. Common DIY repair for temperature detection issues.

Traps lint and debris during drying to maintain airflow and efficiency. Replace when torn, warped, or clogged. Verify fit by model number.

This front drum bulkhead is the stationary front panel that supports the dryer drum and seals the drum opening to maintain proper airflow and drum alignment for reliable drying performance. What it does:

• Provides a mounting surface and seal for the front of the dryer drum to help maintain correct drum alignment
• Directs airflow from the drum into the exhaust plenum for consistent drying
• Reduces rubbing and wear on the drum edge and front roller or glide surfaces
• Can help stop visible grinding, scraping or excess vibration when worn or cracked

• One front drum bulkhead

• Turn off power and disconnect the dryer before beginning service
• Handle plastic parts carefully to avoid cracking; check surrounding seals and rollers during replacement
• Some models require removal of the front panel and drum for access; keep fasteners organized for reassembly
