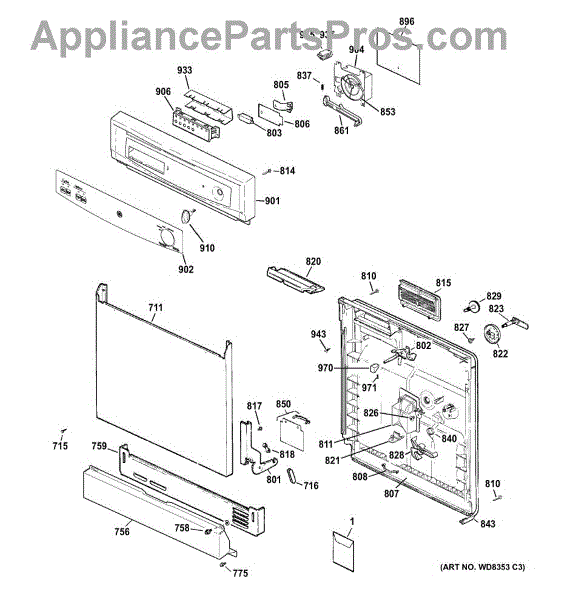

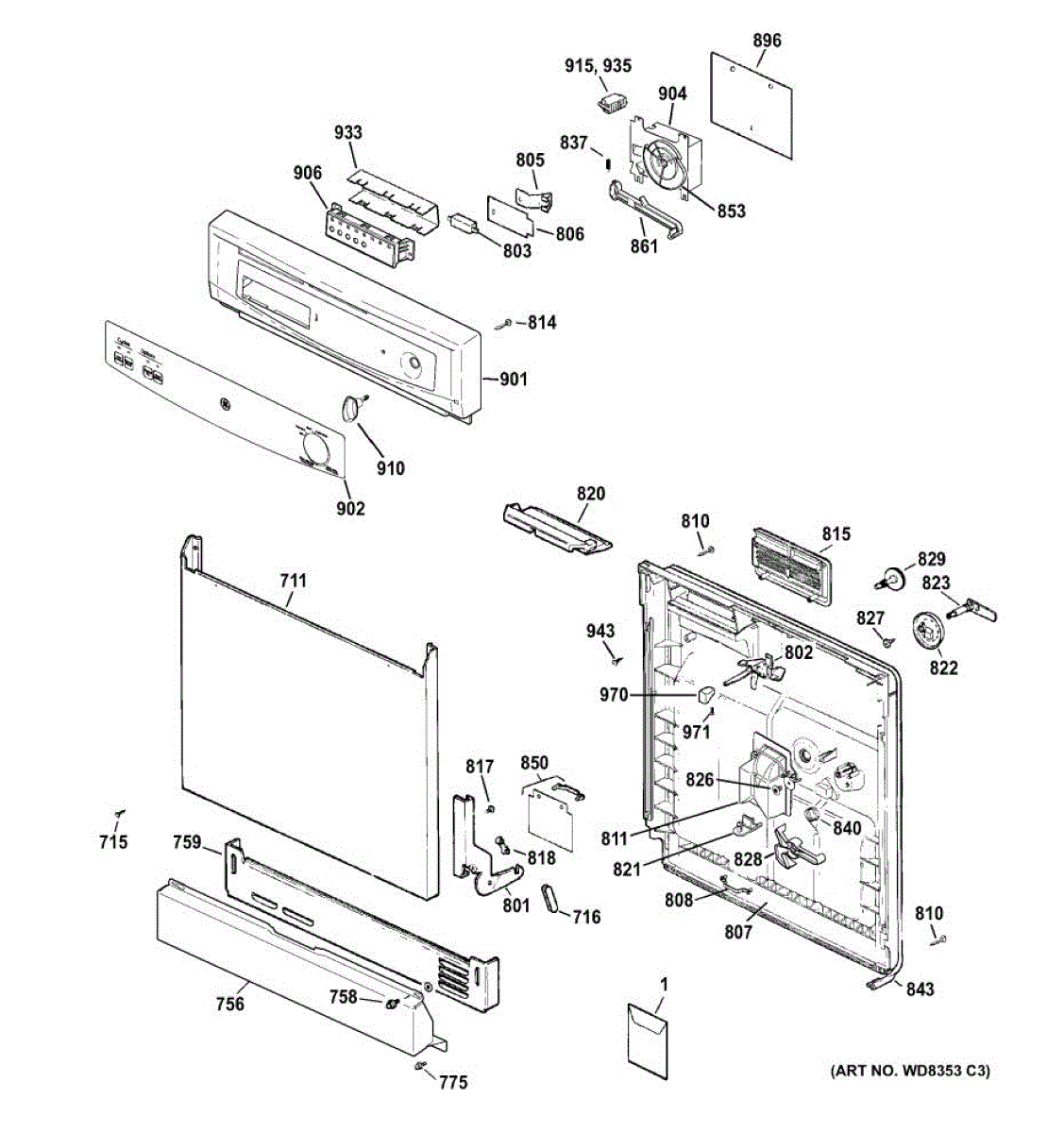

Parts for Ge GSD3300D35CC: 01 - Escutcheon & Door Assembly Parts

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Replaces cracked, dented, rusted, or split dishwasher front panel. Restores appearance and provides secure mounting for controls and components.

Color: White.

Color: Black

Hex washer head screw secures panels, brackets, and internal components in dishwashers. Replace stripped, rusty, or missing fasteners to restore fit.

The Hinge Arm Link is an OEM part for GE dishwashers. This component functions as a connection point between the dishwasher door and the hinge mechanism, allowing the door to open and close smoothly. The hinge arm link ensures that the door can bear the weight of itself, often laden with a mounted dish rack when fully loaded, without straining the hinges or misaligning.

Causes of damage to the hinge arm link often involve regular wear and tear from the constant motion of opening and closing the dishwasher door.

Symptoms of a bad Hinge Arm Link include:

• Difficulty opening or closing the dishwasher door
• A door that won't stay closed or opens unexpectedly
• Visible wear or damage to the hinge arm link, such as bending, breaking, or severe wear marks

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Finished access panel for dishwasher front. Replaces cracked, rusted, or damaged panels. Restores clean appearance and protects internal components.

Covers the lower front service opening on your dishwasher. Replace if cracked, dented, scratched, or missing to restore a clean appearance.

White dishwasher access panel that covers the lower front. Replace if cracked, rusted, missing, or when converting your dishwasher to a different color.

Replacement 8-32 x 1/4 screw with HXP head for securing dishwasher panels, brackets, and assemblies. Replaces stripped, missing, or damaged screws.

Finished toe kick panel that covers the gap between your dishwasher and floor. Replace if cracked, scratched, rusted, or missing for a clean look.

Almond toe kick panel covers the dishwasher base opening beneath the door. Replaces rusted, cracked, or missing kickplates to restore appearance.

White lower front toe kick panel covers the dishwasher base opening. Replace your cracked, dented, corroded, or missing panel to restore a finished look.

Size: 10-16 ab.

Right-hand hinge that secures and guides your dishwasher door for proper alignment and smooth opening. Replace if cracked, broken, or worn to restore stability.

Left side door hinge for dishwashers. Secures and guides the door for proper alignment and smooth operation. Replaces bent, broken, or worn hinges.

If your dishwasher won't start or the door won't lock, the door latch assembly is likely failed. DIY-friendly repair takes about 30 minutes to replace.

The Interlock Switch is an OEM replacement part for GE electric and gas dryers. This safety component monitors the door closure, preventing operation if the door is not securely closed and latched. The switch measures 2 inches long and 1/2 inch wide.

Symptoms of a faulty interlock switch include:

• Dryer failing to start or running with the door open
• Timer display not illuminated when start button is pressed
• Inability to open the dryer door during operation
• Dryer suddenly stopping mid-cycle before fully drying clothes

Causes relate to the internal component contacting the door frame over 50,000 open/close cycles potentially exposing wiring to wear. Regular cleaning the external switch area prevents dust or lint buildup skewing performance.

This genuine GE switch is compatible with Hotpoint and RCA dryers as well.

Note: Can be used as a dishwasher door switch on specific models. Check your model number for the most accurate results.

Metal contact leaf for dishwasher switch assemblies. Replace if the original contact is bent, corroded, worn, or missing to restore proper circuit closure.

This is a small protective shield that covers and insulates an electrical switch inside the dishwasher. It prevents moisture, heat, and debris from reaching the switch contacts, helping to ensure safe and reliable operation. Replace this shield if it is cracked, warped, or missing, which could expose the switch to water damage and lead to electrical issues or erratic dishwasher behavior.

Replaces the interior face of your dishwasher door. Ideal when the door liner is cracked, dented, melted, or visibly worn. Restores a clean surface.

Secure wire harnesses in your dishwasher with this harness clip. Replace if wires are loose or clip is broken. Verify fit with your model number.

Replacement mounting screw for dishwasher door panels, control assemblies, and internal components. Needed when original screws are stripped, rusted, or missing.

If your dishes have spots or dry poorly, the rinse aid dispenser may be clogged or leaking. This tank assembly restores proper rinse aid delivery.

Replacement door vent directs humid air out during the dry cycle. Install inside the door panel to replace a cracked, clogged, or missing vent.

Size: 8-32 x 5/8 inch.

Cushions and seals the dishwasher door vent to route steam safely while protecting the control area. Replace if worn, moldy, or causing leaks.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Secures the rinse aid dispenser tank in your dishwasher. Replace if the tank is loose, rattles, or detaches during cycles. Verify fit with your model.

Dispenser won't close or stay shut? This dishwasher detergent cup cover securely latches to prevent mid-cycle opening. Moderate DIY repair, 1 hour.

Dishwasher detergent cup won't stay closed or won't open fully? This soap dispenser lever controls detergent release. DIY repair in 15 minutes.

Size: 10-12 x 1/2 inch.

Detergent cup won't stay closed? This dispenser latch secures the detergent cup during wash cycles. Direct replacement part with video guide available.

The Fill Cap Assembly is an OEM part for GE dishwashers. This assembly includes the cap that covers the opening where rinse aid or other additives are poured into the dishwasher. It ensures that the additives are securely contained and properly dispensed during the wash cycles, contributing to effective cleaning and drying.

Over time, the fill cap assembly can become damaged due to regular use, exposure to cleaning agents, or accidental mishandling. A compromised fill cap can lead to leaks or improper dispensing of rinse aid, affecting the dishwasher's performance.

Symptoms of a bad fill cap assembly include:

• Rinse aid or additives leaking from the dispenser
• The cap not securing properly or coming off easily
• Improper dispensing of rinse aid
• Visible cracks or damage to the cap

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Replacement spring for dishwasher detergent cup door assembly. Provides tension to keep cup door latched closed. Replace if broken, stretched, or lost.

Seals dishwasher door to prevent leaks during wash cycles. Replace if worn, torn, or causing water leakage. Press-fit installation, no glue needed.

Fix a dishwasher that won't advance through cycles or gets stuck mid-wash with this timer cam. Regulates wash cycle timing via internal camshaft design.

Detergent cup not opening during wash cycle? This actuator lever connects the timer to the dispenser lid. Moderate DIY repair, about 35 minutes.

Dishwasher won't advance through cycles or stops mid-cycle? This timer controls wash, rinse, and dry durations. Moderate DIY repair, 1-2 hours.

Fix dishwasher buttons that won't respond or cycles that won't start with this push button switch. Direct replacement for worn control panel buttons.

Replace your dishwasher's worn, cracked, or missing timer control knob. Installs on the timer shaft to restore manual cycle selection and dial control.

Replaces a cracked, stripped, or broken cycle control knob on your dishwasher. Mounts to the timer shaft to select and advance wash cycles.

Color: white. It measures about 2 inches in diameter by 2-1/2 inches deep.

Includes 12 terminals.

Replacement knob latch handle for dishwashers. Secures and indexes the control knob for reliable position selection. Needed when original is broken or worn.

White plastic knob for dishwasher door latch handle. Replaces broken, cracked, or missing latch knobs. Slides onto latch assembly and secures with screw.

Black plastic knob that covers the dishwasher door latch handle. Replace if your knob is missing, cracked, or broken. Installs over the latch lever.

Includes 12 screws.
