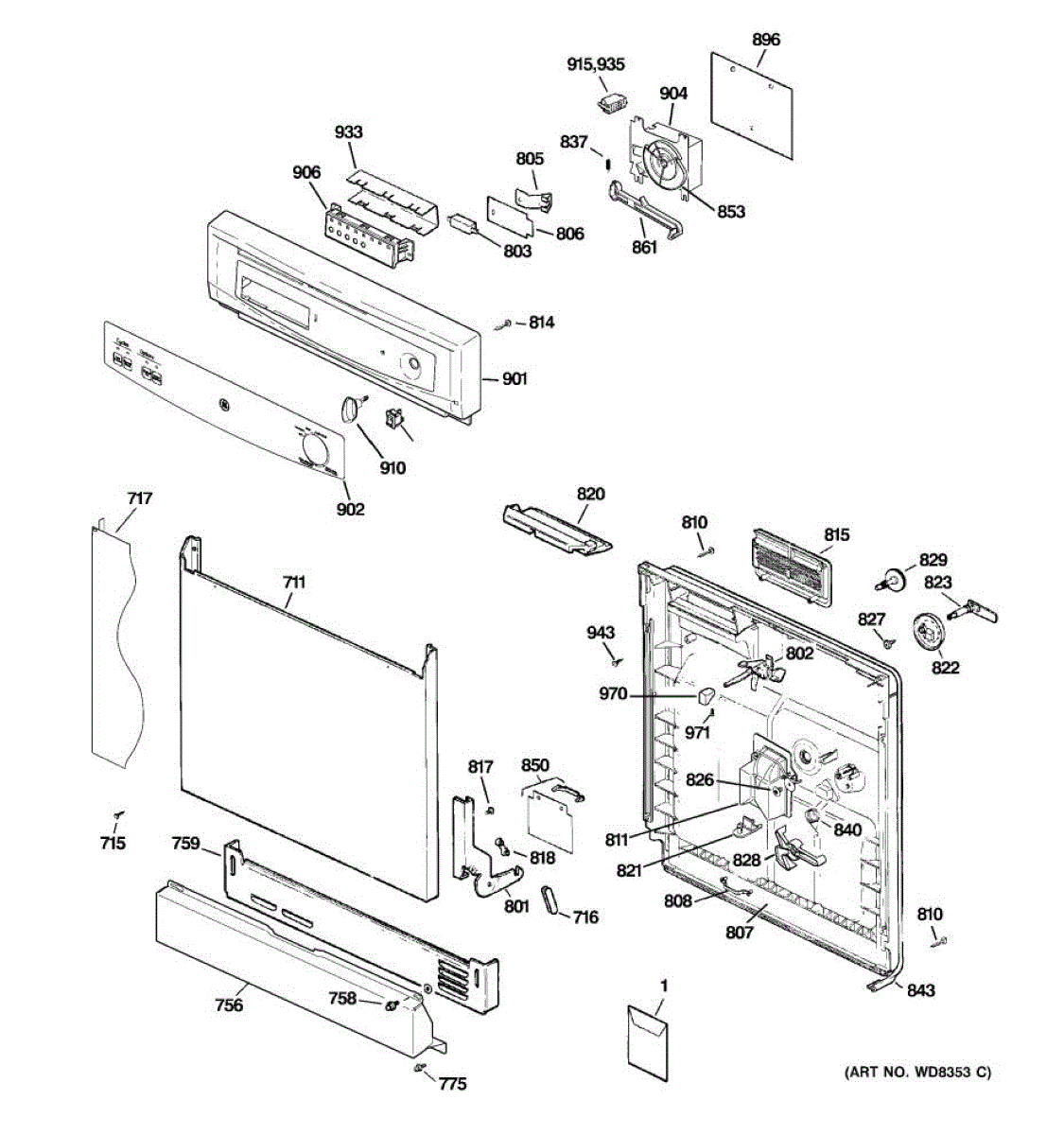

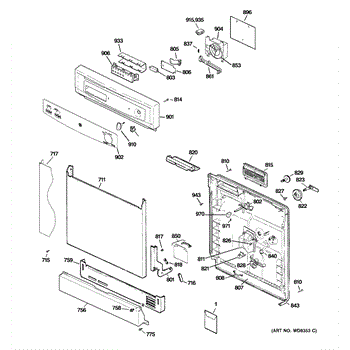

Parts for Hot Point HDA2000V00BB: 01 - Escutcheon & Door Assembly Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

Color: Black

Color: White.

White. 8-18 x 5/16 inch.

The Hinge Arm Link is an OEM part for GE dishwashers. This component functions as a connection point between the dishwasher door and the hinge mechanism, allowing the door to open and close smoothly. The hinge arm link ensures that the door can bear the weight of itself, often laden with a mounted dish rack when fully loaded, without straining the hinges or misaligning.

Causes of damage to the hinge arm link often involve regular wear and tear from the constant motion of opening and closing the dishwasher door.

Symptoms of a bad Hinge Arm Link include:

• Difficulty opening or closing the dishwasher door
• A door that won't stay closed or opens unexpectedly
• Visible wear or damage to the hinge arm link, such as bending, breaking, or severe wear marks

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This finished access panel mounts at the lower front of the dishwasher to cover the service opening. It restores a clean, factory appearance while helping shield internal components from debris and incidental contact. What it does:

• Covers the lower front service opening at the base of the dishwasher
• Helps protect wiring, pump area, and insulation from debris and accidental contact
• Contributes to overall noise containment and proper ventilation as designed
• Replaces a panel that is dented, bent, rusted, rattling, or missing

• 1 finished access panel

• Disconnect power (and water, if necessary) before servicing the appliance.
• Remove mounting screws securing the existing panel and set the old panel aside.
• Position the new panel and secure it with the original hardware; ensure it sits flush and doesn't interfere with door operation.
• Restore power and check for proper fit and vibration-free operation.

Color: White

A replacement 8-32 x 1/4 screw with an HXP-style head that secures panels, brackets and small appliance assemblies. Replacing stripped or missing screws restores proper fit and helps reduce rattling and loose parts. What it does:

• Fastens panels, brackets, grounding tabs and small components in appliance assemblies.
• Restores secure mounting when original screws are missing or damaged.
• Helps stop vibration-related noise and misaligned panels.
• Useful when reassembling parts after service or component replacement.

• Always disconnect power before working on electrical appliances.
• Use the correct driver for the HXP head to avoid stripping; do not force the screw.
• Tighten to hold parts snug—do not overtighten to avoid thread or part damage.
• Replace like-for-like; match thread size and head style to the original fastener.

This lower front kickplate for dishwashers covers the base opening to protect internal components and complete the appliance's appearance. The almond-finish toe kick helps reduce noise escape and restores a clean look when the original panel is damaged or missing. What it does:

• Covers and protects the lower access area, hiding leveling legs and insulation
• Helps contain sound from the base area
• Restores a clean, finished front appearance
• Replace if the kickplate is cracked, bent, rattling, discolored, or missing

• 1 toe kick panel (almond)

• Disconnect power at the breaker before starting; edges may be sharp
• Open the door to access and remove the mounting screws securing the old panel
• Reuse original screws/insulation; align the new panel and set height using the mounting slots
• Tighten screws evenly and verify the door opens/closes without rubbing the panel

This lower front toe kick panel restores a clean, finished look at the base of the dishwasher and helps shield the bottom area from debris and bumps. Replace a cracked, dented, or missing panel to secure the opening.

• Covers and conceals the lower access opening at floor level
• Helps protect base components from accidental contact and household debris
• Restores appearance when the original panel is damaged or missing
• Common symptoms: visible gap at the bottom front, loose or rattling kickplate, bent or broken panel

• Disconnect electrical power before servicing
• Open the door to access and remove the mounting screws holding the old panel
• Position the new panel, align tabs/slots, and reinstall screws—do not overtighten
• The panel clears the floor and does not interfere with door operation

Size: 10-16 ab.

This hex-washer-head screw secures panels, brackets, and internal components in your dishwasher. Replacing a stripped, rusty, or missing fastener restores a tight fit, reduces rattling, and helps keep assemblies properly aligned during operation.

• Fastens components to frames, panels, and mounting brackets inside the dishwasher
• Helps maintain alignment and resist loosening from vibration
• Replaces missing, worn, or corroded screws
• Signs of trouble: loose or rattling panels, hardware that won't tighten, or a visible missing screw

• Disconnect power and water supply before servicing
• Note the original screw's location/orientation and install in the same hole
• Start threads by hand to avoid cross-threading; use the correct nut driver or socket
• Tighten snugly without over-torquing to prevent stripping

• Head style: Hex washer-head
• Size: #10-16 thread, 3/8 in length
• Sold individually

This right-hand arm hinge secures and guides the appliance door or access panel for proper alignment and smooth operation. It replaces a worn or broken hinge to restore correct door movement and positioning. What it does:

• Attaches the door to the cabinet and provides a pivot point for opening and closing
• Keeps the door aligned to prevent sagging, gaps, or rubbing
• Restores smooth, consistent door motion when the original hinge is bent, worn, or broken
• Helps reduce stress on the door and adjacent components caused by misalignment

• Install with power disconnected and appliance stable to avoid injury
• Tighten mounting fasteners securely but avoid over-torquing to prevent damage
• If replacing both sides or multiple components, inspect companion hinge and fasteners for wear

This left-side door arm hinge secures and guides the appliance door, restoring proper alignment and smooth opening/closing. It replaces a bent or broken hinge to reduce sagging and uneven door movement. What it does:

• Supports the door on the left side and helps control its travel and position
• Restores proper door alignment when a hinge is bent, worn, or broken
• Helps eliminate door sagging, scraping, or uneven closing
• Works with existing hinge pins and mounting points to stabilize the door

• One left-side arm hinge

• Installation requires basic hand tools; refer to your model's service manual for step-by-step instructions
• Disconnect power (and water for washers) before starting any repair
• Inspect adjacent hinge hardware and fasteners; replace if worn to ensure proper fit and function

The Door Latch Assembly is an OEM part for GE dishwashers. This part ensures the door of your dishwasher shut and locks securely. This part is integral for the safe and efficient operation of your appliance, as it helps to prevent water from leaking during cycles and ensures the dishwasher only runs when the door is properly closed.

Causes for door latch issues typically involve regular wear and tear, accidental damage from forceful use, or degradation of the latch's mechanical or electrical components.

Symptoms of a malfunctioning Door Latch Assembly include:

• Difficulty in closing or locking the dishwasher door
• The dishwasher not starting, indicating the door isn't recognized as securely latched
• Water leakage around the door, suggesting an incomplete seal
• Noticeable damage to the latch itself, impairing its function

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Interlock Switch is an OEM replacement part for GE electric and gas dryers. This safety component monitors the door closure, preventing operation if the door is not securely closed and latched. The switch measures 2 inches long and 1/2 inch wide.

Symptoms of a faulty interlock switch include:

• Dryer failing to start or running with the door open
• Timer display not illuminated when start button is pressed
• Inability to open the dryer door during operation
• Dryer suddenly stopping mid-cycle before fully drying clothes

Causes relate to the internal component contacting the door frame over 50,000 open/close cycles potentially exposing wiring to wear. Regular cleaning the external switch area prevents dust or lint buildup skewing performance.

This genuine GE switch is compatible with Hotpoint and RCA dryers as well.

Note: Can be used as a dishwasher door switch on specific models. Check your model number for the most accurate results.

This replacement switch leaf is the small metal contact that completes a switch circuit when actuated, restoring reliable electrical contact and helping return normal operation to the affected control or component. Easy-to-replace individual contact for switch assemblies. What it does:

• Serves as the conductive contact inside a switch assembly to open and close an electrical circuit
• Engages with the switch actuator to make or break power to a component
• Common symptom link: intermittent or failed operation of the circuit the switch controls (flickering, no power, or inconsistent response)
• Small, replaceable part used when the original contact is worn, bent, or corroded

• Disconnect power to the appliance before beginning any repair
• Handle the contact by the edges; avoid bending or contaminating the mating surfaces
• Inspect the surrounding switch housing; replace the full switch assembly if the housing or actuator is damaged
• Reassemble and test the switch operation after installation

This shield is a protective heat shield that helps protect internal components from heat and debris, extending appliance life and preventing premature damage. It's a direct-fit replacement for the damaged or missing shield. What it does:

• Protects wiring, insulation and nearby parts from excessive heat
• Prevents debris and grease from contacting sensitive components
• Helps stop heat-related odors or smoke caused by contact with hot surfaces
• Reduces risk of component failure due to heat exposure

• One protective shield

• Disconnect power (unplug or switch off circuit breaker) before starting any repair
• Allow appliance to cool completely to avoid burns
• Handle carefully—edges may be sharp; use gloves and proper tools
• Follow OEM disassembly steps and torque recommendations;

Inner door panel replaces the interior face of the appliance door, restoring a clean surface and proper support for door components so the door can close and seal as intended. Ideal when the door liner is cracked, dented, or visibly worn. What it does:

• Serves as the interior surface of the door and supports the inner glass or window.
• Provides a mounting surface for latches, seals, and related hardware to help maintain a proper door closure.
• Reduces rattling, visible damage, or interior door gaps that can affect operation.
• Protects internal door components from debris and normal wear.

• Disconnect power and unplug the appliance before starting any repair.
• Use basic hand tools to remove door trim or screws; keep all fasteners for reassembly.
• Handle inner glass and sharp edges carefully—wear gloves and eye protection.
• Refer to the appliance's service manual or OEM instructions for model-specific removal and reinstallation steps.

Specs: 8-18 ab tr 7/8 s

This tank rinse aid assembly holds and dispenses rinse aid during the dishwasher's final rinse to help reduce spotting and improve drying. Replaces a worn or leaking dispenser to restore proper rinse-aid delivery. What it does:

• Stores and meters rinse aid into the final rinse cycle to promote better drying and fewer water spots.
• Can fail to dispense or leak when cracked, clogged, or worn.
• Common symptom indicators: no rinse-aid release, persistent spotting/film on dishes, or visible leaks near the dispenser area.
• Restoring this part often resolves rinse-aid delivery issues without replacing larger components.

• Disconnect power to the appliance before servicing to avoid shock or injury.
• Access typically requires removing the door inner panel or lower access panels; follow your model's service manual for exact disassembly steps.
• Inspect surrounding seals and mounting points for damage or residue when replacing the assembly.
• Use only manufacturer-approved replacement parts and torque/fastening practices per the service guide.

The GE screw is an OEM replacement part responsible for securing various components and parts of the dishwasher together. The screw is designed to provide a tight and secure connection for different panels, brackets, or other elements within the dishwasher. It plays a crucial role in maintaining the structural integrity of the appliance by preventing loose parts.

Common causes of a bad screw can include regular wear and tear from frequent use, exposure to moisture leading to corrosion, or damage from over-tightening. A compromised screw can result in loose or unstable components, which can affect the dishwasher's performance and safety.

Symptoms of a bad screw include:

• Loose or wobbly components within the dishwasher
• Difficulty in securing parts properly
• Visible rust or corrosion on the screw
• The screw head being stripped or damaged

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This replacement door vent directs humid air out of the dishwasher during the dry cycle. Restoring a damaged or missing vent helps maintain proper airflow and reduce unwanted moisture around the door area. What it does:

• Vents steam from the tub to help manage moisture during drying
• Routes airflow away from the door and control area
• Helps limit condensation and odor buildup inside the door
• Common signs of failure: visible cracks or broken louvers, steam/moisture escaping at the door top, water spots near the vent, or a loose/rattling vent

• 1 door vent

• Disconnect power at the breaker before servicing
• Open the door; remove screws or release tabs to remove the old vent (varies by model)
• Note orientation, seat the new vent fully, and secure without overtightening
• Reassemble and run a short cycle to check for proper sealing and airflow

This vent pad cushions and seals the dishwasher's door vent, helping route steam out of the tub while protecting the inner door and control area from moisture. Replacing a worn pad can help stop vent leaks and rattling.

• Creates a seal between the vent assembly and inner door liner to contain moisture
• Helps channel humid air during drying and reduces steam escaping at the vent opening
• Cushions the vent assembly to minimize vibration and noise
• Typical symptoms of a failed pad: steam or water at the top of the door near the vent, moisture inside the console, or a rattling vent

• Disconnect power at the breaker and shut off water before servicing
• Open the door and remove inner-door screws to access the vent assembly
• Note pad placement; install the new pad in the same location with clean, dry mating surfaces
• Reassemble and run a short cycle to check the vent area for leaks

The Detergent cup cover is an OEM component for GE dishwashers. It serves to protect the detergent cup assembly while allowing for easy access. Made of durable plastic, the cover clicks securely into place during operation to prevent accidental opening.

Causes of a bad detergent cup cover include cracks or breaks from heavy use over time.

Symptoms of a bad detergent cup cover can include:

• Difficulty opening or closing the detergent cup cover properly
• Portions of the cover assembly no longer intact or missing
• Leaks developing around the perimeter of the cover

This genuine GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Soap Dispenser Lever is an OEM part for GE dishwashers. It operates the soap dispenser door, releasing detergent into the dishwasher at the appropriate time during the wash cycle. This lever ensures that detergent is dispensed efficiently for optimal cleaning performance.

Causes of a bad soap dispenser lever can include wear and tear over time, accumulation of detergent residue, or damage due to accidental mishandling or impact. When the lever malfunctions, the detergent might not be released properly, leading to poor cleaning results.

Symptoms of a bad soap dispenser lever include:

• The detergent not being dispensed during the wash cycle
• The dispenser door not opening or closing correctly
• Residual detergent left in the dispenser after the cycle

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Size: 10-12 x 1/2 inch.

The Detergent Cup Latch is an OEM part for GE dishwashers, specifically designed for certain models. It is located on the detergent dispenser assembly. When the detergent cup is loaded with detergent, the latch holds it in place and prevents it from accidentally opening or spilling during the wash cycle.

Causes of a faulty or damaged detergent cup latch can include regular wear and tear, misalignment, or breakage. These factors can result in issues such as the detergent cup not staying closed, detergent not being dispensed properly, or leaks from the detergent compartment.

Symptoms of a bad detergent cup latch may include:

• The detergent cup not staying closed during the wash cycle
• Detergent not being released or dispensed into the dishwasher
• Leaks or spills from the detergent cup area

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Fill Cap Assembly is an OEM part for GE dishwashers. This assembly includes the cap that covers the opening where rinse aid or other additives are poured into the dishwasher. It ensures that the additives are securely contained and properly dispensed during the wash cycles, contributing to effective cleaning and drying.

Over time, the fill cap assembly can become damaged due to regular use, exposure to cleaning agents, or accidental mishandling. A compromised fill cap can lead to leaks or improper dispensing of rinse aid, affecting the dishwasher's performance.

Symptoms of a bad fill cap assembly include:

• Rinse aid or additives leaking from the dispenser
• The cap not securing properly or coming off easily
• Improper dispensing of rinse aid
• Visible cracks or damage to the cap

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Detergent cup spring is an OEM component for GE dishwashers. As part of the detergent cup assembly, this spring ensures the detergent cup door remains securely closed during the wash cycle. It provides just the right amount of pressure to keep dishes clean while preventing leaks or spills.

Causes of a bad detergent cup spring include general wear and tear, repeated use breaking down the coils of the spring, or damage from forceful handling.

Symptoms of a bad detergent cup spring are:

• Detergent residue building up outside the detergent cup area
• Signs of liquid detergent leaks underneath the detergent cup door
• The detergent cup door remains slightly ajar during the cycle

This genuine GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Dishwasher Door Gasket is an OEM part for GE dishwashers. It forms a seal around the dishwasher door to prevent water from leaking during the wash cycle. The gasket has an approximate length of 89 inches.

Causes of a bad door gasket can include wear and tear over time, improper cleaning or maintenance, or damage from sharp objects or harsh chemicals. These issues can cause the gasket to become brittle, cracked, or misshapen, compromising its sealing capability.

Symptoms of a bad door gasket include:

• Water leaking from the bottom of the dishwasher door
• Visible cracks or tears in the gasket
• The dishwasher door not closing properly
• Excess moisture around the dishwasher area

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Note: For the short 4" piece of gasket in the bottom middle, also order WD08X10015.

The Timer Cam is an OEM replacement part for GE dishwashers. It is part of the timer that helps regulate the various wash cycles using an internal camshaft design.

Gradual wear on cam material or lubrication issues over many cycles tend to cause timer malfunctions. Electrical faults in tiny circuit boards standing up to steam/heat are also possible.

Symptoms include:

• Inconsistent or shortened cycle times between loads
• Arms failing to traverse fully for?? wash zone
• Improper chemical dispenser activation times
• Time/temperature deviations impacting clean results

This GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This lever connects to the dishwasher detergent dispenser mechanism and actuates the cup lid. A worn or damaged lever can prevent the dispenser from opening at the right time, reducing wash performance.

• Transfers motion from the timer/actuator to release the detergent cup lid
• Common symptoms: detergent remains in cup, soap door won't open, poor cleaning results
• Restores reliable dispenser operation during the wash cycle

• Disconnect power and turn off water before servicing
• Access typically requires removing the inner door panel to reach the dispenser linkage
• Note linkage orientation before removal; transfer any springs or clips
• Test dispenser door movement by hand before reassembling

This dishwasher timer controls the sequence and duration of each cycle step. Replacing a worn timer restores proper cycle advancement so the unit fills, washes, drains, and dries at the right time.

• Sequences the dishwasher through fill, wash, rinse, drain, and dry stages
• Advances the cycle at the correct intervals to complete each step
• Failure may cause cycles not to start, not to advance, or to stop mid-cycle
• Common symptoms include getting stuck in a cycle, running too long, or the control knob not advancing

• Disconnect power at the breaker before servicing
• Access the timer behind the control console; remove inner door/console screws as needed
• Photograph/label wiring and transfer wires to the new timer one at a time
• Mount securely, reassemble the console, restore power, and test a full cycle

This pushbutton switch completes a control circuit when pressed, restoring user input to the appliance. It's a direct-fit replacement that helps restore reliable button operation and simple mechanical switching. What it does:

• Acts as a push-to-make control input, closing the circuit when pressed
• Restores a non-responsive or intermittent front-panel button
• Provides a tactile, mechanical interface for user commands
• Works with the appliance's control wiring to send start/selection signals

• Disconnect power to the appliance before starting any repair
• Inspect and match wiring and connector style before removal
• Remove control panel fasteners as needed to access the switch; replace gently to avoid damaging trim

This timer control knob replaces a worn, cracked, or missing timer knob so you can easily set and adjust your appliance's mechanical timer. Restores a secure grip and clear position settings for reliable cycle selection. What it does:

• Replaces the appliance's timer knob to allow manual setting of cycle time and functions
• Provides a firm, easy-to-turn grip when the original knob is damaged or loose
• Helps prevent mis-selection by restoring clear knob detents and position alignment
• Common symptom fix: knob won't turn, spins freely, is broken, or is missing

• Disconnect power before starting work to avoid electrical shock.
• Most installs are tool-free: pull the old knob straight off the timer shaft and push the new knob onto the splined shaft until it seats.
• Do not force the knob onto a damaged shaft; forcing can cause additional damage.

This timer knob is the user control that sets and advances wash cycles on your dishwasher. Replacing a worn or broken knob restores positive engagement with the timer shaft so you can reliably select and start cycles.

• Attaches to the timer shaft on the control panel to select and advance wash cycles
• Provides a secure grip and proper indexing to the dial markings
• Common fix for a stripped, cracked, loose, or missing knob
• When the knob no longer engages the shaft, the timer may not turn or settings may not change

• Disconnect power at the breaker before servicing
• Pull the old knob straight off the shaft; retain any spacer or clip from the original
• Align the new knob's insert with the flat/D-shape on the shaft and press firmly until fully seated
• Verify smooth engagement through the settings before restoring power

Includes 12 terminals.

Includes 12 screws.

Color: White.

Color: Black

Includes 12 screws.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces
