Frigidaire Range Burner & Related Parts

This replacement surface burner head restores proper flame on your gas range or cooktop. It mixes gas and air and directs the flame through the ports for even heat and reliable ignition when the original head is clogged or damaged.

• Distributes gas through flame ports for stable, even heating
• Supports quick, consistent ignition when paired with a working igniter
• Helps address weak, uneven, yellow, or noisy flames
• Replaces burner heads that are warped, pitted, cracked, or corroded

• Disconnect power and shut off gas; allow the cooktop to cool completely
• Remove the burner cap, lift off the old head, and clear debris from the seating area
• Align the new head with the igniter/electrode and locating features; seat it fully and level
• Restore gas and power; verify ignition and check for a uniform flame around all ports

This natural gas burner orifice meters gas flow to a specific burner on your range, delivering the correct flame size and heat output. Replace a worn or clogged orifice to restore stable, efficient burner performance. What it does:

• Meters natural gas to match the assigned burner's BTU rating and flame height
• Helps produce a steady blue flame and even heating when the correct orifice is installed
• Helps with weak/uneven flame, yellow tipping/soot, or delayed ignition if the orifice is blocked or damaged
• Fuel-specific component designed for natural gas systems

• One natural gas orifice

• Shut off gas supply and disconnect power before servicing
• Replace like-for-like; the stamped size/marking matches the burner position and fuel type—do not drill or modify
• Use an appropriate wrench and tighten snugly without overtightening
• Restore gas and leak-test with a soap solution; proper flame.

This is the main water supply tube assembly that routes wash water from the pump to the spray system. A damaged or leaking tube can reduce spray pressure and cleaning performance or allow water to escape during a cycle.

• Directs pressurized water from the sump/pump to the spray arm/manifold
• Helps maintain proper wash pressure and coverage
• Common failure signs: weak or no spray, poor cleaning, leaks from the back/under door area, or visible cracks in the tube
• Restores correct water flow path for consistent wash results

• Unplug power and turn off water to the appliance before service
• Remove lower rack and spray arm/manifold as needed to access the tube
• Inspect and transfer any reusable clips or seals if not integral to the assembly
• Ensure all connections seat fully and test for leaks after reassembly

This water inlet valve controls water flow to the refrigerator's dispenser and ice system so you get a steady supply when needed and stop unwanted leaks. It replaces a worn or failing valve to restore proper water delivery. What it does:

• Opens and closes to allow water into the ice maker and dispenser
• Stops water flow when dispenser/ice fill is inactive
• Commonly replaced when water won't dispense or ice maker won't fill
• Needed if the valve is leaking or causing water drips

• Disconnect power and shut off the water supply before replacing the valve
• Handle with care and inspect inlet/outlet fittings and gaskets for proper sealing
• Reconnect water and power, then check for leaks and proper water flow after installation
• Follow manufacturer instructions

This valve-to-regulator tube carries fuel between the pressure regulator and gas control valve, maintaining a sealed path for proper ignition and stable flame. Replace if the tube is kinked, damaged, or leaking.

• Provides a rigid, factory-formed connection between the pressure regulator and valve
• Helps ensure correct gas flow to the burner system
• Failure signs include weak or no flame, delayed ignition, repeated clicking, or a gas odor
• Visible kinks, corrosion, or stripped fittings indicate the tube should be replaced

• Disconnect power and shut off the gas supply; ventilate the area before servicing
• Use two wrenches to back up fittings; avoid twisting the regulator or valve bodies
• Route the tube without kinks and tighten flare connections securely
• Leak-test all joints with an approved solution—never an open flame—before restoring service.

This is a small crown-style burner cap for a gas cooktop. It sits on top of the matching burner head to distribute flame evenly, protect the burner ports, and provide a finished surface that's easy to clean.

• Covers the burner head to help ensure even flame and proper heat
• Shields burner ports from spills and debris
• Cosmetic top piece; damage or warping can cause poor flame pattern
• Common symptoms: uneven flames, flame lifting, difficulty simmering, or a missing/damaged cap

• Disconnect power and shut off gas before servicing
• Ensure the cooktop and burner are completely cool
• Lift off the old cap and place the new cap centered on the burner head
• Verify the cap sits level; re-seat if flame is uneven after relighting

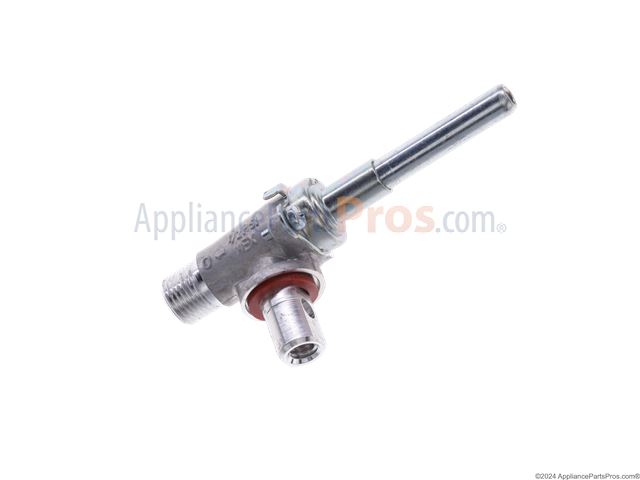

The Burner Valve is an OEM component specifically designed for Frigidaire ranges. It controls gas flow to individual burners, providing a selection of different heat levels when operating the cooktop.

Causes of a bad burner valve can include wear over extended usage periods, damage from water, or gas blockage impeding operation.

Symptoms of a bad burner valve include:

• Inability to light specific burners or adjust the flame height
• Uneven or intermittent burner performance
• Gas leaks at burner valve connections
• Recurring error codes due to valve malfunctions

Replacing with this OEM valve restores full functionality to the range cooktop. Compatible with existing gas lines, it supports safe and reliable cooking performance.

This OEM Frigidaire replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models. Replace before issues worsen.


This large surface burner head mounts on a sealed gas burner and distributes gas through its flame ports. Replace a worn or clogged crown to restore smooth ignition and an even, controllable flame on the large burner. What it does:

• Channels gas through the port ring to create an even flame on the large surface burner
• Works with the igniter for quick, reliable lighting
• Helps correct weak or uneven flames and yellow tipping
• Can resolve delayed ignition or clicking without lighting when ports are obstructed

• 1 large burner crown

• Disconnect power and shut off gas; allow the cooktop/range to cool completely.
• Remove grate and burner cap; lift off the old crown and clean the orifice area and surrounding surface.
• Position the new crown over the burner orifice and igniter; ensure it seats flat and is properly aligned.
• Reinstall the cap and grate; restore gas and power, then test for proper ignition and even flame.

The Burner Cap is an OEM replacement part that fits Frigidaire ranges. It is responsible for covering the large burner on the cooktop. Over time, the cap can become damaged from heat exposure and food debris. Causes of failure include cracking, warping, and corrosion.

Symptoms of a failing burner cap include:

• Uneven or abnormal flame
• Ignition issues
• Improper fit and instability

This Frigidaire cap is also compatible with Gibson, White Westinghouse, Kelvinator, and Kenmore ranges

This extra-large burner crown replaces the outer decorative cap on a cooktop surface burner, restoring proper flame distribution and cookware support for large pots and pans. Durable finish helps maintain even heating and appearance. What it does:

• Covers and protects the burner head while directing flames for even heating
• Supports large cookware on the cooktop surface
• Can reduce uneven or weak flames caused by a damaged or warped crown
• Restores proper fit and appearance for an extra-large surface burner

• One extra-large burner crown

• Ensure the cooktop is completely cool and gas or power is turned off before starting
• Remove and replace gently to avoid bending the burner head; no special tools usually required
• Follow the appliance manufacturer's instructions and safety guidelines

The Burner Base is an OEM part for Frigidaire ranges and cooktops. It serves as the mounting base and housing for the gas burners on the cooktop. Made from durable metal, the burner base ensures secure and even placement of each burner above the cooktop surface.

Causes of a bad burner base can include warping or deformation from heat exposure over time, damage from impact or mishandling, or wear and tear of the metal material.

Symptoms of a bad burner base include:

• Burners wobbling or unstable when in use
• Gas leaks around burner connections
• Difficulty lighting or uneven flames from burners
• Damage or cracks visible in the burner base

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Burner Cap is an OEM replacement part that fits Frigidaire ranges. It is responsible for covering the small burner igniter on the cooktop. Over time, the cap can become damaged from heat exposure and food debris. Causes of failure include cracking, warping, and corrosion.

Symptoms of a bad burner cap include:

• Uneven or abnormal flame
• Ignition issues
• Improper fit and wobbling

This burner cap is compatible with Frigidaire, Gibson, White Westinghouse, Kelvinator, and Kenmore ranges.

The Regulator is an OEM part for Frigidaire cooktops. It is responsible for regulating the flow and pressure of gas entering the appliance, ensuring safe and efficient operation.

A bad regulator can be caused by faulty internal components, wear and tear over time, or damage due to improper handling. Signs of a faulty regulator include uneven heating, weak flame, or gas leaks.

Symptoms of a bad regulator can include:

• Uneven heating of burners or oven
• Weak or inconsistent flame
• Gas leaks around the regulator

This Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Surface Burner Cap is an OEM part for Frigidaire ranges. It fits over the surface burner, providing a protective cover while ensuring proper gas flow and flame distribution.

A bad surface burner cap can be caused by wear and tear, damage, or improper cleaning. When the burner cap becomes faulty, it can result in issues such as uneven flames, inefficient heating, or difficulty in maintaining a consistent temperature.

Symptoms of a bad surface burner cap include:

• Uneven or flickering flames
• Difficulty in reaching desired temperatures
• Excessive gas odor during burner operation

Replace your faulty surface burner cap with this genuine OEM Frigidaire part to restore your cooktop. This Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.


This genuine replacement cap restores a clean, finished look and helps protect the underlying fastener or opening on your appliance. Replace a missing or damaged cap to keep components covered and looking factory-fresh.

• Covers and protects an exposed screw, hinge, or opening from dust and debris
• Restores the appliance's finished appearance
• Helps maintain secure retention of the underlying component
• Common signs of failure: missing or broken cap, cap won't stay in place, cosmetic wear, visible exposed fastener/opening

• Disconnect power before servicing; if working near water or gas lines, shut those off as applicable
• Gently pry off the old cap; avoid scratching surrounding surfaces
• Align and press the new cap until it seats/snaps securely

This small cap snaps into the center of a control knob. It refreshes the appearance and helps keep moisture and debris out of the knob interior so the control stays protected and easy to use. What it does:

• Provides a finished cover for the center of a control knob
• Helps protect the knob interior from spills and debris
• Restores a clean look when the original cap is missing or damaged
• Addresses a loose or rattling knob insert

• 1 control knob cap

• Disconnect power to the appliance for safety before working near controls
• Pull the knob straight off the control shaft; remove any remnants of the old cap
• Align tabs and snap the new cap into the knob firmly
• Reinstall the knob on the shaft and verify smooth operation
