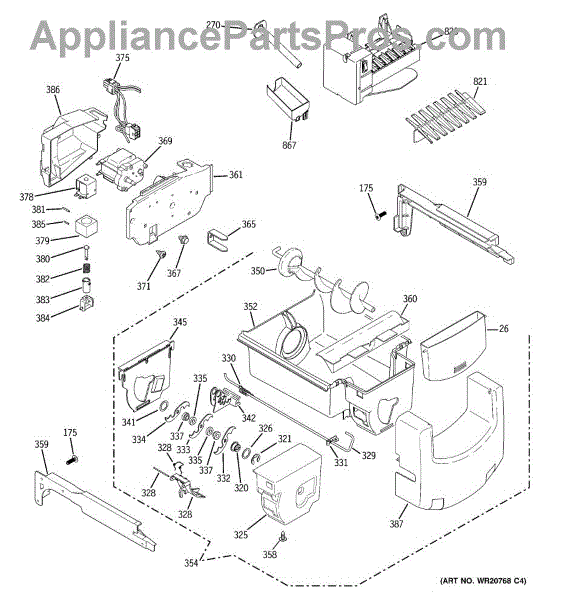

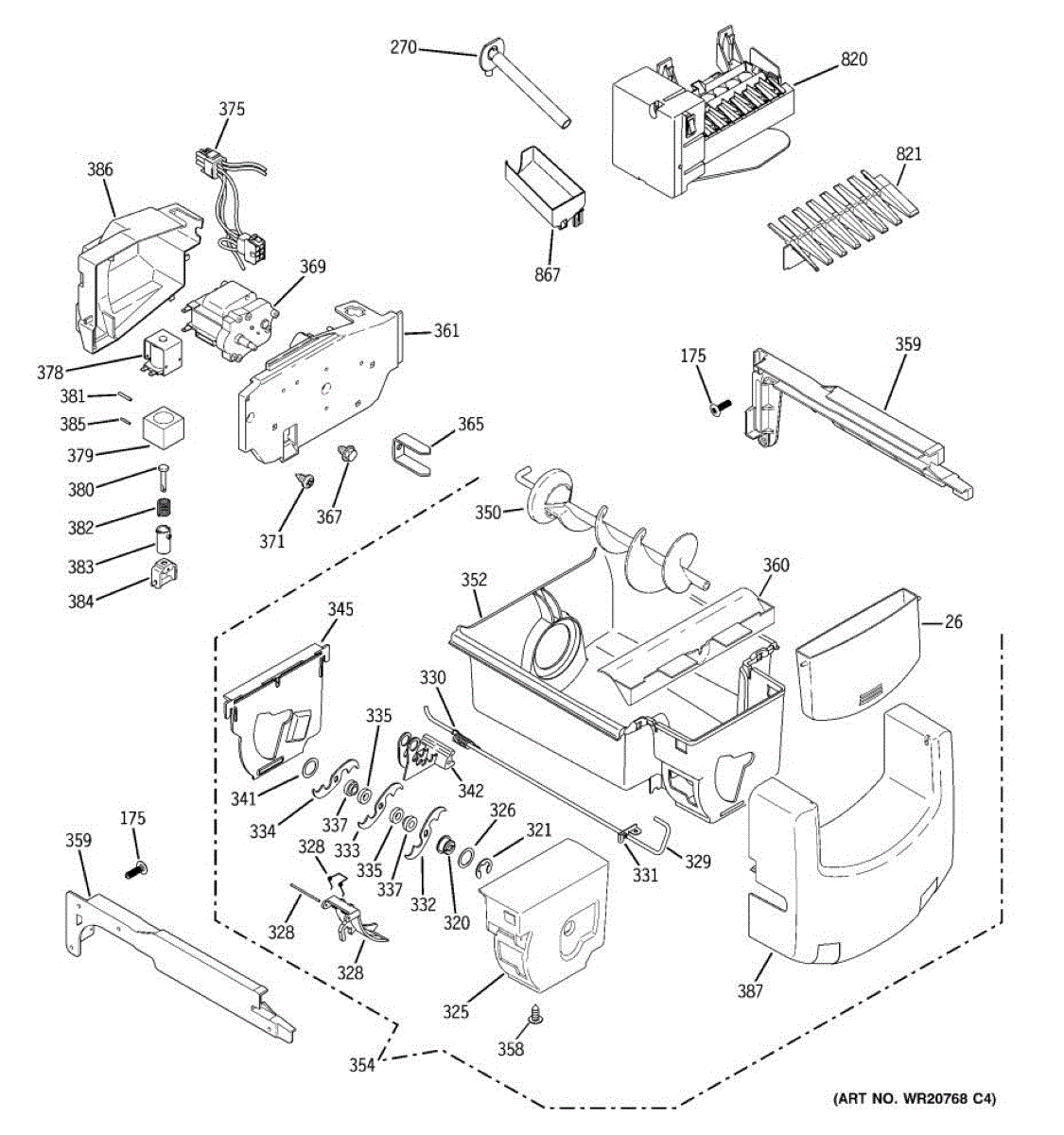

Parts for Ge DSHF6VGBCCBB: 06 - Ice Maker & Dispenser Parts

The water filter is an OEM part for GE refrigerators. This filter removes or reduces various contaminants.

Features and Benefits:

• Easy DIY replacement, typically mounted inside the refrigerator at the back of the compartment.
• Removes or reduces various contaminants in your water and ice, including lead, cysts, asbestos, atrazine, , taste and odor, chlorine, sediment, turbidity, and more
• NSF/ANSI 42 and 53 standards
• 6 Month lifespan filter
• Carbon Block media
• Micron rating: 0.5-1 micron (Class I)

When to replace your filter:

• Bad taste or odor in water and ice
• Cloudy or discolored ice
• Reduced water flow or pressure
• Refrigerator replace filter indicator light is on

Note: If replacing the Culligan metal canister design filter for the first time, a special adapter, part number AP2615702 is needed, which is not included with this part. The compatible bypass cap is part number AP6891551.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


Specs: 8-18 AB IHW 5/8 S

The Fill Tube & Grommet Assembly is an OEM part for GE refrigerators. This part ensures that water is efficiently and accurately delivered to the ice maker, where it's frozen into ice.

Causes of a bad Fill Tube & Grommet Assembly can include freezing within the tube, which blocks water flow, physical damage or wear that creates leaks, and deterioration of the grommet, leading to improper sealing and potential water damage.

Symptoms of a bad Fill Tube & Grommet Assembly include:

• Ice maker not producing ice due to lack of water supply
• Water leaking inside the freezer compartment
• Frost or ice formation on the back of the appliance due to leaking water
• Unusual noises as the refrigerator attempts to fill the ice maker

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Auger Nut is a genuine OEM component for GE refrigerators. Located within the icemaker assembly, this nut secures the auger shaft that transports ice from the molding trays to the ice bin.

Symptoms of a bad auger nut include:

• Poor ice harvest, with pieces remaining in trays and mold cavities
• Auger shaft wobbling excessively during ice dispensing
• Ice pieces jamming or clumping together in the bin

Causes can include wear from the continuous rotational movement of each harvest cycle. Over time, the threading may become stripped or warped from repeated heating/cooling.

This genuine GE OEM replacement part is also compatible with Profile, Monogram, and some Kenmore models.

Includes 12 retainer rings.

The Ice Crusher Housing is an OEM part for GE refrigerators. This part provies a protective enclosure that ensures the ice is crushed efficiently and safely before being dispensed.

Causes of a bad ice crusher housing can include wear and tear from regular use, damage from ice jams or foreign objects, and exposure to temperature fluctuations.

Symptoms of a bad ice crusher housing include:

• Ice not being crushed properly
• Ice jams or blockages in the dispenser
• Leaks or cracks in the housing
• Unusual noises during the ice crushing process

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Includes 12 washers.

This pivot is the replacement pivot piece that supports and guides a refrigerator door or sliding drawer, restoring proper alignment for smooth opening and closing. Fits original equipment pivot points. What it does:

• Supports the weight of a door or drawer and keeps it aligned on its track
• Guides smooth opening and closing and prevents binding or sagging
• Restores proper contact and seal when a worn pivot causes misalignment
• Helps reduce noise from loose or worn pivot points

• Disconnect power to the appliance before beginning any repair
• Access may require removing interior panels, trim, or the drawer/door per model instructions
• Handle carefully to avoid scratching sealed surfaces; replace worn fasteners if needed
• If alignment issues persist after replacement, check related hinges, tracks, and mounting hardware

This ice dispenser deflector mounts in the freezer door chute to guide cubes or crushed ice into your glass. Replace a cracked or missing deflector to reduce scatter and keep ice flowing where you want it.

• Directs ice down the dispenser chute toward the glass
• Helps contain spray and bounce-back of cubes
• Restores proper flow when the original deflector is cracked, warped, or missing
• Common symptoms: ice misses the glass, ice scatters on the floor, visible damage to the deflector

• Disconnect power to the refrigerator before servicing; wear cut-resistant gloves
• Access the dispenser area per your model's instructions and note the deflector's orientation
• Transfer any screws or clips from the old part; avoid forcing plastic tabs
• Restore power and test ice dispense to confirm proper direction and clearance

The Ice Deflector Spring is an OEM replacement part for GE refrigerators. This spring is a crucial component of the ice dispensing system, specifically in selecting between crushed and whole ice cubes. It is designed to always force the diverter back in a way that the cubes get crushed. When whole cubes are selected, the solenoid pulls the lever against the spring’s tension to shift the configuration, allowing cubes to bypass the crusher blades.

Causes for a malfunctioning Ice Deflector Spring can include wear and tear from regular use, corrosion due to constant exposure to moisture, or mechanical failure that prevents it from effectively reverting the diverter to the crushed ice configuration.

Symptoms of a bad Ice Deflector Spring include:

• The ice dispenser only dispensing whole cubes, even when crushed ice is selected
• The diverter not returning to the crushed ice configuration
• Unusual sounds during the ice dispensing process
• The need for manual intervention to get crushed ice

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

A small metal retainer spring that secures trim and lightweight components so panels and shelves stay aligned and do not rattle. Replaces a worn or broken spring to restore a snug, reliable fit. What it does

• Holds trim, panels or lightweight components in position to prevent sagging or separation
• Stops rattling and vibration caused by loose parts
• Restores correct alignment of removable trim or small assemblies
• Helps maintain proper component engagement during normal use

• One retainer spring

• Disconnect power (unplug or switch off circuit) before working on appliances
• Use basic hand tools; access may require removing adjacent trim or clips
• Handle spring and surrounding trim carefully to avoid scratches or damage
• Replace damaged or missing mounting hardware before reassembly

This spacer is a small mounting support used to maintain proper clearance and alignment between refrigerator panels, doors, or components. It helps reduce rubbing, vibration, and noise by restoring correct spacing and fit. What it does:

• Keeps panels, trim, or components spaced correctly to prevent metal-on-metal contact and wear
• Helps align doors and panels for a flush fit and smoother operation
• Reduces vibration and rattling caused by misaligned parts
• Used wherever a fixed clearance or gap is required during reassembly

• Disconnect power to the appliance before beginning any service that requires panel or component removal
• Inspect mating surfaces for damage or debris before installing the spacer; replace any damaged fasteners
• Install in the same orientation and location as the original spacer; do not overtighten mounting hardware

A stationary blades assembly that secures the stationary blade in place so the cutting or dispensing mechanism operates smoothly. Replacing a worn or broken assembly restores proper blade alignment and reduces noise or poor cutting performance. What it does:

• Holds the stationary blade securely to stabilize rotation and cutting action
• Maintains correct blade alignment to prevent wobble, jamming, or uneven cutting
• Helps reduce abnormal noise and vibration caused by a loose or damaged blade mount
• Restores reliable operation of the appliance's blade/dispensing mechanism when original part is worn or cracked

• One stationary blades assembly

• Disconnect power (or unplug) and turn off water supply if applicable before beginning repair
• Remove access panels or covers to reach the blade area; keep track of fasteners and trim
• Inspect mating parts (rotor, fasteners, seals) for wear and replace if damaged

The Ice Dispenser Crusher Cover is an OEM part for GE refrigerators. This component is crucial for the ice dispensing mechanism, covering the ice crusher blades and ensuring safe and efficient operation when dispensing crushed ice.

Causes of a bad ice dispenser crusher cover can include regular wear and tear, damage from ice buildup, or cracks and breaks due to impact or mishandling. Over time, these issues can compromise the functionality of the ice dispenser, leading to ineffective ice crushing or potential safety hazards.

Symptoms of a bad Ice Dispenser Crusher Cover include:

• Inconsistent ice crushing
• Ice dispenser jams or blockages
• Visible cracks or breaks in the cover
• Unusual noises during ice dispensing

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Bucket Auger is an OEM replacement part for GE refrigerators. It is located inside the ice bucket and is responsible for moving ice from the storage compartment to the dispenser chute when you select ice dispensing. The auger rotates to transport ice cubes or crushed ice to the dispenser, ensuring smooth and efficient operation.

Over time, the bucket auger can wear out or become damaged due to regular use, exposure to moisture, or ice jams. A faulty auger can disrupt the ice dispensing process and reduce the functionality of your refrigerator’s ice maker.

Symptoms of a bad bucket auger include:

• Ice not dispensing or dispensing inconsistently
• Grinding or clicking noises during ice dispensing
• Ice cubes getting stuck or not moving through the chute
• Visible damage or corrosion on the auger

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This ice bucket stores the ice your refrigerator's icemaker produces and keeps it organized and ready to use. Replace a cracked or missing bin to restore proper ice storage and help prevent spills, jams, and contamination.

• Collects and stores ice cubes produced by the icemaker
• Positions under the icemaker so cubes drop cleanly into the bin
• Slides in/out for easy access and smooth operation
• Common symptoms: cracked or warped bucket, ice spilling or jamming, difficulty seating the bin, plastic fragments in ice

• Unplug the refrigerator and switch the icemaker off before servicing
• Remove the old bucket and empty any ice; transfer any reusable parts from the original if applicable
• Align and fully seat the new bucket on the guides/tabs
• Restore power and turn the icemaker back on; allow time to make ice

The Ice Bucket & Auger is an OEM replacement part for GE refrigerators. This assembly includes both the ice bucket and the auger, which work together to store and dispense ice. The ice bucket holds the ice, while the auger moves the ice from the bucket to the dispenser when you request ice from the refrigerator's front panel.

Symptoms of a bad Ice Bucket & Auger include:

• Inability to dispense ice
• Unusual noises when attempting to dispense ice
• Ice clumping together in the bucket
• Visible damage to the bucket or auger

Causes for a malfunctioning Ice Bucket & Auger can include wear and tear from regular use, mechanical issues with the auger's rotation, or damage to the bucket from impact or mishandling.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This silicon controlled rectifier (SCR) is an electronic switching device used to control power to oven/stove heating circuits, helping the appliance regulate temperature and heat output for cooking performance. What it does:

• Switches and regulates AC power to heating elements for controlled heat
• Enables cycle-based or phase-controlled heating used by oven/range controls
• Common replacement when an element won't heat consistently or unit won't maintain temperature
• Helps stop erratic heating caused by a failed power control component

• Disconnect power to the appliance before inspecting or replacing the SCR
• Observe ESD precautions and handle the component by insulated edges

This left-side bucket glide supports a drawer or basket and lets it slide smoothly inside your refrigerator. Replacing a worn or broken glide restores proper support, alignment, and easy open/close operation. What it does:

• Provides the left-side slide/rail for a drawer or basket
• Supports weight and guides smooth opening and closing
• Helps keep the drawer/basket level and properly aligned
• Common symptoms: hard-to-open drawer, sagging or falling off track, cracked/broken rail

• 1 left-side bucket glide

• Unplug the refrigerator and clear the affected drawer/basket
• Remove the drawer/basket; unfasten and remove the damaged glide
• Install the new glide using the existing hardware; ensure it sits flush and secure
• Reinstall the drawer/basket and test for smooth travel

• Left/right is determined when facing the appliance from the front.

This is the rear motor cover used in select GE refrigerators. It shields the motor area at the back of the compartment, helping direct airflow and protect the fan/motor assembly for reliable cooling performance.

• Protects the motor/fan area from debris and damage
• Helps channel air correctly through the compartment
• Cracks, broken tabs, or missing cover can lead to noise, poor airflow, frost, or temperature swings
• Restores proper fit and finish inside the compartment

• Unplug the refrigerator before servicing
• Remove shelves/bins obstructing access; retain screws/clips
• Carefully release locking tabs and transfer any reusable hardware
• Ensure the cover seats fully and resecure all fasteners before powering on

The Ice Maker Auger Drive Coupler is an OEM replacement part for GE refrigerators. It is located inside the automatic icemaker assembly. The coupler works together with the auger motor shaft to drive the rotation of the ice transport auger.

Over time, the drive coupler can wear out or become damaged due to regular use, jamming, or improper handling. If the coupler is compromised, it can hinder the ice dispensing process.

Symptoms of a bad Auger Dispenser Drive Coupler include:

• Ice not dispensing properly
• Grinding or unusual noises from the dispenser
• The auger not rotating when the dispenser is activated
• Loose or wobbly coupler connection

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This screw fastens appliance panels, brackets, and trim so parts stay secure and aligned. Replace a missing, stripped, or rusty screw to stop rattles and restore a tight, factory fit.

• Secures covers, brackets, and trim to the appliance cabinet or liner
• Replaces missing, stripped, or corroded hardware
• Helps reduce vibration noise and loose or misaligned parts
• Maintains proper fit of guards, kickplates, or internal panels

• Disconnect power; turn off water supply if working near water lines
• Match to the original fastener to size and thread
• Start threads by hand to avoid cross-threading; tighten snugly, not excessively
• If threading into plastic, avoid overtightening to prevent damage

The Ice Auger Motor is an OEM part for GE refrigerators. It powers the auger that moves ice from the ice maker into the dispenser, allowing for smooth and efficient ice dispensing. Functioning at 115V, 60 Hz, and 3.2 Amps, it is crucial for the operation of the ice dispenser.

You should replace this ice auger motor if it fails due to wear and tear, electrical issues, or mechanical damage. A malfunctioning motor can result in the ice not dispensing properly, or the motor may make unusual noises indicating it’s struggling to function.

Symptoms of a bad ice auger motor include:

• Ice not dispensing from the refrigerator
• Grinding or buzzing noises from the ice dispenser
• Auger not turning or moving ice
• Intermittent or no ice flow

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This 10-18 Hi/Lo hex-washer screw is a direct-use replacement fastener for appliance panels, brackets and components. It restores secure mounting and helps stop loose trim, rattling or parts that shift during use. What it does:

• Secures panels, trim pieces, mounting brackets and similar components that use a 10-18 thread with a hex-washer head
• Restores proper fit where screws are missing, stripped, or corroded
• Helps eliminate rattling, vibration noise, and misaligned parts caused by loose fasteners
• Matches OEM head and thread style for a correct mechanical fit in specified locations

• Turn power or gas to the appliance off before working on electrical or gas-equipped units; unplug when applicable
• Use the correct sized hex driver or socket to avoid rounding the head
• Tighten until snug—do not overtighten to avoid stripping threads or damaging thin sheet metal
• If replacing multiple fasteners in a load-bearing area, replace all to ensure even fit and alignment

This wiring harness connects and supplies power to the dispenser motor so the dispenser operates reliably. It replaces a worn or damaged dispenser motor harness to restore electrical continuity and dependable dispenser function. What it does:

• Carries voltage and signals between the control and the dispenser motor
• Restores power when a broken or frayed harness prevents the motor from running
• Helps stop intermittent dispenser operation caused by loose or damaged wiring
• Provides proper connector fit to maintain a secure electrical connection

• Disconnect power to the appliance before inspecting or replacing the harness
• Handle connectors gently and verify correct orientation before mating
• Route harness following original wire paths and secure with existing clips to avoid pinching
• If corrosion or other damaged components are present, inspect surrounding parts and replace as needed

The Solenoid Valve Kit is an OEM part for GE refrigerators. This kit includes the solenoid valve, which is responsible for regulating the flow of refrigerant in the cooling system.

Causes of a bad solenoid valve kit include electrical malfunctions, physical damage, refrigerant leaks, or general wear and tear over time.

Symptoms of a faulty solenoid valve kit:

• Refrigerator not cooling properly or not maintaining consistent temperatures
• Compressor running constantly or cycling too frequently
• Frost buildup or ice accumulation in the freezer compartment

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerator models.

This armature kit is the moving plunger and linkage operated by the dispenser solenoid. It opens and closes the ice chute door during dispensing and helps it seal when idle to reduce frost and warm-air leaks.

• Converts the solenoid's electrical action into mechanical movement for the dispenser ice chute door
• Helps maintain a proper seal to limit frost and moisture around the dispenser
• Typical symptoms: ice won't dispense; chute door won't open/close; frost/ice buildup at the chute; loud buzzing or clicking from the dispenser area
• Wear or sticking of the armature/spring can hinder movement and affect dispenser operation

• Unplug the refrigerator and shut off water to the dispenser before servicing
• Access the dispenser mechanism in the door; remove trim/control panel per your model's service information
• Note the orientation of the armature, spring, and linkage; transfer components one-for-one to the new kit and secure hardware
• Verify the solenoid plunger moves freely, reassemble, restore power, and test dispenser operation

This armature kit is the moving plunger and linkage operated by the dispenser solenoid. It opens and closes the ice chute door during dispensing and helps it seal when idle to reduce frost and warm-air leaks.

• Converts the solenoid's electrical action into mechanical movement for the dispenser ice chute door
• Helps maintain a proper seal to limit frost and moisture around the dispenser
• Typical symptoms: ice won't dispense; chute door won't open/close; frost/ice buildup at the chute; loud buzzing or clicking from the dispenser area
• Wear or sticking of the armature/spring can hinder movement and affect dispenser operation

• Unplug the refrigerator and shut off water to the dispenser before servicing
• Access the dispenser mechanism in the door; remove trim/control panel per your model's service information
• Note the orientation of the armature, spring, and linkage; transfer components one-for-one to the new kit and secure hardware
• Verify the solenoid plunger moves freely, reassemble, restore power, and test dispenser operation

This armature kit is the moving plunger and linkage operated by the dispenser solenoid. It opens and closes the ice chute door during dispensing and helps it seal when idle to reduce frost and warm-air leaks.

• Converts the solenoid's electrical action into mechanical movement for the dispenser ice chute door
• Helps maintain a proper seal to limit frost and moisture around the dispenser
• Typical symptoms: ice won't dispense; chute door won't open/close; frost/ice buildup at the chute; loud buzzing or clicking from the dispenser area
• Wear or sticking of the armature/spring can hinder movement and affect dispenser operation

• Unplug the refrigerator and shut off water to the dispenser before servicing
• Access the dispenser mechanism in the door; remove trim/control panel per your model's service information
• Note the orientation of the armature, spring, and linkage; transfer components one-for-one to the new kit and secure hardware
• Verify the solenoid plunger moves freely, reassemble, restore power, and test dispenser operation

This armature kit is the moving plunger and linkage operated by the dispenser solenoid. It opens and closes the ice chute door during dispensing and helps it seal when idle to reduce frost and warm-air leaks.

• Converts the solenoid's electrical action into mechanical movement for the dispenser ice chute door
• Helps maintain a proper seal to limit frost and moisture around the dispenser
• Typical symptoms: ice won't dispense; chute door won't open/close; frost/ice buildup at the chute; loud buzzing or clicking from the dispenser area
• Wear or sticking of the armature/spring can hinder movement and affect dispenser operation

• Unplug the refrigerator and shut off water to the dispenser before servicing
• Access the dispenser mechanism in the door; remove trim/control panel per your model's service information
• Note the orientation of the armature, spring, and linkage; transfer components one-for-one to the new kit and secure hardware
• Verify the solenoid plunger moves freely, reassemble, restore power, and test dispenser operation

This armature kit is the moving plunger and linkage operated by the dispenser solenoid. It opens and closes the ice chute door during dispensing and helps it seal when idle to reduce frost and warm-air leaks.

• Converts the solenoid's electrical action into mechanical movement for the dispenser ice chute door
• Helps maintain a proper seal to limit frost and moisture around the dispenser
• Typical symptoms: ice won't dispense; chute door won't open/close; frost/ice buildup at the chute; loud buzzing or clicking from the dispenser area
• Wear or sticking of the armature/spring can hinder movement and affect dispenser operation

• Unplug the refrigerator and shut off water to the dispenser before servicing
• Access the dispenser mechanism in the door; remove trim/control panel per your model's service information
• Note the orientation of the armature, spring, and linkage; transfer components one-for-one to the new kit and secure hardware
• Verify the solenoid plunger moves freely, reassemble, restore power, and test dispenser operation

This armature kit is the moving plunger and linkage operated by the dispenser solenoid. It opens and closes the ice chute door during dispensing and helps it seal when idle to reduce frost and warm-air leaks.

• Converts the solenoid's electrical action into mechanical movement for the dispenser ice chute door
• Helps maintain a proper seal to limit frost and moisture around the dispenser
• Typical symptoms: ice won't dispense; chute door won't open/close; frost/ice buildup at the chute; loud buzzing or clicking from the dispenser area
• Wear or sticking of the armature/spring can hinder movement and affect dispenser operation

• Unplug the refrigerator and shut off water to the dispenser before servicing
• Access the dispenser mechanism in the door; remove trim/control panel per your model's service information
• Note the orientation of the armature, spring, and linkage; transfer components one-for-one to the new kit and secure hardware
• Verify the solenoid plunger moves freely, reassemble, restore power, and test dispenser operation

This cover fits over the refrigerator auger motor to protect internal components and help guide ice through the dispenser. It keeps the motor area enclosed to reduce debris intrusion and supports smooth auger movement. What it does

• Protects the auger motor and gearbox from ice, frost, and debris
• Helps guide ice from the bin into the auger for consistent dispensing
• Common symptom: reduced or intermittent ice dispensing, unusual noises from the dispenser area

• One cover

• High-level replacement — remove power to the refrigerator before starting
• Handle components gently to avoid damaging the auger or wiring
• If the auger still doesn't turn after replacement, check the motor, wiring, and control components

This is a replacement cover for the refrigerator dispenser bucket that restores the dispenser opening and helps contain and direct dispensed contents for cleaner operation and improved appearance. What it does:

• Replaces a cracked, broken, or missing dispenser bucket cover that can let ice or water escape
• Helps guide dispensed items into the cup or container to reduce spills
• Restores a finished look to the dispenser area
• Prevents debris from entering the dispenser bucket

• One dispenser bucket cover

• Disconnect power to the appliance before beginning any repair
• Typically installs by aligning and snapping into place or securing with the original fasteners; retain any removed clips or screws for reassembly
• Handle plastic parts carefully to avoid cracking during installation

The Electromechanical Icemaker Kit is an OEM replacement part for GE refrigerators. It includes the ice maker assembly components responsible for harvesting, ejecting, and monitoring the ice-making process.

Symptoms of a faulty electromechanical kit include:

• Ice not being produced or dispensing properly
• The ice maker failing to turn on or stop automatically
• Strange noises emanating from the ice maker

Causes can be worn parts like the ejector assembly or drive motor, as well as electrical malfunctions. Continued use puts wear on components that regulate ice production.

This OEM GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models. Replace yours today for reliable ice on demand.

This ice maker stripper is the front comb that helps release cubes from the ejector during harvest. It guides ice cleanly into the bin to reduce jams and keep ice production running smoothly. What it does

• Strips ice cubes off the ejector fingers as the ice maker cycles
• Directs cubes into the bucket, helping prevent jams and cube bridging
• Wear, cracks, or warping can cause cubes to stick, spill, or clump
• Symptoms include cubes piling at the front, clicking during harvest, or reduced/no ice

• 1 ice maker stripper

• Disconnect power and shut off water before servicing
• Remove the ice bin and access the ice maker front (remove cover if present)
• Release the old stripper (tabs/screws), align the new stripper with the ejector fingers, and seat it fully
• Reinstall cover and bin; restore power and allow a full cycle to verify operation

The Icemaker Fill Cup is an OEM replacement part for GE refrigerators. This component is specifically designed to channel water from the fill tube into the ice mold.

Symptoms of a bad Icemaker Fill Cup include:

• Water leakage inside the freezer, leading to ice accumulation
• Inadequate or irregular ice production
• The presence of unusual sounds during the ice-making process

Causes for a malfunctioning Icemaker Fill Cup can range from physical damage, such as cracks or warping due to temperature fluctuations, to blockages that impede the flow of water into the ice mold.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerators.
