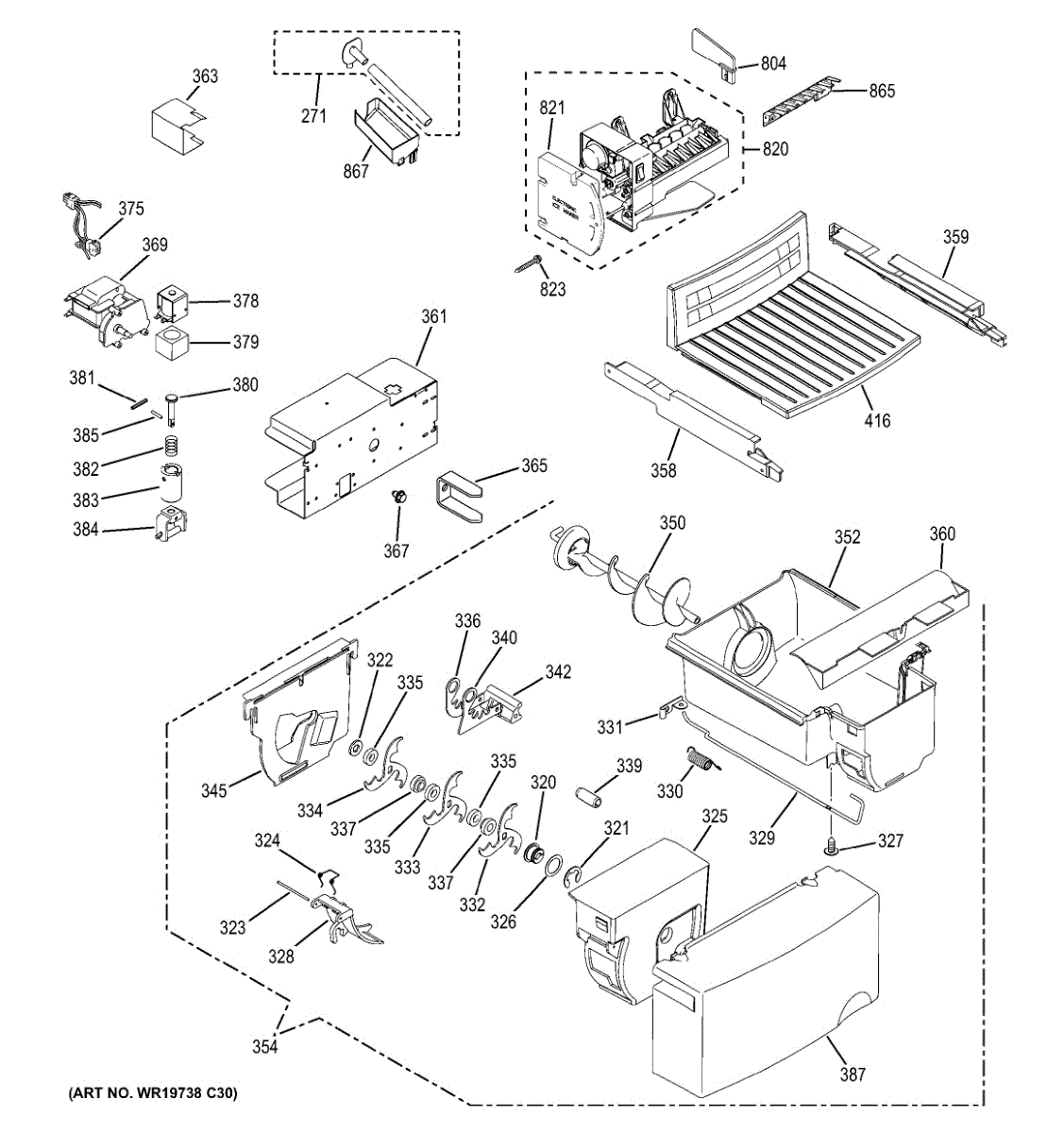

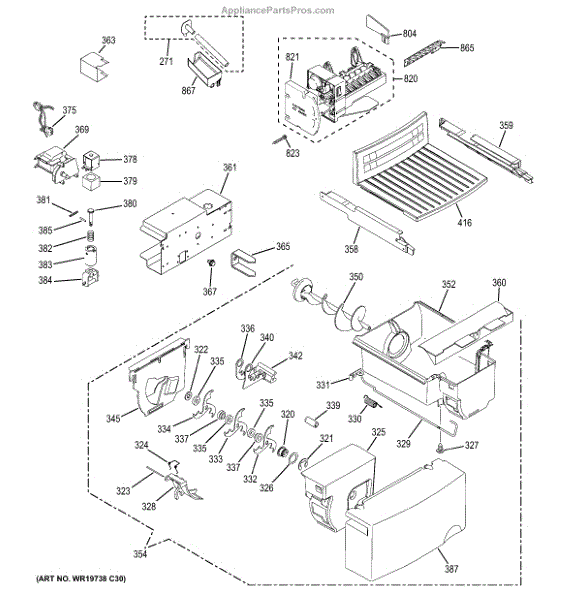

Parts for Ge GSS20ETHBCC: Ice Maker & Dispenser Parts

The Fill Tube & Grommet Assembly is an OEM part for GE refrigerators. This part ensures that water is efficiently and accurately delivered to the ice maker, where it's frozen into ice.

Causes of a bad Fill Tube & Grommet Assembly can include freezing within the tube, which blocks water flow, physical damage or wear that creates leaks, and deterioration of the grommet, leading to improper sealing and potential water damage.

Symptoms of a bad Fill Tube & Grommet Assembly include:

• Ice maker not producing ice due to lack of water supply
• Water leaking inside the freezer compartment
• Frost or ice formation on the back of the appliance due to leaking water
• Unusual noises as the refrigerator attempts to fill the ice maker

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Includes 12 retainer rings.

The Ice Crusher Housing is an OEM part for GE refrigerators. This part provies a protective enclosure that ensures the ice is crushed efficiently and safely before being dispensed.

Causes of a bad ice crusher housing can include wear and tear from regular use, damage from ice jams or foreign objects, and exposure to temperature fluctuations.

Symptoms of a bad ice crusher housing include:

• Ice not being crushed properly
• Ice jams or blockages in the dispenser
• Leaks or cracks in the housing
• Unusual noises during the ice crushing process

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Includes 12 washers.

This silicon controlled rectifier (SCR) is an electronic switching device used to control power to oven/stove heating circuits, helping the appliance regulate temperature and heat output for cooking performance. What it does:

• Switches and regulates AC power to heating elements for controlled heat
• Enables cycle-based or phase-controlled heating used by oven/range controls
• Common replacement when an element won't heat consistently or unit won't maintain temperature
• Helps stop erratic heating caused by a failed power control component

• Disconnect power to the appliance before inspecting or replacing the SCR
• Observe ESD precautions and handle the component by insulated edges

This ice dispenser deflector mounts in the freezer door chute to guide cubes or crushed ice into your glass. Replace a cracked or missing deflector to reduce scatter and keep ice flowing where you want it.

• Directs ice down the dispenser chute toward the glass
• Helps contain spray and bounce-back of cubes
• Restores proper flow when the original deflector is cracked, warped, or missing
• Common symptoms: ice misses the glass, ice scatters on the floor, visible damage to the deflector

• Disconnect power to the refrigerator before servicing; wear cut-resistant gloves
• Access the dispenser area per your model's instructions and note the deflector's orientation
• Transfer any screws or clips from the old part; avoid forcing plastic tabs
• Restore power and test ice dispense to confirm proper direction and clearance

This wire actuator operates the refrigerator dispenser mechanism so pressing the dispenser lever completes the circuit that dispenses water or ice. Replaces a bent or broken dispenser actuator to restore normal dispenser lever function. What it does:

• Transfers user push force from the dispenser lever to the internal switch or door mechanism.
• Helps the dispenser activate water or ice when the lever is pressed.
• Commonly fails by bending, breaking, or losing tension, causing the dispenser to not respond or to stick.
• Works with the dispenser lever assembly and internal actuation switch to complete user input.

• One wire actuator (single piece as shown)

• Disconnect power to the appliance before starting any repair to avoid shock or injury.
• Installation typically requires removing the dispenser bezel and possibly the inner door panel; handle parts carefully to avoid damage.
• Use basic hand tools; keep fasteners organized for reassembly.

The Ice Deflector Spring is an OEM replacement part for GE refrigerators. This spring is a crucial component of the ice dispensing system, specifically in selecting between crushed and whole ice cubes. It is designed to always force the diverter back in a way that the cubes get crushed. When whole cubes are selected, the solenoid pulls the lever against the spring’s tension to shift the configuration, allowing cubes to bypass the crusher blades.

Causes for a malfunctioning Ice Deflector Spring can include wear and tear from regular use, corrosion due to constant exposure to moisture, or mechanical failure that prevents it from effectively reverting the diverter to the crushed ice configuration.

Symptoms of a bad Ice Deflector Spring include:

• The ice dispenser only dispensing whole cubes, even when crushed ice is selected
• The diverter not returning to the crushed ice configuration
• Unusual sounds during the ice dispensing process
• The need for manual intervention to get crushed ice

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is the top light shield for the refrigerator interior that protects the light assembly and helps direct illumination across the compartment. Replaces a cracked or missing shield to restore proper light coverage and appearance. What it does:

• Covers and protects the interior light assembly from food contact and spills
• Helps diffuse and direct light for clearer visibility inside the compartment
• Prevents direct bulb exposure, reducing risk of breakage and soiling
• Commonly replaced when cracked, melted, discolored, or missing

• One top interior light shield

• Disconnect power to the appliance before starting any work
• Remove shelves or clips as needed to access the shield; handle plastic parts gently to avoid cracking
• Reinstall carefully so the shield seats securely on its mounting points; do not force or overtighten fasteners
• If the light bulb was exposed, replace with the correct rated bulb per manufacturer instructions

This spacer is a small mounting support used to maintain proper clearance and alignment between refrigerator panels, doors, or components. It helps reduce rubbing, vibration, and noise by restoring correct spacing and fit. What it does:

• Keeps panels, trim, or components spaced correctly to prevent metal-on-metal contact and wear
• Helps align doors and panels for a flush fit and smoother operation
• Reduces vibration and rattling caused by misaligned parts
• Used wherever a fixed clearance or gap is required during reassembly

• Disconnect power to the appliance before beginning any service that requires panel or component removal
• Inspect mating surfaces for damage or debris before installing the spacer; replace any damaged fasteners
• Install in the same orientation and location as the original spacer; do not overtighten mounting hardware

A stationary blades assembly that secures the stationary blade in place so the cutting or dispensing mechanism operates smoothly. Replacing a worn or broken assembly restores proper blade alignment and reduces noise or poor cutting performance. What it does:

• Holds the stationary blade securely to stabilize rotation and cutting action
• Maintains correct blade alignment to prevent wobble, jamming, or uneven cutting
• Helps reduce abnormal noise and vibration caused by a loose or damaged blade mount
• Restores reliable operation of the appliance's blade/dispensing mechanism when original part is worn or cracked

• One stationary blades assembly

• Disconnect power (or unplug) and turn off water supply if applicable before beginning repair
• Remove access panels or covers to reach the blade area; keep track of fasteners and trim
• Inspect mating parts (rotor, fasteners, seals) for wear and replace if damaged

The Ice Dispenser Crusher Cover is an OEM part for GE refrigerators. This component is crucial for the ice dispensing mechanism, covering the ice crusher blades and ensuring safe and efficient operation when dispensing crushed ice.

Causes of a bad ice dispenser crusher cover can include regular wear and tear, damage from ice buildup, or cracks and breaks due to impact or mishandling. Over time, these issues can compromise the functionality of the ice dispenser, leading to ineffective ice crushing or potential safety hazards.

Symptoms of a bad Ice Dispenser Crusher Cover include:

• Inconsistent ice crushing
• Ice dispenser jams or blockages
• Visible cracks or breaks in the cover
• Unusual noises during ice dispensing

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Ice Dispenser Bucket Auger is an OEM replacement part for  GE refrigerators. This component is responsible for pushing or "augering" the ice cubes from the ice bucket or bin towards the dispenser chute for easy access.

Symptoms of a failing ice dispenser bucket auger include:

• Ice cubes not dispensing properly or getting stuck
• Loud grinding or crunching noises from the ice dispenser area
• The auger itself becoming cracked, broken, or jammed

Causes of needing to replace the ice dispenser bucket auger can include normal wear over time, damage from impact or foreign objects, or issues with the auger motor that drives its rotation.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerator models.

This is the dispenser ice bucket that holds and delivers ice from the freezer to the dispenser chute, restoring reliable ice storage and delivery for compatible refrigerators. Durable molded design helps contain and release cubes cleanly. What it does:

• Holds ice produced by the icemaker so cubes can move to the dispenser
• Guides ice toward the dispenser chute for consistent delivery
• Helps prevent ice from spilling into the freezer compartment
• Worn, cracked, or warped buckets can cause jams or poor dispensing

• Disconnect power to the refrigerator before servicing to avoid injury
• Remove existing ice and any obstructions before installing the new bucket
• Align bucket tabs/slots with tracks in the freezer dispenser area and slide into place until seated
• If ice jams or dispensing issues persist after installation, also inspect the auger/drive components and icemaker

The Refrigerator Bucket and Auger Assembly is an OEM part for GE refrigerators. It is responsible for storing ice and dispensing it through the refrigerator's ice maker. The auger, which is part of this assembly, rotates to push ice forward and dispense it when activated. This assembly ensures a consistent supply of ice and smooth dispensing operation.

Over time, the bucket and auger assembly can become worn or damaged. Causes of a bad bucket and auger assembly can include regular wear and tear, cracks or breaks in the bucket, or malfunctioning auger components. These issues can lead to inefficient ice dispensing or no ice being dispensed at all.

Symptoms of a bad refrigerator bucket and auger assembly include:

• The ice dispenser not dispensing ice
• Unusual noises coming from the ice dispenser area
• Cracks or visible damage to the ice bucket
• Ice jams or blockages in the dispenser chute

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This left-side bucket glide supports a drawer or basket and lets it slide smoothly inside your refrigerator. Replacing a worn or broken glide restores proper support, alignment, and easy open/close operation. What it does:

• Provides the left-side slide/rail for a drawer or basket
• Supports weight and guides smooth opening and closing
• Helps keep the drawer/basket level and properly aligned
• Common symptoms: hard-to-open drawer, sagging or falling off track, cracked/broken rail

• 1 left-side bucket glide

• Unplug the refrigerator and clear the affected drawer/basket
• Remove the drawer/basket; unfasten and remove the damaged glide
• Install the new glide using the existing hardware; ensure it sits flush and secure
• Reinstall the drawer/basket and test for smooth travel

• Left/right is determined when facing the appliance from the front.

This right-hand bucket glide supports a refrigerator bin/drawer and forms the track it slides on. It restores smooth, level movement and proper alignment when the original glide is cracked, worn, or missing.

• Provides side support and a smooth sliding track for the bucket/drawer
• Helps keep the bin level and aligned so it opens and closes properly
• Replaces a cracked, warped, or broken right-hand glide
• Common symptoms: drawer sticks, binds, sags, or comes off its track

• Disconnect power and remove food from the affected drawer area
• Slide out the bucket and remove any shelf/frame as needed for access
• Remove mounting screws or tabs, note the glide's orientation, and transfer any hardware
• Position and secure the new right-hand glide; reinstall components and test drawer movement

Replacement diverter overflow that helps channel excess water away from the ice maker/water system to reduce pooling and leaks. Restores proper drainage so the refrigerator interior stays dry and operates as intended. What it does:

• Directs overflow or stray water from the ice maker/water area into the drain path
• Helps prevent water pooling or dripping inside the freezer or cabinet
• Use when you notice leaks, water pooling under shelves, or water coming from the dispenser/ice area

• Always disconnect power and shut off the water supply before starting any repair
• Removal of interior shelves/trim or access panels may be required to reach the diverter
• Handle plastic tabs and clips carefully to avoid breakage; replace any damaged fasteners

The Ice Auger Motor is an OEM part for GE refrigerators. It powers the auger that moves ice from the ice maker into the dispenser, allowing for smooth and efficient ice dispensing. Functioning at 115V, 60 Hz, and 3.2 Amps, it is crucial for the operation of the ice dispenser.

You should replace this ice auger motor if it fails due to wear and tear, electrical issues, or mechanical damage. A malfunctioning motor can result in the ice not dispensing properly, or the motor may make unusual noises indicating it’s struggling to function.

Symptoms of a bad ice auger motor include:

• Ice not dispensing from the refrigerator
• Grinding or buzzing noises from the ice dispenser
• Auger not turning or moving ice
• Intermittent or no ice flow

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Solenoid Valve Kit is an OEM part for GE refrigerators. This kit includes the solenoid valve, which is responsible for regulating the flow of refrigerant in the cooling system.

Causes of a bad solenoid valve kit include electrical malfunctions, physical damage, refrigerant leaks, or general wear and tear over time.

Symptoms of a faulty solenoid valve kit:

• Refrigerator not cooling properly or not maintaining consistent temperatures
• Compressor running constantly or cycling too frequently
• Frost buildup or ice accumulation in the freezer compartment

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerator models.

The Solenoid Valve Kit is an OEM part for GE refrigerators. This kit includes the solenoid valve, which is responsible for regulating the flow of refrigerant in the cooling system.

Causes of a bad solenoid valve kit include electrical malfunctions, physical damage, refrigerant leaks, or general wear and tear over time.

Symptoms of a faulty solenoid valve kit:

• Refrigerator not cooling properly or not maintaining consistent temperatures
• Compressor running constantly or cycling too frequently
• Frost buildup or ice accumulation in the freezer compartment

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerator models.

The Solenoid Valve Kit is an OEM part for GE refrigerators. This kit includes the solenoid valve, which is responsible for regulating the flow of refrigerant in the cooling system.

Causes of a bad solenoid valve kit include electrical malfunctions, physical damage, refrigerant leaks, or general wear and tear over time.

Symptoms of a faulty solenoid valve kit:

• Refrigerator not cooling properly or not maintaining consistent temperatures
• Compressor running constantly or cycling too frequently
• Frost buildup or ice accumulation in the freezer compartment

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerator models.

This armature kit is the moving plunger and linkage operated by the dispenser solenoid. It opens and closes the ice chute door during dispensing and helps it seal when idle to reduce frost and warm-air leaks.

• Converts the solenoid's electrical action into mechanical movement for the dispenser ice chute door
• Helps maintain a proper seal to limit frost and moisture around the dispenser
• Typical symptoms: ice won't dispense; chute door won't open/close; frost/ice buildup at the chute; loud buzzing or clicking from the dispenser area
• Wear or sticking of the armature/spring can hinder movement and affect dispenser operation

• Unplug the refrigerator and shut off water to the dispenser before servicing
• Access the dispenser mechanism in the door; remove trim/control panel per your model's service information
• Note the orientation of the armature, spring, and linkage; transfer components one-for-one to the new kit and secure hardware
• Verify the solenoid plunger moves freely, reassemble, restore power, and test dispenser operation

This armature kit is the moving plunger and linkage operated by the dispenser solenoid. It opens and closes the ice chute door during dispensing and helps it seal when idle to reduce frost and warm-air leaks.

• Converts the solenoid's electrical action into mechanical movement for the dispenser ice chute door
• Helps maintain a proper seal to limit frost and moisture around the dispenser
• Typical symptoms: ice won't dispense; chute door won't open/close; frost/ice buildup at the chute; loud buzzing or clicking from the dispenser area
• Wear or sticking of the armature/spring can hinder movement and affect dispenser operation

• Unplug the refrigerator and shut off water to the dispenser before servicing
• Access the dispenser mechanism in the door; remove trim/control panel per your model's service information
• Note the orientation of the armature, spring, and linkage; transfer components one-for-one to the new kit and secure hardware
• Verify the solenoid plunger moves freely, reassemble, restore power, and test dispenser operation

The Solenoid Valve Kit is an OEM part for GE refrigerators. This kit includes the solenoid valve, which is responsible for regulating the flow of refrigerant in the cooling system.

Causes of a bad solenoid valve kit include electrical malfunctions, physical damage, refrigerant leaks, or general wear and tear over time.

Symptoms of a faulty solenoid valve kit:

• Refrigerator not cooling properly or not maintaining consistent temperatures
• Compressor running constantly or cycling too frequently
• Frost buildup or ice accumulation in the freezer compartment

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerator models.

The Solenoid Valve Kit is an OEM part for GE refrigerators. This kit includes the solenoid valve, which is responsible for regulating the flow of refrigerant in the cooling system.

Causes of a bad solenoid valve kit include electrical malfunctions, physical damage, refrigerant leaks, or general wear and tear over time.

Symptoms of a faulty solenoid valve kit:

• Refrigerator not cooling properly or not maintaining consistent temperatures
• Compressor running constantly or cycling too frequently
• Frost buildup or ice accumulation in the freezer compartment

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerator models.

This armature kit is the moving plunger and linkage operated by the dispenser solenoid. It opens and closes the ice chute door during dispensing and helps it seal when idle to reduce frost and warm-air leaks.

• Converts the solenoid's electrical action into mechanical movement for the dispenser ice chute door
• Helps maintain a proper seal to limit frost and moisture around the dispenser
• Typical symptoms: ice won't dispense; chute door won't open/close; frost/ice buildup at the chute; loud buzzing or clicking from the dispenser area
• Wear or sticking of the armature/spring can hinder movement and affect dispenser operation

• Unplug the refrigerator and shut off water to the dispenser before servicing
• Access the dispenser mechanism in the door; remove trim/control panel per your model's service information
• Note the orientation of the armature, spring, and linkage; transfer components one-for-one to the new kit and secure hardware
• Verify the solenoid plunger moves freely, reassemble, restore power, and test dispenser operation

This ice maker guardrail secures and guides the ice maker/ice bin assembly so cubes dispense and stay aligned. It helps restore proper ice flow and prevents the ice bin from shifting or rubbing during harvest cycles. What it does:

• Holds the ice maker/ice bin in place to prevent movement and misalignment
• Guides ice cubes during ejection for smoother dispensing
• Reduces rubbing or contact that can cause noise or wear
• Helps maintain consistent ice delivery to the bin

• One ice maker guardrail/rail

• Disconnect power (and water supply if applicable) before beginning service
• Remove shelves or ice bin as needed for clear access; keep fasteners for reinstallation
• Install using existing mounting points and hardware; inspect surrounding parts for wear

The Electromechanical Icemaker Kit is an OEM replacement part for GE refrigerators. It includes the ice maker assembly components responsible for harvesting, ejecting, and monitoring the ice-making process.

Symptoms of a faulty electromechanical kit include:

• Ice not being produced or dispensing properly
• The ice maker failing to turn on or stop automatically
• Strange noises emanating from the ice maker

Causes can be worn parts like the ejector assembly or drive motor, as well as electrical malfunctions. Continued use puts wear on components that regulate ice production.

This OEM GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models. Replace yours today for reliable ice on demand.

The Electromechanical Icemaker Kit is an OEM replacement part for GE refrigerators. It includes the ice maker assembly components responsible for harvesting, ejecting, and monitoring the ice-making process.

Symptoms of a faulty electromechanical kit include:

• Ice not being produced or dispensing properly
• The ice maker failing to turn on or stop automatically
• Strange noises emanating from the ice maker

Causes can be worn parts like the ejector assembly or drive motor, as well as electrical malfunctions. Continued use puts wear on components that regulate ice production.

This OEM GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models. Replace yours today for reliable ice on demand.

The Icemaker Fill Cup is an OEM replacement part for GE refrigerators. This component is specifically designed to channel water from the fill tube into the ice mold.

Symptoms of a bad Icemaker Fill Cup include:

• Water leakage inside the freezer, leading to ice accumulation
• Inadequate or irregular ice production
• The presence of unusual sounds during the ice-making process

Causes for a malfunctioning Icemaker Fill Cup can range from physical damage, such as cracks or warping due to temperature fluctuations, to blockages that impede the flow of water into the ice mold.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerators.
