Kenmore / Sears Range Heating Element

This part is a replacement surface element designed for use with various different models of ranges and electric cooktops.This part supplies the heat to the cooktop and thus is critical for proper appliance functionality. If the current surface element is worn, malfunctioning, or in any way rendered ineffective, it will need to be immediately replaced. Ensure the range is entirely disconnected from the power source before attempting to replace this part. Work gloves should be worn whenever attempting appliance repairs.This is a genuine OEM part made by Frigidaire and has been sourced directly from the manufacturer. This surface element is suitable for use on a variety of range models manufactured by Frigidaire, Electrolux, Gibson, Kelvinator, and some other brands. It is a genuine OEM part and thus is manufactured from high-quality, durable materials. This part is sold individually.

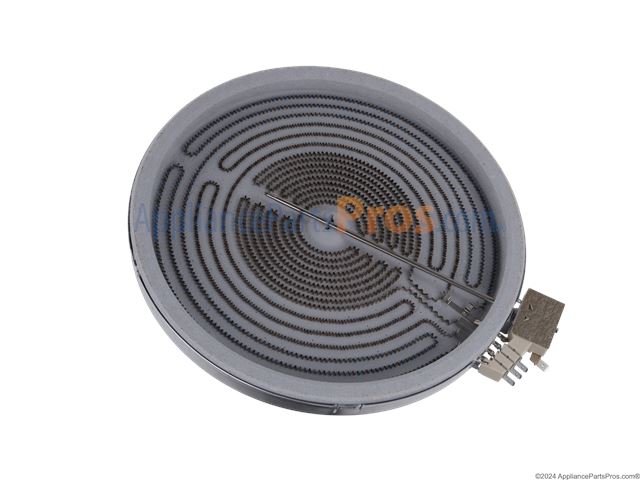

This radiant surface element restores heat to a glass-ceramic cooktop burner. Replace a failed element to bring back even, reliable heating and responsive temperature control for everyday boiling, simmering, and cooking. What it does:

• Provides radiant heat to a designated cooking zone beneath the glass cooktop
• Common symptoms: surface burner won't heat, heats unevenly, or cuts out intermittently
• Visible signs can include burned or cracked element traces or damaged terminals

• 1 radiant surface element

• Disconnect power at the breaker before servicing; allow the cooktop to cool completely
• Lift or remove the glass top to access the element
• Photograph wiring and transfer leads one at a time to the new element to maintain correct connections
• Support the element and brackets during reassembly and avoid touching the element surface with bare hands

6 inch, 1200 watt single radiant surface element.

This broil element restores the oven's upper heating function so the broiler can produce proper surface browning and high-heat cooking. Replace a damaged or non-heating element to recover consistent broil performance. What it does:

• Provides the high-temperature heat for broiling and top-surface browning.
• Replaces a failed or visibly damaged upper/broil heating element.
• Common symptoms: oven won't broil, food won't brown on top, or the element doesn't glow.
• Visible breaks, blisters, or no heat when broil is selected indicate replacement.

• Disconnect power at the breaker or unplug the appliance before starting.
• Allow the oven to cool completely; wear gloves to protect hands.
• Handle the element and terminals carefully; avoid bending or nicking the heating tube.
• Secure mounting screws and electrical connectors; restore power and test broil function.

This 8-inch coil surface element restores reliable heat on electric ranges. Replace a worn or failed burner to bring back consistent heating and everyday cooking performance on your cooktop. What it does:

• Heats cookware at the 8-inch cooking zone by converting electrical power into heat
• Common fix for a burner that won't heat, heats intermittently, or shows visible damage/blistering
• Plugs into the existing surface element receptacle and rests on the cooktop supports
• Helps restore even, consistent heating when the original coil has burned out

• 1 8-inch coil surface element

• Disconnect power at the breaker or unplug the range before servicing
• Allow the element to cool completely before handling
• Lift the old element slightly and pull straight out from the receptacle; avoid twisting or prying
• Align terminals and push the new element firmly into the receptacle until fully seated, then test

The oven broil element delivers intense radiant heat from the top of the cavity to sear and brown foods. Replace a burned-out or shorted element to restore reliable broiling performance and even top heat.

• Produces high, radiant heat from above when Broil is selected
• Helps sear meats and brown casseroles quickly and evenly
• Common failure signs: no heat on Broil, weak/uneven browning, visible cracks/blistering or breaks

• Disconnect power at the breaker and allow the oven to cool completely
• From inside the oven, remove mounting screws, pull the element forward, and disconnect the two wire terminals; support wires so they don't slip back
• Transfer any mounting bracket/spacers from the old element if present; reconnect terminals firmly
• Inspect and replace any heat-damaged terminals; test Broil before final reassembly

This upper oven broil element delivers direct, intense heat for broiling and top-browning. Replace a failed element to restore fast, even broiling performance and consistent top heat in your electric range or wall oven.

• Provides high radiant heat from the top of the oven during Broil for searing and browning
• May cycle on for top-browning during Bake (on some models)
• Typical failure symptoms: no broil heat or slow, uneven top browning
• Replace if the element is cracked, blistered, pitted, or sparks/arcs when energized

• Unplug the appliance or switch off power at the breaker before servicing
• Remove oven racks; unfasten the element's mounting screws/clips and gently pull the element forward
• Transfer wires one at a time and support them so they don't slip back through the oven liner
• Avoid bending the new element; secure brackets/screws, restore power, and test broil

Restore reliable top heat for broiling and browning. This replacement broil heating element brings your oven's broil function back to full strength so foods brown evenly and the broiler heats when selected.

• Provides high, direct heat from the top of the oven during the broil cycle
• Helps with top-browning in some baking/roasting modes
• Common failure signs: broiler won't heat or glow, uneven browning, visible breaks or blistering on the element
• Often tests "open" (no continuity) when failed

• Disconnect power at the breaker before servicing; allow the oven to cool completely
• Remove mounting screws, then gently pull the element forward and support the wires
• Label and transfer wires to the new element one at a time; do not allow wires to slip back into the rear cavity
• Reinstall screws, ensure secure connections, restore power, and test the broil function

Size: 8 inch. 2200 watt. Radiant.

This surface heating element restores reliable heat to a cooktop burner. Replace a failed or damaged element to bring back even, responsive heating performance and consistent temperature control for everyday cooking.

• Converts electrical power into heat for one cooktop burner
• Common fix for a burner that won't heat or only heats intermittently
• Can address uneven heating or erratic cycling at a set temperature
• Appropriate when the element shows visible damage or burned spots

• Disconnect power at the breaker and allow the cooktop to cool completely
• Access varies by model; lifting the cooktop or removing the glass top may be required
• Handle the element carefully and avoid stressing the heating surfaces
• Move wires one at a time to matching terminals; ensure all connections are secure before reassembly

This surface element supplies heat to an electric range or cooktop burner. When it fails, the burner may not heat or may heat inconsistently. Replacing the element restores steady, reliable cooking performance.

• Converts electrical energy into heat for the cooking zone
• Works with the surface control (infinite switch) to regulate temperature
• Common symptoms: burner won't heat, intermittent or uneven heating, visible breaks/blistering, burnt/melted terminals
• A failed element will not glow or reach set temperature when energized

• Disconnect power at the breaker before servicing and allow the cooktop to cool completely
• If your model uses a plug-in coil style: remove the drip pan, pull the element straight out of the receptacle, and inspect/replace a heat-damaged receptacle as needed
• If your model uses an under-glass radiant style: lift the cooktop, transfer any clips/limiters from the old element, and route wires exactly as original
• After reassembly, test the burner at a low setting to ensure proper operation

This broil element mounts at the top of the oven cavity and delivers the intense radiant heat needed for broiling. Replace a failed element to restore reliable top heat and consistent broil results in your range or wall oven.

• Provides strong, direct radiant heat from the top of the oven during the Broil cycle
• Common signs of failure: no broil heat, uneven broiling, visible breaks/blistering, or tripping the breaker when Broil is selected
• Restores proper broiling when the original element is open or shorted
• Also known as the upper/top oven element; verify fit with your model number

• Disconnect power at the breaker or unplug the appliance before servicing
• Allow the oven to cool completely and wear cut-resistant gloves
• Remove mounting screws, gently pull the element forward, and support the wires so they don't slip back through the liner
• Transfer wires one at a time to the new element, secure the element, check connections, restore power, and test

This oven bake element is the heating element that warms the oven cavity for baking and roasting. Replacing a damaged element restores proper oven heating and helps return cooking performance to normal. What it does:

• Heats the oven interior for baking, roasting and browning.
• Replaces elements that are visibly burnt, cracked, broken, or no longer glow when the oven is on.
• Common symptoms it can fix: little or no heat from the oven, uneven cooking, or an element that sparks or shows burn spots.
• Works as the direct heater inside the oven cavity; connects to the oven terminal block.

• Disconnect power at the breaker or unplug the appliance before starting any repair.
• Access typically requires removing the oven interior panels or rear access panel; support the element while disconnecting terminals.
• Handle terminals and sharp sheet metal carefully; use insulated tools and secure terminal connections.

Restore reliable oven heat with this bake element. It produces the lower-oven heat during the Bake cycle, so replacing a failed element brings back normal preheat times and consistent, even results.

• Supplies primary heat from the bottom of the oven during Bake
• Common fix for: no heat on Bake, very slow preheating, uneven baking/browning
• Replace if the element is blistered, cracked, pitted, or has visible breaks
• Helps restore accurate, stable baking temperatures

• Disconnect power at the breaker or unplug the appliance before servicing
• Remove oven racks; take out the element's mounting screws to free the bracket
• Gently pull the element forward; transfer one wire at a time using insulated pliers and prevent wires from slipping back
• Re-secure the bracket/screws, ensure snug connections, restore power, and test Bake

The Surface Element is an OEM part for Frigidaire electric ranges and cooktops. It is the individual electric coil located beneath the cooktop that provides heat.

The surface element heats up rapidly upon activation in order to boil, simmer or saute foods efficiently. Its precise heating capabilities assist home cooks in meal preparation.

Causes can be mineral deposits caked onto the element surface over time reducing its ability to transfer heat properly. Excess moisture exposure can also damage internal wiring.

Symptoms of a bad surface element include:

• Burners that do not heat up at all or heat unevenly
• Lights flickering below an element when in use
• Popping, buzzing or crackling noises coming from below an element

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This 6-inch surface coil element restores reliable heat to one burner on your electric range. Replace a burned-out or damaged coil to bring back consistent, even heating for everyday cooking.

• Provides cooking heat for a 6-inch burner position on electric ranges/cooktops
• Helps resolve a burner that won't heat or heats intermittently
• Addresses uneven heating or visible hot spots on the coil
• Replaces elements with visible breaks, blistering, or burned terminals

• Disconnect power at the breaker and allow the cooktop to cool completely before servicing
• For plug-in coil models: lift the element, pull straight out of the receptacle, and remove from the support/drip pan
• Align the new element's terminals with the receptacle, push firmly until fully seated, and set into the support
• Inspect the receptacle and wiring for heat damage and replace any compromised components before use
