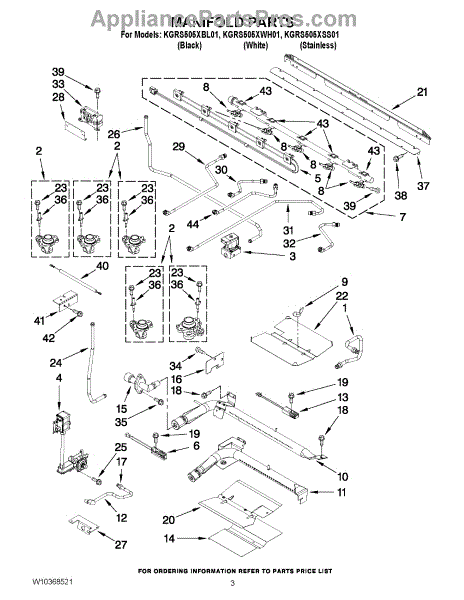

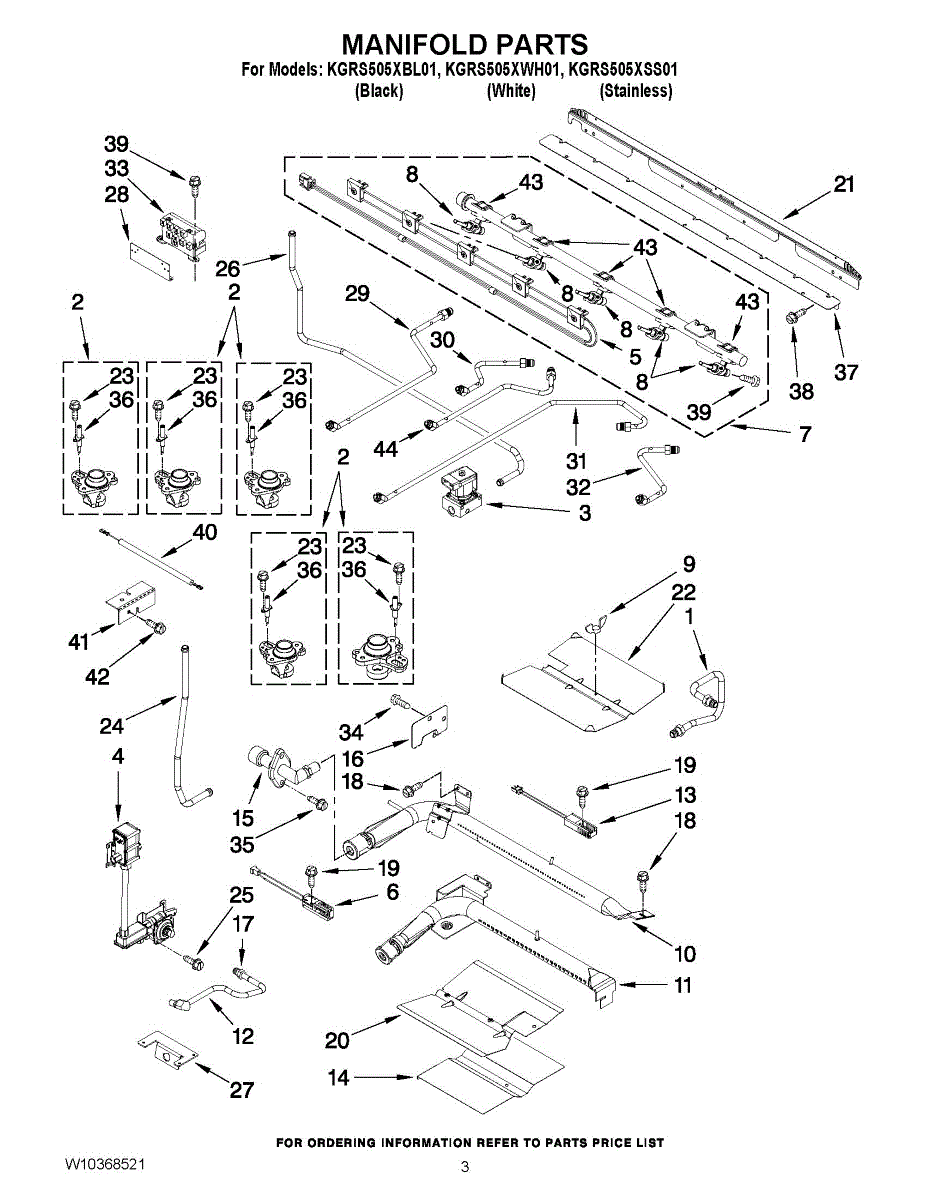

Parts for Kitchenaid KGRS505XSS01: 03 - Manifold Parts

This gas tubing is the direct-fit replacement part that routes natural or liquid propane gas between range components, restoring safe fuel flow for proper burner operation. It replaces worn or damaged tubing without modifying factory connections. What it does:

• Carries gas from the valve to burners or manifold to enable ignition and normal burner flames
• Commonly replaced when tubing is corroded, cracked, kinked or leaking
• Can stop symptoms such as persistent gas smell, burner failure to light, or intermittent flame
• Matches OEM fit and connection locations for a straightforward swap

• One gas tubing

• Shut off the gas supply and disconnect power before starting any work
• Only install on compatible appliances; use approved fittings and follow torque specs from the appliance manufacturer
• Check all connections for leaks after installation using a soapy-water solution or approved gas leak detector

This Holder ORF is a small mounting retainer used to secure internal components so parts stay aligned and stable during normal appliance operation. Replacing a damaged or missing holder prevents loose parts and rattling. What it does:

• Secures and positions a specific internal component or assembly
• Keeps parts aligned to prevent rubbing, vibration, or noise
• Restores proper fit where the original retainer is cracked, bent, or missing
• Helps maintain reliable operation by holding components in place

• Disconnect power (and gas, if applicable) before servicing the appliance
• Inspect adjacent parts and fasteners for wear; replace any damaged hardware
• Use basic hand tools; avoid over-tightening which can crack the retainer

This center orifice holder secures the gas orifice for the center burner, restoring proper alignment and stable gas flow for reliable ignition and even flame performance. Fits the center burner assembly on compatible gas ranges. What it does:

• Holds the center burner orifice in place so the orifice stays aligned with the burner
• Helps maintain consistent gas flow for steady flame and reliable ignition
• Can correct symptoms such as weak or uneven center-burner flame or difficulty igniting the center burner
• Works with the burner assembly to ensure proper burner-to-orifice positioning

• Turn off the appliance and shut off gas supply before beginning any service
• Remove the burner grate and cap, then replace the orifice holder in the center burner assembly
• Reassemble burner components and restore gas; check for correct ignition and even flame

This gas valve regulator controls and stabilizes incoming gas pressure to the range's burners, helping ensure consistent flame performance and safe operation.

• Regulates gas pressure supplied to the appliance for proper burner performance
• May help resolve weak, irregular, or no flame at the burners or oven
• Can address issues like delayed ignition, uneven heating, or burner outage
• Safety-critical component in the gas supply path

• Disconnect gas and electrical supply before servicing
• Verify gas type and inlet orientation match your appliance configuration
• Check for leaks with an approved leak-detection method after installation
• Recalibrate or adjust only per the manufacturer's instructions

This is the wiring harness that links key components such as the water inlet valve and switches. Replacing a damaged harness restores proper electrical connections so the appliance fills and runs reliably without intermittent power losses.

• Carries power and signals between the valve and related switches
• Helps resolve issues like no fill, intermittent operation, or cycling failures
• Corrects symptoms from burned, brittle, or broken wires/connectors
• Restores safe, stable connections after heat or vibration damage

• Disconnect power and shut off water supply before servicing
• Take photos of existing connections to ensure correct routing
• Inspect mating terminals for heat damage or corrosion before reassembly
• Do not force connectors; seat fully until they click or fit snugly

The Oven Igniter is an OEM part for Whirlpool gas ranges. It is responsible for generating the spark needed to ignite the gas burner.

Causes can be standard wear and tear on the delicate metallic coil. Additionally, food or liquid spills may lead to premature breakdown or surface corrosion.

Symptoms of a faulty igniter include:

• Oven or burners failing to turn on or stay lit
• Requires repeated attempts at ignition before activating
• No spark or glow seen through the observation window

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This manifold assembly routes the appliance's gas supply to the burner control valves, restoring safe, consistent distribution when the original tube is cracked, corroded, or leaking. It helps ensure even flame performance across multiple burners. What it does:

• Distributes gas from the inlet to multiple burner valves
• Provides mounting/connection points for valves and tubing
• Replaces assemblies that are bent, cracked, or leaking
• Common symptoms: multiple burners with weak/no flame, gas odor near the manifold, visible corrosion or damage

• 1 manifold assembly

• Disconnect power and shut off the gas supply before servicing; allow the appliance to cool
• Photograph tubing and valve orientation to aid reassembly
• Support fittings with two wrenches; use only manufacturer-approved thread sealant where specified
• After installation, restore gas and leak-test all joints with an approved bubble solution before use

This surface burner valve regulates gas flow to a single top burner on your range or cooktop. Replacing a worn valve restores smooth flame control and reliable shutoff for consistent, safe cooking performance.

• Controls gas delivery from the manifold to one surface burner
• Opens/closes with the control knob to ignite and adjust flame height
• Works with the burner's igniter to light and maintain the flame
• Common symptoms: burner won't light, low or uneven flame, flame won't adjust, or a knob that's stiff or spins without control
• Each valve serves one burner position

• Disconnect power, shut off gas supply, and allow the appliance to cool before service
• Note tubing orientation; support the manifold when loosening or tightening fittings
• Use gas-rated thread sealant only if originally used; tighten and check all joints with an approved leak-detection solution
• Restore gas/power and verify proper ignition and flame adjustment on all burners

The Burner Valve is an OEM replacement part for  Whirlpool gas cooktops and ranges. Each burner valve controls the flow of gas to its corresponding surface burner element.

Causes of a bad burner valve can include wear and degradation of internal mechanisms from years of continuous heating cycles. Mineral or debris buildup restricting gas flow is also possible.

Symptoms of a bad Burner Valve include:

• Inability to ignite or control individual burners
• Unstable, weak, or over-sized flames that cannot be adjusted
• Gas leaks detected around the valve area
• Premature failure if burners cannot be turned off properly

This OEM Whirlpool part is also compatible with Maytag, Jenn-Air and some Kenmore models.

The Valve is an OEM part for Whirlpool gas ranges. It plays an important safety role in controlling the flow of gas fuel to the range's burners.

Causes of a bad gas valve can include wear and tear over extended use, mineral deposits clogging the valve's small passages, or physical damage affecting its precision-controlled mechanisms.

Symptoms of a faulty gas valve include:

• Burners that will not light or that light unpredictably
• Inability to adjust burner flames properly
• Gas odors detecting around the range

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore gas models.

This wing nut is a hand-tightening fastener used to secure small appliance components for easy tool-free adjustment or removal. It offers a simple replacement when the original nut is lost, stripped, or broken. What it does:

• Secures panels, brackets, or components that require occasional removal or adjustment
• Allows tool-free tightening and loosening with built-in wings for finger grip
• Restores proper fit where a missing or damaged nut causes rattling, looseness, or instability
• Designed for repeated hand-operation without specialized tools

• Disconnect power to the appliance before performing any work to avoid shock or injury
• Thread by hand until snug; avoid overtightening to prevent stripping threads or cracking surrounding parts
• Inspect mating threads and replace if damaged to ensure secure fastening
• Use appropriate size and thread type—do not force a mismatched nut onto the stud

This oven broil burner supplies high, direct heat for broiling and browning food in the oven, restoring broil performance and even surface cooking. It replaces a worn or damaged broiler element to help regain consistent broil results. What it does

• Produces the intense, direct heat required for broiling and browning
• Works with the oven's ignition system to light and maintain the broil flame
• Helps restore even browning and searing on top of foods
• Commonly used when broil flame is weak, uneven, or won't stay lit

• Disconnect power and shut off gas supply before starting work
• Follow OEM diagram for correct orientation and secure mounting
• Inspect and replace any damaged gaskets or fasteners for a proper seal
• After installation, test broil function and check for proper ignition and flame

Oven burner (bake burner) provides the main bake flame for a gas oven, restoring even heat for baking and roasting. It replaces a worn or damaged burner to help the oven reach and hold correct baking temperatures reliably. What it does:

• Supplies the primary bake flame to heat the oven cavity for baking and roasting.
• Ignites to produce a steady flame so the oven can reach and maintain set temperatures.
• Use when the oven fails to heat, heats unevenly, has a weak flame, or when the burner shows corrosion or physical damage.
• Fits as a direct replacement bake burner for compatible gas ovens.

• Turn off the gas supply and disconnect electrical power before servicing.
• Follow OEM instructions and use proper tools; ensure burner seats correctly and fasteners are secure.
• After installation, check all gas connections for leaks and follow manufacturer procedures to relight or test the oven.

This gas tubing supplies gas from the oven manifold to the burner assembly, restoring a safe, direct fuel path for proper ignition and heating. Use when tubing is cracked, corroded, kinked, or leaking. What it does:

• Carries gas from the appliance's manifold or valve to the burner(s)
• Maintains a sealed, flexible connection to allow component movement
• Replaces damaged, corroded, or pinched tubing that can cause leaks or poor ignition
• Helps restore consistent burner performance and proper heating when tubing is compromised

• Turn off gas supply and electrical power before starting any service
• Verify correct orientation and secure fittings to avoid leaks; use OEM-specified fittings and torque
• Leak-test all connections with a soap solution or approved leak detector before returning appliance to service

This gas tubing is a direct-fit replacement line that routes gas between components and restores a secure fuel path for safe burner operation. It helps stop leaks and ensure consistent gas flow to the appliance. What it does

• Replaces damaged, cracked, or corroded gas tubing that can cause leaks or loss of gas flow
• Restores a sealed connection between the gas valve and burner or between gas components
• Can resolve symptoms such as gas odor, intermittent ignition, or weak burner flame when tubing is the cause
• Designed to match OEM form and fit for straightforward replacement when listed for your model

• One gas tubing assembly as shown

• Shut off the gas supply and unplug the appliance before starting any work
• After installation, test all fittings with a leak detection solution; do not use an open flame
• Follow all local codes and OEM instructions for fittings, sealants, and torque values

The Oven Igniter is an OEM part for Whirlpool ovens. It is responsible for igniting the gas to start the oven heating process. This igniter is crucial for ensuring that the oven reaches and maintains the desired temperature for baking and cooking.

Over time, the igniter can suffer from wear and tear, leading to inefficient ignition or complete failure. Causes of a bad igniter can include repeated heating cycles, electrical issues, or physical damage to the igniter element.

Symptoms of a bad igniter include:

• The oven not heating up or taking too long to preheat
• A noticeable gas smell due to incomplete ignition
•  The igniter glowing without igniting the gas

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement fitting connects the appliance's water line to its internal plumbing so water flows where it's needed and stays sealed. It restores a proper watertight connection to help stop leaks and ensure reliable water delivery. What it does:

• Connects the external water supply line to the appliance's internal water inlet
• Creates a secure, watertight seal to prevent drips and leaks at the connection point
• Supports consistent water flow for ice makers, dispensers, or valves where used
• Can resolve symptoms like visible leaks, reduced water flow, or intermittent filling

• One replacement fitting

• Turn off the water supply and unplug the appliance before installing
• Inspect mating surfaces and replace any damaged O-rings or gaskets as needed
• Hand-tighten first, then snug with appropriate tools; avoid over-tightening
• If plumbing sealant is recommended by your installer, use plumber's tape on threaded connections only

This mounting nut secures the gas orifice to the burner valve assembly, keeping the orifice properly positioned for consistent burner operation. Replacing a worn or damaged mounting nut restores secure fit and reliable gas flow. What it does:

• Threads onto the orifice to hold the gas orifice in place on the valve assembly
• Keeps the orifice aligned to help maintain steady burner flame and ignition
• Prevents orifice movement that can cause inconsistent flame height or ignition issues
• Small metal fastener used where the orifice and valve meet on gas ranges and cooktops

• Turn off the appliance and shut off the gas supply before starting work
• Use the correct-size wrench and gentle force to avoid stripping threads
• Inspect mating parts for damage; replace if worn or cross-threaded

Size: 10-24X5/16-NI

This burner baffle directs heat and flame away from sensitive components to help maintain even cooking and protect the range's internal parts. It's a direct-replacement trim piece used on compatible gas ranges and cooktops. What it does:

• Shields and redirects burner flame to reduce hot spots and protect nearby components
• Helps maintain more consistent surface temperatures during use
• Prevents flame impingement on adjacent parts that can cause discoloration or premature wear
• Supports proper burner operation by holding components in correct alignment

• One burner baffle

• Disconnect power and shut off the gas supply before starting work; allow all components to cool
• Basic hand tools are typically required; handle the baffle carefully to avoid bending or scratching
• Verify correct fit and orientation from the parts diagram before final reassembly

This range screw is an OEM replacement part sourced directly from the manufacturer for gas stove burners. These screws attach the ignitor to the burner. Screws may corrode and rust during everyday use. Spills and accidents on the range top may leak down to the screws and cause them to become worn. Screws are not considered part of the ignitor kit or burner kit and will need to be purchased separately. If the screws appear rusty or corroded while replacing the ignitor, it is beneficial to replace them. It is a good idea to purchase the screws at the same time as the parts are purchased so that they are available when needed. A Phillips head screwdriver is necessary to remove and replace the old screws. Make sure the power and gas are disconnected before installing the new screws.This screw is made of silver metal and is a Phillips head screw that is sold individually. Verify the number of screws needed before ordering. This screw is designed for use in gas ranges manufactured by Whirlpool, KitchenAid, Roper, Estate, Inglis, Maytag, Amana, Jenn-Air, and Crosley.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Spark module that controls the ignition sequence for gas range surface burners, producing the spark needed to light burners. Replacing a faulty module restores proper sparking and helps eliminate persistent clicking or no-ignite conditions. What it does:

• Generates high-voltage sparks to the burner igniters so gas burners light reliably; failure can cause burners not to ignite.
• Directs spark timing for individual surface burners; symptoms of failure include continuous clicking, intermittent sparks, or one or more burners failing to light.
• Works with the range's ignition system to coordinate spark and valve operation; does not include igniters or valves.

• Disconnect electrical power (and gas supply where applicable) before beginning any repairs.
• Photograph wiring connections before removal to ensure correct reconnection; reconnect wires to matching terminals.
• Use the exact OEM part number and replace with the same module to ensure proper fit and operation.

A shoulder screw that secures appliance components and provides a precise pivot or spacer point. Replaces a missing or worn screw to restore alignment, reduce rattling, and keep panels and assemblies securely in place. What it does:

• Provides a fixed-diameter shoulder for pivots, spacers, or mounting points in assemblies.
• Holds panels and moving components at the correct distance to prevent binding or friction.
• A missing or worn shoulder screw can cause misalignment, rattling, or loose parts during operation.
• Used where a smooth-bearing surface and controlled clearance are required between parts.

• Disconnect power to the appliance (unplug or shut off breaker) before servicing.
• Handle small fasteners carefully to avoid dropping into assemblies; magnetic pickup tools can help.
• Start threads by hand to avoid cross-threading; tighten snugly but avoid overtightening.

The Whirlpool screw is an OEM replacement part responsible for securely fastening various components and parts within Whirlpool appliances. These screws are essential for maintaining the structural integrity and safe operation of the appliance. These screws hold together critical components like panels, brackets, handles, and internal parts.

This part fixes the following symptoms:

• Loose or wobbly handles on refrigerators, ovens, or other appliances
• Vibrations or rattling noises during appliance operation
• Inability to assemble or disassemble parts during appliance repair or maintenance

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This surface ignitor is the replacement spark electrode that provides the spark to light a gas cooktop or range burner. Replacing a failed ignitor restores reliable ignition and helps get burners lighting again. What it does:

• Produces the high-voltage spark that ignites gas at the surface burner
• Replaces cracked, glazed, or non-sparking electrodes that prevent ignition
• Addresses symptoms such as no spark, weak or intermittent sparking, or burners that won't light
• Works with standard surface burner assemblies to restore normal ignition

• One surface ignitor (spark electrode)

• Disconnect electrical power and shut off the gas supply before starting work
• Handle the ceramic electrode carefully; avoid touching or striking the ceramic tip
• Ensure all wiring connections are secure and routed clear of heat sources
• After installation, test each burner for proper spark and ignition before returning the appliance to regular use

This surface burner spark igniter creates the electric arc that lights the gas flame on your cooktop or range. Replacing a worn or cracked electrode restores reliable ignition and helps resolve hard-to-light burners and intermittent sparking.

• Provides a high-voltage spark at the surface burner to ignite gas
• Mounts to the orifice holder beneath the burner head
• Failure symptoms include burner not lighting, needing a match, or intermittent/weak spark
• Common issues: chipped/cracked ceramic insulator or damaged terminal/lead

• Disconnect power and shut off the gas supply before servicing
• Allow the appliance to cool; remove grates, burner caps, and heads to access the orifice holder
• Transfer the ignition lead, install the new electrode, and route the wire away from heat and sharp edges
• Ensure the tip is positioned near the burner as designed; verify spark and ignition before reassembly

The Screw is an OEM part for Whirlpool appliances. This specific screw is used in various locations within Whirlpool appliances, securing components and ensuring the stability and proper alignment of parts. It is designed to fit precisely and maintain a firm hold, contributing to the overall functionality and safety of the appliance.

Over time, screws can become worn or stripped due to regular use, corrosion, or over-tightening.

Causes of a bad screw include wear and tear, exposure to moisture leading to rust, and over-tightening which can strip the threads.

Symptoms of a bad screw include:

• Loose or wobbly components
• Misalignment of parts
• Noise due to vibrating or loose parts
• Difficulty in securing or removing the screw

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This orifice spud is the small gas jet used in LP conversion kits to regulate propane flow to a burner, helping restore correct flame size and combustion after converting to liquid propane. It's a direct-fit component for affected burners. What it does:

• Replaces the burner jet that meters propane for safe, consistent flame
• Restores proper flame height and prevents oversized or sooting flames after LP conversion
• Helps burners light reliably and maintain even heat
• Works as part of an approved LP conversion to match appliance fuel type

• Turn off gas supply and power before starting any gas appliance service
• Use the correct orifice size and follow the appliance LP conversion instructions or service manual
• Hand-tighten and then torque per manufacturer spec if provided; avoid overtightening
