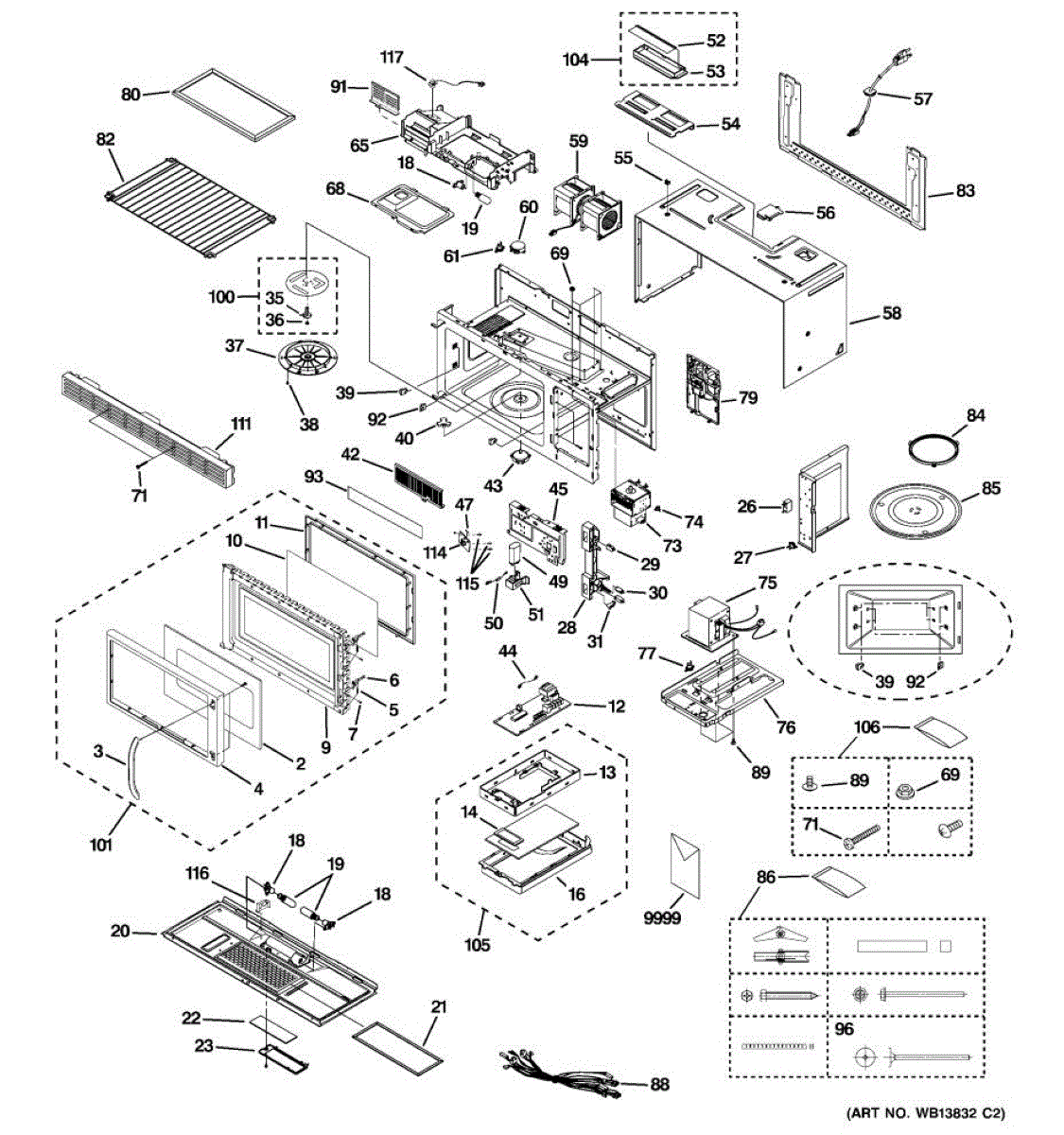

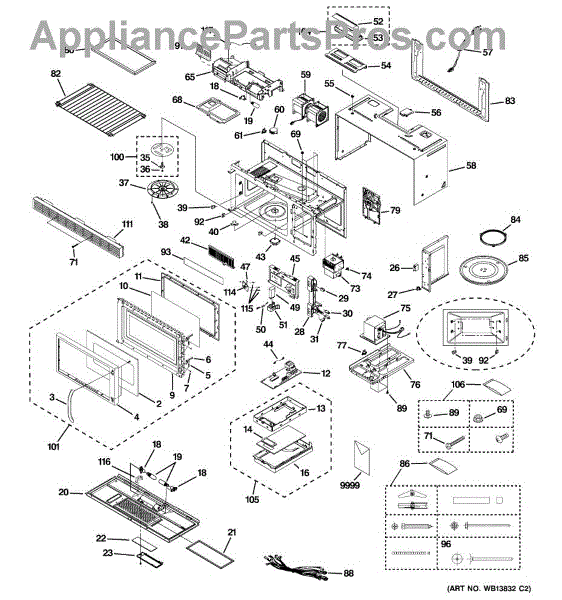

Parts for Ge EMO3000HBB05: 01 - Microwave Parts

This is the outer door frame found on microwave ovens. It is an authentic OEM part sourced directly from the manufacturer. The door frame is made of heavy-duty plastic but could crack or warp over time with heavy use. If the door frame breaks, it should be replaced. This door frame does not include the handles. If the handles are broken, those will need to be purchased separately.To start, disconnect the power from the microwave. A screwdriver is required to install the outer door frame. Remove the door handles from the frame. The handles are screwed in from the inside of the door. Remove the interior door panel and unscrew the handles. Set the handles and screws to the side. Unsnap the front panel from the door and discard it. Line the new panel up and push it in place until it snaps. Reinstall the door handles and interior door panel. Connect the power and make sure the door opens and closes correctly.This door frame is made of black plastic and is sold individually. It is designed for use on microwave ovens manufactured by General Electric and Hotpoint.

The Light Bulb Socket is an OEM part for GE microwaves. It holds the light bulb securely in place within the microwave, ensuring proper illumination of the interior when the door is opened or the microwave is in operation.

Causes of a bad light bulb socket can include wear and tear over time, exposure to high heat, electrical faults, or damage from replacing the bulb improperly.

Symptoms of a bad light bulb socket include:

• The interior light not turning on when the microwave is in use
• Flickering or intermittent lighting
• Difficulty securing the light bulb in the socket
• Visible damage or discoloration to the socket

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Light Bulb is an OEM part for GE microwaves. This bulb illuminates the interior of the microwave during operation, enhancing visibility so you can monitor the cooking process without opening the door. It is designed to withstand the high temperatures and vibrations typically found in microwave ovens.

Over time, the light bulb can burn out or become damaged due to the harsh environment of the microwave. Frequent on and off cycles can also shorten the lifespan of the bulb. Replacing a non-functioning or dim bulb will restore visibility and improve the functionality of your microwave.

Symptoms of a bad light bulb include:

• Dim lighting inside the microwave.
•  Flickering or inconsistent performance.
• Complete lack of light when the microwave is operating.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Air Filter is an OEM part for GE microwaves. This component is essential for trapping grease, smoke, and odors during cooking, maintaining a clean and safe kitchen environment. It is typically located above the cooking surface or within the microwave's ventilation system. The filter measures approximately 6.5 inches deep by 13.5 inches wide

Causes of a bad air filter can include clogging from grease and food particles, physical damage, or general wear over time. A compromised air filter can reduce the efficiency of the microwave's ventilation, leading to poor air quality and potential buildup of contaminants.

Symptoms of a bad air filter include:

• Reduced ventilation efficiency
• Increased smoke or odors during cooking
• Visible grease buildup on the filter
• The filter appearing damaged or excessively dirty

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Glass Light Lens is an OEM part for GE microwaves. It covers the light bulb inside the microwave, protecting it from food splatters and ensuring even illumination.The lenses measure approximately 7" x 3".

Causes of a bad glass light lens can include accidental impact, exposure to high heat, or general wear and tear.

Symptoms of a bad glass light lens include:

• Cracks or breaks in the glass
• Diminished visibility inside the microwave
• Light not being properly diffused
• Potential exposure of the light bulb to food splatters

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is the clear glass lens that covers the cooktop light on select GE over-the-range units. It shields the bulb from grease and splatters while allowing bright, even illumination of the cooking surface below.

• Protects the cooktop light bulb from grease, moisture, and debris
• Restores proper lighting if the original lens is missing, cracked, or stained
• Helps maintain safe, even illumination of the range area
• Common symptoms: broken or missing lens, dim or uneven light due to a damaged cover

• Disconnect power to the appliance before servicing
• Allow bulbs and surrounding area to cool completely
• Handle glass carefully to avoid chipping; wear cut-resistant gloves
• Ensure the lens seats fully and any retaining tabs/screws are secured per the product's service instructions

This run capacitor helps the appliance motor start and run smoothly by storing and releasing electrical energy. Replacing a worn capacitor can restore reliable motor operation and reduce abnormal motor noise or cycling. What it does:

• Provides the brief power boost motors need to start and maintain RPM
• Helps stabilize motor voltage and improve run efficiency under load
• Commonly linked to symptoms such as motors that hum but won't start, slow or intermittent motor operation, or unusual motor noise
• Reduces stress on motor windings that can lead to premature failure when functioning properly

• One motor capacitor

• Always disconnect power at the breaker or unplug the appliance before servicing
• Capacitors can hold a charge; discharge safely
• Observe proper polarity and mounting location during installation; secure wiring and connectors

This latch body is the door latch component that secures the appliance door during operation, restoring reliable closure so cycles can run normally. Use it to replace a worn or damaged latch that won't hold the door closed. What it does:

• Engages the door striker to hold the door closed and maintain a proper seal during operation
• Works with the door latch mechanism so the appliance can complete cycles that require a closed door
• Common symptom: door won't stay closed, is difficult to latch, or feels loose at the latch point
• Replacing a damaged latch body can prevent intermittent door-open errors and restore normal door operation

• Disconnect power (unplug or turn off circuit breaker) before starting any repair
• Remove the door or access panel as needed; keep track of fasteners and any trim pieces
• Handle door glass and trim carefully to avoid damage; test latch engagement before full reassembly

The Microwave Door Switch is an OEM part for GE microwaves, designed to prevent the microwave from operating when the door is open by interrupting the power whenever the door is not securely closed. The door switch is an essential safety feature.

Symptoms of a failing Microwave Door Switch include:

• The microwave not starting or heating
• Running when the door is opened
• Unusual noises when the door is closed

Causes of a bad Microwave Door Switch can result from repeated opening and closing of the door or slamming that can cause the switch to degrade or become misaligned, leading to intermittent or failure.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Monitor Switch is an OEM replacement part for GE microwave ovens. Located internally on the turntable control circuit board, this switch monitors rotation of the turntable during cooking cycles.

Causes of failure involve degradation of the electrical contacts from continuous arcing loads over years of use combined with vibration stresses.

Symptoms of a faulty monitor switch include:

• The turntable no longer rotates or spinning intermittently
• Cooking cycles aborting prematurely with error messages
• Screeching or grinding noises emanating from beneath cavity
• Visible burnt spots on turntable drive assembly

This genuine GE switch is also compatible with select Hotpoint and RCA models.

The Lower Lever Switch is an OEM replacement part for GE microwaves. This component activates the door interlock switch when the microwave door is closed. It ensures that the microwave only operates when the door is securely closed, preventing any operational hazards.

Symptoms of a bad Lower Lever Switch include:

• The microwave not starting, indicating the door isn't recognized as closed
• The appliance operating with the door open, a clear safety hazard
• Unusual sounds or issues when attempting to start the microwave
• The need to apply extra pressure to keep the door closed

Common causes for a malfunctioning Lower Lever Switch can be attributed to mechanical wear from frequent use, damage incurred during cleaning or use, or internal issues affecting the switch’s activation mechanism.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This stirrer assembly circulates microwave energy inside the cavity so food heats more evenly and prevents cold spots. It replaces a damaged or noisy stirrer that can cause uneven cooking or unusual microwave noise. What it does:

• Spins the microwave stirrer to help distribute microwave energy for more even heating
• Reduces hotspots and cold spots during cooking
• Stops or reduces rattling, grinding, or squealing noises when the original stirrer is worn
• Helps prevent arcing or sparking caused by a cracked or broken stirrer cover

• Disconnect power at the breaker or unplug the appliance before servicing to avoid electrical shock.
• Access may require removing the microwave's outer cabinet or control panel; follow OEM service manual steps.
• Handle the stirrer and cover carefully—plastic parts can crack if forced.

The Turntable Coupler is an OEM part for GE microwaves. It is located underneath the glass turntable in the microwave cavity. It is responsible for transmitting the rotational motion from the motor to the turntable, allowing for even heating and cooking of food.

Causes of a faulty or damaged turntable coupler can include regular wear and tear, physical damage, or improper installation. These factors can result in issues such as the turntable not rotating or spinning irregularly during operation.

Symptoms of a bad turntable coupler may include:

• The turntable not rotating when the microwave is in use
• Uneven or jerky movement of the turntable
• Excessive noise or vibration during operation

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Turntable Motor is an OEM part for GE microwaves, designed to rotate the glass plate or turntable inside the microwave cavity. This rotation ensures the food is cooked evenly by exposing all parts of the food to the microwave energy.

The causes for these issues often stem from wear and tear over time, especially with frequent use. Other factors can include damage from food particles or spills that seep into the motor area or mechanical failure within the motor itself.

Symptoms of a failing Turntable Motor include:

• The turntable not rotating when the microwave is in use
• A grinding or buzzing noise indicating the motor is struggling to turn
• The microwave cooking food unevenly or taking longer to cook

This OEM GE  part is also compatible with Hotpoint, RCA, and some Kenmore models

This air guide bracket secures the refrigerator air guide/duct to keep internal airflow stable and properly directed. Replacing a broken or missing bracket restores smooth airflow and helps maintain even cooling and temperature control. What it does:

• Holds the air guide/duct in place so cold air is directed where needed
• Prevents the guide from shifting, which can cause uneven temperatures or poor cooling
• Supports proper circulation between compartments for consistent performance
• Helps eliminate rattling or vibration from a loose duct or guide

• One air guide bracket

• Always unplug the appliance or shut off power before starting any repair
• Remove shelves, drawers, and trim panels as needed to access the air guide assembly
• Install using the factory screw/clip locations; save and reuse any original fasteners
• Handle plastic parts gently to avoid cracking; test operation after reassembly

The Fuse is an OEM part for GE microwaves. It serves as a safety device designed to protect the microwave from excessive current that can cause overheating and potential fire hazards. When the current flowing through the microwave circuit exceeds a certain level, the fuse blows or breaks, cutting off the power to prevent damage or fire.

Common causes for a fuse to blow include power surges, faulty wiring within the appliance, or the use of microwave inappropriate containers that cause sparks. It is essential to address these issues not only to replace the fuse but also to correct the underlying problems to prevent future failures.

Symptoms of a bad fuse include:

• The microwave suddenly stops working.
• No signs of power or response even when the microwave door is closed and the start button is pressed.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Capacitor is an OEM part for GE microwaves. This component stores and releases electrical energy to help power the microwave's high-voltage circuits, essential for the proper functioning of the appliance.

Over time, capacitors can fail due to electrical surges, overheating, or degradation of the internal components. When a capacitor goes bad, it can affect the microwave's ability to generate heat and operate efficiently.

Symptoms of a bad Capacitor include:

• The microwave not heating food
• Unusual humming or buzzing noises
• The microwave shutting down or not starting

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The High Voltage Diode is an OEM part for GE microwaves. This high-voltage diode is crucial for converting alternating current (AC) to direct current (DC), enabling the magnetron to generate the microwave energy needed for cooking. Measuring approximately 3-1/2" in length, this diode features a banded side with a #8 ring terminal and a non-banded side with a 1/4" female quick connect.

You should replace the diode-H.V assembly if it becomes faulty due to electrical issues, wear and tear, or physical damage. Continuous exposure to high voltage can cause the diode to deteriorate over time, leading to malfunction.

Symptoms of a bad diode-H.V assembly include:

• The microwave not heating food
• A burning smell or unusual noises during operation
• The microwave shutting off unexpectedly
• Visible damage or burn marks on the diode

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This mounting bracket secures the H.V.C. assembly or cover in place to keep high-voltage components stable and properly aligned. Replacing a damaged or bent bracket restores correct support and reduces movement-related issues. What it does:

• Secures the high-voltage cover/assembly to the appliance chassis to prevent shifting.
• Maintains correct clearance and alignment for high-voltage components.
• Helps reduce noise or arcing caused by a loose cover or bracket.
• Supports safe, reliable operation by keeping wiring and insulating parts in position.

• Disconnect power at the breaker or unplug the appliance before starting work.
• Handle high-voltage components and insulating parts carefully; avoid contact with charged parts.
• Use the OEM part number to fit and orientation before installation.

The Hood Damper Assembly is an OEM part for GE microwave ovens. This part controls the flow of exhaust air to minimize odors and smoke from cooking. This damper opens to allow air to vent outside during microwave operation and closes to prevent outside air from entering when the microwave is not in use.

Causes of a bad hood damper assembly can include mechanical failure such as a stuck or broken damper, deterioration of the linkage or springs that operate the damper, and blockage caused by grease or debris accumulation, which can impair its functionality.

Symptoms of a bad Hood Damper Assembly include:

• Ineffective venting of smoke or cooking odors
• External air leakage into the microwave system
• Unusual noises during operation indicating a damper misalignment or obstruction

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Hood Damper Assembly is an OEM part for GE microwave ovens. This part controls the flow of exhaust air to minimize odors and smoke from cooking. This damper opens to allow air to vent outside during microwave operation and closes to prevent outside air from entering when the microwave is not in use.

Causes of a bad hood damper assembly can include mechanical failure such as a stuck or broken damper, deterioration of the linkage or springs that operate the damper, and blockage caused by grease or debris accumulation, which can impair its functionality.

Symptoms of a bad Hood Damper Assembly include:

• Ineffective venting of smoke or cooking odors
• External air leakage into the microwave system
• Unusual noises during operation indicating a damper misalignment or obstruction

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This holder nut assembly secures a component to the appliance frame, restoring proper mounting and reducing vibration or movement. Replace a damaged or missing holder nut to keep connected parts stable and functioning. What it does:

• Secures a component or assembly to the appliance frame or mounting bracket
• Prevents looseness, rattling, and misalignment caused by worn or missing mounting hardware
• Restores a safe, stable connection that helps maintain normal operation
• Matches OEM mounting geometry for a direct replacement when the original nut is damaged

• Disconnect power to the appliance before servicing to avoid shock or injury
• Access the mounting area by removing the appropriate panel or cover per your model's service instructions
• Start threads by hand to avoid cross-threading, then tighten with the correct tool; do not overtighten
• If any fasteners or nearby components are damaged, replace them as needed for a secure installation

Made by GE. This microwave stirrer motor comes with a square shaped shaft and is usually located in the upper part of the microwave. For a D shaped shaft turntable motor order WB26X10038.

This microwave thermostat is a temperature-sensitive safety switch that helps protect the unit from overheating. When the preset limit is reached, it interrupts power to the affected circuit to help prevent damage and erratic shutdowns.

• Monitors temperature at its mounting location and opens the circuit if overheating is detected
• Helps protect internal components from excessive heat
• Common symptoms of a failed thermostat include: unit shuts off during cooking, won't start until it cools down, or has no power/no heat due to an open safety
• Replace if the original tests open when it should be closed

• Disconnect power by unplugging the unit or switching off the circuit breaker before servicing
• Microwaves contain a high-voltage capacitor that can retain a dangerous charge; only qualified persons should service and discharge the capacitor
• Note wire locations before removal and transfer connections firmly to the new thermostat
• Mount the thermostat securely and in the same position to ensure proper temperature sensing

The Magnetron is an OEM part for GE microwaves. The magnetron converts electrical energy into microwave radiation, which heats and cooks the food placed inside the microwave oven.

Over time, the magnetron can wear out or fail due to regular use, electrical surges, or overheating. A malfunctioning magnetron can lead to the microwave not heating properly, reducing its overall functionality and efficiency.

Symptoms of a bad magnetron include:

• The microwave not heating food at all
• Unusual noises such as buzzing or humming during operation
• A burning smell or visible damage inside the microwave
• The microwave turning on but failing to heat

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This H.V. transformer supplies the high voltage needed to drive the magnetron in microwave ovens so food heats properly. Replacing a failed transformer restores the high-voltage supply that powers microwave output. What it does:

• Converts incoming low-voltage power to the high-voltage required by the magnetron
• Enables normal heating; a bad transformer can cause no-heat or weak-heat symptoms
• Can produce humming, burning smells, arcing, or tripped fuses when failing
• Works with the high-voltage diode and capacitor as part of the HV circuit

• One H.V. transformer

• Disconnect power and verify the appliance is unplugged before starting
• Discharge the high-voltage capacitor fully to prevent shock; use insulated tools
• Handle the transformer carefully — it is heavy and mounted with screws/brackets

This thermostat is a temperature-sensing safety switch used in microwave ovens. It monitors heat and opens the circuit during an over-temperature condition to protect internal components and help prevent damage. What it does:

• Monitors temperature at a specific location inside the microwave
• Interrupts power if overheating is detected to protect components
• Helps safeguard the magnetron and wiring from thermal damage
• Presents as: shuts off mid-cycle, won't restart until cooled, no power, or runs but doesn't heat

• 1 thermostat

• Disconnect power before service; microwaves contain a high-voltage capacitor that can hold a dangerous charge—discharge it properly
• Note wire locations and transfer connections one at a time to the new thermostat
• Mount in the original location with firm, flush contact to the surface for accurate sensing
• Reinstall all covers and safety shields before restoring power and testing

This evaporator fan motor assembly circulates cold air through the refrigerator compartment to help maintain even cooling and proper temperature control. Replacing a failed fan restores airflow and helps the appliance cool correctly. What it does:

• Moves air across the evaporator coil so the refrigerator/freezer can cool efficiently
• Commonly replaced when there is little or no airflow from the fresh-food or freezer section
• Can stop excessive frost build-up on the evaporator caused by poor circulation
• May reduce unusual noise if the original motor bearings have failed
• Helps prevent uneven temperatures that can cause food spoilage

• One evaporator fan motor assembly as shown

• Disconnect power to the appliance before starting any repair
• Access may require removing interior panels or the evaporator cover
• Handle the fan blades carefully to avoid bending or cracking; ensure proper blade seating on the motor shaft

Color: silver. Measures about 11-1/8" x 6-1/4". For matching aluminum filter, use: WB6X486.

Color: brown. It measures about 8-1/2 inches in diameter.

The Cooking Tray is an OEM replacement part for GE microwaves, designed to support and rotate food for even cooking. This glass tray fits within GE microwave models, allowing for the optimal distribution of microwave energy throughout the food. By rotating, it ensures that meals are evenly heated, preventing cold spots and promoting a uniform cooking process. Microwave Glass Turntable Tray, 12 1/2" Dia. Might Be Smaller Than Original.

Causes of a bad Microwave Cooking Tray can include cracking, chipping, or breaking due to accidental drops or heavy impact. Over time, repeated use can also wear down the tray, potentially compromising its structural integrity.

Symptoms of a bad Microwave Cooking Tray include:

• Inability to rotate, affecting the microwave's ability to cook food evenly.
• Unstable movement or wobbling during operation.
• Cracks or breaks in the tray, which can lead to unsafe conditions or further damage to the microwave.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This washered screw secures panels and internal components where a combined screw-and-washer fastener is required, restoring proper fit and stopping movement or rattling. Simple replacement with the correct fastener keeps assemblies aligned and stable. What it does

• Secures panels, brackets or components where a washered screw is specified
• Replaces missing, stripped or corroded fasteners that allow vibration or gaps
• Helps stop rattling, loose panels or misaligned parts caused by a failed screw
• Provides a sealed bearing surface to distribute load and prevent pull-through

• One washered screw

• Disconnect power and/or water to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid cam-out and fastener damage
• Align parts before tightening and snug; avoid over-tightening which can strip threads or crack plastic

This flat bolt is a factory fastener used to secure appliance components. Replace a missing, stripped, or corroded bolt to restore a tight, secure assembly and help prevent loosening, rattling, or misalignment during normal operation.

• Fastens panels, brackets, and other components as designed by the manufacturer
• Restores a secure fit when the original hardware is missing or damaged
• Helps reduce looseness and vibration-related noises
• Built to original specifications for proper fit and function

• Disconnect power and allow the unit to cool before servicing
• Support the part being fastened; align holes before inserting the bolt
• Start threads by hand to avoid cross-threading; tighten securely without overtightening
• Reuse any original washers or spacers if present

This stirrer assembly circulates microwave energy inside the cavity so food heats more evenly and prevents cold spots. It replaces a damaged or noisy stirrer that can cause uneven cooking or unusual microwave noise. What it does:

• Spins the microwave stirrer to help distribute microwave energy for more even heating
• Reduces hotspots and cold spots during cooking
• Stops or reduces rattling, grinding, or squealing noises when the original stirrer is worn
• Helps prevent arcing or sparking caused by a cracked or broken stirrer cover

• Disconnect power at the breaker or unplug the appliance before servicing to avoid electrical shock.
• Access may require removing the microwave's outer cabinet or control panel; follow OEM service manual steps.
• Handle the stirrer and cover carefully—plastic parts can crack if forced.

The Hood Damper Assembly is an OEM part for GE microwave ovens. This part controls the flow of exhaust air to minimize odors and smoke from cooking. This damper opens to allow air to vent outside during microwave operation and closes to prevent outside air from entering when the microwave is not in use.

Causes of a bad hood damper assembly can include mechanical failure such as a stuck or broken damper, deterioration of the linkage or springs that operate the damper, and blockage caused by grease or debris accumulation, which can impair its functionality.

Symptoms of a bad Hood Damper Assembly include:

• Ineffective venting of smoke or cooking odors
• External air leakage into the microwave system
• Unusual noises during operation indicating a damper misalignment or obstruction

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Color: black

This noise filter assembly is a direct-replacement line filter that helps reduce electrical interference and appliance noise for compatible GE appliances. It restores cleaner power to control boards and can help stop buzzing or interference-related behavior. What it does:

• Suppresses incoming electrical noise and RF interference on the power line
• Helps prevent control glitches and erratic behavior caused by voltage transients
• Can reduce humming, buzzing, or audio/EMI interference from the appliance
• Supports stable operation of electronic controls and sensors

• Disconnect power at the breaker or unplug the appliance before servicing
• Handle wiring and connectors carefully; match wires/terminals exactly on reassembly
• Secure the filter in its mounting location and ensure wiring is routed clear of moving parts
