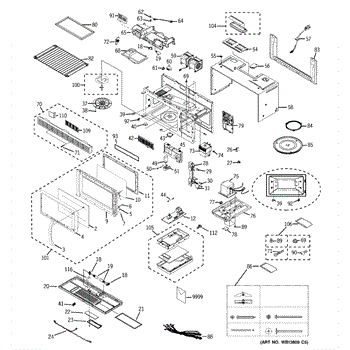

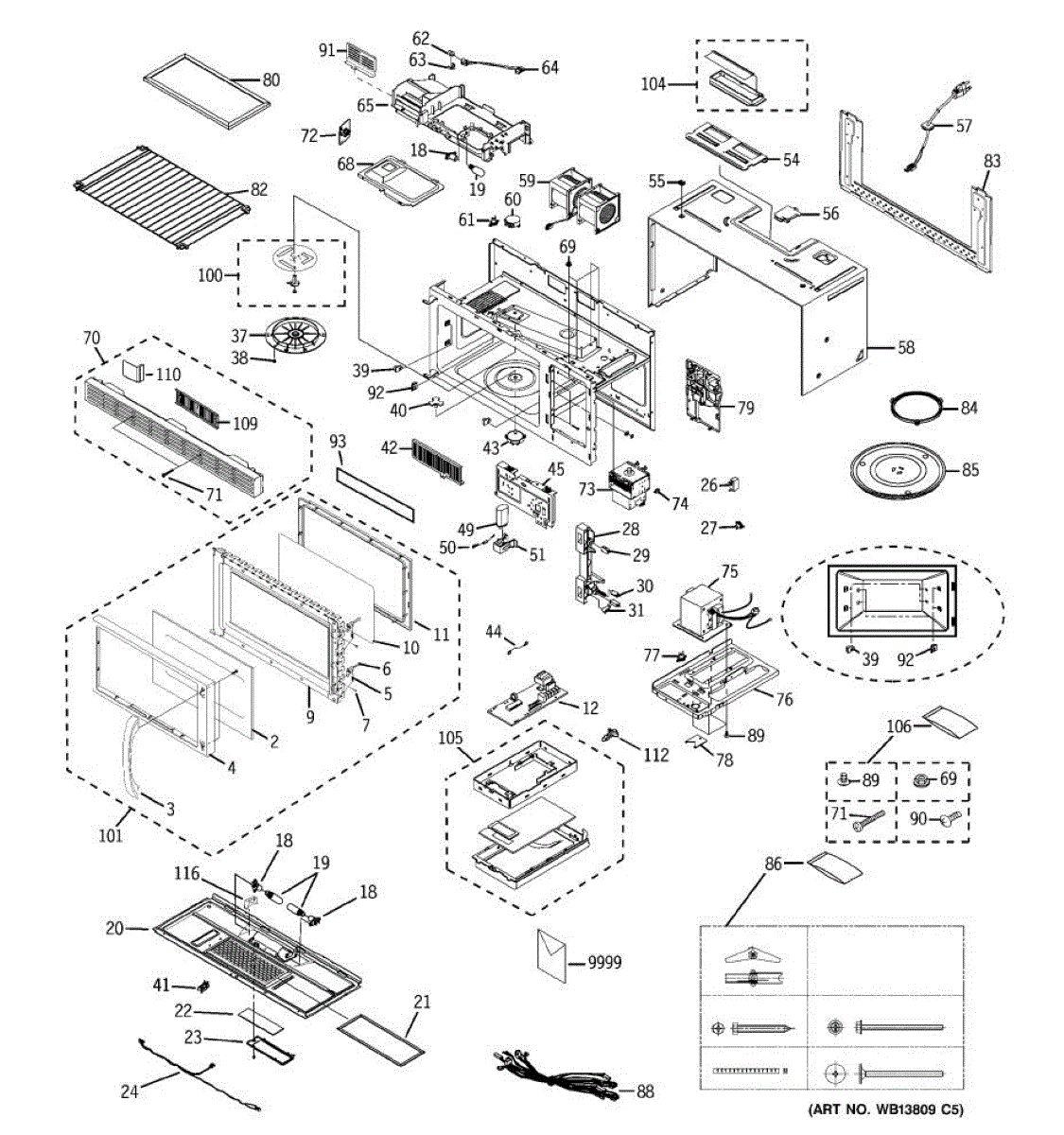

Parts for Ge JVM1650WH04: 01 - Microwave Parts

This screen door is a direct-fit door panel that restores the interior appearance and function of the appliance door. It replaces a damaged, dented or worn door panel to help maintain proper sealing and finish. What it does:

• Replaces a damaged or dented door panel to restore door appearance and fit
• Helps the door close and seal correctly by providing the proper panel surface
• Stops drafts, visible gaps, and moisture intrusion caused by a compromised panel
• Useful when the exterior finish is scratched, cracked, or cosmetically worn

• One screen door panel

• Disconnect power and empty the door before removing panels to prevent injury or damage
• Handle sharp edges carefully; wear gloves and eye protection
• Secure all mounting clips/screws to prevent rattles or gaps

Replace your broken or cracked microwave door handle. This white handle installs on the microwave door front, restoring easy grip for opening and closing.

Replacement spring for microwave control panel keys. Installs behind keypad buttons to provide tactile response. Order if your spring is broken or missing.

Replace your microwave's door hinge pin if the original is broken, bent, or missing. This small rod secures the door hinge assembly for smooth operation.

Holds the light bulb securely in your microwave for proper interior illumination. Replace if bulb won't stay in place, socket is burned or cracked.

Illuminates your microwave interior for monitoring food during cooking. Replace when bulb burns out or dims. Verify fit with your model number before ordering.

Grease filter for range hoods and over-the-range microwaves. Dimensions: 5-15/16" x 13-3/8" x 3/32" (5.9375 x 13.375 x 0.09375). Rectangle shape. Captures grease from cooking air. Replace when clogged, discolored, or every 6-12 months.

Replacement glass lens cover for microwave interior or cooktop lights. Protects bulb from food splatters. Needed when cracked, broken, or shattered.

Clear glass lens cover for over-the-range microwave cooktop light. Shields bulb from grease and splatters. Replace if cracked, broken, or missing.

This run capacitor helps the appliance motor start and run smoothly by storing and releasing electrical energy. Replacing a worn capacitor can restore reliable motor operation and reduce abnormal motor noise or cycling. What it does:

• Provides the brief power boost motors need to start and maintain RPM
• Helps stabilize motor voltage and improve run efficiency under load
• Commonly linked to symptoms such as motors that hum but won't start, slow or intermittent motor operation, or unusual motor noise
• Reduces stress on motor windings that can lead to premature failure when functioning properly

• One motor capacitor

• Always disconnect power at the breaker or unplug the appliance before servicing
• Capacitors can hold a charge; discharge safely
• Observe proper polarity and mounting location during installation; secure wiring and connectors

The Microwave Door Switch is an OEM part for GE microwaves, designed to prevent the microwave from operating when the door is open by interrupting the power whenever the door is not securely closed. The door switch is an essential safety feature.

Symptoms of a failing Microwave Door Switch include:

• The microwave not starting or heating
• Running when the door is opened
• Unusual noises when the door is closed

Causes of a bad Microwave Door Switch can result from repeated opening and closing of the door or slamming that can cause the switch to degrade or become misaligned, leading to intermittent or failure.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This is a monitor or interlock switch that detects whether the microwave door is properly closed before allowing the unit to operate. It is a safety device that shuts off microwave power if the door is open or if other door switches malfunction. Replace this switch if the microwave does not start, runs with the door open, or blows a fuse when the door is closed.

The Lower Lever Switch is an OEM replacement part for GE microwaves. This component activates the door interlock switch when the microwave door is closed. It ensures that the microwave only operates when the door is securely closed, preventing any operational hazards.

Symptoms of a bad Lower Lever Switch include:

• The microwave not starting, indicating the door isn't recognized as closed
• The appliance operating with the door open, a clear safety hazard
• Unusual sounds or issues when attempting to start the microwave
• The need to apply extra pressure to keep the door closed

Common causes for a malfunctioning Lower Lever Switch can be attributed to mechanical wear from frequent use, damage incurred during cleaning or use, or internal issues affecting the switch’s activation mechanism.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Plastic coupling gear that connects the motor shaft to the glass turntable. Replace if cracked, broken, or worn to restore turntable rotation.

Secures and organizes internal wiring in your microwave. Replace if wires are loose, rattling, or damaged clip causes arcing. Verify fit with your model number.

Turntable stopped turning or making grinding noise? This motor rotates the glass plate for even cooking. Easy 5-10 minute DIY fix with basic tools.

Wire harness assembly for microwave ovens. Connects internal electrical components. Replace if wires are frayed, damaged, or connections are loose.

Secures the microwave air guide or duct in proper position. Replace if your bracket is cracked, broken, or missing to restore stable internal airflow.

Fix a microwave that won't heat or hums but doesn't start. This capacitor stores energy for the high-voltage circuit. Moderate DIY repair, 30-60 minutes.

Microwave not heating or humming loudly? The high-voltage diode converts AC to DC for the magnetron. Repair takes 30-45 minutes with basic tools.

This mounting bracket secures the H.V.C. assembly or cover in place to keep high-voltage components stable and properly aligned. Replacing a damaged or bent bracket restores correct support and reduces movement-related issues. What it does:

• Secures the high-voltage cover/assembly to the appliance chassis to prevent shifting.
• Maintains correct clearance and alignment for high-voltage components.
• Helps reduce noise or arcing caused by a loose cover or bracket.
• Supports safe, reliable operation by keeping wiring and insulating parts in position.

• Disconnect power at the breaker or unplug the appliance before starting work.
• Handle high-voltage components and insulating parts carefully; avoid contact with charged parts.
• Use the OEM part number to fit and orientation before installation.

Secures microwave to wall cabinet mounting bracket. Replace if cracked, stripped, or missing to restore proper cabinet installation and stability.

Secures the power cord to your microwave's chassis. Replace this bracket if it's cracked, broken, or missing to properly mount and support the cord.

Fixes loud grinding or coffee grinder noise from microwave. Simple DIY repair with 2 screws and wire connectors. Located on top, typically takes under 30 minutes.

Microwave shuts down during use? This thermal cutoff thermostat prevents overheating by interrupting power when temperatures exceed safe limits.

This is a humidity sensor mounted inside the microwave that detects moisture levels in the cooking cavity. It enables auto-cook and auto-reheat functions by signaling the control board when food has released enough steam. Replace this sensor if auto-cook cycles consistently overcook or undercook food, or if the microwave displays a sensor error code.

Wire harness for microwaves. Connects electrical components inside the unit. Replace if wires are damaged, frayed, or connections are loose or broken.

Upper duct assembly for microwave ventilation systems. Mounts inside the cabinet to direct air flow. Replace if cracked, damaged, or missing components.

This vent grille covers your microwave's ventilation openings while allowing proper airflow for cooling the internal components. It protects the fan and internal parts from grease and debris while maintaining the unit's sleek appearance. Replace this grille if it's damaged, warped, or clogged beyond cleaning, which can cause overheating issues.

Direct replacement noise filter assembly for microwaves. Reduces electrical interference. Replace if cracked, damaged, or missing to restore clean power.

Microwave not heating? The magnetron generates microwave energy for cooking. Common repair when unit runs but won't heat food. Moderate DIY difficulty.

Microwave not heating food? This high voltage transformer powers the magnetron to generate heat. Moderate DIY repair restores cooking performance.

Replacement base plate for microwaves. Structural component that forms the bottom foundation of the cabinet. Needed when original is cracked or damaged.

This thermal fuse is a safety device designed to cut off power to the microwave if internal temperatures exceed safe limits. It is a small, inline fuse typically mounted near the magnetron or cavity. Replace this part if the microwave has completely stopped working with no display or response, especially after an overheating event.

This fan motor assembly cools the magnetron inside the microwave by circulating air to prevent overheating during operation. It includes the motor and fan blade as a complete unit. Replace this assembly if the microwave shuts off unexpectedly due to overheating, makes unusual noises during use, or the fan is no longer spinning.

Color: silver. Measures about 11-1/8" x 6-1/4". For matching aluminum filter, use: WB6X486.

Supports and guides the glass turntable in your microwave. Replace if the roller ring is cracked, broken, wheels are worn or missing, or the tray wobbles.

Replace your cracked, broken, or missing microwave glass cooking tray. This rotating turntable supports food for even heating in your microwave cavity.

This stirrer assembly circulates microwave energy inside the cavity so food heats more evenly and prevents cold spots. It replaces a damaged or noisy stirrer that can cause uneven cooking or unusual microwave noise. What it does:

• Spins the microwave stirrer to help distribute microwave energy for more even heating
• Reduces hotspots and cold spots during cooking
• Stops or reduces rattling, grinding, or squealing noises when the original stirrer is worn
• Helps prevent arcing or sparking caused by a cracked or broken stirrer cover

• Disconnect power at the breaker or unplug the appliance before servicing to avoid electrical shock.
• Access may require removing the microwave's outer cabinet or control panel; follow OEM service manual steps.
• Handle the stirrer and cover carefully—plastic parts can crack if forced.

Controls exhaust airflow in over-the-range microwaves. Replaces bent, damaged, or missing damper assemblies for proper external venting installation.

Support plate that mounts and secures the power control module inside your microwave. Replace if cracked, broken, or missing to properly hold the control board.

Lamp bracket for microwave interior lighting assembly. Secures the bulb housing in place. Replace if bracket is cracked, broken, or missing.
