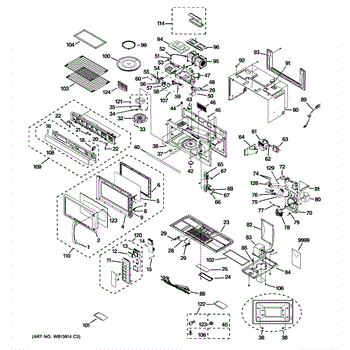

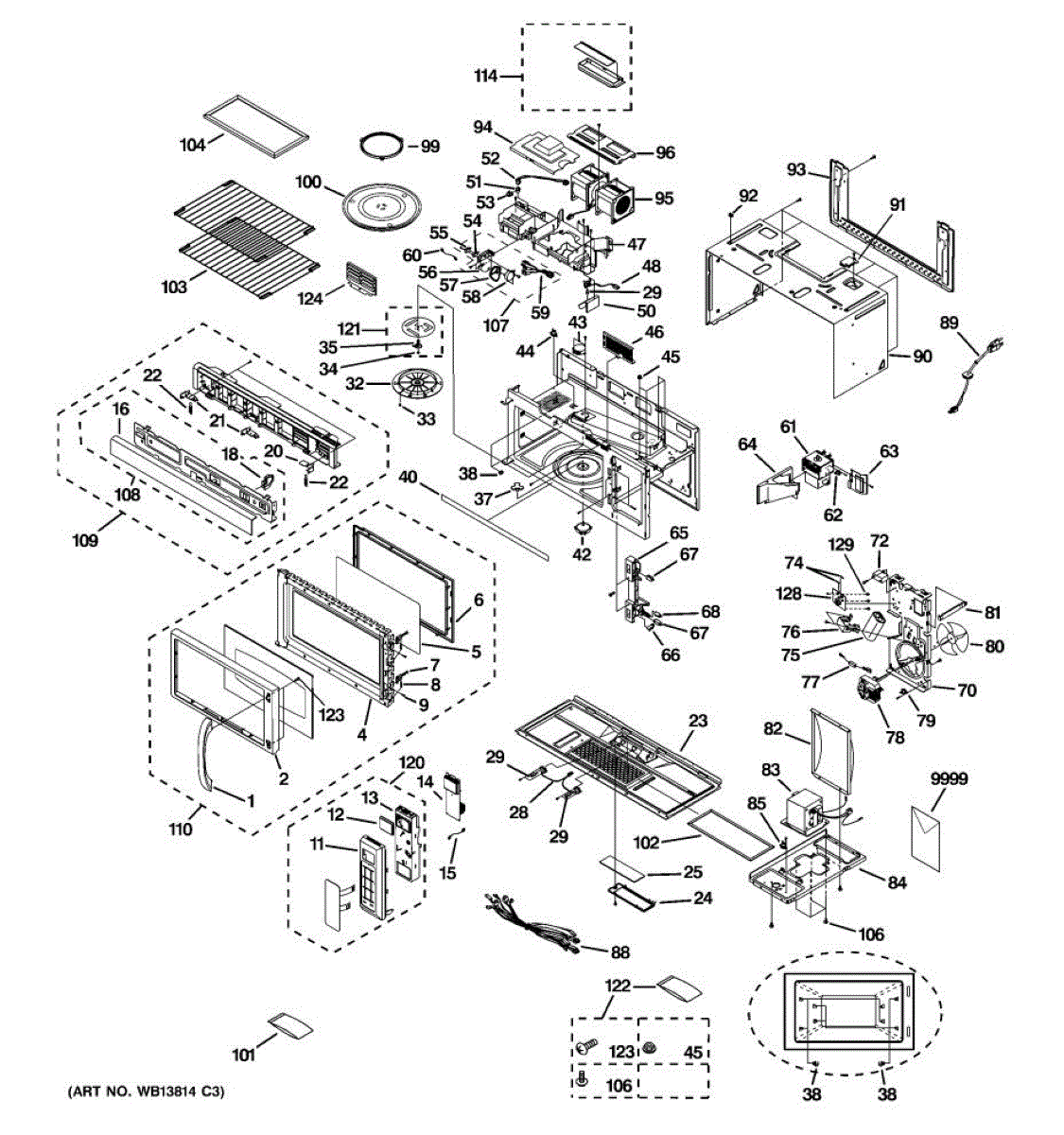

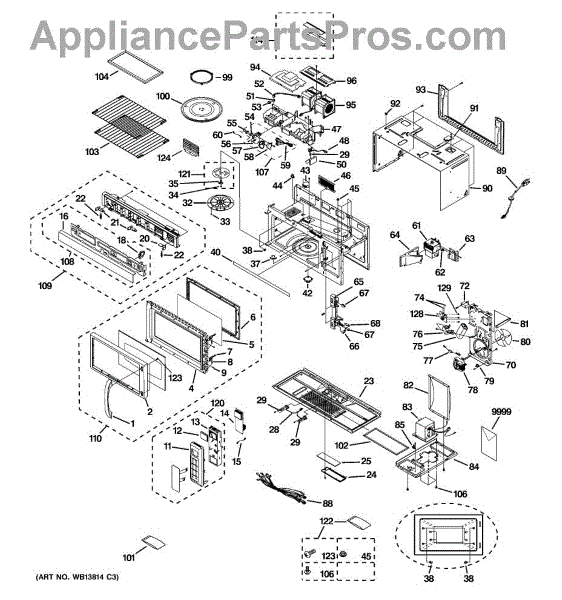

Parts for Ge JVM1871SK04: 01 - Microwave Parts

Microwave door outer frame that surrounds the glass window. Replace if your existing frame is cracked, chipped, or broken from impact or wear.

Complete microwave door assembly that replaces cracked, broken, or damaged doors. Includes door frame and glass. Restores proper seal and appearance.

This is a cover that fits over the choke area of the microwave door, helping to contain microwave energy and prevent it from leaking around the door seal. It is typically a molded plastic or metal piece that lines part of the inner door frame. Replace this cover if it is cracked, warped, or damaged, which could compromise the microwave's ability to safely contain radiation during operation.

The door latch is the mechanical catch on your appliance door that hooks into the strike plate to keep the door firmly closed during operation. It works together with the door lock or switch to confirm a secure seal before the appliance runs. Replace this part if the door won't stay closed, pops open during a cycle, or the appliance won't start because it can't detect that the door is properly shut.

Replacement spring for microwave control panel keys. Installs behind keypad buttons to provide tactile response. Order if your spring is broken or missing.

Replace your microwave's door hinge pin if the original is broken, bent, or missing. This small rod secures the door hinge assembly for smooth operation.

Replacement wire lead for microwaves. Connects internal electrical components. Order a new lead if yours is damaged, frayed, burned, or corroded.

Clear glass lens cover for over-the-range microwave cooktop light. Shields bulb from grease and splatters. Replace if cracked, broken, or missing.

Replacement glass lens cover for microwave interior or cooktop lights. Protects bulb from food splatters. Needed when cracked, broken, or shattered.

Replace your microwave's halogen light bulb when interior lighting dims or fails. Restores visibility for monitoring cooking. Verify fit with your model.

Secures the stirrer blade in your microwave for even heating. Replace if stirrer rattles or food heats unevenly. Confirm fit with your model number.

The Turntable Coupler is an OEM part for GE microwaves. It connects the microwave's turntable motor to the glass tray, enabling the tray to rotate during cooking. This rotation ensures even heating and cooking of food items placed on the tray.

Causes of a bad turntable coupler can include regular wear and tear, physical damage from heavy or improperly placed items, or overheating due to prolonged use.

Symptoms of a bad turntable coupler include:

• Turntable not rotating
• Uneven heating or cooking of food
• Grinding or clicking noises during operation
• The coupler being visibly damaged or worn

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Supports the removable wire rack inside your microwave cavity. Replace this holder if cracked, broken, or missing to restore stable two-level cooking capability.

Turntable stopped rotating or making grinding noise? Replace the turntable motor to restore smooth tray rotation. DIY repair in under 15 minutes.

Fixes loud grinding or coffee grinder noise from microwave. Simple DIY repair with 2 screws and wire connectors. Located on top, typically takes under 30 minutes.

Replaces cracked, warped, or damaged upper exhaust duct in your microwave. Directs airflow between vent area and exterior exhaust system for proper ventilation.

Protective cover for your microwave's interior halogen lamp. Replace if cracked, broken, or missing to shield the bulb and maintain safe operation.

Fix sensor cook cycles that won't adjust properly or show sensor errors. This humidity sensor monitors moisture levels for automatic cooking adjustments.

Wire harness for microwaves. Connects electrical components inside the unit. Replace if wires are damaged, frayed, or connections are loose or broken.

Cam plate bracket for microwave louver mechanism. Mounts between motor and louver assembly. Replace if cracked, broken, or worn to restore proper operation.

Cam louver for microwave air vent door mechanism. Replaces broken or worn cam that controls louver door opening and closing at top of unit.

Wire harness for microwaves. Connects internal components for electrical distribution. Replace if wires are frayed, connectors are damaged, or worn.

Microwave not heating food? A failed magnetron is the most common cause. This high-voltage tube generates microwave energy to heat and cook food properly.

Air guide assembly for microwaves. Directs airflow through the vent system. Replace if cracked, broken, or missing to restore proper ventilation.

This latch body is the door latch component that secures the appliance door during operation, restoring reliable closure so cycles can run normally. Use it to replace a worn or damaged latch that won't hold the door closed. What it does:

• Engages the door striker to hold the door closed and maintain a proper seal during operation
• Works with the door latch mechanism so the appliance can complete cycles that require a closed door
• Common symptom: door won't stay closed, is difficult to latch, or feels loose at the latch point
• Replacing a damaged latch body can prevent intermittent door-open errors and restore normal door operation

• Disconnect power (unplug or turn off circuit breaker) before starting any repair
• Remove the door or access panel as needed; keep track of fasteners and any trim pieces
• Handle door glass and trim carefully to avoid damage; test latch engagement before full reassembly

The Lower Lever Switch is an OEM replacement part for GE microwaves. This component activates the door interlock switch when the microwave door is closed. It ensures that the microwave only operates when the door is securely closed, preventing any operational hazards.

Symptoms of a bad Lower Lever Switch include:

• The microwave not starting, indicating the door isn't recognized as closed
• The appliance operating with the door open, a clear safety hazard
• Unusual sounds or issues when attempting to start the microwave
• The need to apply extra pressure to keep the door closed

Common causes for a malfunctioning Lower Lever Switch can be attributed to mechanical wear from frequent use, damage incurred during cleaning or use, or internal issues affecting the switch’s activation mechanism.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Microwave Door Switch is an OEM part for GE microwaves, designed to prevent the microwave from operating when the door is open by interrupting the power whenever the door is not securely closed. The door switch is an essential safety feature.

Symptoms of a failing Microwave Door Switch include:

• The microwave not starting or heating
• Running when the door is opened
• Unusual noises when the door is closed

Causes of a bad Microwave Door Switch can result from repeated opening and closing of the door or slamming that can cause the switch to degrade or become misaligned, leading to intermittent or failure.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This is a monitor or interlock switch that detects whether the microwave door is properly closed before allowing the unit to operate. It is a safety device that shuts off microwave power if the door is open or if other door switches malfunction. Replace this switch if the microwave does not start, runs with the door open, or blows a fuse when the door is closed.

This run capacitor helps the appliance motor start and run smoothly by storing and releasing electrical energy. Replacing a worn capacitor can restore reliable motor operation and reduce abnormal motor noise or cycling. What it does:

• Provides the brief power boost motors need to start and maintain RPM
• Helps stabilize motor voltage and improve run efficiency under load
• Commonly linked to symptoms such as motors that hum but won't start, slow or intermittent motor operation, or unusual motor noise
• Reduces stress on motor windings that can lead to premature failure when functioning properly

• One motor capacitor

• Always disconnect power at the breaker or unplug the appliance before servicing
• Capacitors can hold a charge; discharge safely
• Observe proper polarity and mounting location during installation; secure wiring and connectors

The Fuse is an OEM part for GE microwaves. It serves as a safety device designed to protect the microwave from excessive current that can cause overheating and potential fire hazards. When the current flowing through the microwave circuit exceeds a certain level, the fuse blows or breaks, cutting off the power to prevent damage or fire.

Common causes for a fuse to blow include power surges, faulty wiring within the appliance, or the use of microwave inappropriate containers that cause sparks. It is essential to address these issues not only to replace the fuse but also to correct the underlying problems to prevent future failures.

Symptoms of a bad fuse include:

• The microwave suddenly stops working.
• No signs of power or response even when the microwave door is closed and the start button is pressed.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Fix a microwave that won't heat or hums but doesn't start. This capacitor stores energy for the high-voltage circuit. Moderate DIY repair, 30-60 minutes.

Microwave not heating but lights and timer work? The high voltage diode converts AC to DC for the magnetron. DIY repair in 1-2 hours with basic tools.

Rear exhaust duct assembly channels airflow at the back of your microwave. Replace if cracked, rusted, or damaged to restore proper ventilation routing.

Microwave not heating? A failed high voltage transformer prevents the magnetron from producing microwave energy. DIY repair restores heating function.

Base plate for microwave ovens. Mounts inside the unit to provide structural support. Replace if cracked, warped, broken, or missing components.

This thermal fuse is a safety device designed to cut off power to the microwave if internal temperatures exceed safe limits. It is a small, inline fuse typically mounted near the magnetron or cavity. Replace this part if the microwave has completely stopped working with no display or response, especially after an overheating event.

Replace your microwave's power cord assembly if damaged, frayed, or missing. Connects the unit to your wall outlet for safe electrical operation.

Outer door panel for microwaves. Replaces cracked, dented, or damaged exterior panel that affects appearance. Cosmetic component for door assembly.

Secures the power cord to your microwave's chassis. Replace this bracket if it's cracked, broken, or missing to properly mount and support the cord.

Secures microwave to wall cabinet mounting bracket. Replace if cracked, stripped, or missing to restore proper cabinet installation and stability.

Upper duct bracket assembly for over-the-range microwaves. Secures ventilation ductwork to the cabinet. Replace if bent, broken, or missing hardware.

Color: brown. Measures about 9 inches in diameter.

Replacement glass turntable tray for microwaves. Rotates during cooking to heat food evenly. Order a new tray if yours is cracked, chipped, or broken.

Grease filter for range hoods and over-the-range microwaves. Dimensions: 5-15/16" x 13-3/8" x 3/32" (5.9375 x 13.375 x 0.09375). Rectangle shape. Captures grease from cooking air. Replace when clogged, discolored, or every 6-12 months.

This wire rack assembly provides a sturdy, removable shelf for your oven, giving stable support for cookware and bakeware and restoring proper shelf placement and clearance. What it does

• Replaces a bent, damaged, or missing oven shelf so pots and pans sit level during baking and roasting
• Restores smooth sliding and correct clearance for consistent cooking results
• Helps prevent cookware from tipping or shifting on weakened racks
• Fits into existing rack supports or side rails for secure positioning

• Remove power to the appliance and allow it to cool completely before installing
• Slide the rack into the oven rails or supports until fully seated; it rests level
• Wear gloves to avoid pinches or sharp edges while handling the rack
• No special tools usually required; refer to your owner's manual for model-specific guidance

Carbon filter for range hoods and over-the-range microwaves. Dimensions: 6-3/16" x 8-11/16" x 1/4" (6.1875 x 8.6875 x 0.25). Rectangle shape. Removes cooking odors from cooking air. Replace when clogged, discolored, or every 6-12 months.

Washered screw secures panels, brackets, and internal microwave components. Replace if screw is missing, stripped, or damaged to restore proper fit.

Controls exhaust airflow in over-the-range microwaves. Replaces bent, damaged, or missing damper assemblies for proper external venting installation.

Hardware bag includes screws, nuts, and washers for microwave installation and assembly. Replace missing or stripped fasteners during repairs or reinstalls.

Support plate that mounts and secures the power control module inside your microwave. Replace if cracked, broken, or missing to properly hold the control board.
