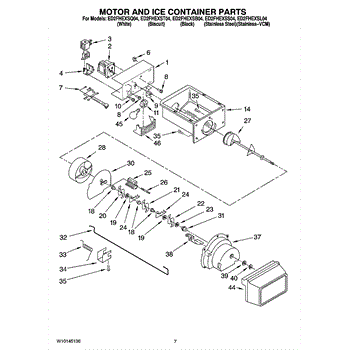

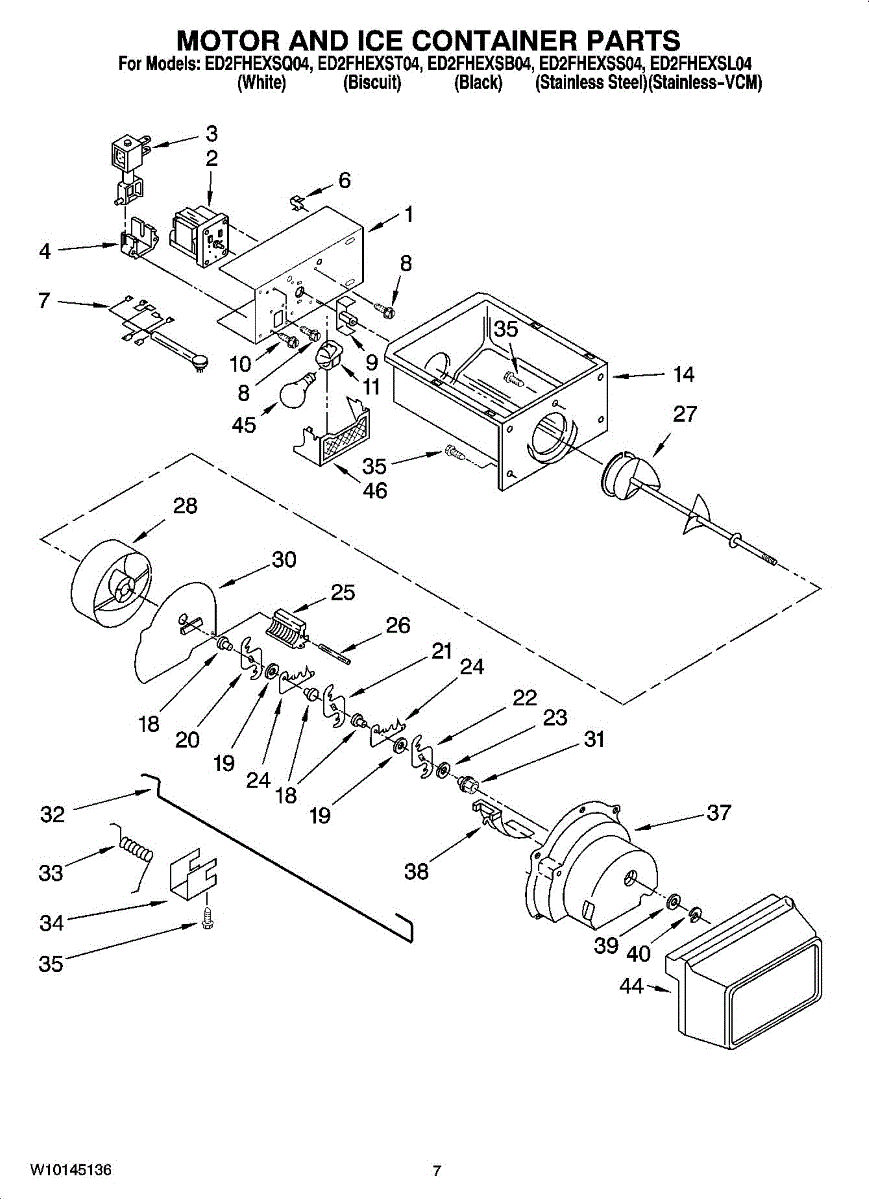

Parts for Whirlpool ED2FHEXSB04: 05 - Motor And Ice Container Parts

The Whirlpool Everydrop Water Filter 3 is a genuine OEM replacement part designed to improve the quality and taste of water while filtering out impurities. This filter is specifically designed for side-by-side refrigerators that accept Filter 3. Contains the ability to reduce 66 contaminants including lead, mercury, asbestos, and industrial chemicals. It helps to provide clean, fresh-tasting water. The filter needs to be changed every 6 months or 200 gallons for optimal performance. The fast and easy filter change requires no special tools. Simply push until you hear the receiver click into place. This NSF-certified filter is a reliable and affordable way to ensure that your family is drinking clean, refreshing water. SOLD INDIVIDUALLY

Specs:

• Filter Media: Carbon Block
• Operating Pressure: 30-120 psi
• Operating Temperature: 33-100 °F
• Flow rate: 0.5 gpm
• Material: Plastic
• Color: White
• Approximate Dimensions: 12 inches long, 2 inches in diameter

The Ice Dispenser Motor is an OEM part for Whirlpool refrigerators. This motor powers the mechanism that dispenses ice from the refrigerator’s ice maker, ensuring a smooth and reliable delivery of ice cubes or crushed ice to the user.

Causes of a bad ice dispenser motor can include electrical issues, excessive use, or mechanical failure due to wear and tear.

Symptoms of a bad ice dispenser motor include:

• The ice dispenser not dispensing ice
• Unusual noises coming from the dispenser area
• The motor not activating when the dispenser lever is pressed
• Inconsistent or intermittent dispensing of ice

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Ice Dispenser Solenoid is an OEM part for Whirlpool refrigerators. It controls the mechanism that opens and closes the ice chute door, allowing ice to be dispensed from the ice maker to the user.

Causes of a bad ice dispenser solenoid can include electrical failures, wear and tear from frequent use, or damage from moisture or debris buildup.

Symptoms of a bad ice dispenser solenoid include:

• The ice dispenser not dispensing ice
• The chute door not opening or closing properly
• Unusual noises during dispensing
• Ice clogging or jamming in the chute

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This guide helps align and support the dryer drum so it turns smoothly and reduces wear on the drum and bulkhead. Replacing a worn guide restores quieter operation and proper drum rotation. What it does:

• Centers and supports the dryer drum to prevent scraping and uneven wear
• Reduces squeaks, grinding noises, and rubbing during rotation
• Helps maintain proper drum alignment to improve drying performance
• Works with existing drum glides, bearings, and rollers to stabilize rotation

• One replacement guide

• Disconnect power before servicing to avoid electric shock
• Access may require removing the dryer front or top panel; your model's service instructions
• Inspect adjacent glides, rollers, and seals; replace any worn parts to prevent premature wear
• Retain all screws and clips; install the guide in the same orientation as the original

This dispenser harness is the wiring assembly that connects the refrigerator dispenser components to power and control signals, restoring electrical continuity so the dispenser, water, or ice functions can operate correctly. What it does:

• Routes power and signal connections between the dispenser controls and the appliance wiring
• Replaces damaged or corroded wiring that can cause intermittent dispenser, water, or ice operation
• Restores reliable connector fit and electrical contact to resolve connection-related faults
• Works with dispenser switches, solenoids, and control modules that use this harness

• Disconnect power to the appliance before starting any repair to avoid shock
• Inspect connectors and routing; match connector shapes and terminal counts before connecting
• Secure the harness away from moving parts and sharp edges to prevent wear

Size: 8-32 x .312 inch.

The Motor Coupling is an OEM part for Whirlpool refrigerators. This coupling connects the ice dispenser motor to the ice dispensing mechanism, allowing the motor to drive the ice auger and dispense ice effectively.

Causes of a bad motor coupling can include wear and tear from regular use, overloading the ice dispenser, or mechanical failure of the dispenser motor.

Symptoms of a bad motor coupling include:

• The ice dispenser not functioning or dispensing ice intermittently
• Unusual noises such as grinding, clicking, or rattling during operation
• The ice auger not turning or dispensing ice properly
• Visible cracks, breaks, or wear on the coupling

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Size: 8 x 1/2 ab.

The Light Socket Kit is an OEM part for Whirlpool refrigerators. This kit includes the light socket and necessary components to ensure proper installation and functionality. It is designed to hold the refrigerator light bulb securely and provide reliable electrical connections to illuminate the interior of the refrigerator.

Common causes of failure include wear and tear, corrosion from moisture, or damage from handling or bulb replacement.

Symptoms of a bad Light Socket Kit include:

• Refrigerator light not turning on
• Flickering or intermittent lighting
• Visible damage or corrosion on the socket
• Burned or melted areas around the socket

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Container is an OEM part for Whirlpool refrigerators, specifically designed to offer a dedicated storage solution within the appliance. This container might typically be used for organizing items such as fruits, vegetables, meats, or any other food items that require separate storage to maintain freshness and prevent cross-contamination.

Causes of these symptoms often stem from overloading the container beyond its capacity, normal wear and tear over time, or damage from cleaning and handling.

Symptoms of a bad Container include:

• Cracks or breaks that compromise the container's ability to hold items securely
• Warping or damage that prevents the container from fitting properly in its designated space
• Difficulty in sliding or maneuvering the container, which could indicate a problem with its design or fit

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This step spacer positions and supports the appliance step or kickplate to keep panels aligned and reduce rattles. Replacing a worn or missing spacer restores a secure, even fit and helps stop vibration and misalignment. What it does:

• Maintains correct gap and alignment between the step/kickplate and cabinet.
• Prevents rubbing, rattling, or an uneven step caused by a missing or damaged spacer.
• Provides a stable mounting surface so adjacent trim and panels sit flush.
• Helpful when replacing worn trim or after panel repairs to restore factory fit.

• Disconnect power (unplug or shut off breaker) before accessing panels.
• Remove the kickplate or access panel to reach the spacer; note original orientation before removal.
• Seat the spacer fully and reinstall panels and fasteners; avoid over-tightening.

This flat spacer installs on the refrigerator or freezer door hinge. It sets the correct clearance and height between the hinge and door so the door swings smoothly and seals properly. Replace worn or missing spacers to restore alignment. What it does:

• Maintains proper spacing between the hinge and door
• Helps keep the door level and aligned for a consistent seal
• Reduces rubbing or binding as the door opens and closes
• Typical symptoms when worn or missing: door sits low/uneven, rubs the cabinet, won't close reliably, or shows gaps/condensation at the gasket

• 1 flat spacer

• Disconnect power and remove items from the door to reduce weight
• Support the door before removing hinge fasteners; lift the door slightly as needed
• Install the new spacer in the same position/order as the original spacers and washers
• Reinstall and tighten the hinge; readjust if necessary

This replacement blade is the rotating element used within the appliance assembly to deliver the intended action. Installing a new blade restores smooth, efficient operation when the original is cracked, bent, worn, or missing.

• Provides the mechanical action required by the assembly (rotation/agitation)
• Helps maintain consistent performance and smooth operation
• Common failure signs: rattling or scraping noises, vibration/wobble
• Other symptoms: reduced performance in that section of the appliance, visible chips, cracks, or deformation

• Disconnect power before servicing; turn off water supply if applicable
• Wear cut-resistant gloves; edges may be sharp
• Note the original blade's orientation and spacing before removal; install the new blade the same way
• Hand-rotate after installation to ensure free movement and clearance before restoring power

This plain washer is a small hardware spacer used in appliance assemblies. It spreads the load under a fastener to secure parts, maintain alignment, and reduce wear—helping keep brackets, hinges, and mounts tight and operating correctly. What it does

• Distributes clamping force under screws/bolts to protect surfaces
• Maintains spacing for proper alignment of assembled components
• Helps reduce metal-to-metal wear and friction at mounting points
• Replace if missing, bent, worn, or if you notice looseness or rattling around a fastened area

• 1 plain washer

• Disconnect power; shut off water or gas supplies before service
• Note the original order/orientation of hardware; take a photo for reference
• Replace one-for-one and tighten to a snug fit—do not overtighten
• Check alignment and operation before restoring power and utilities

A roll pin (spring pin) that secures rotating or sliding components by fitting into matched holes to hold shafts, levers, or brackets in place. Replaces a worn or damaged pin to restore proper mechanical engagement. What it does:

• Holds shafts, levers or hinges in position by expanding into drilled holes for a snug, vibration-resistant fit
• Keeps pulleys, rollers, or linkages from moving out of alignment or sliding off their shafts
• Common symptom: loose or wobbling pulley, lever, or shaft where the retaining pin is worn or broken
• Common symptom: noisy or intermittent operation caused by a pin that no longer secures moving parts

• Inspect mating holes and shaft for wear; replace pin with correct size to ensure secure fit
• Use appropriate pliers or a pin punch and hammer to drive the pin in or out; support the assembly to avoid damage
• Wear eye protection when installing or removing roll pins—pins can snap or fly out under force
• If pin is difficult to remove or install, consider using penetrating oil or heating only per OEM guidance

The Ice Auger is an OEM part for Whirlpool refrigerators. This component is essential for the proper functioning of the ice dispensing system. The auger rotates to move ice from the ice bin through the dispenser chute, allowing ice cubes to be dispensed efficiently.

Over time, the ice auger can become worn out, broken, or jammed due to regular use or the buildup of ice and debris. Causes of a bad ice auger include wear and tear, damage from foreign objects in the ice bin, or issues with the motor that drives the auger.

Symptoms of a bad ice auger include:

• The ice dispenser not dispensing ice
• Grinding or unusual noises from the ice dispenser
• Ice cubes getting stuck or not moving through the chute
• Inconsistent or slow ice dispensing

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Ice Dispenser Drum is an OEM replacement part for Whirlpool refrigerators. This drum is located in the ice maker assembly and is responsible for dispensing ice when activated. It rotates to push ice through the chute and into your glass or container.

Causes of a bad ice dispenser drum include wear and tear from regular use, damage from ice jams, or breakage due to accidental mishandling. Accumulation of ice and debris can also cause the drum to malfunction.

Symptoms of a bad ice dispenser drum include:

• Ice not dispensing properly
• Grinding or clicking noises during operation
• Inconsistent ice output
• The dispenser becoming jammed frequently

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This baffle sits in the ice bin and supports the auger so ice feeds smoothly to the dispenser. Replace a cracked or worn baffle to restore reliable dispensing and reduce jams or grinding from the ice bucket.

• Supports and aligns the ice auger inside the bin
• Guides cubes/crushed ice toward the crusher/dispenser
• Helps prevent auger wobble, binding, or excessive noise
• Failure can show as weak/no ice dispensing or intermittent jams

• Disconnect power; remove the ice bin from the freezer/door
• Empty the bin and remove any screws/clips securing the baffle
• Transfer any reusable hardware; orient the baffle correctly around the auger
• Tighten fasteners without overtightening; reinstall bin and test dispense

This bearing nut secures a bearing and related rotating components on the shaft, keeping the assembly tight and aligned for smooth, dependable operation. Replacing a worn or stripped nut helps stop wobble, noise, and drive slippage.

• Locks the bearing/stack onto the shaft to prevent loosening
• Maintains alignment for smooth rotation and reduced vibration
• Helps restore consistent drive in shaft-driven assemblies
• Typical symptoms: loose or non-turning drive, rattling/grinding, or visible thread damage

• Disconnect power before servicing; shut off water if working near dispenser components
• Remove the related assembly to access the shaft; note part order for reassembly
• Hand-start the nut to avoid cross-threading; verify thread direction against the original
• Tighten securely; inspect the bearing, washers/spacers, and shaft for wear

This small plastic control arm extension links to the mechanism it serves, restoring proper movement and engagement so the appliance can operate as intended. It's a simple, direct-replacement component designed to snap in and align correctly.

• Connects to the existing control arm to extend its reach and function
• Helps correct issues like improper engagement or intermittent operation
• Can address symptoms such as sticking, misalignment, or failure to activate
• Sized to fit the original mounting points for consistent motion

• Disconnect power (and water if applicable) before servicing
• Note the orientation of the original part to match during reassembly
• Inspect the mating control arm and linkage for wear or damage
• Test operation before fully reassembling panels or covers

This genuine OEM return spring restores proper return/tension for the appliance component it connects to, helping controls, latches or hinges snap back into place. Replacing a worn spring can stop sticking, sagging or failed return action. What it does:

• Provides tension to return a lever, latch or door component to its resting position
• Restores crisp return action when a control or hinge feels loose or fails to snap back
• Helps reduce rattling or intermittent contact caused by a weak or broken spring
• Functions quietly once replaced, improving normal operation of the affected mechanism

• Disconnect power and gas before servicing; follow appliance-specific safety instructions
• Springs can be under tension — use proper tools and caution to avoid injury or part damage
• Compare the old spring to the new one for correct length and end type before installation

Rod retainer clip secures a support rod or shaft to keep moving parts aligned and stable during operation. Replacing a worn or broken clip prevents rattling, binding, or components falling out and helps restore proper mechanical function. What it does:

• Holds a support rod or shaft in place to maintain alignment of moving components.
• Prevents rods from sliding out or shifting, which can cause rattling, binding, or misalignment.
• Replace if the clip is bent, cracked, corroded, or no longer grips the rod securely.
• Common symptom: loose or misaligned parts, unusual noises, or components that detach during use.

• Disconnect power (unplug or shut off breaker) before servicing the appliance.
• Access may require removing panels, covers, or nearby components—follow the OEM service manual.
• Remove the old clip and carefully press or snap the replacement into place; avoid over-bending the clip.

Size; 8-18 x 1/2 inch.

This small crusher housing secures the ice-crushing components inside the refrigerator dispenser, helping contain crushed ice and guide it toward the dispenser chute. Replaces a cracked, warped, or damaged housing to restore proper ice flow. What it does:

• Holds and aligns the ice-crushing rotor and related components
• Prevents crushed ice from spilling into the cabinet or jammed areas
• Helps reduce ice jams and inconsistent dispensing when housing is intact
• Addresses symptoms such as ice falling irregularly, loud grinding from the dispenser, or visible housing damage

• One small crusher housing

• Disconnect power (unplug or shut off breaker) before starting work
• Remove dispenser and freezer/beverage door panels as needed to access the crusher assembly
• Inspect surrounding seals and fasteners; transfer and align internal parts carefully when replacing the housing

This ice deflector guides ice cubes from the icemaker into the ice bin to help keep ice delivery consistent and reduce cube jams or spills. It's a simple replacement that restores proper ice routing in compatible refrigerators. What it does:

• Directs ice cubes from the icemaker into the ice bin for orderly dispensing
• Helps prevent ice clumping and blockages that can stop ice flow
• Keeps ice moving away from the icemaker assembly and into the bin
• Restores proper alignment and function after a cracked or missing deflector

• Disconnect power to the refrigerator before servicing to avoid electrical or mechanical injury
• Remove the ice bin or access panel per your model's service instructions to reach the deflector
• Part typically snaps or slides into place; reuse existing fasteners unless new hardware is supplied
• After installation, reconnect power and run the icemaker through a cycle; discard any ice made during the repair if contamination is suspected

This is a flat plain washer used to distribute load and space hardware on appliance assemblies. It helps keep bolts and screws seated and reduces wear on mating surfaces for more secure fastener connections. What it does:

• Provides a flat bearing surface to spread clamp load and protect parts from fastener damage
• Maintains proper spacing and alignment for mounted components
• Helps prevent fastener loosening from vibration when used with the correct bolt or screw
• Commonly used on chassis, suspension, and bracket connections

• One plain flat washer

• Disconnect power and water supply before servicing the appliance
• Replace only with the same washer size and thickness as the original for proper fit
• Tighten fasteners to secure but avoid over-torquing which can deform the washer

A retainer ring that secures components in place to prevent axial movement and maintain proper alignment. Replacing a worn or damaged ring helps stop rattling and shifting, restoring quieter, more reliable operation. What it does:

• Holds shafts, bearings or seals in position to prevent side-to-side movement
• Keeps mating parts aligned so assemblies run smoothly
• Common symptom of failure: rattling, grinding, wobbling or loosened parts
• Small, inexpensive part that prevents larger component misalignment or wear

• Disconnect power and water before servicing the appliance
• Access the affected assembly by removing the appropriate panel(s)
• Installation may require snap-ring/retaining-ring pliers or small hand tools

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

Replacement light lens for the dispenser assembly that protects the bulb and restores clear, even illumination around the dispenser. Use this lens to replace a cracked, cloudy or missing lens and improve dispenser visibility. What it does:

• Protects the dispenser light bulb and helps diffuse light for more even illumination.
• Replaces cracked, chipped or cloudy lenses that reduce visibility at the dispenser.
• Helps keep debris and moisture away from the bulb and housing.
• Restores the intended appearance and function of the dispenser lighting.

• Disconnect power to the appliance before starting any repairs to avoid electrical shock.
• Accessing the lens may require removing the dispenser bezel or housing; handle the lens carefully to avoid scratches.
• Use the exact OEM part number to ensure fit; do not force or modify the part.

This is the complete horizontal ice dispenser bucket assembly with crusher. It fits 22 cubic foot refrigerator models. For 20 cubic foot models order WP2209778. For 25 and 27 cubic foot models order WPW10312300.
