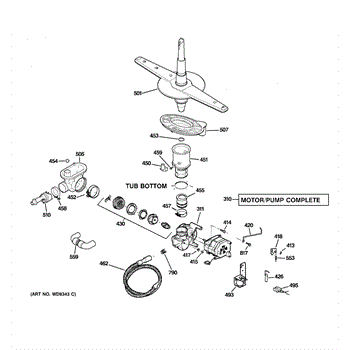

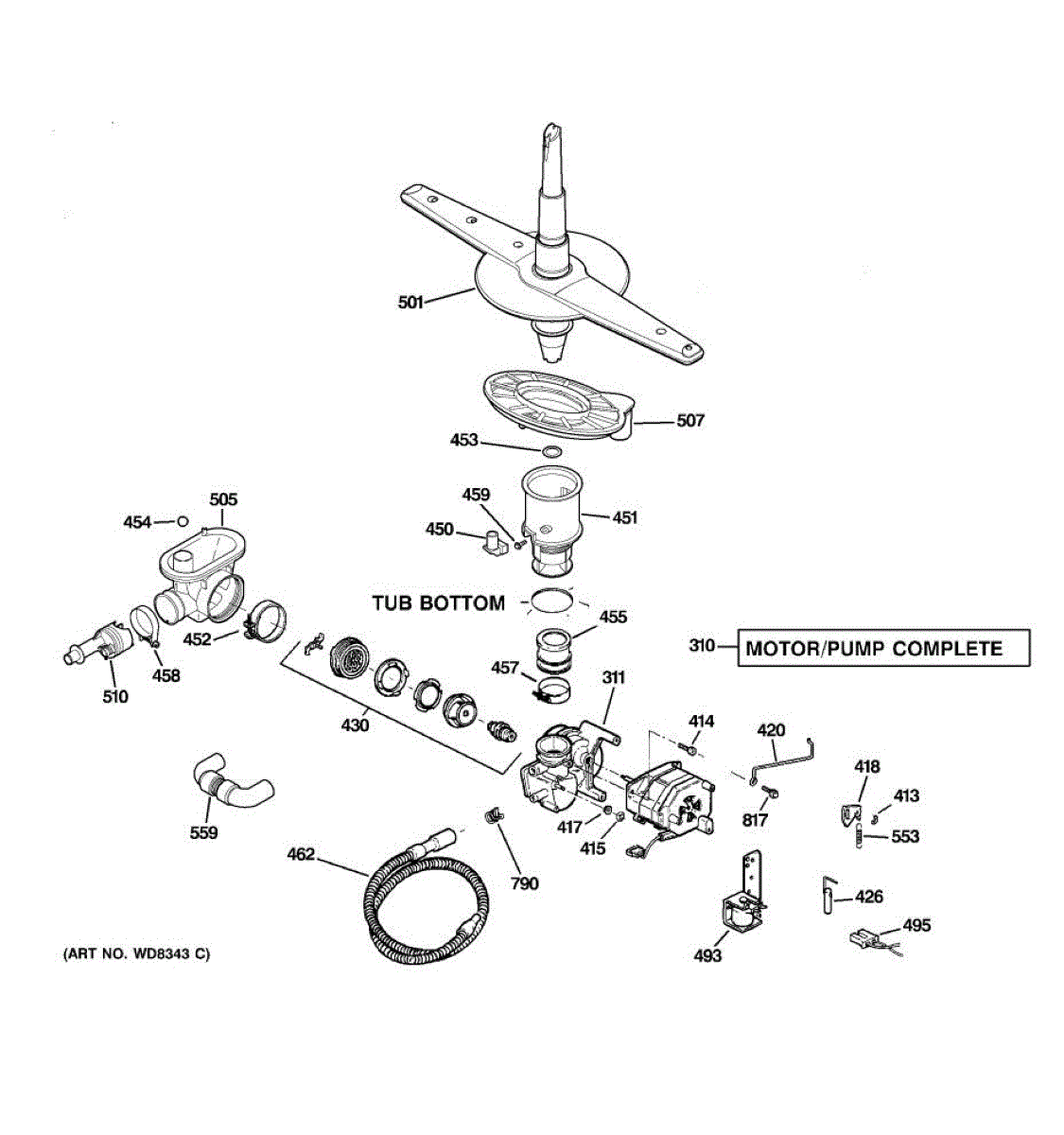

Parts for Hot Point HDA2000V35BB: 03 - Motor-Pump Mechanism Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The GE Pump and Motor Assembly is an OEM part for GE dishwashers. It is the component responsible for circulating water and draining dirty water during all dishwasher cycles. The motor powers an impeller inside the pump body to transfer water from the bottom of the tub back to the upper spray arm for rinsing and removal of food soils from dishes.

Symptoms of a bad pump and motor assembly include:

• Incomplete or slow draining of water after cycle completion
• Water not circulating effectively to spray dishes during wash and rinse stages
• Loud humming or grinding noises coming from inside the dishwasher tub
• Leaks in the tub or base of dishwasher from deterioration of the pump seals

Causes of failure can be normal wear and tear over time, mineral or grit buildup within the pump impeller that reduces flow efficacy, or moisture damage to the motor windings.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

For single drain outlet models only. For dual outlet port models you must order the complete pump and motor WD26X10013.

Includes 12 retainers.

This is a genuine replacement screw used to secure components and panels on compatible GE appliances. It restores proper fit and prevents rattling or loose parts for safe, reliable operation. What it does:

• Secures panels, brackets, or internal components to maintain proper alignment
• Stops rattling or vibration caused by loose fasteners
• Replaces missing, stripped, or damaged screws to restore safe operation
• Helps maintain seals and clearances by holding parts firmly in place

• Screw

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Do not overtighten; snug until secure to prevent damage to components
• Keep removed fasteners organized to ensure correct reassembly

The Push-On Nut is an OEM part for GE appliances. This small component is typically used to secure various fittings and fastenings within appliances, ensuring they are tightly held and do not loosen over time. Its push-on design allows for easy installation, making it a straightforward solution for maintaining the structural integrity of your appliance components.

Symptoms of a failing Push-On Nut include:

• Loose components within the appliance
• Parts that seem to detach or move unexpectedly
• Unusual noises due to parts rattling or shaking
• Difficulty in securing components during repairs or maintenance

Causes of a bad push-on nut can include metal fatigue leading to loss of elasticity, corrosion from exposure to moisture, or general wear from repeated removal and installation.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Dishwasher Shaft Seal is an OEM part for GE dishwashers. This seal is located around the motor shaft and prevents water from leaking out of the dishwasher tub where the motor shaft enters.Seal for pump drain valve shaft. Instruction sheet included. Push-on nut may have to be cut off, order WR2X7054.

Over time, regular use can cause the seal to deteriorate, or debris and mineral deposits can lead to damage. A compromised shaft seal can result in water leaks, potentially causing damage to your kitchen floor and dishwasher components.

Symptoms of a bad dishwasher shaft seal include:

• Water leaking from the bottom of the dishwasher
• Puddles or water damage around the dishwasher area
• Unusual noises coming from the motor area due to water infiltration
• Visible wear or cracks on the seal

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This arm valve installs in the dishwasher's spray arm feed to control water flow. It helps maintain proper pressure so the spray arm spins and distributes water evenly for effective cleaning.

• Directs water through the spray arm and helps maintain wash pressure
• Prevents unintended backflow that can reduce spray performance
• If worn, stuck, or missing, lead to weak spray or poor cleaning results
• Common signs include intermittent wash coverage or spray arm not rotating as expected

• Disconnect power and turn off water before servicing
• Remove the rack/spray arm or feed manifold to access the valve
• Note the valve's orientation and seat the new valve fully in the same direction
• Reassemble and run a quick cycle to check for proper spray and leaks

The Solenoid Armature and Linkage is an OEM replacement part for GE dishwashers. It is responsible for controlling the dishwasher's draining process by operating the drain valve, which regulates the flow of water out of the dishwasher during the drain cycle.

Symptoms of a bad solenoid armature and linkage include:

• Dishwasher not filling with water or filling improperly
• Water leaks from the inlet valve area
• Dishwasher not advancing to the next cycle due to water flow issues
• Error codes or indicators related to water inlet problems

Causes of a bad solenoid armature and linkage can include mineral buildup or debris obstructing the valve, electrical malfunctions in the solenoid coil, or mechanical wear and tear of the linkage components.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore dishwasher models.

The Circulation Pump Impeller Kit is an OEM replacement part for GE dishwashers. This kit includes the necessary impeller components responsible for circulating water throughout dishwashing cycles.

Causes of a bad circulation pump assembly include normal wear from continuous pump operation, along with mineral or debris buildup that can affect water flow.

Symptoms include:

• Inadequate or lack of water circulation within cycles
• Dirty dishes even after full cycles due to insufficient cleaning

This OEM GE part is compatible with some Hotpoint, RCA, and select Kenmore models.

This is a genuine replacement coupler for select dishwashers made by GE and Hotpoint. The dishwasher coupler is designed to connect the spray arm to the unit and provide the connection for the water supply. This durable plastic coupler is subject to high heat and repetitive motion and can break or wear down over time. This could result in dishes not be cleaned properly. The unit may also be leaking or failing to drain. In the event that this happens, a replacement will be needed. This OEM coupler is manufactured to exact standards. It is sold as an individual unit and does not include any additional accessories or hardware. The spray arm will need to be accessed in order to complete this repair, which requires a nut driver and flathead screwdriver. Be sure to wear gloves and unplug the unit before performing any repairs. Remove the spray arm and the filter in order to access the coupler. Remove the old part and replace the new one, then replace the filter and spray arm and test the unit for leaks.

The Lower Spray Arm Base is an OEM part for GE dishwashers. Located inside the dishwasher tub, this part attaches securely to hold and rotate the lower spray arm during wash cycles. The spray arm works together with the rotating base to provide thorough lower rack coverage with water and dishwasher detergent.

Symptoms of a bad lower spray arm base include:

• Inadequate cleaning of lower rack dishes
• Dirt or food particles left behind after cycles
• Loose or detached lower spray arm

Causes of a bad lower spray arm base can be wear over many cycles of use. Damage may occur from impact with dishes or utensils loaded incorrectly. Regular mineral buildup on the connectors also reduces efficient spinning.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This sump clamp secures the dishwasher sump to the tub assembly, keeping the gasket compressed for a watertight seal. Replacing a weakened or corroded clamp helps stop leaks from the base and restores proper wash system sealing.

• Holds the sump firmly to maintain seal compression
• Helps prevent water leaking from the bottom of the dishwasher during operation
• Replace when the existing clamp is rusted, broken, stripped, or won't tighten

• Disconnect power at the breaker and shut off the water supply
• Remove the toe kick and, if needed, pull the dishwasher forward for access
• Position the clamp over the sump-to-tub joint and tighten evenly; do not overtighten
• Reseat the sump gasket and run a leak test after reassembly

This spray arm bearing supports the dishwasher spray arm so it spins freely for even water distribution and better cleaning coverage. Replacing a worn bearing can reduce spray arm wobble, knocking noises, and uneven wash patterns. What it does:

• Supports and centers the spray arm to allow smooth rotation during cycles
• Helps maintain even water spray for consistent cleaning performance
• Reduces spray arm wobble, rubbing, or knocking noises caused by a worn bearing
• Prevents binding that can lead to reduced spray coverage or intermittent hitting of the tub

• Disconnect power and turn off water supply before starting any repair
• Remove lower rack and detach the spray arm to access the bearing per your model's service instructions
• Press or snap the replacement bearing into place and reassemble parts in reverse order
• Run a short cycle to ensure the spray arm spins freely and there are no leaks

This OEM Replacement Part is a rubber connector with female threads. It is designed to provide a secure connection between the spray arm and the pump in a dishwasher. The connector measures 2-3/4 inches in diameter and 2-1/8 inches in height. This part is crucial to ensuring the proper functioning and efficiency of your dishwasher's spray arm pump.

Over time, the pump connector can wear out or become damaged due to repeated exposure to water, detergent, and high temperatures. This wear and tear can lead to leaks or a decrease in the dishwasher’s performance.

Symptoms of a bad pump connector include:

• Water leaks under or around the dishwasher
• Reduced water pressure during the cleaning cycle
• The dishwasher not draining properly
• Unusual noises during operation

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Note: This connector has female threads. For male threads use WD18X206.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

A replacement clamp that secures hoses or wiring to keep lines routed and stable, helping prevent rubbing, leaks and noise. Restores a reliable hold for tubing and harnesses so the appliance runs quietly and safely. What it does:

• Holds hoses, tubing or wire harnesses in place to reduce movement and chafing.
• Helps prevent leaks and water line abrasion caused by loose fittings.
• Reduces rattling or vibration from unsecured lines or cables.
• Keeps routing organized so adjacent components aren't stressed or worn.

• Disconnect power before servicing the appliance; shut off water supply when working on water or drain lines.
• Remove the old clamp and position the replacement so it fully engages the hose or harness, avoiding twists.
• Use appropriate hand tools (pliers or screwdriver) and secure the clamp evenly; avoid overtightening.
• Inspect surrounding hoses and wiring for damage while installing; replace any components that show wear.

The screw is an OEM replacement component for GE dishwashers. It is used to securely fasten parts inside the dishwasher tub assembly.

Causes of a damaged or defective screw usually involve wear from continuous mechanical stresses and vibration during dishwasher usage. Loose parts affect machine balance and performance.

Symptoms of a compromised screw placement include:

• Noises or abnormal sounds coming from inside the tub
• Intermittent error codes related to moving components
• Detached or misaligned spray arms or filters
• Insecure tub fixtures that can be jarred with normal operation

This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Drain Hose is an OEM part for GE dishwashers. This part carries the wastewater from the dishwasher to the household plumbing, ensuring efficient and effective drainage after each wash cycle.

Causes of a bad drain hose can include regular wear and tear, kinks or bends that restrict water flow, or damage from improper installation.

Symptoms of a bad drain hose include:

• Water not draining properly from the dishwasher
• Leaks or puddles of water around the dishwasher
• Visible cracks or splits in the hose
• Unpleasant odors due to stagnant water

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Solenoid and Bracket Assembly is an OEM replacement part for GE dishwashers. This component plays a role in controlling the flow of water during the dishwashing cycles, allowing for proper water distribution and efficient cleaning.

Symptoms that may indicate the need to replace the solenoid and bracket assembly include:

• Issues with water not filling or draining properly
• Inconsistent or incomplete water circulation during cycles
• Visible leaks or water damage around the solenoid area

Causes of a faulty solenoid and bracket assembly can include normal wear and tear over time, electrical malfunctions, mineral buildup or debris obstructing the solenoid, or physical damage to the component.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore dishwasher models.

This is the drain solenoid housing for a dishwasher. It secures and aligns the drain solenoid on the pump assembly so the drain valve actuates consistently and the tub can empty at the right time.

• Positions and insulates the drain solenoid on the pump/drain mechanism
• Maintains proper alignment for reliable drain-valve actuation
• Common symptoms of a failed housing: won't drain or drains intermittently
• May present as loud humming from the solenoid or visible cracks/heat damage on the housing

• Disconnect power and water supply before servicing
• Access the pump area beneath the tub; note solenoid, lever, and linkage orientation
• Transfer the existing solenoid and any clips/brackets to the new housing; reuse fasteners
• Run a short cycle to ensure proper draining after reassembly

The Lower Spray Arm is an OEM part for GE dishwashers, meticulously crafted to provide a direct replacement for the original component. This part is essential for ensuring that water is evenly distributed throughout the dishwasher during a cycle, reaching all dishes to effectively remove food debris and stains. The lower spray arm rotates and sprays water with precision, making it a critical element in achieving optimal cleaning performance.

Causes for these issues often stem from regular use, such as the accumulation of hard water minerals leading to clogs, or physical damage from improper loading of dishes. Ensuring that the Lower Spray Arm is in good condition and free from obstructions is vital for maintaining the dishwasher's efficiency and cleaning effectiveness.

Symptoms of a faulty Lower Spray Arm include:

• Dishes remaining dirty or having spots after a wash cycle
• Water not spraying evenly or with sufficient force
• The spray arm becoming clogged, cracked, or broken

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Sump Inlet is an OEM part for GE dishwashers. This part allows water to flow into the sump area, which collects and drains used wash water from the tub during the dishwashing cycle.

Causes of a bad part can range from clogs or obstructions preventing proper water flow, physical damage or cracks leading to leaks, or general wear and tear over time.

Symptoms of a bad Sump Inlet include:

• Failure of the dishwasher to fill with water
• Water leaks or puddling around the base of the dishwasher
• Excessive noise or gurgling sounds during operation

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This fine filter assembly sits in the bottom of the dishwasher tub and screens out small food particles so recirculating water stays cleaner. Replacing a torn or warped filter helps restore wash performance and protects the pump and spray arms from debris.

• Traps fine debris to reduce redeposit on dishes and glassware
• Supports proper water circulation and spray pressure
• Helps shield the wash pump and spray arms from clogs or damage
• Replace if the mesh is torn, warped, missing, or persistently clogged; common signs include gritty residue or food left on dishes

• Disconnect power at the breaker before servicing inside the tub
• Remove the lower rack; if required, remove the lower spray arm and release your model's retainer (nut/clip/screws) to lift out the old filter
• Clear debris from the sump; seat the new filter flat and lock/secure it fully, then reinstall any removed parts
• The filter is locked in place before running a test cycle

This spring kit restores proper door tension so the appliance door opens and closes smoothly and stays in position. Use it to replace worn or broken springs that cause a sagging, loose, or hard-to-operate door. What it does:

• Replaces worn or damaged door tension springs to restore smooth opening and closing.
• Helps prevent the door from dropping, sagging, or not staying open.
• Reduces uneven or jerky door movement caused by lost spring tension.
• Matches OEM-design function for safe, reliable door operation when installed correctly.

• Disconnect power (and water, if applicable) before beginning any repair.
• Springs are under tension—use caution and proper tools to avoid injury.
• Follow the appliance's service manual or OEM instructions.

This is a hose chamber, or dishwasher hose pump. This part attaches to the back of the dishwasher and is the direct line for the water to get in and out during the washing cycle. This specific part prevents leaking and is very important to the machine. The user might need to replace this part if the dishwasher is leaking, if the machine is not putting in or draining water properly, or if the machine has stopped working altogether. Anyone can complete this repair with basic household tools such as a screwdriver, pliers, and working gloves. Always make sure the machine is empty of dishes and is drained of water before starting the repair. Also make sure it is unplugged from the electrical source and is turned off completely. This is an OEM part sourced directly from the manufacturer. It is sold individually. This part is compatible with machines from manufacturers like General Electric, Hotpoint, RCA, and more.

This hose clamp kit secures the washer's hoses at the pump, tub, or valve connections, helping stop leaks and hose blow-offs. Replace worn or missing clamps to restore a tight, reliable seal during fill, wash, and drain.

• Secures drain, pump, and fill hoses to fittings to maintain a watertight seal
• Helps prevent drips, leaks, and hoses slipping off during vibration
• Replaces clamps that are rusted, stripped, deformed, or missing
• Common symptoms: water leaking at hose joints, loose hose connections, clamp won't tighten
• Useful when installing a new hose, pump, or valve

• Unplug the washer and turn off water supplies; have towels or a pan ready for residual water
• Release and remove old clamps; seat the hose fully over the fitting before installing new clamps
• Tighten evenly and do not overtighten to avoid hose or fitting damage
• Restore power and water, then run a short cycle to check for leaks at each connection

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces
