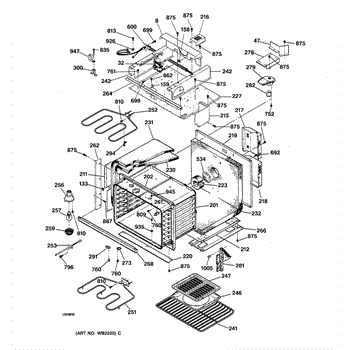

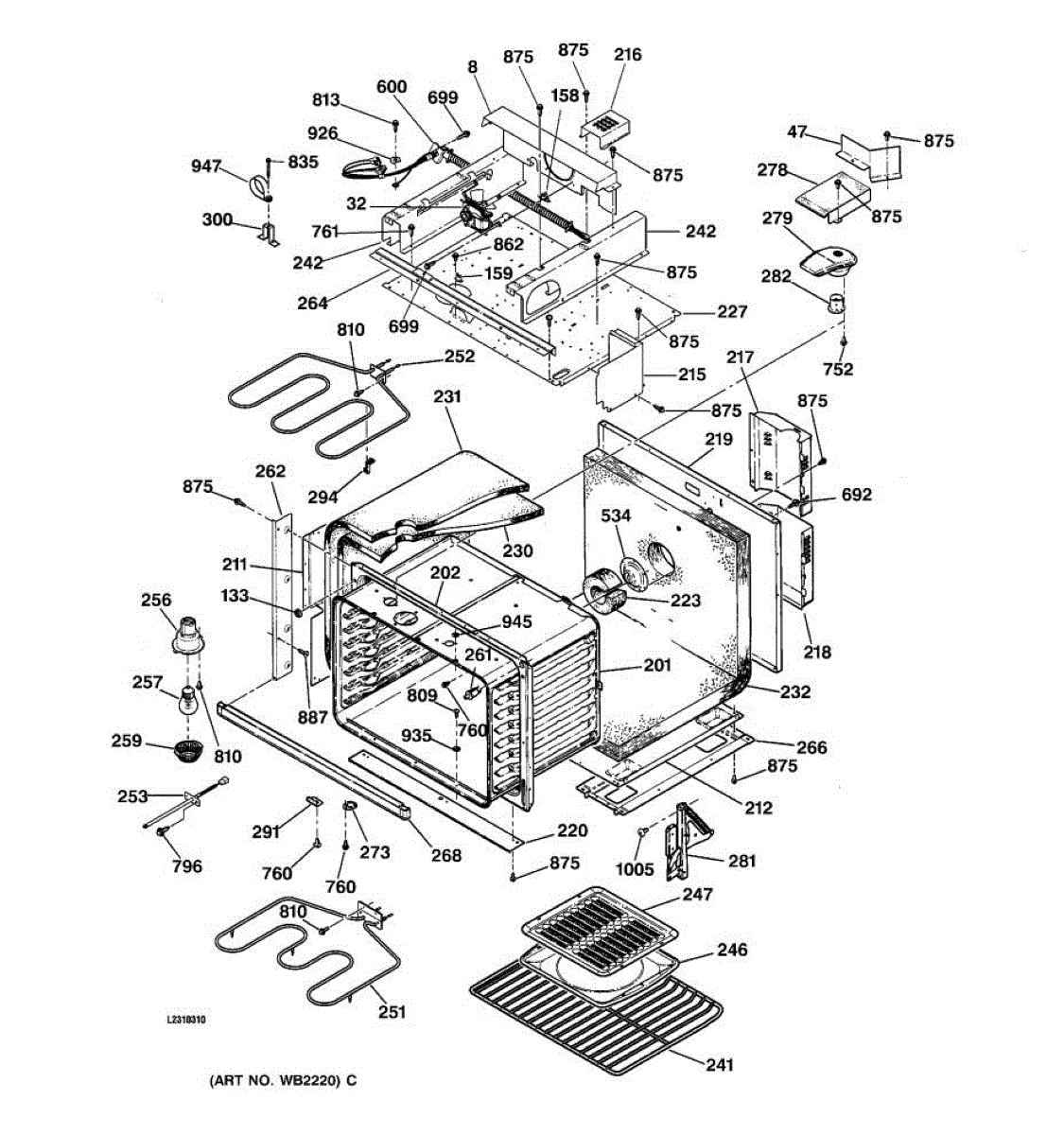

Parts for Ge JTP85BA3BB: 04 - Oven Body & Microwave Support Parts

Fix a noisy or non-working convection fan with this motor assembly. Restores even heating and airflow in your oven. Takes about 30 minutes to install.

Felt pad cushions and protects oven components from vibration and heat damage. Replace if worn, compressed, or damaged to prevent noise and part wear.

Small rubber bumper that cushions contact between oven door and cabinet. Replace if cracked, missing, or worn to reduce noise and protect finishes.

Door pad gasket creates a seal between your oven door and front panel. Replace if worn, cracked, or causing heat loss. Confirm fit with your model number.

This top wire cover protects and hides the cooktop's wiring harness at the rear of the range, keeping wires routed and shielded for safe operation. It restores a finished appearance and helps prevent snagging or accidental contact. What it does

• Covers and secures the cooktop wiring harness at the rear/top area
• Helps prevent wires from rubbing, catching, or being exposed to heat and debris
• Reduces risk of accidental contact with wiring while accessing the cooktop
• Can resolve issues caused by damaged or displaced wiring covers (visible wire exposure, snagging)

• One top wire cover

• Disconnect power to the appliance before inspecting or replacing the cover
• Remove cooktop or access panel per service instructions to reach the wiring area
• Align cover over the wiring harness and secure with the original fasteners or clips
• If wiring shows damage or overheating, replace/repair wiring per OEM instructions

Insulation panel that installs on the back and bottom of your oven cavity. Replace if damaged, torn, compressed, or missing to maintain heat efficiency.

Insulation panel that installs on top of the oven cavity. Replace if damaged, torn, compressed, missing, or contaminated by pests or moisture.

Insulation panel that installs on the back and bottom of your oven cavity. Replace if damaged, torn, compressed, or missing to maintain heat efficiency.

Replacement oven rack for electric and gas ranges. Installs inside oven cavity. Needed when original rack is missing, damaged, or warped from use.

This glass tray is a flat oven shelf that provides a smooth, easy-to-clean surface for baking and roasting. It restores a stable cooking surface and replaces cracked, chipped, or otherwise damaged oven glass trays. What it does:

• Supports bakeware and cookware for even heating on the oven floor or shelf area
• Replaces trays that are cracked, chipped, or shattered and may cause uneven cooking
• Provides a smooth, non-porous surface that's simple to wipe clean
• Helps prevent food drips from contacting the oven floor when used as intended

• One glass tray

• Handle carefully; glass can break and cause injury—wear cut-resistant gloves
• Allow the oven to cool completely before removing or installing the tray
• Inspect tray for chips or stress cracks before first use; do not use if damaged
• Follow the appliance manufacturer's instructions for placement and safe use

Large broiler pan with grid for ovens and ranges. Replaces damaged, warped, or missing pans. Installs in broiler compartment for cooking meats and vegetables.

Replacement broiler pan that installs in your oven cavity. Needed when original pan is warped, rusted, damaged, or missing from your appliance.

Oven not heating or baking unevenly? A failed bake element is the likely cause. This DIY repair typically takes 15-30 minutes with basic tools.

Broiler won't heat up? This upper heating element restores high-heat broiling and surface browning. Takes about 15 minutes to replace with basic tools.

If your oven won't preheat or shows an F3 error code, this temperature sensor monitors oven heat and safety features. Direct plug replacement, 15-minute fix.

Holds and powers the interior oven light bulb for visibility while cooking. Replace if light flickers, won't turn on, or bulbs burn out frequently. Verify fit by your model number before ordering.

Replace your cracked or missing oven light lens to restore safe illumination. This cover protects the bulb and diffuses light for clear visibility while cooking. Confirm fit by model number.

This is a high-amp SPDT (single pole, double throw) switch used in the oven door mechanism. It detects whether the oven door is open or closed and signals the control to enable or disable certain functions such as the oven light or broil element. Replace this switch if the oven light does not turn on or off when the door is opened or closed, or if the oven does not operate correctly in relation to door position.

This is a metal base rail that mounts inside the oven cavity and provides a track or support structure for internal components such as racks or drawer slides. It helps guide and stabilize parts as they slide in and out of the oven. Replace this rail if it is bent, corroded, or broken, causing racks or other components to sit unevenly or not slide smoothly.

Lower housing cover for ovens and ranges. Replaces cracked, broken, or missing covers that expose internal components. Protects and encloses the lower section.

Left side hinge assembly for oven doors. Replaces broken, cracked, or worn hinges that prevent proper door opening and closing. Direct fit component.

This is a protective cover used inside a cooking appliance such as a range or oven. It shields internal components from heat, grease, and debris during normal operation. Replace this cover if it is warped, cracked, corroded, or damaged, which can expose sensitive parts and affect cooking performance.

This metal bracket provides structural support for range components like burner assemblies or control panels. It securely holds parts in their proper position during normal cooking operations. Replace when range components become loose, sag, or don't align properly.

Spacer component for ranges and ovens. Provides proper spacing between parts during installation. Replace if missing, cracked, or damaged during repair.

ST10-16 X 7/16"

This replacement mounting screw is used in cooking appliances to fasten components securely. It restores a tight, rattle-free fit so panels, brackets, or burner-related parts stay properly aligned during everyday use.

• Secures appliance components to the chassis or assembly
• Replaces a missing, stripped, or corroded screw
• Helps resolve loose panels, wobbling parts, or vibration noises
• Supports proper alignment of mounted parts

• Disconnect power at the breaker; for gas units, also shut off gas supply
• Allow the appliance to cool completely before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly without overtightening; replace damaged threads or hardware as needed

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.

Replacement screw for securing oven components, panels, and brackets. Restores tight mounting when original screws are missing, stripped, or lost.

Replacement mounting screw for securing panels, brackets, and trim on electric ranges and wall ovens. Needed when original fastener is stripped or missing.

Replacement screw for securing panels, brackets, and internal components in ranges, ovens, and cooktops. Replace missing, stripped, or damaged screws.

Replacement screw for securing panels, brackets, and internal components. Needed when original hardware is stripped, missing, or damaged during repairs.

Replacement mounting screw secures panels, brackets, and controls on ranges and ovens. Needed when original screws are missing, stripped, or damaged.

Black. 8-18 AB HXW 3/8

Black trim screw secures exterior trim and panels on ovens and ranges. Replace missing, stripped, or corroded screws to restore proper fit and finish.

Replace your missing, worn, or damaged range washer. This small metal component secures parts and assemblies throughout your oven, ensuring proper fit.

10-32 machine screw secures panels, brackets, door hinges, and handles in ovens and ranges. Replace missing, stripped, or broken screws for tight fit.
