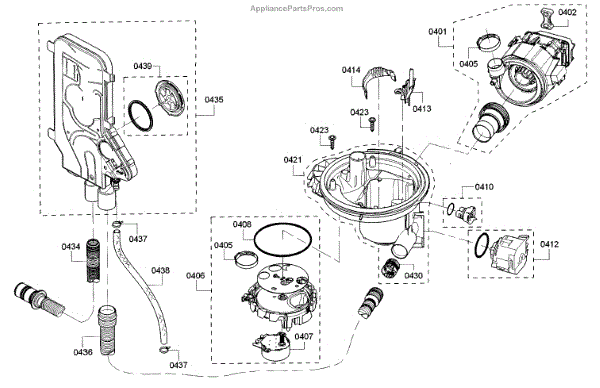

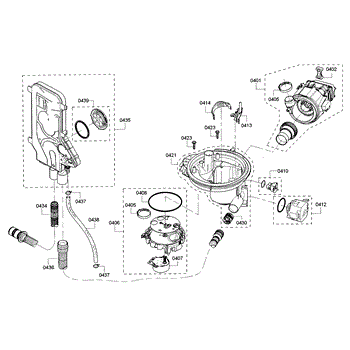

Parts for Bosch SHP65TL5UC/07: Pump Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Circulation Motor and Heater Assembly is an OEM part for Bosch dishwashers. It includes both the circulation motor, responsible for moving water through the dishwasher during the cleaning cycle, and the integrated heater, which raises the water temperature for effective cleaning and drying.

Symptoms of a bad Circulation Motor and Heater Assembly include:

• Dishwasher fails to clean dishes properly
• Water does not heat up, leading to poor drying results
• Unusual noises during the cycle

A bad part can result from several causes, such as electrical failures, mechanical wear and tear, or blockages in the system that prevent proper water circulation or heating.

If you notice any of these signs, it's time to replace the circulation motor and heater assembly. This OEM Bosch part can also be used on Thermador and Gaggenau appliances.


This suspension damper stabilizes the tub/drum by absorbing movement and vibration during operation. Replacing a worn damper helps reduce shaking and noise, improving spin performance and overall machine stability. What it does:

• Absorbs and controls tub/drum movement to reduce vibration and noise
• Helps prevent banging, "walking," or out-of-balance shutdowns during spin
• Can address excessive shaking, rattling, and longer spin times
• Restores smoother, more controlled operation when the original damper is worn

• One suspension damper

• Disconnect power and turn off water supply before servicing
• Access location varies by model; support the tub/drum to relieve load before removal
• Note orientation and reuse existing mounting hardware if new fasteners aren't provided
• After installation, re-level the appliance and run a test cycle to verify stability

The Pump to Heater Hose Clamp is an OEM part for Bosch dishwashers. This clamp secures the hose that connects the pump to the heater, ensuring a tight and leak-free connection. It plays a crucial role in maintaining the integrity of the water flow within the dishwasher, preventing leaks and ensuring efficient operation.

Causes of a bad hose clamp can include wear and tear over time, loosening due to vibrations, or damage from repeated tightening and loosening. A faulty clamp can lead to water leaks, which can cause further damage to the dishwasher.

Symptoms of a bad pump to heater hose clamp include:

• Water leaking from the hose connection points
• Reduced water pressure within the dishwasher
• Visible wear, rust, or damage on the clamp
• The clamp not holding the hose securely in place

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

The Diverter Valve is an OEM part for Bosch dishwashers. This valve directs water flow during different phases of the wash cycle, determining whether water goes to the lower or upper spray arm.

Causes of a bad diverter valve can be mineral buildup causing malfunction, wear and tear of internal components over time, or damage from foreign debris.

Symptoms of a bad diverter valve include:

• Insufficient or improper water distribution
• Dirty dishes, especially on the lower rack
• Extended wash cycle times
• Dripping or leakage from the valve area

This Bosch part is also compatible with Thermador, Gaggenau some Kenmore models.

The Divertor Motor is an OEM part for Bosch dishwashers.  This part controls the direction of water flow within the unit. This motor directs the water to different spray arms based on the selected wash cycle, ensuring efficient cleaning by optimizing water usage and spray intensity.

Causes of damage to the divertor motor can include regular wear and tear, exposure to water and detergent over time, and electrical issues such as wiring problems or faults in the control board.

Symptoms of a failing Divertor Motor include:

• Inadequate water distribution during cycles, which can lead to uneven cleaning results.
• The dishwasher making unusual noises, such as humming or grinding, which may indicate a struggle in the motor function.
• Certain wash zones receiving little to no water, affecting the appliance's overall performance.
• Error codes displayed on the dishwasher panel that relate to water circulation problems.

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

The Diverter Valve Seal is an OEM part for Bosch dishwashers. This rubber seal sits within the diverter valve assembly to protect internal components from liquid, debris and other particles during operation.

Causes of a bad diverter valve seal can include degradation of the rubber material over time from continuous exposure to hot water and detergents. Small cracks or splits can develop and widen.

Symptoms of a bad seal include:

• Water or other leaks originating from the diverter valve area
• Loud squealing or squeaking sounds during certain wash cycles
• Incomplete fills or sprays from spray arms as water diverts incorrectly

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

The Turbidity Sensor is an OEM part for Bosch dishwashers. It is a component located inside the dishwasher that plays a key role in monitoring water quality during each wash cycle. The turbidity sensor detects small food particles and residue in the water, relaying this information to adjust water temperatures, spray pressures, and cycle times accordingly to achieve optimal cleaning results.

Causes of failure could be normal wear and tear over time, mineral buildup affecting the sensor's ability to read water quality accurately, or damage from electrical faults.

Symptoms of a bad turbidity sensor include:

• Inconsistent or inadequate cleaning performance
• Extended cycle times
• Error codes displayed related to water issues

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

The Drain Pump is an OEM part for Bosch dishwashers. It is designed to remove water from the dishwasher's tub after the wash and rinse cycles, ensuring that the dishwasher drains properly. This pump expels the used water through the drain hose and into the household drainage system, maintaining the efficiency and hygiene of the appliance.

You should replace the drain pump if it becomes faulty. Causes of a bad drain pump can include wear and tear from regular use, blockages from debris or food particles, or electrical failures. A malfunctioning pump can lead to water not draining properly, which can affect the dishwasher's performance and cause water to pool inside.

Symptoms of a bad drain pump include:

• Water not draining from the dishwasher
• Unusual noises such as humming or grinding during the drain cycle
• Error codes related to drainage issues
• Water pooling at the bottom of the dishwasher

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

The Drain Pump LID is an OEM part for Bosch dishwashers, designed to securely cover and protect the drain pump assembly. This crucial component ensures that the drain pump is shielded from debris and damage, allowing it to efficiently remove used water from the dishwasher at the end of each cycle.

Causes of these symptoms can range from physical damage due to impact or wear and tear over time, leading to cracks, warping, or a degraded seal.

Symptoms of a bad Drain Pump LID include:

• Water leakage around the drain pump area, indicating a poor seal or damage to the LID
• Increased noise during the drain cycle, which could suggest debris interference due to a compromised LID
• Difficulty in draining water, potentially caused by obstructions that a damaged LID failed to prevent

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

The Cover is an OEM part for Bosch dishwashers. Designed to securely seal the sump area, this part prevents leaks and ensures that water is properly circulated and drained during the dishwashing cycle.

Causes of failure might include physical damage such as cracks or warping, which can compromise the seal, or the buildup of debris that prevents proper seating of the cover.

Symptoms of a failing Cover include:

• Water leaks from the bottom of the dishwasher
• Poor washing performance due to inadequate water circulation
• Unusual noises as the pump struggles to draw or expel water
• Visible damage or warping of the cover itself

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Sump Assembly is an OEM part for Bosch dishwashers. It collects and channels water to the pump, ensuring proper circulation and drainage during the wash cycle.

Over time, the sump assembly can become clogged with debris, suffer damage, or wear out, leading to compromised performance. Causes of a bad sump assembly include buildup of food particles and mineral deposits, physical damage from sharp objects, or wear from continuous use.

Symptoms of a bad sump assembly include:

• Water not draining properly from the dishwasher
• Persistent leaks or pooling of water at the bottom
• Unusual noises during the wash cycle
• Dishes not being cleaned effectively due to poor water circulation

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

This sump screw secures the dishwasher's sump or sump cover to the tub, keeping the assembly tight and leak-resistant. Replace a missing, stripped, or damaged screw to restore a proper seal and stable mounting.

• Fastens the sump or sump cover to the dishwasher tub
• Helps maintain a watertight seal to reduce leaks
• Keeps filter/sump components aligned and secure
• Replaces missing, stripped, or damaged hardware
• Helps address leaks or rattling around the sump area

• Disconnect power and turn off water supply before servicing
• Remove the lower rack and filters to access the sump area
• Ensure mating surfaces and seals are clean and properly seated
• Tighten snugly by hand; do not overtighten to avoid stripping

The Check Valve is an OEM part for Bosch dishwashers. This component prevents dirty water from flowing back into the dishwasher from the drain hose, ensuring that the dishwasher maintains proper hygiene and efficient cleaning cycles. It is installed in the drain pump and plays a crucial role in the overall drainage system of the dishwasher.

Causes of a bad check valve can include wear and tear from regular use, accumulation of debris or mineral deposits, or damage from improper installation or handling. A faulty check valve can lead to issues with draining and water contamination within the dishwasher.

Symptoms of a bad check valve include:

• Water not draining properly from the dishwasher
• Dirty water backing up into the dishwasher
• Unusual noises during the drain cycle
• Dishwasher cycles taking longer than usual

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

The Dishwasher Drain Hose is an OEM part for Bosch dishwashers. This hose is responsible for carrying wastewater from the dishwasher to the household drain system. It ensures that water is efficiently removed from the dishwasher after each cycle, preventing standing water and ensuring optimal operation.

You should replace the drain hose if it becomes damaged or clogged. Causes of a bad drain hose can include regular wear and tear, buildup of debris or food particles, or damage from accidental impacts. A malfunctioning hose can lead to drainage issues and water leaks.

Symptoms of a bad dishwasher drain hose include:

• Water not draining from the dishwasher
• Leaks or puddles around the dishwasher
• Foul odors from standing water
• Visible cracks, kinks, or blockages in the hose

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

The Water Inlet is an OEM part for Bosch dishwashers. This component controls the flow of water into the dishwasher during the wash and rinse cycles. It ensures that the appliance receives the appropriate amount of water necessary for optimal cleaning performance.

Causes of a bad water inlet can include mineral buildup from hard water, wear and tear from regular use, or electrical issues that prevent the valve from opening or closing properly.

Symptoms of a bad water inlet include:

• Dishwasher not filling with water or filling slowly
• Water leaking from the inlet valve area
• The dishwasher failing to start or complete cycles
• Error codes related to water intake issues

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

The Sump to Water Inlet Hose is an OEM replacement part for Bosch dishwashers. This hose provides a pathway connecting the dishwasher's sump and water inlet valve. It allows the sump to fill with water during different dishwashing cycles, facilitating key functions like rinsing, spraying cycles, and final rinses. Proper connection between these components via this hose is required for the dishwasher to operate efficiently.

Causes of a faulty sump to water inlet hose include cracking, leaking, or kinking over repeated use and cycles. Hoses can become damaged due to pinching in the dishwasher or exposure to high water pressures over time.

Symptoms of a bad sump to water inlet hose include:

• Incomplete filling of the sump during the cycle
• Erratic water pressure
• Leaks from the hose connection points
• Loud knocking sounds from within the dishwasher

This replacement part is also compatible with some Thermador, Gaggenau, and Kenmore models.

This replacement hose clamp secures a hose to its fitting to maintain a tight, leak-resistant seal. Replacing a worn clamp helps stop drips and keeps fill, drain, or circulation lines firmly in place for reliable operation.

• Applies clamping force to hold a hose on a barb or stub connection
• Helps prevent leaks at hose joints
• Common symptoms: water leaking at a hose connection, hose slipping off, poor fill or drain performance
• Replace when the original is loose, corroded, distorted, or lost tension; also recommended when installing a new hose

• Disconnect power and shut off water supply before servicing
• Expect some residual water; protect the work area
• Note the clamp's position/orientation; use appropriate hand tools for the clamp style
• Ensure the hose is fully seated and clamp is secure; run a test cycle and check for leaks

The Fill Hose is an OEM part for Bosch dishwashers. This hose supplies water from the household plumbing to the dishwasher, ensuring that the appliance has the necessary water for each wash cycle. It is designed to handle the water pressure and ensure a reliable connection to prevent leaks.

Over time, the fill hose can become damaged due to wear and tear, kinks, or exposure to hard water and chemicals. If the hose is compromised, it can lead to water supply issues and potential leaks.

Symptoms of a bad fill hose include:

• Water not entering the dishwasher
• Leaks or puddles around the dishwasher
• Error codes related to water supply issues
• Visible cracks, kinks, or damage to the hose

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

The Cover is an OEM part for Bosch dishwashers. It serves as a protective barrier over vulnerable inner components. The cover helps prevent damage from spills, shields electronics from moisture, and blocks access to moving parts for safety.

Causes of a bad cover can be normal wear and tear, repeated impact damage, or improper handling during repairs.

Symptoms of a bad cover include:

• Cracks, holes or other physical damage
• Warping or deformation over time
• Loose or improper fit that exposes internal parts

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.
