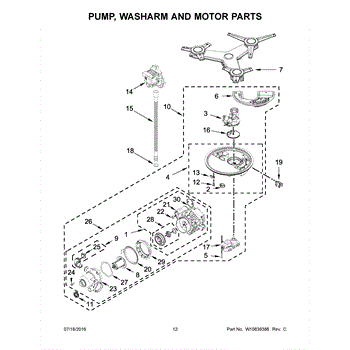

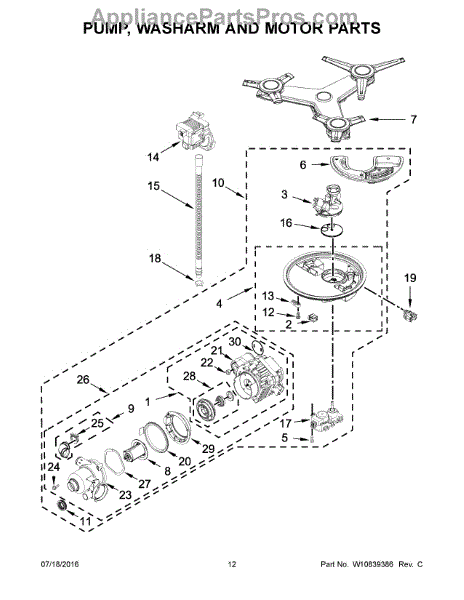

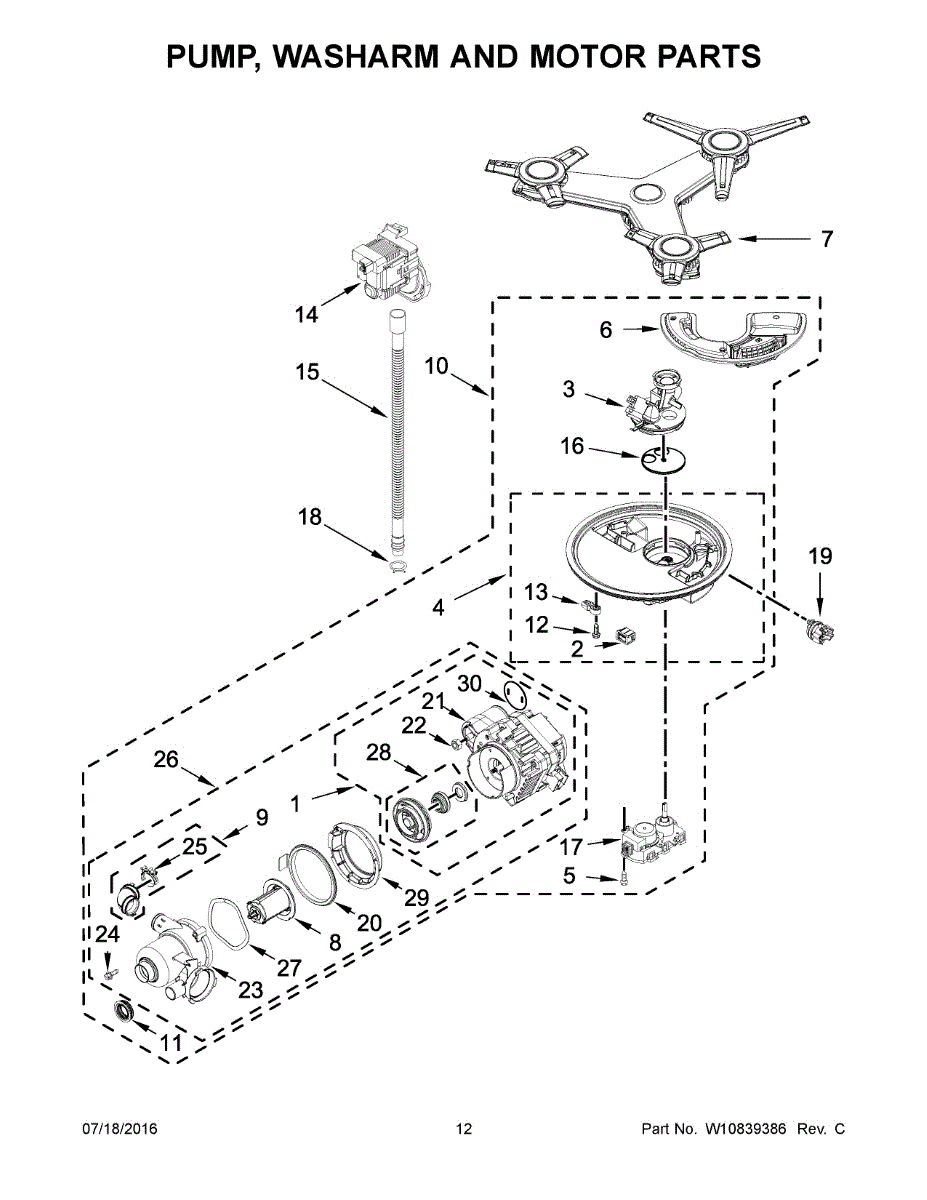

Parts for Kitchenaid KDTM804EBS0: 07 - Pump, Washarm And Motor Parts

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

Fix a dishwasher that fills but won't spray water through arms. This circulation pump motor assembly restores wash pressure and cleaning performance.

Mounting bracket that secures internal dishwasher components and keeps assemblies aligned. Replace if cracked, broken, or missing to restore stability.

Replacement cover for your dishwasher. Restores a finished look and protects internal components. Order now if your cover is cracked, broken, or missing.

Fix dishwasher leaks from underneath with a new sump assembly. Collects and drains water during wash cycles. Moderately difficult repair requiring tilt-back access.

Quantity of ONE. Size: 8-18 x 5/8 inch. (#8 screw, 18 threads per inch, 5/8 inch long)

Screens food particles and debris from entering wash and drain pumps. Replace when clogged or damaged to maintain water circulation and pump efficiency.

The Lower Spray Arm is an OEM replacement part for Whirlpool dishwashers. It evenly distributes water and detergent inside the wash chamber during cleaning cycles.

Symptoms of a faulty spray arm include:

• Inadequate or inefficient cleaning performance
• Detergent residue buildup inside dishwasher
• Misaligned, loose, or damaged spray arm fitment
• Leaks from wash arm connection point

Causes can involve mineral deposits clogging nozzles over time. Heavy loads may have bent or fatigued the flexible plastic spray components prematurely.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore dishwashers.

Filters food particles and debris from the circulation pump. Replace if damaged, shredded, or causing grinding noises to prevent pump damage and leaks.

Fix leaking from bottom of dishwasher or no water spray with this pump and motor assembly. Requires removing unit from cabinet. Moderate difficulty.

Fix dishwasher leaking from the motor area with this motor to sump seal. Creates a watertight connection between pump and sump. Takes 10-20 minutes.

Factory #10-16 screw secures dishwasher panels, brackets, and covers. Replace worn, stripped, or missing screws to restore tight assembly.

This tab-sump mounting secures the dishwasher sump/dispenser area so detergent tabs and related components stay properly aligned. Replacing a worn or broken mounting restores correct dispenser positioning and helps prevent tabs from falling loose during cycles. What it does:

• Holds the tab/sump assembly in place to maintain proper detergent tab positioning
• Prevents the dispenser or sump from shifting or sagging during operation
• Helps reduce incidents of tabs dislodging or failing to stay seated
• Supports correct alignment of adjacent dispenser components

• Disconnect power and water supply before starting any repair
• Remove the door panel or access cover to reach the sump area
• Inspect surrounding clips and seals; replace any damaged fasteners for a secure fit

Fix a dishwasher that won't drain or has standing water after cycles. This drain pump assembly resolves drainage failures and grinding noises during operation.

Flexible drain hose carries wastewater from your dishwasher to the kitchen drain. Replace if cracked, leaking, burst, or damaged by wear or pests.

Dishes not cleaning evenly or spray arms not working? The diverter disc routes water to spray zones. Common issue, straightforward 5-10 minute fix.

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

The Pump Diverter Motor is an OEM part for Whirlpool dishwashers. It controls the direction of water flow within the dishwasher, ensuring that water is properly directed to the spray arms during the wash cycle.

Common causes of a bad diverter motor include electrical malfunctions, wear and tear over time, or blockages caused by debris. These issues can prevent the motor from functioning correctly, leading to poor wash performance.

Symptoms of a bad pump diverter motor include:

• Dishes not being cleaned properly
• Unusual noises during the wash cycle
• Error codes related to water flow issues
• Inconsistent water distribution

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This hose clamp secures dishwasher hoses to fittings and ports to maintain a tight, leak-resistant seal. Replacing a worn clamp helps prevent drips and loose connections that can cause water under the unit.

• Secures drain or circulation hose to the pump, sump, or other dishwasher fittings
• Helps maintain a watertight seal at hose connection points
• Can help resolve water dripping from a hose joint or a loose hose
• Replace if corroded, deformed, cracked, or no longer holds tension

• Disconnect power and turn off the water supply before servicing
• Place a towel or shallow pan to catch residual water when removing hoses
• Fully seat the hose on the fitting, position the clamp over the barb/connection, and secure firmly
• After reassembly, run a brief fill/drain and check all connections for leaks

The Turbidity Sensor is an OEM part for Whirlpool dishwashers. It detects the level of particles in the water during the wash cycle, allowing the dishwasher to adjust the cycle duration and water usage for optimal cleaning performance. This sensor ensures that dishes are thoroughly cleaned by monitoring water clarity.

You should replace the turbidity sensor if it becomes faulty or damaged. Causes of a bad turbidity sensor can include regular wear and tear, exposure to hard water minerals, or electrical malfunctions. A malfunctioning sensor can lead to inefficient cleaning cycles and poor wash results.

Symptoms of a bad turbidity sensor include:

• Dishes not being cleaned properly
• Dishwasher running longer than usual or shorter cycles
• Error codes related to the sensor
• Inconsistent wash performance

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Precision ring that positions and secures internal dishwasher components. Replace when worn, cracked, or missing to restore proper fit and alignment.

Dishwasher motor hums but won't start? This capacitor provides the phase shift needed for your circulation motor to run. Easy 15-minute repair.

Replacement mounting nut for dishwashers. Secures internal components and panels. Order a new nut if yours is stripped, missing, or damaged.

Fix leaks under your dishwasher with a new drain pump cover. This housing seals the pump assembly to prevent water from pooling beneath the unit.

Secures hoses and connections in your dishwasher to prevent leaks. Replace if corroded, loose, or worn. Verify fit with your model number before ordering.

Dishwasher not cleaning dishes or water won't circulate? This circulation pump and motor forces water through the spray arms during wash cycles.

Dishwasher leaking or not draining? This pump volute housing channels water from the pump, restoring proper flow and preventing leaks from cracks or wear.

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.
