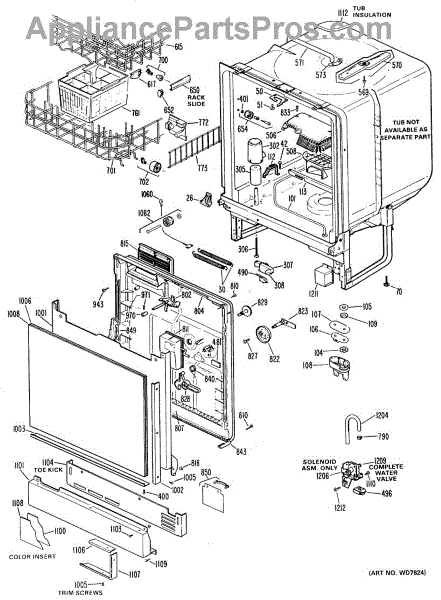

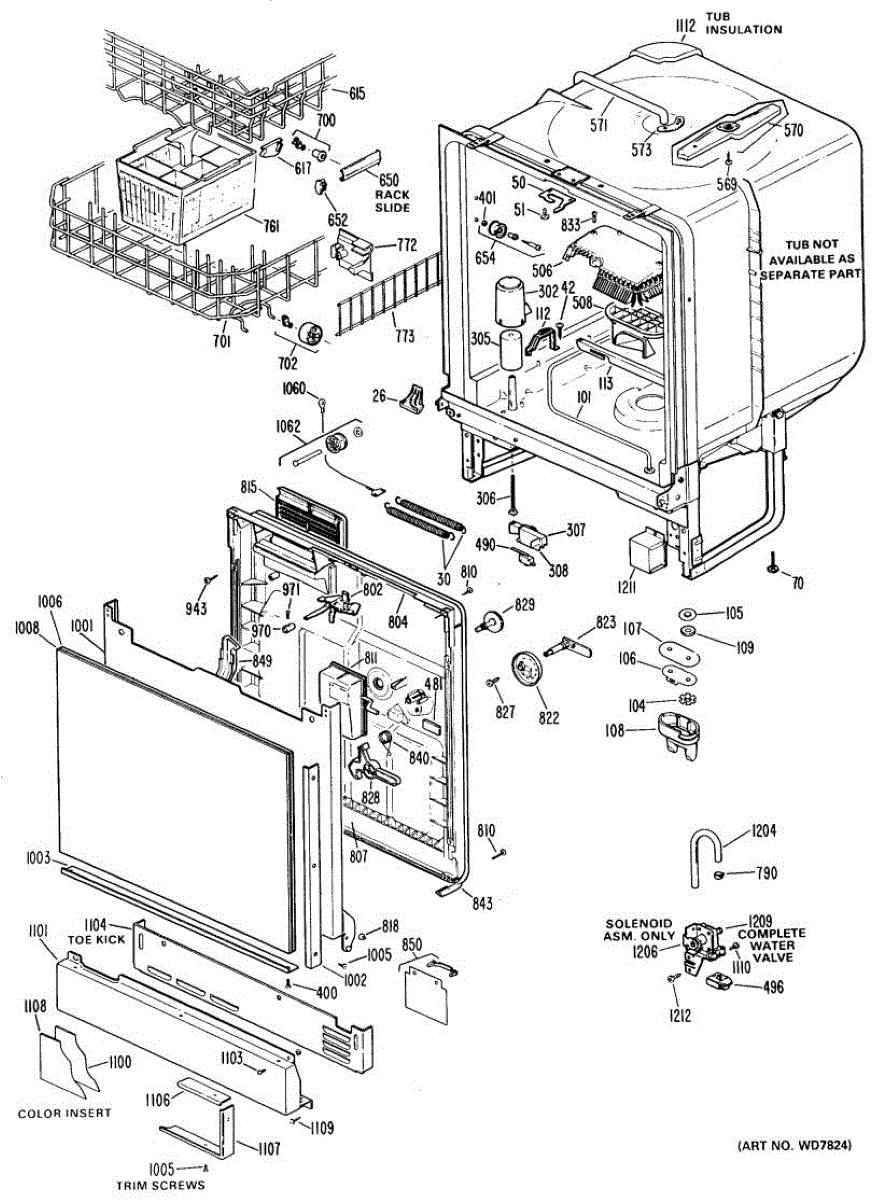

Parts for Ge GSD600L-01: 01 - Section1 Parts

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

The Tub Corner Baffle is an OEM part for GE dishwashers. It is strategically placed at the corners of the dishwasher tub to prevent water from leaking out during operation.  For the left side use WD8X228. Color: Black.

Symptoms of a bad Tub Corner Baffle include:

• Water leaking from the corners of the dishwasher door.
• Pools of water forming near the dishwasher after operation.
• Decreased cleaning performance due to water escaping the wash cycle area.

Causes of a bad tub corner baffle can include wear and tear from regular use, improper installation leading to gaps or looseness, and degradation of the material over time due to exposure to detergents and high temperatures.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Tub Corner Baffle is an OEM part for GE dishwashers. This rubber component is placed in the corners of the dishwasher tub to prevent water from leaking out during the wash cycle. It acts as a barrier, directing water back into the tub and ensuring efficient operation. This is the left side. For the right side, use WD8X227.

Causes of a bad part can include prolonged exposure to detergents and hot water, leading to material breakdown, or physical damage from loading and unloading dishes.

Symptoms of a bad Tub Corner Baffle include:

• Visible signs of wear or damage
• Water leakage from the corners of the dishwasher door
• Unusual noises during operation

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

Replacement mounting screw for securing handles, panels, and internal components. Needed when original screws are stripped, lost, or broken during repairs.

Door won't close or latch properly? This latch keeper secures the door strike so your dishwasher stays closed during cycles. Quick DIY repair.

Size: 10-24 x 1/2 inch.

Replacement leveling screw threads into your dishwasher's leveling leg to adjust cabinet height. Install when original is stripped, damaged, or missing.

Dishes not drying or wet after cycle? The heating element heats air during drying. Simple DIY repair with video guide, typically under 30 minutes.

This is a replacement mounting nut that secures components to their mating studs or shafts, restoring proper fit and preventing looseness that can cause noise or misalignment. Use it to replace a worn, stripped, or missing nut. What it does:

• Fastens parts to studs or shafts to keep assemblies secure and aligned.
• Prevents wobbling, rattling, and reduced performance caused by a loose or missing nut.
• Restores reliable mechanical connection after thread damage or corrosion.
• Works where a standard hex-style fastening nut is required by the OEM design.

• One replacement mounting nut.

• Disconnect power and unplug the appliance before beginning work.
• Verify correct stud engagement and thread direction before tightening.
• Use the proper-sized wrench and tighten to the manufacturer's recommended torque; avoid over-tightening to prevent thread damage.
• If threads are damaged, replace the mating stud or use an approved repair kit—do not force a nut onto stripped threads.

Fix dishwasher overfilling or not filling properly with a new float dome. Protects the float sensor for accurate water level control. Easy 15-minute repair.

Fix dishwasher overflows or underfilling with a new water level float. This part regulates filling by rising with water to signal the switch.

This float stem is part of the dishwasher's water-level/overfill system. It guides the tub float and actuates the float switch so the unit fills correctly and shuts off on time. Replace a worn or broken stem to restore reliable fill protection.

• Connects the float to the switch mechanism beneath the tub
• Provides smooth vertical travel of the float through the opening
• Triggers the float switch to stop filling at the proper level
• Causes symptoms such as no fill, continuous filling/overfilling, a stuck or wobbly float, or intermittent fill issues

• Disconnect power at the breaker and shut off the water supply before servicing
• Remove the lower rack; lift off the float cap from inside the tub
• On some models, release the retainer/clip from beneath the tub; pull out the old stem
• Guide the new stem through the opening and ensure it engages the float switch lever; confirm the float moves freely and actuates the switch before restoring power

Replacement bracket that secures the flood switch in your dishwasher. Holds the leak detection switch in proper position. Needed when bracket is cracked or broken.

Replacement mounting screw for securing panels, brackets, and components inside your appliance. Needed when original screws are stripped or missing.

This float switch detects rising water in the refrigerator drain pan or lower cabinet area and signals the appliance control to help prevent overflow and water damage. Use it to replace a failed or intermittent water-level sensor. What it does:

• Senses high water level in the drain pan or collection area and closes the circuit to alert the control.
• Helps identify causes of leaks and pooling under or behind the appliance.
• Commonly used when symptoms include water on the floor, drip pan overflow, or water-related error/alert conditions.
• Matches OEM function for refrigeration units that include a float-based water-detection circuit.

• Disconnect power to the appliance before starting any repairs; shut off the water supply if working near water lines.
• Access may require removing lower kick plate or back panel; handle plastic clips and fasteners carefully.
• Disconnect electrical connector gently and note orientation before installing the replacement; secure wiring and verify float moves freely.
• Restore power and run a short test cycle or simulate water level to ensure proper operation.

Protective cover that sits over your dishwasher's pump inlet to screen debris. Replace if cracked, broken, or missing to protect internal components.

Fix dishwasher leaks or poor cleaning with a new sump cap. Seals the sump opening to contain wash water and protect the pump. Quick DIY replacement.

Replace a cracked, rusted, or broken upper dishrack to restore secure organization for cups, glasses, and bowls on your dishwasher's top level.

Replacement slide rail for dishwasher upper rack. Installs on cabinet wall to guide rack in and out. Needed when original is bent, twisted, or broken.

Secures the end of the dishwasher rack slide rail. Replace if cracked, broken, or missing to prevent racks from sliding off track or misaligning.

Includes screws.

Replacement roller and stud assembly for dishwasher racks. Installs on upper or lower rack to restore smooth gliding. Needed when rollers crack or studs break.

Replace broken or missing lower dishrack rollers and axles. Attaches to the bottom rack for smooth gliding when loading dishes. Sold as one roller kit.

Replacement roller and axle kit for dishwasher lower racks. Includes 8 wheels and 8 axles. Replace when rollers are broken, cracked, or missing.

Replacement mounting screw for dishwashers. Secures internal components and panels. Order a new screw if the original is stripped, missing, or damaged.

Restores the finished appearance around your dishwasher door opening. Replaces cracked, scratched, or missing trim for a clean, factory look.

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

Reversible panel - white on one side, almond on the other.

Dishwasher not filling with water or leaking during cycles? The water inlet valve controls water flow. DIY-friendly repair, typically 10-30 minutes.

Replacement mounting screw for dishwashers and electric ranges. Secures panels, covers, and internal components. Order when original is missing or stripped.

Replacement silverware basket with handle for your dishwasher. Needed when original basket is cracked, broken, or has worn holes that let utensils fall through.

Replacement handle mounting screw for refrigerators. Secures the door handle to the appliance. Order if your original screw is stripped, missing, or lost.

Specs: 10 - 32 t hex 7/16 s

Routes water from inlet valve to tub. Replace if cracked, leaking at connections, or worn from age. Installs between valve and tub exterior connection point.

Dishwasher not filling with water or leaking during cycles? The water inlet valve controls water flow. DIY-friendly repair, typically 10-30 minutes.

Secures washer hoses at pump, tub, and valve connections to prevent leaks and hose blow-offs. Replace worn or missing clamps for a tight seal. Confirm fit.

Size: 8-18 x 7/8 inch.

Fixes spotty dishes and rinse aid leaks. This reservoir holds and releases rinse agent during the final cycle. Quick DIY repair with video guide.

Replacement door vent directs humid air out during the dry cycle. Install inside the door panel to replace a cracked, clogged, or missing vent.

Dispenser won't close or stay shut? This dishwasher detergent cup cover securely latches to prevent mid-cycle opening. Moderate DIY repair, 1 hour.

Dishwasher detergent cup won't stay closed or won't open fully? This soap dispenser lever controls detergent release. DIY repair in 15 minutes.

Size: 10-12 x 1/2 inch.

Detergent cup won't stay closed? This dispenser latch secures the detergent cup during wash cycles. Direct replacement part with video guide available.

The Fill Cap Assembly is an OEM part for GE dishwashers. This assembly includes the cap that covers the opening where rinse aid or other additives are poured into the dishwasher. It ensures that the additives are securely contained and properly dispensed during the wash cycles, contributing to effective cleaning and drying.

Over time, the fill cap assembly can become damaged due to regular use, exposure to cleaning agents, or accidental mishandling. A compromised fill cap can lead to leaks or improper dispensing of rinse aid, affecting the dishwasher's performance.

Symptoms of a bad fill cap assembly include:

• Rinse aid or additives leaking from the dispenser
• The cap not securing properly or coming off easily
• Improper dispensing of rinse aid
• Visible cracks or damage to the cap

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Size: 8-16 x 2 inch ss.

Replacement spring for dishwasher detergent cup door assembly. Provides tension to keep cup door latched closed. Replace if broken, stretched, or lost.

The Door Gasket is an OEM part for GE dishwashers. It forms a seal between the dishwasher door and tub which is critical for proper operation. The gasket ensures excess water and moisture do not leak from the dishwasher during active wash and rinse cycles. It also helps keep noise levels low by providing sound insulation. This gasket measures 3/8 x 89 inches.

Common causes of a bad door gasket include regular wear and tear, exposure to high temperatures and detergents, or physical damage. These factors can cause the gasket to lose its flexibility and sealing capability.

Symptoms of a bad Door Gasket include:

• Water leaking from the dishwasher door
• Visible cracks, tears, or deformation in the gasket
• The door not closing properly or securely
• Increased moisture around the dishwasher during or after cycles

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Includes 12 screws.

Color: Chrome

Includes 12 screws.

The Dishwasher Door Cable is an OEM replacement part for GE dishwashers. It works with the door latch assembly to ensure secure closure of the dishwasher door. The cable is responsible for connecting the door handle mechanism to the latch, allowing users to easily open and close the door with a gentle pull or push. Note: It is recommended to replace both at the same time.

Symptoms of a bad door cable include:

• The door not fully latching or staying closed securely
• Excessive movement or play of the door when closed
• The cable becoming worn, frayed, or detached

Causes of a bad cable can be frequent use that results in wear and fatigue of the internal wiring over time. Damage from harsh detergents or excess moisture can also compromise the cable.

This OEM GE replacement part is compatible with models from Hotpoint, RCA, and some Kenmore dishwashers as well.

This part has been discontinued and is no longer available.
