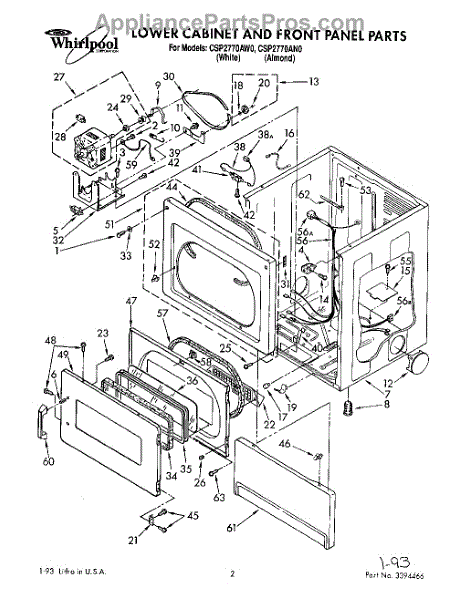

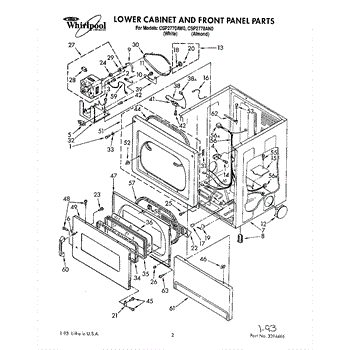

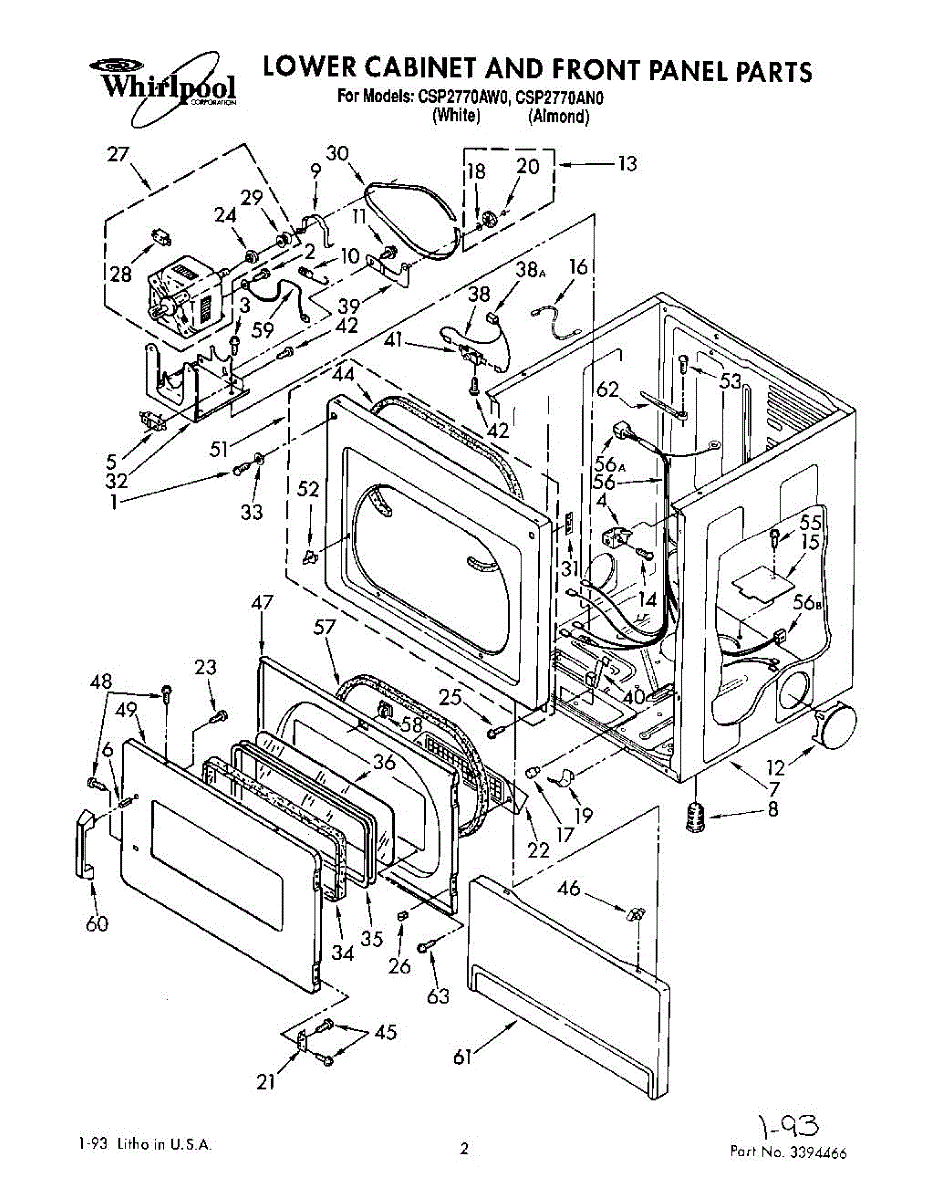

Parts for Whirlpool CSP2770AW0: 01 - Section Parts

This is a replacement sheet-metal screw used to secure panels and components on compatible Whirlpool appliances. It provides a reliable fasten point for reattaching trim, brackets, and access panels after service. What it does:

• Secures appliance panels, brackets, and smaller components to the cabinet or frame
• Helps restore original fit and finish after repairs or part replacement
• Prevents rattles or loose panels when properly installed
• Matches OEM thread size and head style for a correct fit

• Turn off and unplug the appliance before removing panels or installing hardware
• Use the correct driver bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing to prevent thread damage or warped panels

This is a replacement machine screw sized 8-18 x 3/8 that secures panels and components on compatible appliances. It restores proper fastening where a worn, stripped, or missing screw causes loose parts or rattling. What it does

• Fastens control panels, trim pieces, or brackets to the appliance chassis
• Replaces stripped, corroded, or missing screws that cause loose panels or vibrating noise
• Provides correct thread engagement for a secure hold in tapped holes
• Small hardware solution often used during door, console, or interior repairs

• One 8-18 x 3/8 machine screw (quantity: 1)

• Use the correct screw size and thread; do not force a different-size fastener into tapped holes
• Hand-start the screw to avoid cross-threading, then tighten with the appropriate screwdriver
• Disconnect power before accessing internal components or panels on electrical appliances
• If metal threads are damaged, repair with a helicoil or replace the damaged component rather than over-torquing

Specs: 10-16 x 1/2 inch.

The door switch detects whether the dryer door is open or closed, enabling the motor and heater only when it's safe. Replacing a failed switch restores proper start/stop control and drum light behavior.

• Senses door position and completes or interrupts the dryer's run/heat circuits
• Shuts the dryer off when the door opens for safety
• Common symptoms: dryer won't start with the door closed; doesn't stop when door opens; drum light stays on or won't turn on
• Intermittent operation when the door is moved or pressed

• Disconnect power before servicing; allow components to cool
• Access the switch from the door opening or front panel; remove screws or release locking tabs
• Note wire positions and transfer them one at a time to the new switch
• Verify operation before reassembly: dryer should not run with the door open; drum light should respond

The Dryer Leveling Foot is an OEM part for Whirlpool dryers. It is designed to support and stabilize the dryer by allowing adjustments to the height and leveling of the unit. Proper leveling ensures the dryer operates smoothly and efficiently, reducing vibrations and preventing unwanted movement during cycles.

Causes of a bad leveling foot can include wear and tear from regular use, damage from moving the dryer, or breakage due to heavy loads and stress. Over time, the threads on the leveling foot can wear out, or the foot itself can become cracked or deformed.

Symptoms of a bad leveling foot include:

• Dryer rocking or wobbling during operation
• Unusual noises or vibrations
• Difficulty in adjusting the dryer's height
• Visible damage or wear on the leveling foot

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

This part is a motor clamp. This is a genuine OEM part and has been sourced directly from the manufacturer. This part is intended to replace a deteriorated, damaged, or broken motor clamp on certain makes of indoor appliance models. Motor clamps are essential for properly securing the drive motor on various types of indoor appliances such as washers, dryers, and refrigerators. Without the use of a motor clamp, the drive motor is free to move around or become detached. This can easily cause serious damage to the equipment and prevent proper functionality. Proper tools are needed to replace this part and appropriate safety measures should be adhered to when working on any type of equipment. For accurate information on how and where to install this replacement motor clamp, specific manufacturer diagrams should be referred to.As an authentic replacement part, this motor clamp can be used on multiple different models of washers, dryers, refrigerators, and washer/dryer combos manufactured by Kenmore, Maytag, Whirlpool, and Amana. Please note that this motor clamp is a genuine part made of high-quality materials and is sold individually.

The Idler Arm Spring is an OEM part for Whirlpool dryers, maintains tension in the dryer's belt system. This spring is crucial for the proper operation of the dryer, as it helps to keep the belt tight around the drum and motor pulley, enabling the drum to rotate smoothly during cycles.

Causes of a bad Idler Arm Spring can include stretching or weakening over time due to constant tension, or breakage from wear and tear.

Symptoms of a bad Idler Arm Spring include:

• Unusual noises, such as squeaking or squealing
• The dryer drum may not rotate smoothly or may stop turning altogether
• Clothes take longer to dry, or you may notice uneven drying
• The dryer might not start if the belt is disengaged due to insufficient tension.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Idler Arm Bolt is an OEM part for Whirlpool dryers. It secures the idler pulley, which maintains the proper tension on the dryer drum belt.

Causes of a bad idler arm bolt can include wear and tear from prolonged use, vibration and movement within the dryer, or improper installation.

Symptoms of a bad idler arm bolt include:

• The dryer drum not rotating properly
• Unusual noises such as squeaking or grinding
• The dryer belt slipping or coming off the pulley
• The dryer not drying clothes effectively

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This multi-vent plug seals an unused vent opening to stop unwanted airflow and keep the appliance interior protected. It's a direct-fit replacement designed to restore proper venting and help prevent drafts, debris, and pests. What it does:

• Plugs an unused multi-vent opening to prevent air leakage and drafts
• Helps keep dust, lint, and small debris out of the appliance vent path
• Reduces the chance of pest entry through an open vent
• Restores the intended vent configuration after service or part removal

• Disconnect power or gas to the appliance before servicing for safety
• Install by aligning and pressing the plug firmly into the vent opening until seated
• Do not force if resistance is excessive; inspect for obstructions or damage
• Replace damaged parts before installing the plug

Side and bottom exhaust kit.

The Idler Pulley is an OEM replacement part for Whirlpool dryers. This essential component plays a crucial role in the drum drive system, helping to guide and maintain proper tension on the dryer belt.

Causes of a faulty idler pulley in a dryer can include normal wear and tear over time, improper belt tensioning leading to bearing failure, or physical damage from impact or debris buildup.

Symptoms of needing to replace the idler pulley include:

• Squeaking or grinding noises from the driveability area
• The dryer drum not spinning or rotating properly
• Excessive vibration or shaking during the dryer cycle

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore dryer models.

This exhaust cover plate protects and finishes the dryer's exhaust outlet, helping direct airflow and keeping the vent opening sealed from debris. It provides a clean, durable surface where the exhaust connects to the dryer cabinet. What it does:

• Covers and seals the dryer exhaust opening to prevent dust and lint buildup around the vent
• Helps direct exhaust airflow into the duct for proper ventilation
• Restores a finished appearance to the exhaust area after repair or replacement
• Can reduce drafts and discourage pests entering through the vent opening

• Disconnect power to the appliance before starting any work.
• Use basic hand tools; handle edges carefully to avoid cuts.
• Verify proper alignment with the exhaust opening and secure with the original screws or hardware.
• Inspect the exhaust duct and surrounding seals for wear.

The Thrust Washer is an OEM part for Whirlpool washers and dryers, reduces friction between moving parts within the appliance. This small component is placed between rotating surfaces to ensure smooth operation and to extend the lifespan of those parts. The thrust washer can wear down or become damaged due to the constant pressure and movement.

Causes for replacement may include normal wear and tear, overloading the appliance, which puts extra stress on mechanical components, or a lack of regular maintenance.

Symptoms of a bad Thrust Washer include:

• Increased noise during operation
• The appliance vibrating more than usual
• A decrease in performance efficiency

This genuine Whirlpool OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This small retaining clip secures the door hinge in place so the door opens and closes smoothly and stays properly aligned. Replacing a worn or missing clip helps restore reliable hinge support and consistent door operation.

• Retains the hinge/hinge pin to prevent shifting or separation
• Helps maintain door alignment to avoid rubbing, sagging, or binding
• Replaces a clip that is bent, cracked, corroded, or missing
• Common signs it's needed: loose or wobbly door, difficulty closing, misaligned door, visible damaged/missing clip

• Unplug the appliance and, if applicable, remove items from the door to reduce weight
• Support the door before working on the hinge
• Remove any hinge cover/fasteners, swap the clip, and ensure it seats fully
• Reassemble and check door alignment and smooth operation

The Drum Support Wheel Retainer is an OEM part for Whirlpool dryers. This part secures the drum support wheels in place, ensuring that the dryer drum rotates smoothly and quietly during operation. The retainer is designed to fit precisely, preventing the support wheels from loosening or wobbling, which can lead to inefficient drying and increased wear on other components.

Over time, retainers can wear out or become damaged, potentially leading to a loose drum support wheel. This can cause the dryer to operate noisily, vibrate excessively, or even damage the drum itself if not addressed promptly.

Symptoms of a bad Drum Support Wheel Retainer include:

• Unusual noises, such as squeaking or thumping, coming from the dryer
• Excessive vibration during operation
• The dryer drum may feel unstable or wobble when turned by hand

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This factory hinge supports and pivots the appliance door so it opens smoothly and closes square to the cabinet. Replacing a worn or bent hinge restores proper alignment, sealing, and overall door feel.

• Provides the pivot point and carries the door's weight for smooth operation
• Helps keep the door aligned so it closes flush and seals correctly
• Direct replacement for a bent, seized, or excessively worn hinge
• Typical symptoms: door sags or rubs, squeaks/clicks at the hinge, won't close flush or stay closed

• Disconnect power to the appliance before servicing and allow hot surfaces to cool
• Support the door during removal/installation to prevent strain on the remaining hinge
• Transfer any screws, plates, or bushings from the old hinge as shown in your model's diagram
• After installation, check door alignment and gasket contact; adjust per the service instructions if needed

This belt restrainer is the small guide that keeps the dryer's drive belt on the motor pulley. It prevents the belt from walking off during operation, supporting consistent drum rotation and reducing premature belt wear. What it does:

• Guides and retains the drive belt on the motor pulley
• Helps maintain proper belt tracking with the idler assembly
• Can help with symptoms like drum not turning, belt repeatedly slipping off, burning rubber smell, or frayed belt edges

• 1 belt restrainer

• Disconnect power; for gas dryers, also shut off the gas supply
• Access the motor area per your model (remove front or lower access panel)
• Position the restrainer adjacent to the motor pulley with slight clearance to the belt; route the belt correctly around drum, idler, and motor
• Hand-rotate the drum to confirm alignment before reassembly and testing

This cover screw secures appliance panels and covers, keeping components protected and aligned. Replace missing, stripped, or corroded screws to restore a tight fit and help eliminate rattles, gaps, or panels that won't stay in place.

• Attaches an access cover or panel to the appliance frame
• Helps maintain proper alignment to protect internal components
• Replaces missing, stripped, or rusted hardware
• Typical signs: loose or rattling panel, cover won't stay secure, damaged or rounded screw head

• Disconnect power before servicing
• Support the panel while removing and installing screws to prevent misalignment
• Start threads by hand to avoid cross-threading; do not overtighten
• Use a matching driver bit to avoid damaging the screw head

The Dryer Drive Motor is an OEM part for Whirlpool dryers. This motor is responsible for turning the drum and the blower wheel, which allows for effective drying and air circulation within the dryer.

Over time, the drive motor can wear out or fail due to mechanical stress, electrical issues, or general wear from regular use. Causes of a bad drive motor include motor burnout, worn bearings, or issues with the electrical connections.

Symptoms of a bad dryer drive motor include:

• The dryer drum not spinning
• The dryer making unusual noises such as humming, buzzing, or grinding
• The dryer starting but then stopping shortly after
• A burning smell coming from the dryer

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Dryer Drive Motor is an OEM part for Whirlpool dryers. This motor is the heart of the dryer, responsible for turning the drum and enabling the air to circulate properly throughout the machine.

Over time, dryer motors can suffer from wear and tear due to continuous use, accumulation of lint and debris, or overload from heavy laundry loads. These factors can lead to the motor overheating, losing power, or failing to start altogether.

Symptoms of a bad Dryer Drive Motor include:

• The dryer not starting when the start button is pressed
• Unusual noises, such as humming or buzzing
• The dryer stopping unexpectedly during cycles
• A burning smell coming from the dryer

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Motor Pulley is an OEM part for Whirlpool dryers, connects the dryer motor to the drum belt, enabling the drum to turn and efficiently dry your clothes. This pulley is crucial for the smooth operation of the dryer, ensuring that the belt is tensioned correctly and runs smoothly without slipping or causing wear.

Causes of a bad Motor Pulley include wear and tear from regular use, a buildup of lint and debris that can interfere with its operation, or a malfunctioning dryer motor that puts undue stress on the pulley.

Symptoms of a bad Motor Pulley include:

• Unusual noises coming from the dryer, such as squeaking or grinding
• The dryer drum failing to turn even though the motor is running
• The dryer taking longer than normal to dry clothes, which can occur if the pulley is not providing proper tension to the belt

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Drive Belt is an OEM replacement part for Whirlpool dryers. This essential component is responsible for transferring power from the dryer's motor to the drum, allowing it to spin and tumble the clothes during the drying cycle.

Symptoms of needing to replace the drive belt include:

• The dryer drum not spinning or rotating
• Loud squeaking or grinding noises during the drying cycle
• Excessive vibration or shaking from the dryer
• Clothes taking longer to dry or remaining damp

Causes of a faulty drive belt can include normal wear and tear over time, exposure to excessive heat or lint buildup, or physical damage due to impact or mishandling.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore dryer models.

This door hinge clip secures the hinge assembly to the appliance door so the door stays aligned and opens and closes properly. A small, direct-fit replacement used when the original clip is cracked, broken, or missing. What it does

• Holds the door hinge in position to keep the door aligned and stable
• Prevents the hinge pin or bracket from shifting or coming loose
• Commonly replaced when the clip is cracked, worn, or fails to retain the hinge
• Helps restore normal door movement and reduce sagging or misalignment

• High-level DIY: remove the door/hinge per your model's service instructions before replacing the clip
• Use caution handling the door to avoid injury or damage; support the door while the hinge is disconnected
• Replace only with the exact part number to ensure proper fit and function

This motor mounting bracket secures the appliance motor to the cabinet, keeping the motor steady for reliable operation and reduced vibration. It's a direct-fit replacement designed to restore proper motor alignment and support. What it does:

• Holds the motor in the correct position to prevent movement during operation
• Reduces motor vibration and noise caused by loose or damaged mounting
• Helps maintain proper belt alignment and drivetrain performance
• Supports safe, stable motor operation under normal load conditions

• One motor mounting bracket

• Disconnect power to the appliance before beginning any repair
• Basic mechanical skills and common hand tools are usually required
• Inspect mounting hardware and adjacent components; replace any worn fasteners

The Idler Pulley Assembly is an OEM part compatible with Whirlpool dryers. It is a crucial component of the dryer's drive system, responsible for maintaining proper tension and alignment of the belt that drives the dryer drum. Measuring 5.5 x 3.5 x 3 inches, this idler pulley assembly typically consists of a pulley mounted on a bracket or arm, which can pivot or move to apply the necessary tension to the belt.

Symptoms of a faulty Idler Pulley Assembly include:

• Loud squeaking or grinding noises during operation
• The dryer drum not spinning or rotating properly
• Excessive vibrations or shaking during the drying cycle
• Visible wear or damage to the belt or pulley components

Causes of a bad idler pulley assembly can include bearing failure, physical damage from foreign objects, or normal wear and tear over time.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore dryer models.

The door switch detects whether the dryer door is open or closed, enabling the motor and heater only when it's safe. Replacing a failed switch restores proper start/stop control and drum light behavior.

• Senses door position and completes or interrupts the dryer's run/heat circuits
• Shuts the dryer off when the door opens for safety
• Common symptoms: dryer won't start with the door closed; doesn't stop when door opens; drum light stays on or won't turn on
• Intermittent operation when the door is moved or pressed

• Disconnect power before servicing; allow components to cool
• Access the switch from the door opening or front panel; remove screws or release locking tabs
• Note wire positions and transfer them one at a time to the new switch
• Verify operation before reassembly: dryer should not run with the door open; drum light should respond

A general-purpose 6-20 screw used to secure panels, brackets and small components on Whirlpool appliances. Replaces stripped or missing fasteners to restore a snug fit and reduce rattling or loose parts. What it does:

• Secures appliance panels, trim, brackets and internal components in original mounting locations.
• Stops panel movement, vibration noise and loose connections caused by missing or corroded screws.
• Fits the OEM 6-20 thread designation used on multiple Whirlpool assembly points.
• Sold individually for spot repairs and small part replacements.

• Disconnect power or gas supply to the appliance before starting any repair.
• Use the correct screwdriver or bit to avoid stripping the head; tighten until snug but do not overtighten.
• Replace like-for-like; stop and verify the correct fastener for the mounting point.
• Check the appliance's parts diagram for the exact screw location and orientation.

The Front Panel Seal is an OEM replacement part for Whirlpool dishwashers. Measures 24 inches. This seal is located on the dishwasher's front panel and helps prevent water leaks by creating a watertight barrier during the wash cycle. It ensures efficient operation while protecting your kitchen from potential water damage.

Symptoms of a bad Front Panel Seal include:

• Water leaking from the front of the dishwasher during operation
• Visible wear, cracks, or tears in the seal
• Increased noise or vibration due to improper sealing

Causes of a failing Front Panel Seal can include wear and tear from regular use, exposure to high temperatures and moisture, or improper cleaning methods. A damaged seal can compromise the dishwasher’s efficiency and lead to water leakage.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Sold individually, 2 seals are required on front panel.

This flat-head screw secures panels, brackets, or trim so they sit flush on your appliance. Replacing a worn or missing screw restores a tight fit and helps prevent vibration, rattling, or shifting components.

• Provides a countersunk, flush-mount fastener for panels, trim, brackets, or covers
• Helps maintain alignment and secure attachment during operation
• Replaces stripped, rusted, or missing hardware
• Symptoms can include loose panels or handles, rattling noises, or visible gaps/misalignment

• Disconnect power (and shut off gas, if applicable) before servicing
• Match screw length and thread to the original for proper fit
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Support the part being fastened to keep alignment while tightening

The Access Panel Spring Retainer is an OEM part for Whirlpool dryers. This part secures the access panel of the dryer, ensuring it stays in place during operation. The spring retainer provides tension and stability, making it easy to open and close the access panel when maintenance or repairs are needed.

Causes of a bad access panel spring retainer can include regular wear and tear, loss of tension, or physical damage.

Symptoms of a bad access panel spring retainer include:

• Access panel not staying securely closed
• Difficulty opening or closing the access panel
• Loose or rattling access panel during dryer operation
• Visible damage or wear on the retainer

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This is a replacement side trim screw that secures the refrigerator side trim/finish panel, restoring a snug fit and finished appearance. Designed to match the original factory fit and finish on compatible Whirlpool units. What it does:

• Fastens the side trim/finish panel so the exterior trim sits flush and secure
• Helps stop rattling, shifting, or gaps caused by loose or missing trim screws
• Matches factory color and head style to keep a consistent exterior look
• Small hardware piece used in multiple trim/assembly locations

• One side trim screw (black)

• Use the matching screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can crack trim or strip threads
• Turn power off and remove any nearby panels if needed for safe access
• Replace all to ensure even fit

The Door Latch Kit is an OEM replacement part for Whirlpool washers. This component is responsible for securely locking the washer door during the wash cycle, preventing it from opening unexpectedly and ensuring a safe and efficient operation.

Symptoms of needing to replace the door latch kit include:

• Difficulty in closing or latching the washer door
• Door opening unexpectedly during the wash cycle
• Leaks or water seeping due to an improper door seal
• Excessive wear or damage to the latch components

Causes of a faulty door latch kit can include normal wear and tear over time, physical damage due to impact or mishandling, or issues with the door alignment or strike plate.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore washer models.

This is a fastener screw used to secure appliance panels and components where a 10-24 thread is required. It provides a reliable hold for reattaching parts during repairs and maintenance. What it does:

• Fastens panels, brackets, or components with a 10-24 threaded hole
• Restores original attachment points that have missing or damaged screws
• Helps reduce vibration and rattling when properly tightened
• Works with metal or reinforced plastic mating components designed for 10-24 hardware

• One screw (quantity: 1)

• Use the matching 10-24 driver/socket and turn until snug; avoid over-tightening
• Verify mating threads and alignment before driving to prevent cross-threading
• Disconnect power and follow appliance safety procedures before servicing
• Check for proper washer or spacer if originally present

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Vinyl door seal that forms an airtight barrier around the refrigerator or freezer door to help maintain proper temperature and reduce energy loss. Replaces worn gaskets to stop drafts and minimize frost or moisture build-up. What it does:

• Creates a secure, flexible seal around the door to help keep cold air in and warm air out.
• Helps prevent frost, condensation and uneven cooling inside the compartment.
• Commonly replaced when you see visible cracks, tears, gaps, or feel cold air leaking from the door edges.
• Can improve overall temperature consistency and reduce excessive compressor cycling caused by leaks.

• Remove the old gasket and clean the door frame thoroughly before installing the new seal.
• Warm water or a short exposure to gentle heat can soften a stiff gasket to make installation easier; handle carefully.
• Press the seal fully into the channel and check that it seats evenly around the entire door; avoid forcing or trimming unless specified by the OEM.

The Door Latch Kit is an OEM replacement part for Whirlpool washers. This component is responsible for securely locking the washer door during the wash cycle, preventing it from opening unexpectedly and ensuring a safe and efficient operation.

Symptoms of needing to replace the door latch kit include:

• Difficulty in closing or latching the washer door
• Door opening unexpectedly during the wash cycle
• Leaks or water seeping due to an improper door seal
• Excessive wear or damage to the latch components

Causes of a faulty door latch kit can include normal wear and tear over time, physical damage due to impact or mishandling, or issues with the door alignment or strike plate.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore washer models.

This white door handle restores a solid, comfortable grip for opening and closing your dryer door. Replace a cracked, loose, or missing handle to keep daily use simple and the door operating as designed.

• Provides the handhold used to open and close the dryer door
• Replaces cracked, broken, loose, or missing handles
• Restores a secure grip and clean appearance
• Symptom clues: handle broken off, difficulty opening the door, sharp or jagged edges

• Disconnect the appliance from power before servicing
• Remove the door and separate inner/outer panels to access the handle's mounting screws or tabs
• Transfer and reuse original mounting hardware; align the new handle and secure
• Reassemble and verify smooth door operation

A front toe panel assembly that restores the lower front trim and airflow opening on compatible laundry appliances. Replaces a damaged or missing lower access panel to keep the cabinet sealed and looking finished. What it does:

• Covers the lower front of the appliance cabinet, protecting internal components from debris.
• Restores the lower air or vent opening and directs airflow as intended.
• Prevents items from falling under the appliance and reduces drafts at the base.
• Helps maintain proper appearance and fit of the appliance front.

• Disconnect power (and gas if applicable) before starting any work.
• Install requires removing the appliance kick strip or lower access fasteners; retain hardware as needed.
• Align panel tabs/clips with cabinet slots and secure with the original screws or clips.
• Replace any damaged clips or mounting hardware to ensure a secure fit.
