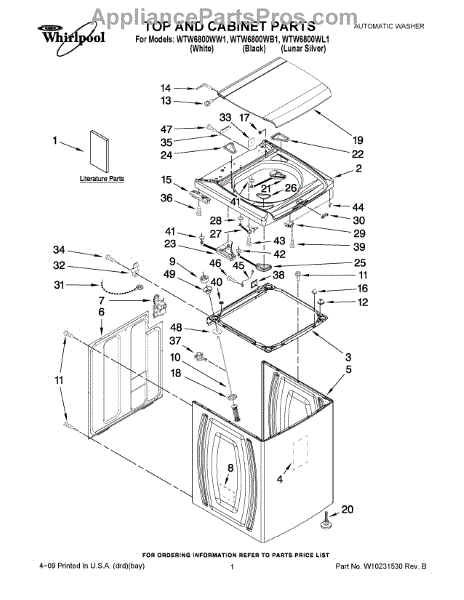

Parts for Whirlpool WTW6800WL1: 01 - Top And Cabinet Parts

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

Small but essential, this drain hose retainer is a clip that secures the hose in place during use or storage. It keeps the hose properly routed to help prevent kinks, pull-outs, and leaks. What it does:

• Holds the drain hose to the cabinet/frame for correct routing or stowage
• Helps prevent kinks, abrasion, and strain that can cause poor draining or leaks
• Replaces a broken, warped, or missing retainer so the hose stays put
• Common symptoms: hose won't stay clipped, falls during operation, visible damage, water near hose path

• 1 drain hose retainer

• Disconnect power and turn off the water supply before servicing
• Access the hose routing area and remove the damaged retainer
• Position and fasten the new retainer in the same location; route the hose through it
• Run a brief test to ensure secure routing and no leaks

This sound absorber is an OEM-style insulation pad designed to reduce washer cabinet noise and rattling for a quieter cycle. It mounts inside the appliance cabinet to help dampen vibration and airborne sound. What it does:

• Dampens vibration and reduces cabinet noise during spin and agitation
• Helps minimize rattling from internal components for a quieter operation
• Supports stable operation by providing a cushioned barrier between parts and the cabinet
• Commonly replaced when padding is torn, missing, or compressed

• One sound absorber insulation pad

• Disconnect power and water supply before starting any repair
• Access may require removing outer cabinet or panels; follow your model's service manual
• Use proper fasteners and placement as shown in OEM diagram; avoid altering material

Suspension rod ball and bushing kit includes 4 balls and 4 bushings.

The Suspension Spring Kit is an OEM part for Whirlpool washing machines. This kit includes multiple springs that support the washer tub, helping to absorb shocks and reduce vibrations during the wash cycle, ensuring smooth and stable operation.

Causes of a bad suspension spring can include wear and tear over time, heavy loads, or unbalanced loads that put excessive strain on the springs. Damaged or worn springs can lead to increased movement and instability, affecting the washer’s performance and potentially causing damage to other components.

Symptoms of a bad suspension spring include:

• Excessive shaking or vibrating during the wash cycle
• The washer tub appearing out of alignment or sagging
• Loud banging noises during operation
• The washer moving or "walking" across the floor

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

The Whirlpool screw is an OEM replacement part responsible for fastening and securing different components in the washer. This screw is used in various locations throughout the appliance, such as attaching panels, brackets, and other parts together. Its main function is to provide a tight and reliable connection, preventing any loose or unstable components that could disrupt the washer's operation.

This part fixes the following symptoms:

• Loose or unstable components in the washer
• Visible signs of wear, rust, or damage on the screw
• Unusual noises or rattling sounds during washer operation

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Hinge is an OEM part for Whirlpool washing machines. This component is essential for the proper function of the washing machine door, allowing it to open and close smoothly. The hinge ensures that the door stays aligned and securely closed during the wash cycle, preventing leaks and maintaining the safety of the machine's operation.

Causes of a bad hinge can include repeated use over time, accidental force or impact, or corrosion from exposure to moisture.

Symptoms of a bad hinge include:

• Difficulty opening or closing the washing machine door
• A door that does not stay closed properly
• Unusual noises when the door is moved
• Visible damage or misalignment of the hinge

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Lid Hinge is an OEM part for Whirlpool washing machines. It connects the lid to the washing machine body, allowing the lid to open and close smoothly. This hinge ensures the lid remains securely attached while providing the necessary movement for easy access to the washer drum.

Common causes of a bad lid hinge include repeated use over time, accidental impact, or corrosion from exposure to moisture. These factors can cause the hinge to become loose, stiff, or broken.

Symptoms of a bad Lid Hinge include:

• Difficulty opening or closing the lid
• The lid not staying open or falling shut unexpectedly
• Unusual noises when moving the lid
• Visible damage or rust on the hinge

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This right-side hinge spring helps restore proper door tension and alignment so the appliance door opens and closes smoothly. Replace a worn or broken spring to reduce sagging, uneven closure, and noisy hinge operation. What it does:

• Provides tension for the right door hinge to maintain correct door alignment and closing force
• Helps stop the door from sagging or drifting open
• Reduces grinding, squeaking, or other hinge noises caused by a worn spring
• Works as part of the hinge assembly to support normal door motion

• Disconnect power and empty the door before starting; support the door to prevent dropping.
• Use appropriate hand tools; follow manufacturer service instructions for safe removal and installation.
• Inspect surrounding hinge components and fasteners; replace or tighten as needed for proper alignment.

This top panel lock replaces a worn or broken front lock that secures the appliance's top panel. It restores a solid, secure top panel and helps prevent accidental opening during use. What it does:

• Acts as the front latch to hold the top panel closed
• Prevents the top from shifting, rattling, or coming loose during operation
• Helps stop access to internal components when the top is closed
• Commonly used when the top panel is loose, won't stay closed, or the latch is broken

• Disconnect power before beginning any repair to avoid shock or injury
• Basic hand tools (screwdriver) are typically needed
• Remove the top panel carefully to access the lock; note screw locations for reassembly
• Test the lock and panel alignment after reinstalling to ensure proper operation

The fabric softener dispenser stores liquid softener and automatically releases it during the rinse cycle. Replace a cracked, clogged, or missing dispenser to restore reliable dispensing and reduce leaks or softener left behind. What it does:

• Holds liquid fabric softener and dispenses it at the proper time in the rinse cycle
• Helps prevent early release of softener onto clothes
• Common symptoms: softener not dispensing, softener remaining in the cup after the cycle, leaks/drips from the dispenser area, or visible damage/missing dispenser
• Can resolve clogs from residue buildup that interfere with siphoning/flow

• 1 fabric softener dispenser

• Disconnect power and turn off water supply before servicing
• Remove the old dispenser (pull straight up or release locking tabs, per model)
• Clean any residue from the mounting area; flush the new dispenser with warm water
• Seat the new dispenser fully and test with a small amount of water to ensure proper flow

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

This bleach dispenser stores liquid chlorine bleach and automatically dilutes and releases it at the correct point in the wash cycle. Replacing a cracked or clogged dispenser helps stop leaks, protect fabrics, and restore consistent bleaching performance.

• Holds bleach and siphons it into the tub at the proper time in the cycle
• Helps prevent undiluted bleach from contacting fabrics early
• Direct replacement for a dispenser that is cracked, warped, or clogged
• Address symptoms such as bleach remaining in the cup, dispensing too soon, leaks near the dispenser area, or fabric spotting

• Disconnect power and turn off water before servicing
• Access the dispenser through the top/console area; remove fasteners and detach connected hose(s)
• Transfer any hoses, clamps, and mounting hardware from the original part; ensure all connections are fully seated to prevent leaks
• Run a test/rinse cycle to check for leaks

This fresh-water nozzle assembly directs a controlled stream into the appliance during fill/dispense. Replacing a cracked or clogged nozzle restores proper flow and helps reduce splashing, misdirected spray, or dripping at the opening. What it does:

• Shapes and directs fresh water into the tub/dispenser area
• Helps prevent spray, backflow, and mess around the opening
• Common symptoms: weak or misdirected stream, dripping after fill/dispense, leaks near the opening, visible cracks or mineral buildup on the nozzle
• A kinked or brittle attached tube can restrict flow or leak

• One fresh-water nozzle assembly

• Disconnect power and shut off the water supply before servicing
• Access the nozzle area; remove necessary panels or trim
• Release retaining clip(s), disconnect tubing, and note routing before removal
• Install the new assembly fully seated; restore water/power, check for leaks, and run a test fill to flush air/debris

The Hose Clamp is an OEM part for Whirlpool appliances. It secures hoses in place, ensuring a tight connection and preventing leaks in various systems such as washing machines, dishwashers, and refrigerators. This clamp is crucial for maintaining the integrity of the water or air lines it secures.

Causes of a bad hose clamp include wear and tear over time, exposure to water and detergents, or mechanical stress from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Leaks at the hose connection points
• Hoses slipping off the connections
• Visible rust or damage on the clamp
• Reduced appliance efficiency due to leaks

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Lid Lock Assembly is an OEM part for Whirlpool washing machines. It ensures the washer lid is securely locked during operation, preventing it from being opened mid-cycle and ensuring safe and efficient washing.

Causes of a bad lid lock assembly can include wear and tear from frequent use, electrical issues such as short circuits, and physical damage from impact or mishandling. A malfunctioning lid lock can disrupt the washing cycle, leading to incomplete washes or safety concerns.

Symptoms of a bad lid lock assembly include:

• The washer not starting or stopping mid-cycle
• Error codes indicating a lid lock issue
• The lid not locking or unlocking properly
• The washer lid feeling loose or failing to stay closed

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: White

This condenser tie is a small plastic wire tie used to secure the condenser assembly or related wiring and tubing in place. It helps prevent rubbing, vibration noise, and loose routing that can cause wear or interference. What it does:

• Secures condenser coils, wiring harnesses, or drain/tubing to the appliance frame
• Prevents rubbing and vibration that can cause noise or premature wear
• Keeps wiring and tubing routed away from moving parts and hot surfaces
• Helps maintain tidy component placement for reliable operation

• Disconnect power to the appliance before servicing.
• Use pliers or a tie tool to snug the tie; trim excess tail flush to avoid sharp edges.
• Single-use plastic ties may need replacement if cut for removal.
• Route tied components clear of fans, sharp edges, and heating elements.

This top spring hinge provides the tension and pivot point that helps a laundry appliance door open and stay aligned for smooth operation. It restores proper door positioning and reduces sag or uneven closing. What it does:

• Replaces a worn or broken top spring hinge to restore door tension and alignment
• Helps prevent the door from sagging, sticking, or closing unevenly
• Restores consistent opening/closing motion and proper seal engagement
• Addresses symptoms such as a drooping door, noisy hinge movement, or difficulty keeping the door open

• Disconnect power and, if applicable, gas supply before beginning any repair
• Follow the appliance manufacturer's instructions; some models require door removal to access the top hinge
• Use proper hand tools and retain all fasteners; wear gloves and eye protection
• If both hinges show wear, consider replacing both to ensure balanced tension

This flexible gasket creates a tight seal around the appliance opening to help keep temperature and moisture where they belong, reducing leaks and improving performance. It's a direct-replacement part designed to restore proper sealing. What it does:

• Forms an airtight/watertight barrier at the door or access opening
• Prevents leaks and spills from escaping the cabinet or tub
• Helps maintain internal temperature and prevents moisture intrusion
• Reduces frost buildup and condensation caused by poor sealing

• One replacement seal

• Inspect mounting channel and retainers for damage before installing the new seal
• Clean the sealing surface and allow it to dry for a secure fit
• Peel-back adhesive or align retention tabs as required by your model; avoid stretching the gasket

Specs: 10-16 x 1/2 inch.

This 8-18 x 5/8-inch screw secures appliance panels, brackets, and covers. Replacing a missing or stripped fastener restores a tight fit and helps prevent vibration or loosening where this exact size is specified.

• Fastens sheet-metal or plastic components where a #8-18 x 5/8 screw is called for
• Helps maintain alignment and reduce rattling or vibration
• Replaces stripped, corroded, or missing screws of the same size
• Common symptoms: loose panels, gaps/poor fit, rattling noises, or visible missing hardware

• Disconnect power and shut off gas/water (as applicable) before service
• Match thread and length to the original; replace screws one at a time to keep parts aligned
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• If the receiving threads are damaged, additional repair (clip, insert, or new nut) may be needed

This is a replacement 8-18 threaded screw used to secure components in compatible Whirlpool appliances. It provides a like-for-like fastening option when an original screw is lost or damaged, restoring proper fit and function. What it does:

• Fastens panels, brackets, or components where an 8-18 thread screw is required
• Replaces stripped, corroded, or missing screws to stop rattles and looseness
• Matches the fastening method used by the original equipment for reliable hold
• Suitable for areas where the OEM specified an 8-18 threaded screw

• Screw (single)

• Use the correct driver and size to avoid stripping the head or damaging mating threads
• Tighten to snug fit; avoid over-torquing which can strip threads or crack plastic parts
• Disconnect power to the appliance before starting repairs when working near electrical components

The Hose Clamp is an OEM part for Whirlpool appliances. It secures hoses in place, ensuring a tight connection and preventing leaks in various systems such as washing machines, dishwashers, and refrigerators. This clamp is crucial for maintaining the integrity of the water or air lines it secures.

Causes of a bad hose clamp include wear and tear over time, exposure to water and detergents, or mechanical stress from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Leaks at the hose connection points
• Hoses slipping off the connections
• Visible rust or damage on the clamp
• Reduced appliance efficiency due to leaks

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Hose Clamp is an OEM part for Whirlpool appliances. It secures hoses in place, ensuring a tight connection and preventing leaks in various systems such as washing machines, dishwashers, and refrigerators. This clamp is crucial for maintaining the integrity of the water or air lines it secures.

Causes of a bad hose clamp include wear and tear over time, exposure to water and detergents, or mechanical stress from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Leaks at the hose connection points
• Hoses slipping off the connections
• Visible rust or damage on the clamp
• Reduced appliance efficiency due to leaks

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is a genuine replacement mounting screw that secures appliance components and panels so parts stay aligned and stable. Installing the correct screw restores proper fit and helps eliminate vibration or loose panels. What it does:

• Fastens panels, brackets, or small components in place
• Replaces missing, stripped, or damaged screws that cause loose parts
• Helps stop rattling, vibration, or misaligned panels
• Restores secure connections after repairs or part replacement

• One mounting screw

• Unplug the appliance or disconnect power before starting work
• Use the correct screwdriver bit to avoid stripping the head
• Tighten until snug; avoid over-tightening which can strip threads or crack plastic
• Keep removed hardware organized so you can reuse existing screws when applicable

Used from harness to top.

This ground wire provides a safe chassis connection to restore proper grounding and reduce shock and electrical-fault risk. It replaces a frayed, corroded or missing ground lead to help keep the appliance electrically safe. What it does

• Connects the appliance chassis to the grounding system to prevent stray voltage on metal surfaces
• Restores a secure ground path if the original wire is broken, loose, or corroded
• Helps stop intermittent power faults or nuisance tripping caused by a compromised ground
• Addresses symptoms like visible wire damage, loose ground connection points, or grounding-related electrical issues

• One ground wire

• Always disconnect power (unplug or shut off the circuit breaker) before starting work
• Attach the ring/terminal ends to the designated chassis ground screw and the equipment ground point
• Route the wire away from moving parts, heating elements, and sharp edges; secure with existing clips or fasteners
• If terminal hardware is missing or damaged, replace with equivalent OEM-style fasteners and torque to specification

The Screw is an OEM component compatible with Whirlpool washing machines. This screw secures the rear bulkhead to the tub, ensuring vibrations are reduced through solid mounting points. Properly installed screws dampen oscillating movement.

Causes of a bad screw include damage from water exposure like corrosion or breakage from stress concentrations if the tub bangs around during imbalanced loads.

Symptoms of a bad screw include:

• Loose or detached rear bulkhead allowing side-to-side play
• Excessive noise and shaking felt through the surrounding walls
• Development of micro-cracks around screw holes over time
• Potential leak paths if holes are no longer sealed

This Whirlpool replacement screw restores a stable suspension system. It is compatible with additional brands like Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Suspension rod ball and bushing kit includes 4 balls and 4 bushings.

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.
