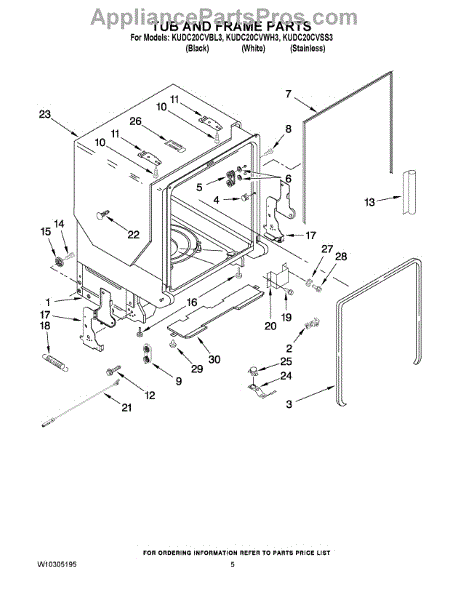

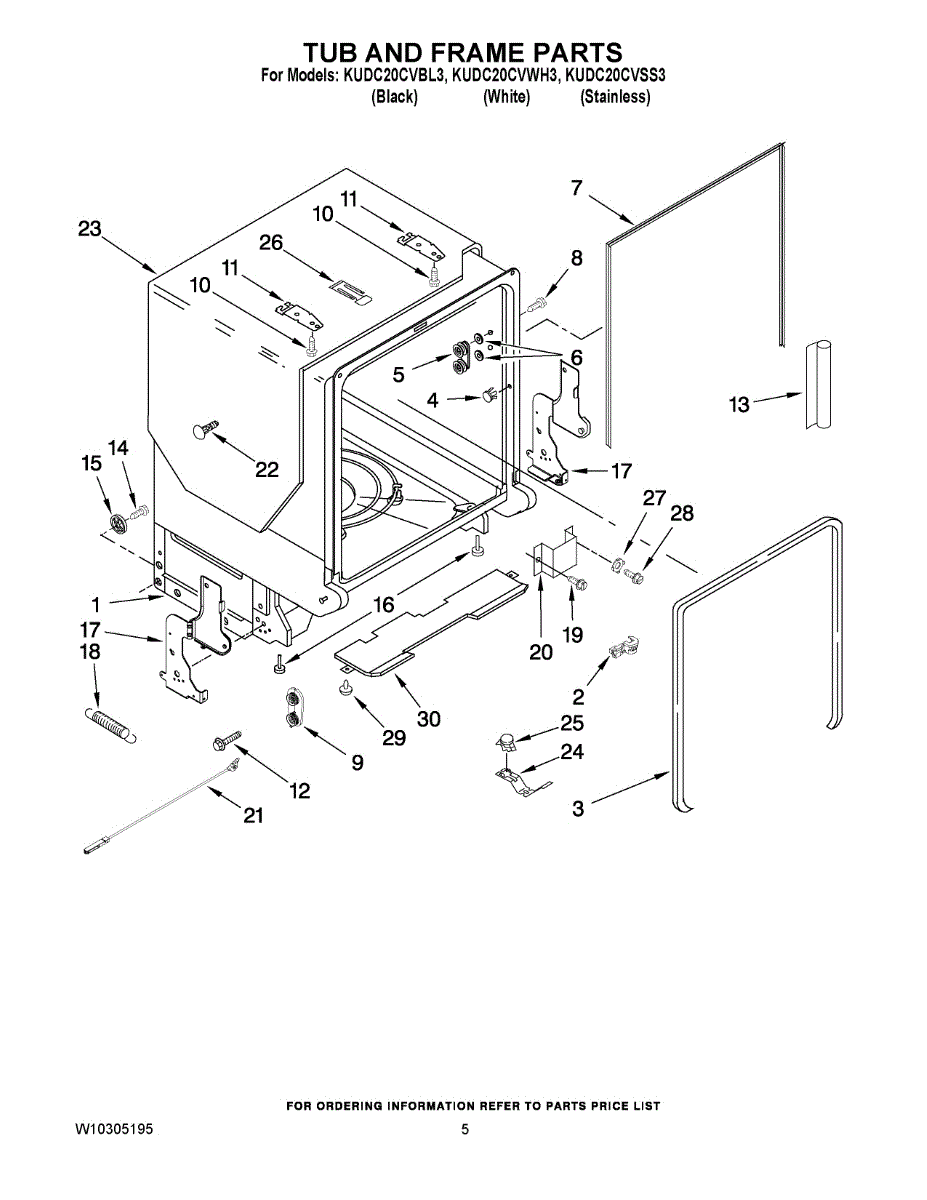

Parts for Kitchenaid KUDC20CVBL3: 05 - Tub And Frame Parts

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

Cable retainer link for dishwashers. Secures and holds cables in proper position inside the appliance. Replace if cracked, broken, or missing.

Seals the door to tub gap, preventing leaks during wash cycles. Replace if water leaks from the door or seal is torn. Confirm fit by model number.

The Screw Hole Cap is an OEM part for Whirlpool dishwashers. It covers the screw holes, providing a clean and finished appearance while preventing moisture and debris from entering the screw openings. This helps maintain the dishwasher's aesthetic and ensures that screws remain protected from rust and corrosion.

Causes of a bad screw hole cap can include regular wear and tear, accidental impacts, or misplacement during maintenance.

Symptoms of a bad screw hole cap include:

• Missing or loose caps
• Moisture or debris accumulating in screw holes
• Visible wear or damage to the caps

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Wheel and Bracket Assembly is an OEM part for Whirlpool dishwashers. This assembly includes the wheel and bracket components that support and guide the dishwasher rack, allowing it to slide in and out smoothly. It ensures ease of access to load and unload dishes efficiently.

Over time, the wheel and bracket assembly can wear out or become damaged due to repeated use, heavy loads, or accidental impacts. Such issues can cause difficulty in maneuvering the dishwasher rack, leading to inconvenience and potential damage to the dishes or dishwasher.

Symptoms of a bad wheel and bracket assembly include:

• Difficulty sliding the dishwasher rack in or out
• The rack becoming misaligned or falling off its tracks
• Unusual noises when moving the rack
• Visible damage to the wheels or brackets

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Gasket for upper wheel.

Seals the dishwasher tub to the cabinet opening, reducing noise and preventing gaps. Replace if worn, damaged, or missing for proper fit and sound control.

Factory #10-16 screw secures dishwasher panels, brackets, and covers. Replace worn, stripped, or missing screws to restore tight assembly.

If your dishwasher door drops, slams, or feels heavy, the door balance mount may be broken. This side-frame bracket anchors the spring system.

Screw secures appliance panels and access covers. Replace missing, stripped, or corroded screws to restore tight fit and eliminate rattles or gaps.

Secures your dishwasher to the underside of the counter. Replace if bracket is broken, cracked, or missing to prevent the unit from shifting forward.

10-24 threaded machine screw secures panels, brackets, and internal assemblies in appliances. Replace missing, stripped, or damaged screws.

Size: 10-32 x 15/16 inch.

Rear wheel support that guides and stabilizes the dishwasher rack as it slides. Replace if cracked, broken, or worn to restore smooth gliding motion.

This adjustable leveling leg threads into the appliance base to set height and stabilize the cabinet. Replacing a worn or missing leg helps stop rocking and vibration and helps maintain proper alignment for reliable operation.

• Provides adjustable support at one corner of the appliance
• Helps level the unit for correct alignment with floor or cabinetry
• Reduces rocking, vibration, and rattling noises
• Replaces stripped, bent, cracked, or missing leg

• Disconnect power and, if applicable, shut off water before servicing
• Carefully support or brace the appliance to access the base safely
• Start the new leg by hand to avoid cross-threading; adjust height gradually
• Use a level to check side-to-side and front-to-back, then recheck after positioning

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

Replacement door balance spring for dishwashers. Provides tension so the door opens smoothly and stays in position. Needed when spring is rusted, broken, or stretched causing door to slam open or fall without resistance.

Replacement 8-32-thread screw used to secure panels, brackets and small components in compatible household appliances. Restores missing or stripped fasteners so panels and parts stay firmly attached during normal use. What it does:

• Secures trim, panels, brackets and control housings to maintain proper assembly.
• Replaces missing or damaged screws that can cause rattling, loose panels or misaligned components.
• Fits locations that require an 8-32 threaded fastener; correct length and head style for your application.
• Helps restore stable, vibration-free operation when worn or stripped fasteners are replaced.

• Disconnect power and water before servicing; wear eye protection and gloves.
• Use the correct screwdriver or driver bit to avoid stripping the screw head.
• Do not overtighten—turn until snug and secure to avoid damaging threads or surrounding parts.
• If the original used a washer or nut, reuse or replace as needed and the screw length and head type match the original.

Covers the dishwasher's electrical junction box under the unit. Replace if cracked, loose, or missing to restore safe wire enclosure and containment.

Door balance link kit for dishwashers. Connects door springs to control door movement. Replace if rope is frayed, broken, or plastic clips are cracked or worn.

Secures knobs, trim, or linkages to shafts inside your dishwasher. Replace if broken, cracked, or missing to prevent components from loosening.

This power cord connects your appliance to a household outlet. Replacing a worn or damaged cord restores safe, reliable power and can help resolve no-power or intermittent power issues caused by a compromised lead.

• Delivers electrical power from the outlet to the appliance
• Replaces cords with cracked, frayed, or heat-damaged insulation or a damaged plug
• Helps when the unit won't power on or loses power when the cord is moved
• Addresses visible scorching, arcing, or melting on the cord or plug

• Disconnect power before servicing; verify no voltage is present
• Note wire positions or take a photo before removal; match to the same terminals on install
• Use the proper strain relief/clamp and route away from sharp edges, moving parts, and heat sources
• Confirm the ground connection is secure; do not modify the plug

Mounting bracket that secures the thermostat assembly in your dishwasher. Replace this bracket if it's cracked, broken, or missing to restore stability.

Thermostat has 1/4 inch terminals.

The High Limit Thermostat is an OEM part for Whirlpool dishwashers. This safety feature is designed to prevent the dishwasher from overheating by shutting off the power if the internal temperature exceeds a certain limit. It acts as a safeguard against potential hazards, such as fires, and ensures the dishwasher operates within safe temperature ranges.

Over time, the high limit thermostat can become defective due to normal wear or electrical issues within the dishwasher. A malfunctioning thermostat may not accurately respond to temperature changes, which can lead to overheating or the dishwasher not reaching the necessary temperature for optimal cleaning.

Symptoms of a bad High Limit Thermostat include:

• Dishwasher not starting or completing a cycle
• The dishwasher stops heating water, affecting cleaning performance
• Overheating, which could potentially damage dishes or the dishwasher itself

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Pronged cup washer secures and cushions components in dishwashers and microwaves. Replace when worn to restore stable fit and reduce wobble.

Size: 8-32 x 1/2 inch.

Secures interior panels and trim to prevent vibration and movement. Replace when clips break or lose grip. Verify fit with your model number.

Insulation pad that fits behind dishwasher panels to restore thermal protection and reduce noise. Replace if damaged, missing, or rattling occurs.

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.
