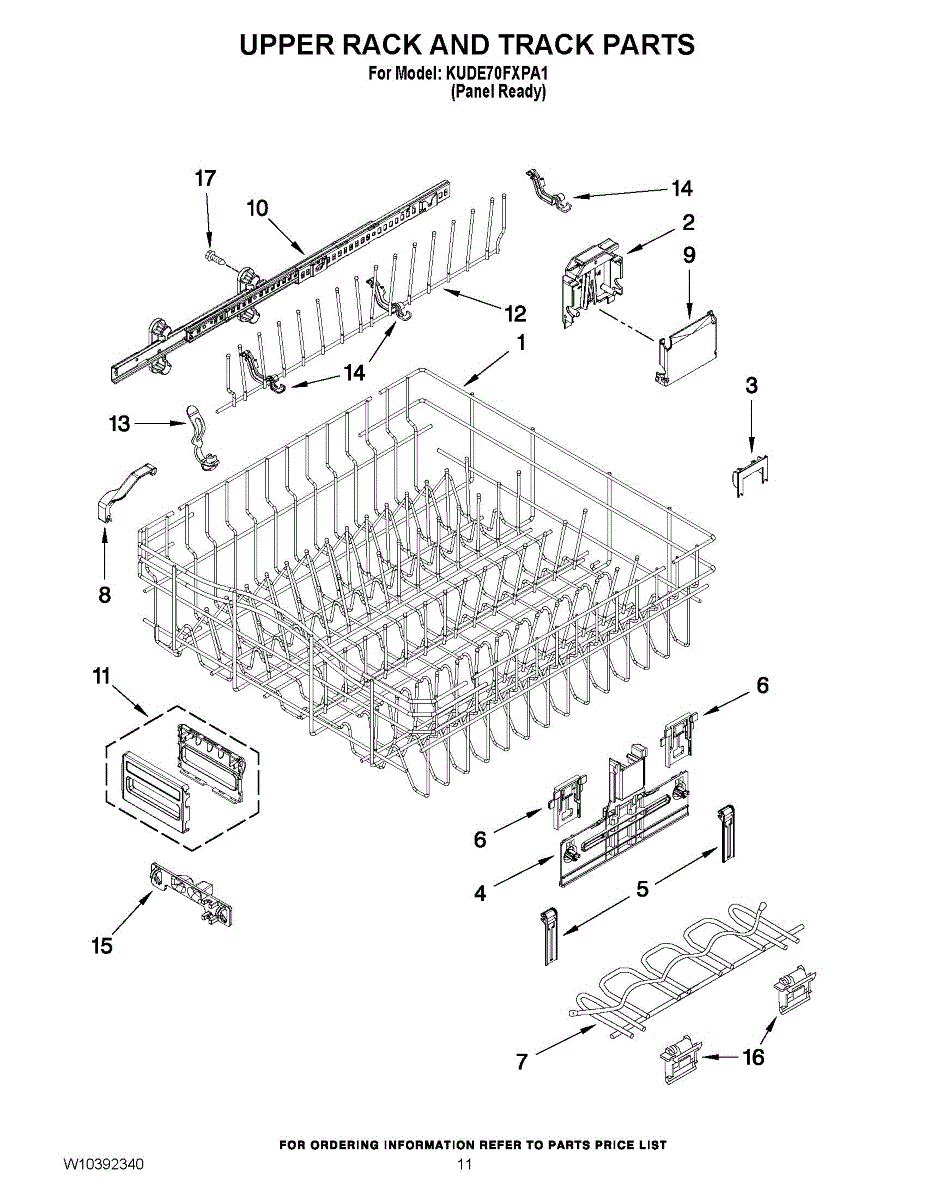

Parts for Kitchenaid KUDE70FXPA1: 09 - Upper Rack And Track Parts

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Replacement upper dishrack for dishwashers. Holds dishes and glasses in the top position. Order if your original rack is rusted, cracked, or broken.

Replacement right adjuster housing for dishwasher upper rack. Holds and supports the right side height adjustment mechanism. Replace if cracked or worn.

Replacement left adjuster housing for dishwasher upper rack. Restores proper rack alignment and stability. Needed when housing is cracked or broken.

Secures the dishwasher upper rack to the slide rail and allows height adjustment. Replace if the clip is cracked, broken, or won't snap onto the positioner.

Replacement upper rack adjuster for dishwashers. Mounts to the upper rack to adjust height and provide flexible loading. Replace if cracked or broken.

Rear adjuster guide for dishwasher upper racks. Enables smooth up/down adjustment to accommodate different dish sizes. Replace if broken or missing.

Clips onto the upper dishrack to hold the height adjuster assembly in place for balanced operation. Replace if cracked, broken, or missing.

Upper rack cup shelf for dishwashers. Snaps into rack clips to hold cups securely. Replace when cracked, rusted, broken, or missing from your rack.

This small clip secures the guard/shield on the dispenser assembly. Replacing a cracked or missing clip keeps the guard firmly attached and aligned so the dispenser operates properly without interference, noise, or premature product loss. What it does:

• Fastens the dispenser guard to its mounting point on the dispenser assembly
• Keeps the guard aligned to prevent interference with dispenser door/flow
• Restores a secure fit if the original clip is cracked, deformed, or missing
• Common symptoms: loose or missing guard, rattling, incomplete dispensing or residue left after a cycle

• 1 dispenser guard clip

• Disconnect power to the appliance; turn off water supply if applicable
• Open access, support the guard, and release the worn clip from its tabs
• Snap the new clip fully into place, ensuring it engages all locking points
• Ensure the guard is secure and that the dispenser door/flow path is unobstructed before use

Adjuster cover for dishwasher upper rack height adjustment mechanism. Replace if cracked, broken, or missing to protect adjuster components from water.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Right-hand track assembly that guides the upper dishwasher rack as it slides in and out. Replace if cracked, broken, or ball bearings fall out.

Left-hand track assembly guides and supports your dishwasher's upper rack as it slides. Replace if cracked, broken, or ball bearings have fallen out.

Broken or cracked dishwasher door handle making it hard to open? This replacement handle restores secure grip and smooth operation in under 15 minutes.

Replace your cracked, rusted, or broken dishwasher tine row. This adjustable row installs in the upper or lower rack for flexible dish loading.

Secures tines in your dishwasher rack to keep dishes properly aligned. Replace this clip if it's cracked, broken, or missing to restore rack stability.

The Tine Row Pivot is an OEM replacement part for Whirlpool dishwashers. This component is an integral part of the upper rack assembly, allowing the tine rows to fold down or pivot inward to accommodate taller items or create additional space within the rack.

Symptoms of a faulty tine row pivot may include:

• Tine rows not folding or pivoting smoothly
• Difficulty adjusting the tine rows to the desired position
• Tine rows becoming stuck or jammed in an open or closed position

Causes of needing to replace the tine row pivot can include normal wear and tear over time, physical damage from mishandling or impact, or issues with the pivot mechanism becoming corroded or obstructed.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore dishwasher models.

Secures tines in your dishwasher rack to hold dishes and utensils in place. Replace if cracked, broken, or missing to restore proper rack function.

Small retaining clip that secures trim, panels, or components in your dishwasher to prevent rattling or detachment. Replaces broken or missing clips.

This factory screw secures panels, brackets, or components within your appliance. Using the correct OEM fastener helps ensure a snug fit and prevents loosening, rattling, or misalignment over time.

• Fastens metal or plastic components to maintain proper alignment
• Helps prevent vibration, noise, and loosened parts
• Common wear item that can strip, rust, or go missing
• Replaces damaged or missing hardware to restore secure mounting

• Disconnect power and shut off water or gas before service
• Note original screw location and orientation for proper reassembly
• Start threads by hand to avoid cross-threading; do not overtighten
• If threads are damaged, inspect the mating hole or clip before reuse
