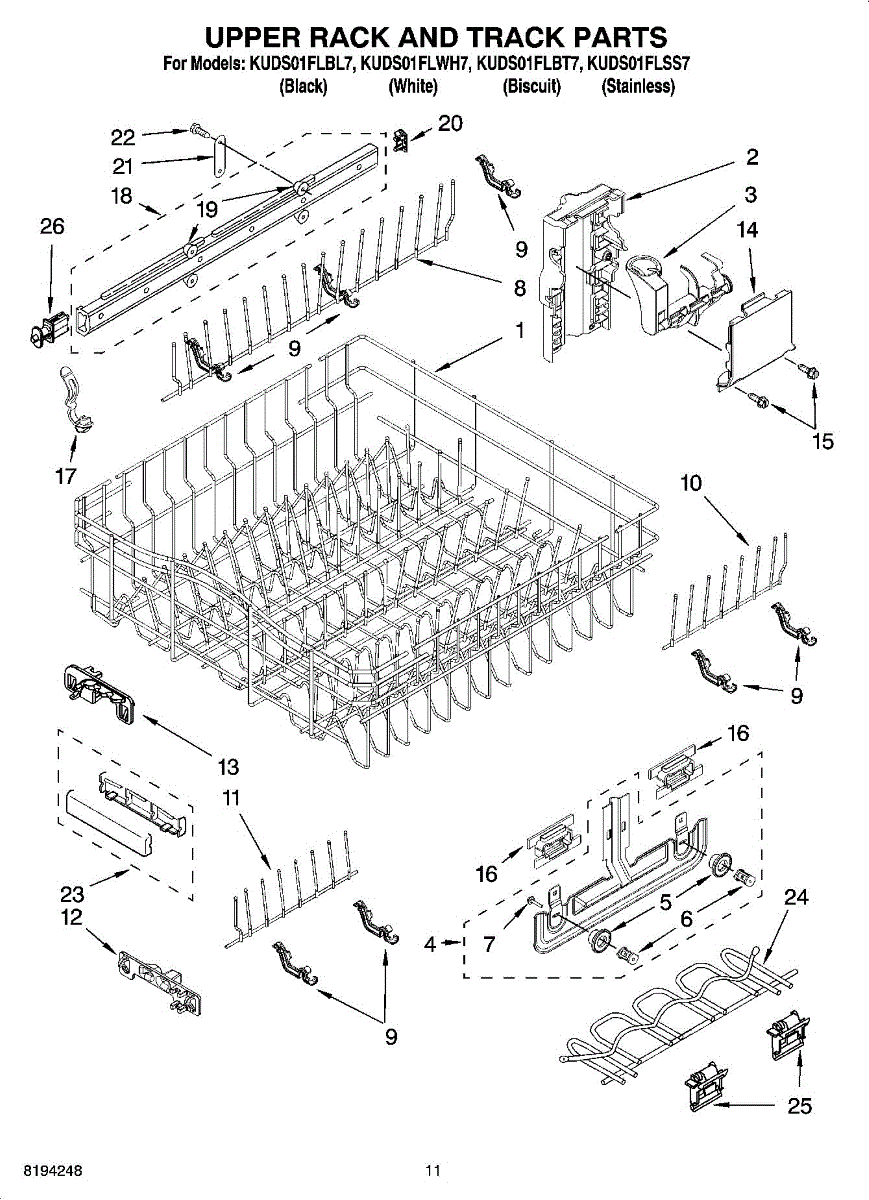

Parts for Kitchenaid KUDS01FLBT7: 09 - Upper Rack And Track Parts

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Upper dish rack assembly for dishwashers. Holds glasses, cups, and small items on the top level. Replace if cracked, warped, rusted, or deteriorating.

This upper rack adjuster sets and secures the dishwasher's top rack height so dishes clear the spray arms and load properly. When the adjuster wears or breaks, the rack can become uneven or stuck, leading to poor cleaning and loading issues.

• Provides the mechanism to raise/lower and lock the upper dishrack height
• Keeps the top rack level and secured to the rail during operation
• Common symptoms of failure: rack drops on one side, won't adjust, feels loose, or comes off the track
• Contribute to poor wash results when the rack can't be positioned correctly

• Disconnect power and water supply before servicing
• Remove upper rack end caps/stops and slide the rack out to access the adjuster
• Release or unfasten the old adjuster, transfer any reusable clips/wheels if applicable, and install the new adjuster
• Set both sides of the rack to the same height; reinstall rack and confirm smooth travel and secure locking

Dishrack adjuster assembly for dishwashers. Mounts to upper rack and slides along track rails. Replace if wheels are broken, housing is cracked, or worn.

Replacement wheel for dishwasher upper rack. Attaches to the rack and rolls along interior tracks for smooth gliding. Needed when wheels are broken, cracked, or missing.

Replacement axle for dishwasher upper rack height adjustment mechanism. Needed when the axle is broken, cracked, or missing from the rack roller assembly.

This replacement screw fastens appliance components such as panels, brackets, or trim. Use it to replace a missing, stripped, or rusty fastener and restore a secure, rattle-free fit in your appliance assemblies.

• Secures panels, brackets, or hardware to maintain proper alignment
• Helps eliminate vibration, rattling, or loose-feeling parts
• Replaces fasteners that are missing, corroded, or cross-threaded
• Typical signs you need it: loose handle or panel, gaps, or hardware that won't stay tight

• Disconnect power (and shut off gas, if applicable) before servicing
• Match thread type and length to the original fastener for proper fit
• Start threads by hand to avoid cross-threading; do not overtighten
• Reuse any original washers or clips if present

Replace your cracked, rusted, or broken dishwasher tine row. This adjustable row installs in the upper or lower rack for flexible dish loading.

Gray plastic pivot clip for dishwasher upper rack tine rows. Replaces broken, cracked, or missing pivots that prevent tines from adjusting properly.

Replace your cracked, rusted, or broken dishwasher tine row. This adjustable row installs in the upper or lower rack for flexible dish loading.

Replace your cracked, rusted, or broken dishwasher tine row. This adjustable row installs in the upper or lower rack for flexible dish loading.

Secures tines in your dishwasher rack to hold dishes and utensils in place. Replace if cracked, broken, or missing to restore proper rack function.

Replace your dishwasher's upper dishrack if it's cracked, rusted, or has damaged coating. This top shelf holds plates and bowls securely during wash cycles.

This upper rack adjuster sets and secures the dishwasher's top rack height so dishes clear the spray arms and load properly. When the adjuster wears or breaks, the rack can become uneven or stuck, leading to poor cleaning and loading issues.

• Provides the mechanism to raise/lower and lock the upper dishrack height
• Keeps the top rack level and secured to the rail during operation
• Common symptoms of failure: rack drops on one side, won't adjust, feels loose, or comes off the track
• Contribute to poor wash results when the rack can't be positioned correctly

• Disconnect power and water supply before servicing
• Remove upper rack end caps/stops and slide the rack out to access the adjuster
• Release or unfasten the old adjuster, transfer any reusable clips/wheels if applicable, and install the new adjuster
• Set both sides of the rack to the same height; reinstall rack and confirm smooth travel and secure locking

Quantity of ONE. Size: 8-18 x 5/8 inch. (#8 screw, 18 threads per inch, 5/8 inch long)

This bracket supports the rack adjustment mechanism in dishwashers, allowing height changes for different dish sizes. Replace if racks won't adjust properly, are unstable, or the adjustment mechanism is broken.

This small plastic clip attaches to the dishwasher rack tines to hold lightweight or small items in place during the wash cycle, preventing them from flipping over and collecting dirty water. It is especially useful for securing items like plastic lids, baby bottle caps, and other small pieces that tend to move around. Replace this clip if it has become cracked, broken, or no longer grips the rack tines securely.

Replacement track assembly for dishwasher upper rack. Mounts to dishwasher tub side wall. Includes left and right tracks with bearings and stops.

Stops the dishwasher rack from pulling out too far on ball-bearing rails. Replace if worn or missing to restore smooth gliding and secure dish loading.

Gasket for upper wheel.

Factory #10-16 screw secures dishwasher panels, brackets, and covers. Replace worn, stripped, or missing screws to restore tight assembly.

Upper rack cup shelf for dishwashers. Snaps into rack clips to hold cups securely. Replace when cracked, rusted, broken, or missing from your rack.

Replacement dishwasher cupshelf clip secures the cup shelf to the upper rack. Order a new clip if yours is cracked, broken, or missing from the rack assembly.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Bottle with brush. Acyrlic touch-up paint. Color: Majestic yellow. Size: 0.6 fl.oz.

Color: White. Other colors: For black use 8171657, for biscuit use 8171657.For stainless use 8171659

This mounting kit secures your dishwasher's tall tub to the floor, preventing movement and vibration during operation. It replaces worn or missing floor mounting hardware that can cause your dishwasher to rock or shift during wash cycles.

Touch-up paint for appliance exteriors in cobalt blue. Includes brush applicator. Perfect for covering scratches, chips, or worn areas on panels.

Color: Black. Other colors: For white use 8171656, for biscuit use 8171657, for stainless steel use 8171659.

Color: Stainless steel. Other colors: For black use 8171657, for white use 8171656, for biscuit use 8171658.

Color: White. Size: 1 qt. can. Acrylic appliance paint.

Color: Biscuit. Size: 1 qt. can uncut. Enamel paint.

Bottle with brush. Acyrlic touch-up paint. Color: Empire red. Size: 0.6 fl.oz.

13 oz. enamel spray paint in biscuit color for appliances. Restores scratched, chipped, or discolored surfaces on refrigerators, dishwashers, and more.

Touch-up paint for restoring chips, scratches, and nicks on painted appliance surfaces. Covers minor cosmetic damage on exterior panels and finishes.

Color: Black. Size: 12 oz. Acrylic appliance aerosol can spray paint.

Touch-up paint for appliances. Covers chips, scratches, and worn areas on range tops, refrigerators, and other appliances. Includes brush applicator.

Bottle with brush. Color: Black. Size: 0.6 fl.oz.

The Power Cord Kit is an OEM replacement part for Whirlpool dishwashers. It is a 3-prong grounded, 16-gauge cord that includes all the hardware needed for installation. Includes all hardware needed for installation.

Causes of a bad power cord can include normal wear and tear over years of use, accidental impacts or cuts to the wiring, or improper installation that damages components.

Symptoms of a bad power cord include:

• The dishwasher not turning on or completing cycles
• Warm or hot power cords during operation
• Frayed, cracked, or exposed copper wiring

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air, and some Kenmore models.

Color: White. Size: 13 oz can. Acrylic appliance aerosol can spray paint.

The Appliance Spray Paint is an OEM part for Whirlpool appliances, designed to provide a quick and effective way to touch up or completely refinish the exterior of various appliances. This specialty spray paint is formulated to adhere to metal surfaces, offering a durable and resistant finish that can withstand the routine wear and tear of kitchen environments, including heat, moisture, and everyday use.

The primary reason for using such a specialized paint is to maintain or restore the aesthetic appeal of your appliances while protecting them from further damage.

Symptoms needing for Appliance Spray Paint include:

• Scratches, chips, or rust spots on the appliance's exterior that can lead to further damage or corrosion if left untreated
• A desire to refresh or update the appearance of the appliance without the need for complete replacement
• Discoloration or fading of the original finish due to age, exposure to sunlight, or cleaning agents

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Touch-up paint for covering scratches, chips, and minor blemishes on appliance exteriors. Restores appearance and protects surfaces when finish is damaged.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.
