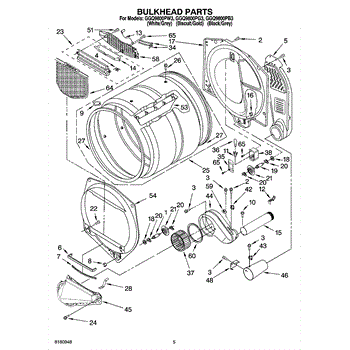

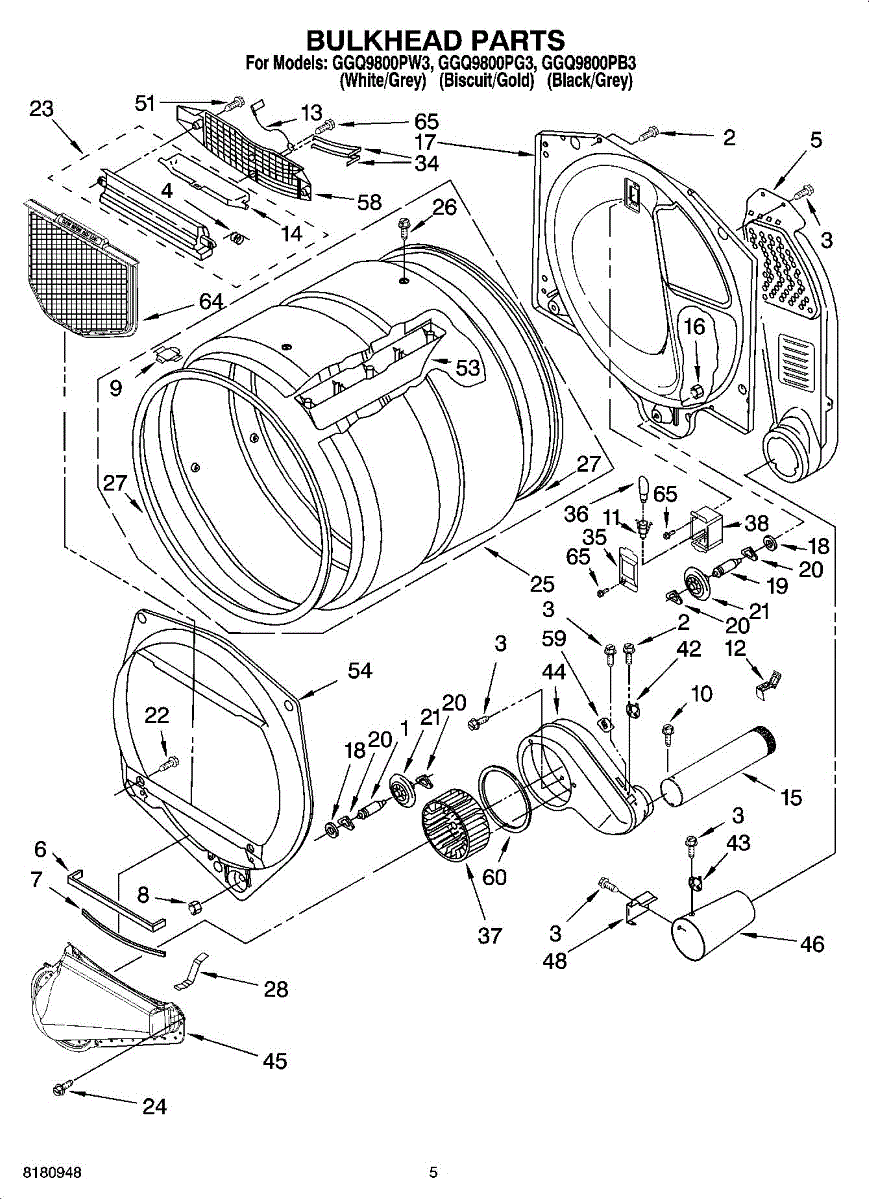

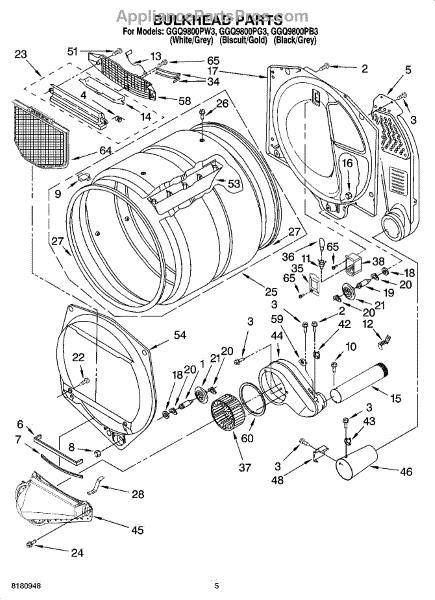

Parts for Whirlpool GGQ9800PB3: 03 - Bulkhead Parts

Shaft that secures front drum support rollers in your dryer. Replace if worn, scored, or damaged to restore proper drum alignment and support.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Restores proper tension to your dryer's lint screen door for smooth opening and closing. Replace if the cover is loose or won't stay closed securely.

Seals the dryer outlet housing to prevent air leaks and maintain venting efficiency. Replace if lint accumulates in cabin or moisture escapes. Verify fit.

Seals the dryer outlet housing to prevent air leaks and maintain venting efficiency. Replace if lint accumulates in cabin or moisture escapes. Verify fit.

This drum hole plug seals an unused or service access hole in the dryer drum to help prevent clothing snags and reduce interior airflow leaks. Simple replacement restores the drum surface and helps keep items from catching. What it does:

• Covers a drum access/service hole to provide a smooth interior surface
• Prevents fabric from catching or tearing on open drum holes
• Reduces unwanted air leakage through the drum
• Helps maintain normal drum rotation contact points by keeping openings closed

• One drum hole plug

• Disconnect power to the appliance before starting any repairs
• Inspect the drum area and remove any debris before installing the plug
• Press or snap the plug into the hole until fully seated; replace if damaged or deformed

Replace worn, stripped, or missing 8-18 x 3/8 machine screws that secure control panels, trim pieces, and brackets on your appliance. Restores tight fit.

Holds the dryer bulb and provides electrical connection for interior lighting. Replace if cracked, heat-damaged, or causing flickering lights. Confirm fit.

Replacement retainer clip that secures panels and internal components in your dryer. Install when the original clip is broken, worn, or missing.

Dryer lint screen door provides access to the lint filter. Replace if cracked, broken, or won't close properly. Verify fit with your model number.

Directs exhaust airflow from your dryer to the external vent. Replace this duct pipe if worn, damaged, cracked, or missing to restore proper ventilation.

This 3/8-16 nut secures appliance components and helps prevent loosening and vibration. Replace a worn, stripped, or missing nut to restore a tight, reliable connection and consistent operation.

• Provides a 3/8-16 threaded fastener connection for applicable bolts or studs
• Helps keep brackets, panels, and other parts firmly in place
• Replaces damaged or missing hardware that can cause looseness or rattling
• Signs of failure include rounded corners, stripped threads, corrosion, or inability to tighten securely

• Disconnect power and, if applicable, shut off water and gas before servicing
• Match thread size to the original part; start threading by hand to avoid cross-threading
• Reinstall any washers/spacers in the original order; tighten securely without over-tightening
• If the original used a locking feature or threadlocker, reinstall per your product's service information

Replace your dryer's front drum bulkhead to restore proper drum alignment and eliminate rubbing, noise, and excessive play. Confirm fit with your model number.

The washer is an OEM replacement part for Whirlpool clothes dryers. This part is located on the drum roller support shaft in your dryer. The exterior of the washer is 1 inch in diameter with a hole in the middle and is made of metal. They are installed alongside the drum support rollers and idler pulleys. They help prevent the rollers and pulleys from bumping up against the brackets they are installed on. If you are replacing the rollers, we suggest you replace the washers at the same time.

Causes can be normal wear to bearing surfaces over extended use cycles. Accidental impacts may also potentially bend or damage shaft components.

Symptoms of a bad roller shaft include:

• Noisy squeaks or clanks emanating from within
• Jerky or unbalanced tumbling of dryer loads
• Roller assemblies binding or sticking

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

The Drum Support Shaft for Left Hand Threads is an OEM replacement part for Whirlpool dryers. This component is essential for securing and supporting the drum as it rotates during the drying cycle. It helps maintain the drum’s alignment and stability, ensuring smooth and efficient operation of the dryer.

Over time, the drum support shaft can become worn out or damaged due to continuous use, the weight of laundry loads, or improper installation. Additionally, exposure to high temperatures and repeated mechanical stress can cause the shaft to weaken or fail, leading to issues with the dryer’s performance.

Symptoms of a bad drum support shaft include:

• The drum not rotating smoothly or making grinding noises
• Excessive wobbling or vibrating of the drum during the drying cycle
• The dryer taking longer to dry clothes or not drying them evenly
• Visible damage or wear on the shaft or its threads
• The drum becoming misaligned or not sitting properly within the dryer

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Secures drum support rollers to their shafts in your dryer. Replace if broken, missing, or damaged during roller maintenance to keep drum wheels stable.

Replacement drum support roller for dryers. Mounts on the drum frame to support and guide the drum as it rotates. Replace if cracked, worn, or damaged.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Houses and secures the lint filter in your dryer. Replace if cracked, warped, or broken to prevent lint bypass and maintain airflow. Verify fit by model.

Type AB #8-18 x 5/8 inch thread-forming screw secures panels and components in appliances. Replace missing, stripped, or corroded fasteners.

Replace a worn or damaged dryer drum that's causing noise, poor tumbling, or clothing snags. Sheet metal construction holds laundry during cycles.

This replacement screw secures panels, brackets, and other components in your appliance to keep them aligned and rattle-free. Replacing worn, stripped, or missing hardware restores a tight fit and helps maintain safe, quiet operation.

• Fastens panels, brackets, or internal parts to the cabinet/frame
• Helps maintain alignment to reduce vibration and rattling
• Replaces lost, stripped, or corroded screws
• Common symptoms: loose panels/trim, rattles, or a screw that won't tighten

• Disconnect power; shut off water or gas if applicable
• Match thread and length to the original; replace one at a time to keep alignment
• Start threads by hand to avoid cross-threading; use the correct driver
• Tighten snugly—do not overtighten, especially into plastic or thin sheet metal

Seals the drum perimeter to prevent abrasion and maintain temperature. Replace when worn, torn, or causing marks on clothes. Verify fit by model number.

This spring clip secures small panels, brackets, or trim inside your appliance to maintain a snug fit and prevent movement. Replacing a fatigued clip helps restore proper alignment and reduce unwanted vibration or rattling. What it does:

• Provides spring tension to hold a component firmly in place
• Helps prevent vibration, rattling, or shifting during operation
• Replaces a bent, worn, corroded, or missing clip
• Common symptoms: loose or misaligned panel/trim, recurring rattles, or parts that won't stay secured

• 1 spring clip

• Disconnect power (and gas, if applicable) before servicing
• Access the clip location per your model's service/parts diagram
• Note the clip's orientation and attachment points before removal
• Use needle-nose pliers carefully to avoid bending adjacent tabs or brackets

Dryer shuts off before clothes are dry? The moisture sensor bar detects dryness levels. Easy 10-30 minute DIY fix with video guide included.

Covers and protects your dryer's light bulb from heat and debris while diffusing illumination. Replace if cracked, yellowed, or missing. Confirm fit.

Illuminates the dryer drum for better visibility when loading and unloading. Replace when bulb burns out or fails to light. Confirm fit with your model.

Dryer making rattling noise or not heating properly? A cracked blower wheel disrupts airflow. Moderate DIY repair—requires panel removal and wrench work.

Secures the light bulb socket inside your dryer drum. Replace if the bracket is cracked, broken, or missing to properly mount the drum lighting assembly.

Dryer heats for a few minutes then won't fire again until cool? Cycling thermostat regulates temperature during drying cycles. Common DIY repair.

Dryer not heating or overheating? This high limit thermostat kit prevents overheating by cutting power when temperature exceeds safe levels. DIY repair.

Replacement housing that supports and protects internal components in compatible Whirlpool appliances. Restores structural integrity to the cabinet, helping reduce vibration and keeping wiring and components enclosed for safe, reliable operation. What it does:

• Provides the outer cabinet support that secures motors, controls and wiring
• Protects internal parts from debris and accidental contact
• Helps reduce rattling, vibration and misalignment symptoms caused by cracked or damaged cabinets
• Restores proper fit for panels and fasteners to eliminate rubbing or interference noises

• Disconnect power (and water if applicable) before starting any repair
• Basic hand tools are typically required; keep screws and clips organized during disassembly
• Some housings may require two people to position during replacement—avoid forcing parts to prevent damage
• Fasteners and any sealing gaskets are in good condition and replaced if worn

Lint duct assembly creates a sealed airflow path from drum to blower. Replace if cracked, damaged, or leaking to restore drying efficiency. Verify fit by model.

This replacement burner funnel directs and contains the flame and heat from a gas cooktop burner for proper combustion and more consistent heating. It restores correct burner alignment and helps prevent uneven flames and cooking performance. What it does:

• Positions the burner head and ports to promote even flame pattern and reliable ignition
• Channels heat and combustion upward for stable cooking performance
• Helps contain spills and drips away from internal burner components
• Reduces sputtering or partial flames when damaged or misaligned

• One replacement burner funnel

• Turn off gas supply and electrical power to the appliance before beginning work
• Remove burner cap and burner head; lift old funnel out and set new funnel into place—no special tools typically required
• Do not force the part; ensure proper seating and alignment before reassembling burner components

The Flame Sensor is an OEM replacement part for Whirlpool gas dryers. This component plays a critical safety role by monitoring the presence of the gas burner flame during the drying cycle.

Causes of needing to replace the flame sensor can include normal wear and tear over extended use, exposure to high temperatures or corrosion, or physical damage to the sensor itself.

Symptoms that may indicate a faulty flame sensor include:

• The dryer not heating or producing heat properly
• Error codes related to the gas system or ignition failure
• The dryer shutting off unexpectedly during cycles

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore gas dryer models.

Replacement mounting screw for securing handles, panels, and internal components. Needed when original screws are stripped, lost, or broken during repairs.

Replaces a cracked, broken, or missing dryer drum baffle. Installs inside the drum to lift and tumble clothes during the drying cycle. Easy repair.

This front drum bulkhead is the stationary front panel that supports the dryer drum and seals the drum opening to maintain proper airflow and drum alignment for reliable drying performance. What it does:

• Provides a mounting surface and seal for the front of the dryer drum to help maintain correct drum alignment
• Directs airflow from the drum into the exhaust plenum for consistent drying
• Reduces rubbing and wear on the drum edge and front roller or glide surfaces
• Can help stop visible grinding, scraping or excess vibration when worn or cracked

• One front drum bulkhead

• Turn off power and disconnect the dryer before beginning service
• Handle plastic parts carefully to avoid cracking; check surrounding seals and rollers during replacement
• Some models require removal of the front panel and drum for access; keep fasteners organized for reassembly

Plastic grille that covers and secures the lint screen in your dryer. Replace if cracked, broken, or damaged from regular use or impact.

Stop dryer downtime in its tracks — install the Whirlpool WP3392519 OEM Thermal Fuse in minutes.

OEM Quality Fast 1–2 Day Shipping* Free Tech Help

Why choose this fuse?

• Guaranteed OEM: built by Whirlpool to Whirlpool specs — no risky aftermarket clones.
• Broad compatibility: works with Whirlpool, Kenmore, Maytag, KitchenAid, Roper & more.
• Quick delivery: over 94 % of APP orders arrive in 2 days or less.

Fixes these common dryer problems

4-step DIY installation (≈10 min)

1. Unplug dryer and remove rear panel.
2. Locate thermal fuse on blower housing.
3. Transfer wires; secure new fuse with ¼-inch nut-driver.
4. Clean the vent & lint path before testing to prevent repeat failure.

*Video tutorial below.

Ready to get heat back?
Click Add to Cart now & enjoy industry-leading 1–2 day delivery on

Seals the blower housing to prevent air leaks that reduce drying efficiency. Replace if worn, cracked, or missing to restore optimal airflow.

The Dryer Lint Filter is an OEM replacement part for Whirlpool electric dryers. This essential screen traps lint and debris released from tumbling clothes. Consistent filtration is key for safety and performance. This filter measures approximately 12 1/2 inches wide and 10 1/2 inches deep.

Causes of a clogged lint filter can be an accumulation of lint from regular drying cycles plugging ventilation holes. Neglecting filter cleaning allows fluff to build up rapidly.

Symptoms of a dirty lint filter include:

• Extended drying times as airflow is restricted
• Overheating problems or melted slots in the filter housing
• Risk of dryer or clothing fires from unvented lint buildup

This OEM replacement part is also compatible with Kenmore and Maytag models too, it removes the fire hazard of neglected cleaning.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.
